تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

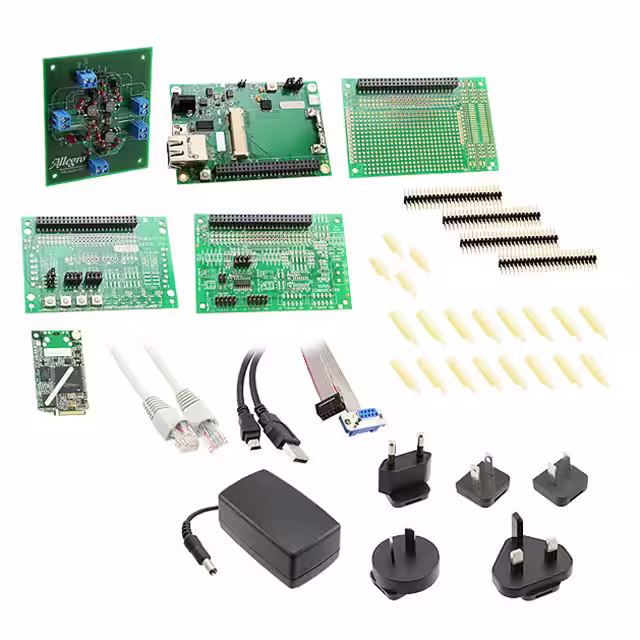

APEK4490EES-01-T-DKEVAL BOARD FOR A4490 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | - | 4.5V ~ 34V | Buck | 550kHz | Board(s), Cable(s), Power Supply | A4490 |
|

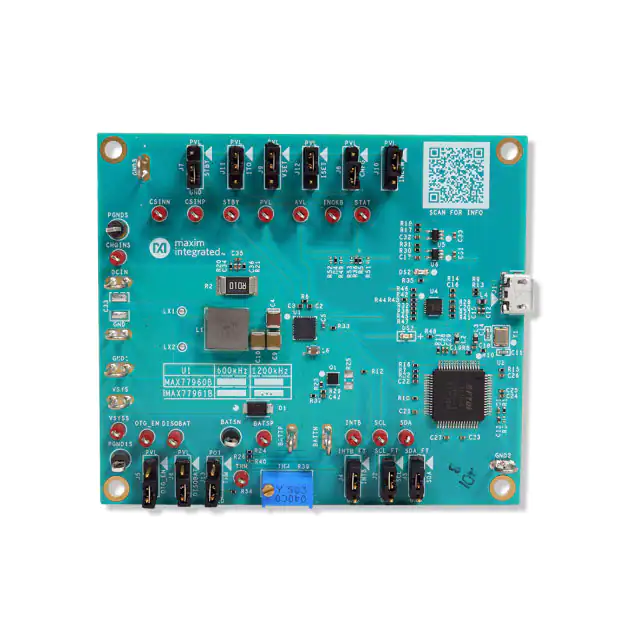

MAX77960BEVKIT12#EVAL BOARD FOR MAX77960B |
0 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, Charger | 1 Non-Isolated Output | - | - | 3A | 3.5V ~ 25.4V | Buck-Boost | 1.2MHz | Board(s) | MAX77960B |
|

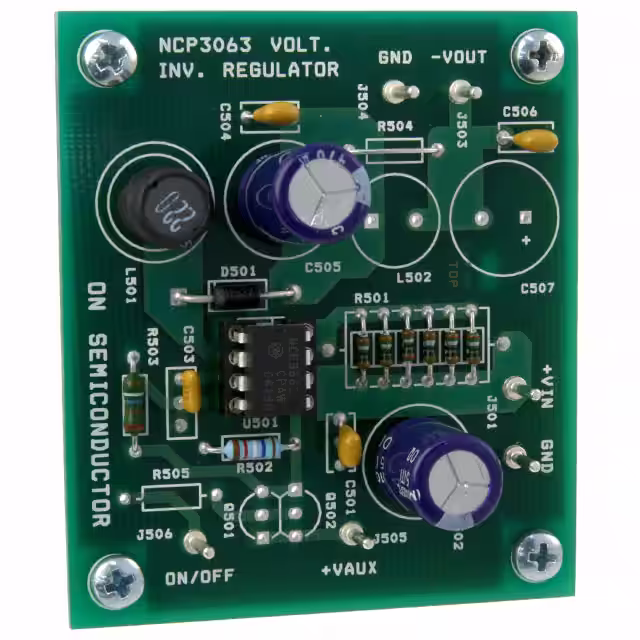

NCP3063DIPINVEVBEVAL BOARD FOR NCP3063 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | - | 4.5V ~ 6V | Inverting | 250kHz | Board(s) | NCP3063 |
|
BM2P161W-EVK-001EVAL BOARD FOR BM2P161W |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 9.9 W | 16.5V | 600mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P161W |
|
NCP1521BEVBEVAL BOARD FOR NCP1521 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 3.3V | 600mA | 3.6V | Buck | 1.5MHz | Board(s) | NCP1521 |
|

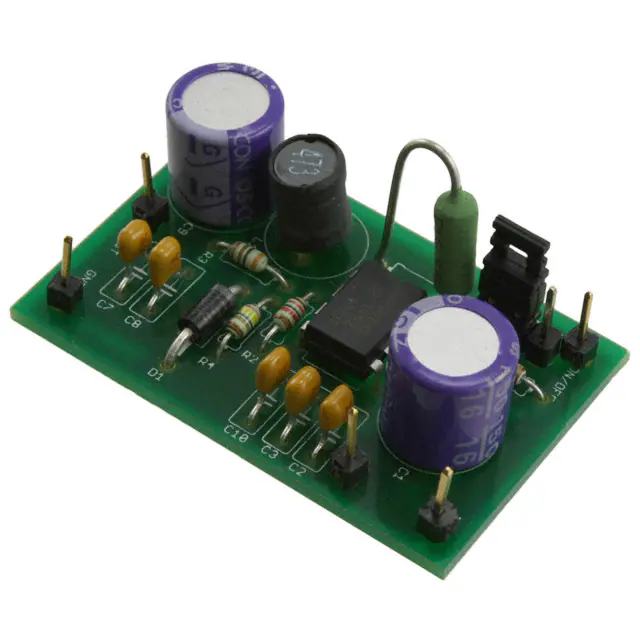

NCP3064PDBCKGEVBEVAL BOARD FOR NCP3064 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 12V | Buck | 150kHz | Board(s) | NCP3064 |
|
DC397AEVAL BOARD FOR LT1930A LT1931A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 3 Non-Isolated Outputs | - | 12V, 12V, -12V | 250mA, 250mA, 250mA | 5V, 12V, 10V ~ 16V | - | 2.2MHz | Board(s) | LT1930A, LT1931A |
|
|
NCP1340GEVBEVAL BOARD FOR NCP1340 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Secondary Side | 1 Non-Isolated Output | - | - | - | 9V ~ 28V | Flyback | - | Board(s) | NCP1340 |
|

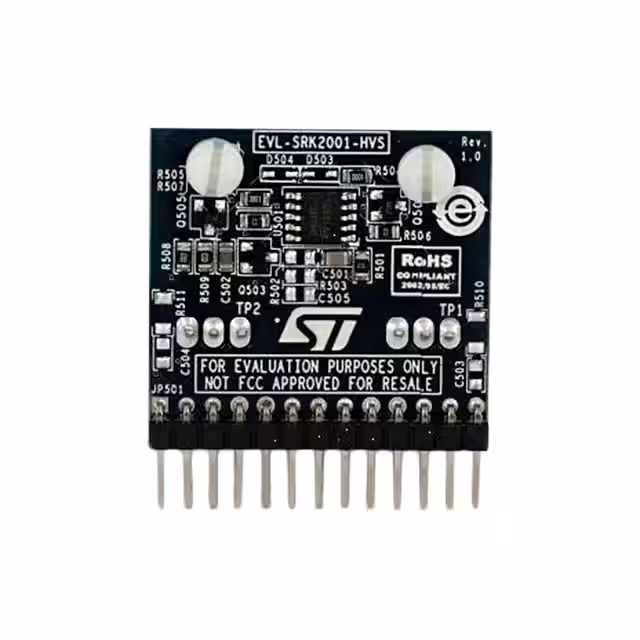

EVL-SRK2001-HVSEVAL BOARD FOR SRK2001 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 12V | Resonant | 500kHz | Board(s) | SRK2001 |
|

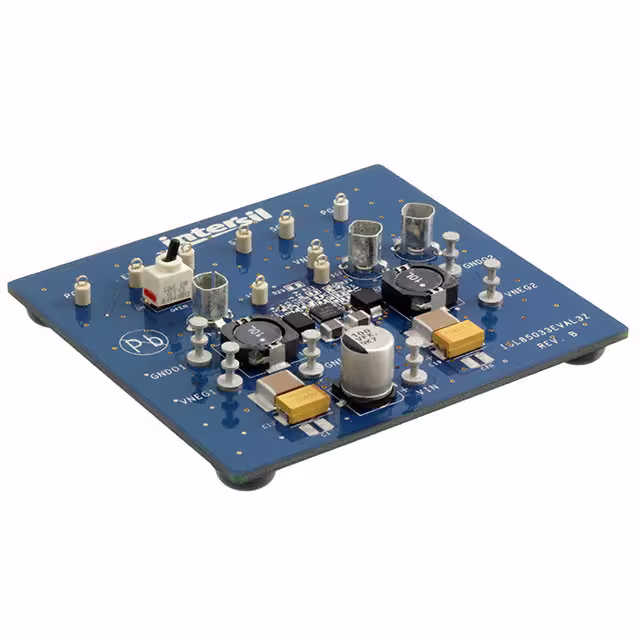

ISL85033-12VEVAL3ZEVAL BOARD FOR ISL85033 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 5A | 4.5V ~ 28V | Buck | 300kHz ~ 2MHz | Board(s) | ISL85033 |
|
SIC464EVBEVAL BOARD FOR SIC464 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.5V ~ 60V | Buck | - | Board(s) | SIC464 |
|

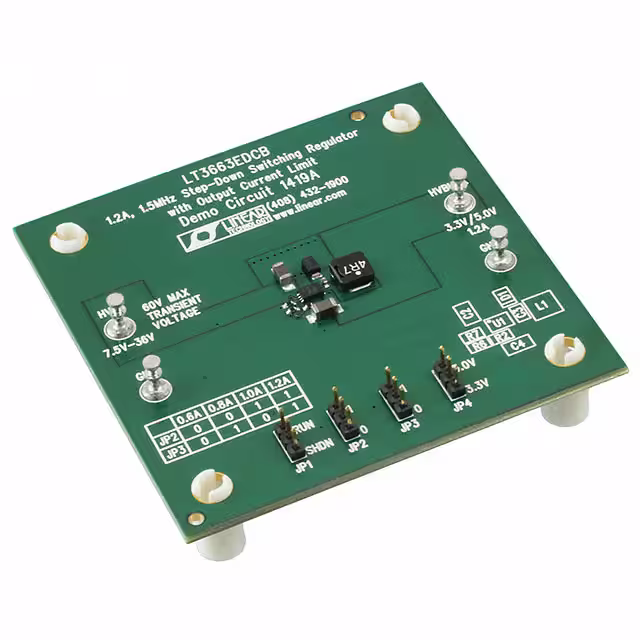

DC1419AEVAL BOARD FOR LT3663 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 7.5V ~ 36V | Buck | 1.5MHz | Board(s) | LT3663 |
|

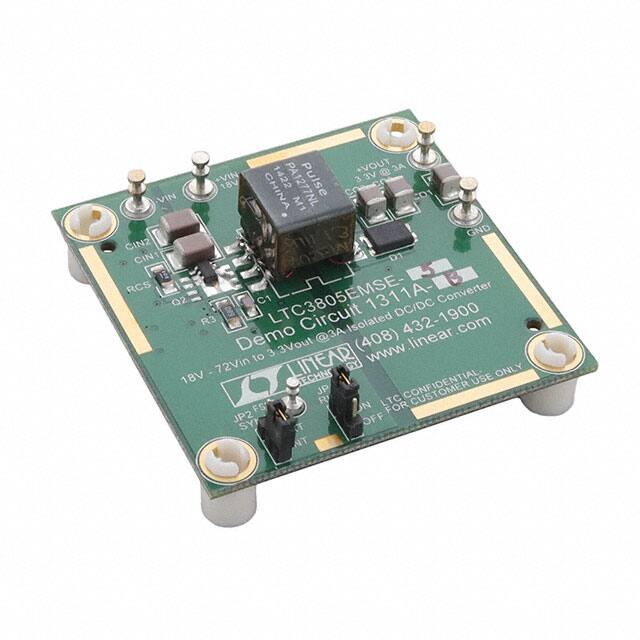

DC1311A-BEVAL BOARD FOR LTC38055 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 3A | 18V ~ 72V | Flyback | 300kHz | Board(s) | LTC3805-5 |
|

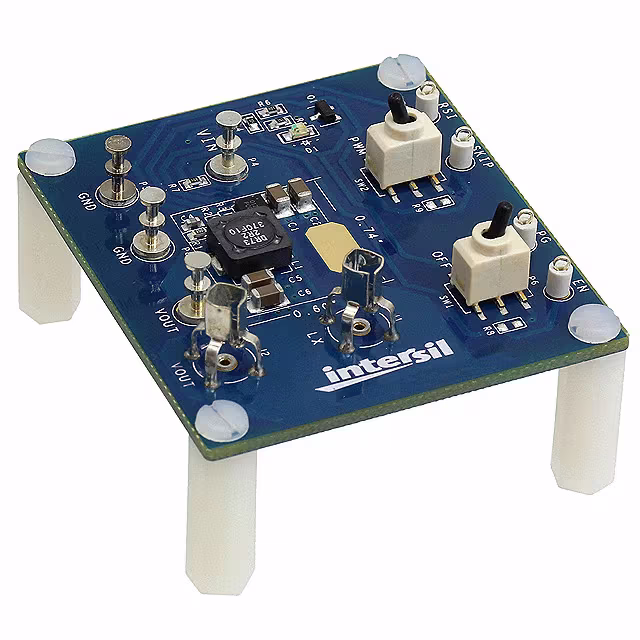

ISL8012EVAL1ZEVAL BOARD FOR ISL8012 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8012 |
|

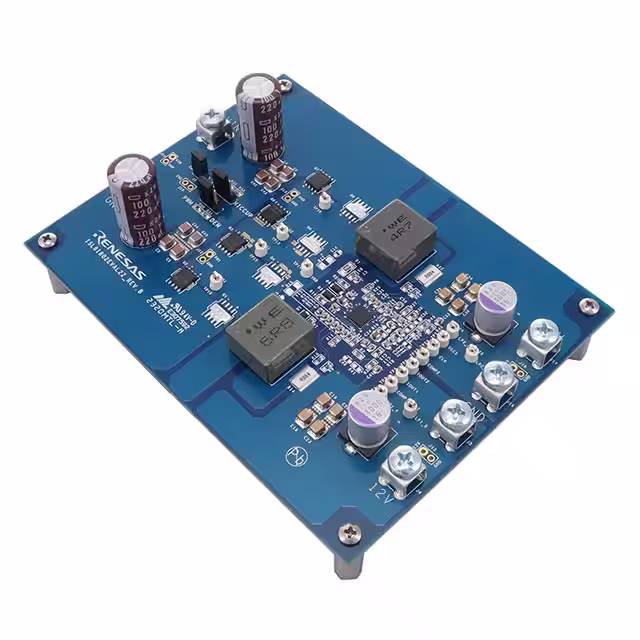

ISL81802EVAL2ZEVAL BOARD FOR ISL81802 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 10A, 10A | 6V ~ 80V, 18V ~ 80V | Buck | 200kHz | Board(s) | ISL81802 |
|

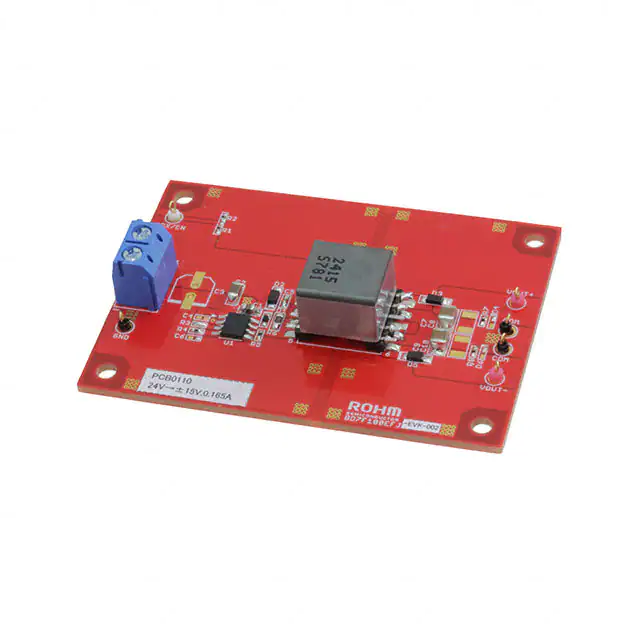

BD7F100EFJ-EVK-002EVAL BOARD FOR BD7F100 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 165mA, 165mA | 24V | Flyback | 400kHz | Board(s) | BD7F100 |
|
BD7F100EFJ-EVK-003EVAL BOARD FOR BD7F100 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 200mA | 5V | Flyback | 400kHz | Board(s) | BD7F100 |
|

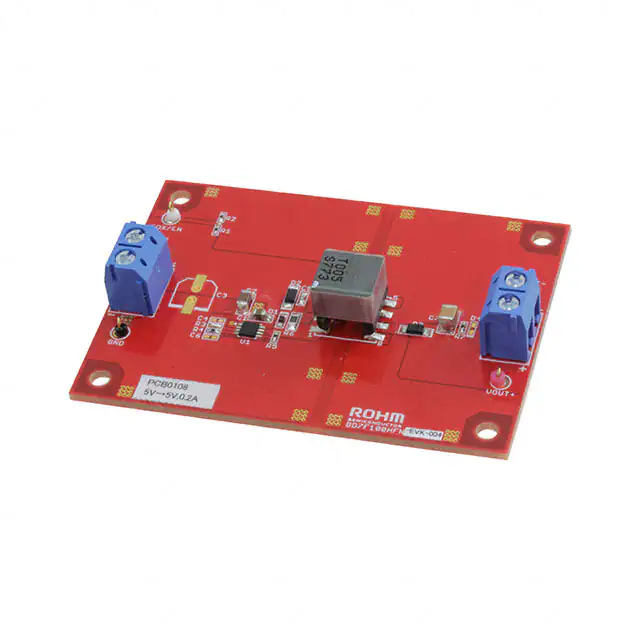

BD7F100HFN-EVK-004EVAL BOARD FOR BD7F100 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 200mA | 5V | Flyback | 400kHz | Board(s) | BD7F100 |
|
|
EVALBIDIHB1EDN7550BTOBO1EVAL BOARD FOR 1EDN7550B |
0 |
|
برگه مشخصات |
EiceDRIVER™, OptiMOS™ | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 50 W | 2V ~ 12V | 4A | 20V ~ 50V | Boost, Buck | - | Board(s) | 1EDN7550B, BSC093N15NS5, XMC1100 |
|

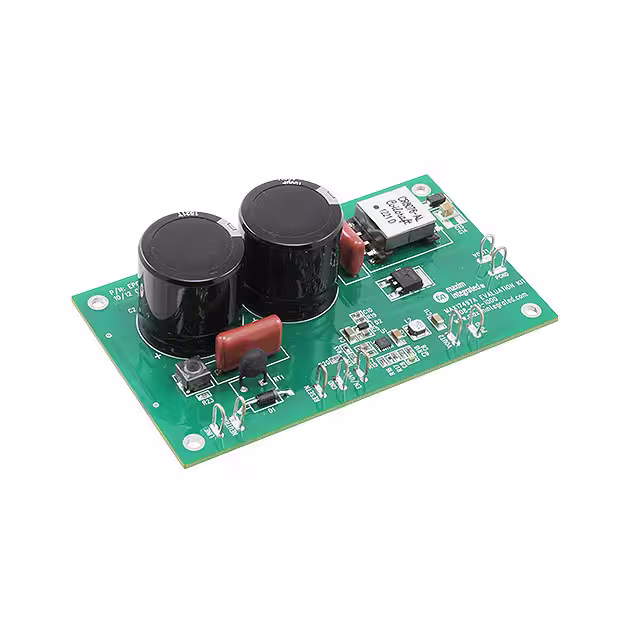

MAX17497AEVKIT#EVAL BOARD FOR MAX17497A |
1 |
|
- |
- | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | - | 3.3V, 12V | 600mA, 300mA | 85 ~ 265 VAC | Flyback | 250kHz | Board(s) | MAX17497A |
