تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

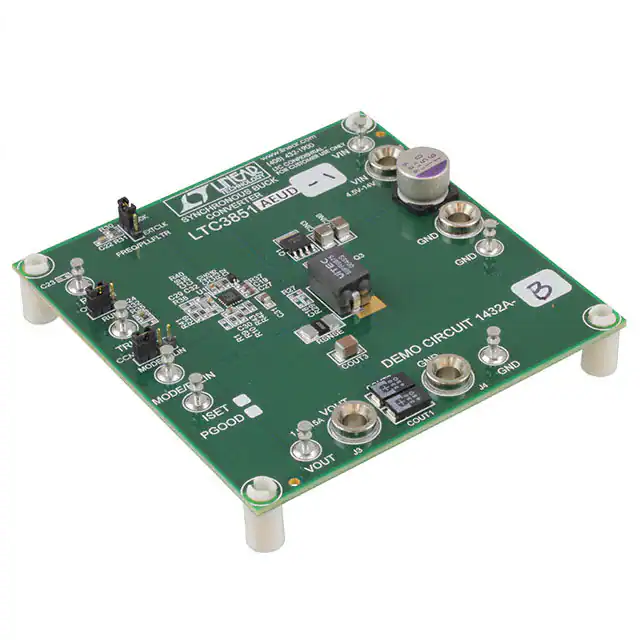

DC1432A-BEVAL BOARD FOR LTC3851A1 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 14V | Buck | 350kHz | Board(s) | LTC3851A-1 |
|

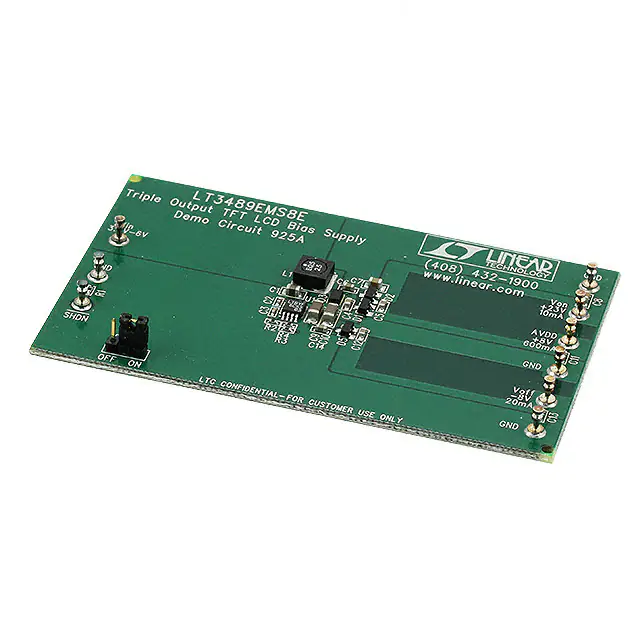

DC925AEVAL BOARD FOR LT3489 |
1 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 8V, 23V, -8V | 600mA, 20mA, 10mA | 3.3V ~ 6V | Boost | 2MHz | Board(s) | LT3489 |
|

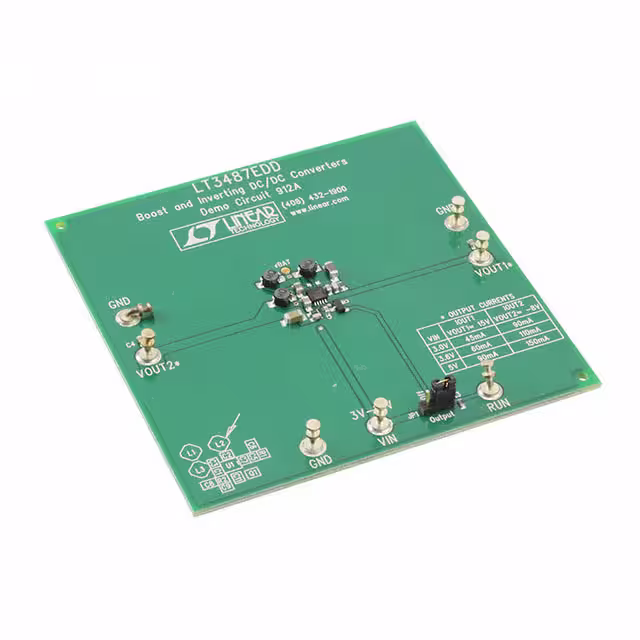

DC912AEVAL BOARD FOR LT3487 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V, -8V | 150mA, 90mA | 3V ~ 5V | Boost, Inverting | - | Board(s) | LT3487 |
|

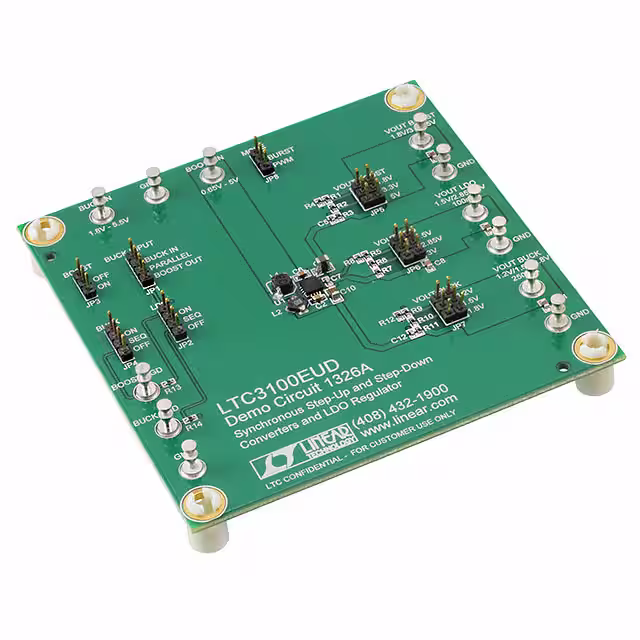

DC1326AEVAL BOARD FOR LTC3100 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | 700mA, 250mA, 100mA | 0.68V ~ 5.5V | Boost, Buck | 1.5MHz | Board(s) | LTC3100 |
|
DC1443AEVAL BOARD FOR LTC3101 |
1 |
|
برگه مشخصات |
PowerPath™ | Box | Active | DC/DC, Step Up or Down with LDO | 6 Non-Isolated Outputs | - | 1.5V, 1.8V, 1.8V, 3.3V, 3.3V, 3.3V | 350mA, 350mA, 300mA, 200mA, 100mA, 50mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3101 |
|
|
UCC28742EVM-001EVAL BOARD FOR UCC28742 |
1 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 5V | 2A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28742 |
|
|
TPS548B23EVMEVAL BOARD FOR TPS548B23 |
0 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 12V | Buck | - | Board(s) | TPS548B23 |
|
|
LM706A0QEVMEVAL BOARD FOR LM706A0Q1 |
1 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 8V ~ 65V | Buck | 400kHz | Board(s) | LM706A0-Q1 |
|
DC702AEVAL BOARD FOR LTC3406B2 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3406B-2 |
|

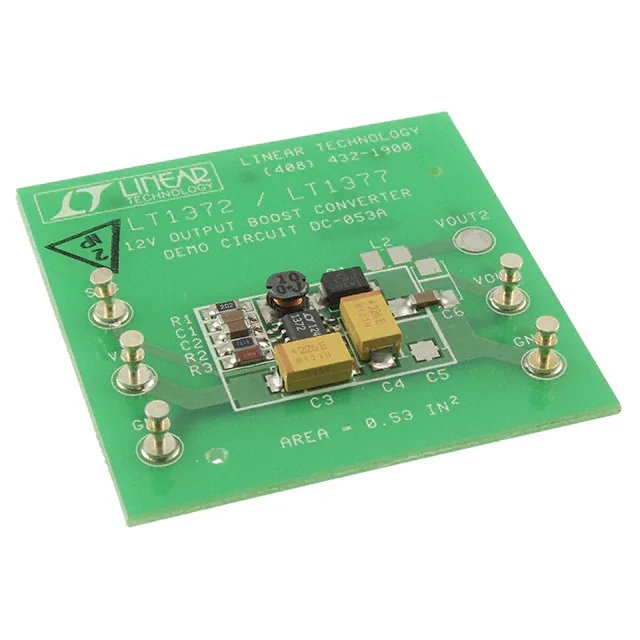

DC053A-AEVAL BOARD FOR LT1372 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 250mA | 2.7V ~ 11V | Boost | 500kHz | Board(s) | LT1372 |
|
|
TPS546D24SEVM-2PHEVAL BOARD FOR TPS546D24S |
0 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 80A | 5V ~ 16V | Buck | 550kHz | Board(s) | TPS546D24S |
|

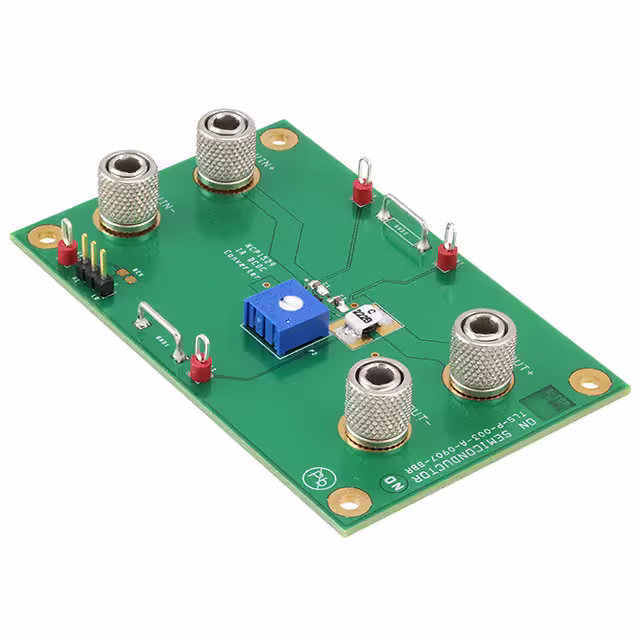

NCP1529ASNT1GEVBEVAL BOARD FOR NCP1529 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 3.9V | 1A | 3.6V | Buck | 1.7MHz | Board(s) | NCP1529 |
|
NCP1060FLBKGEVBEVAL BOARD FOR NCP1060 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | 12V | 600mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | NCP1060 |
|

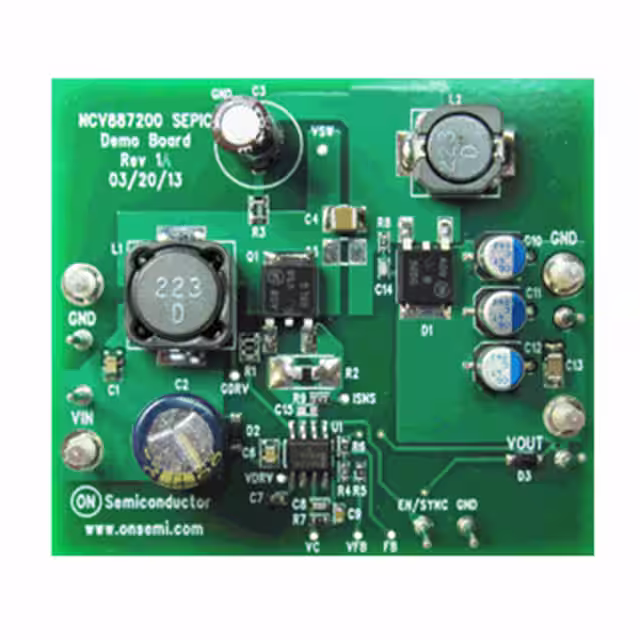

NCV8872SEPGEVBEVAL BOARD FOR NCV887200 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 6V ~ 40V | Boost | 675kHz | Board(s) | NCV887200 |
|
|
LMR36503MSCEEVMEVAL BOARD FOR LMR360503EQ1 |
0 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 300mA | 5.5V ~ 65V | Buck | 2.2MHz | Board(s) | LMR360503E-Q1 |
|
|
LM65680-Q1EVMEVAL BOARD FOR LM65680Q1 |
1 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 6V ~ 70V | Buck | - | Board(s) | LM65680-Q1 |
|

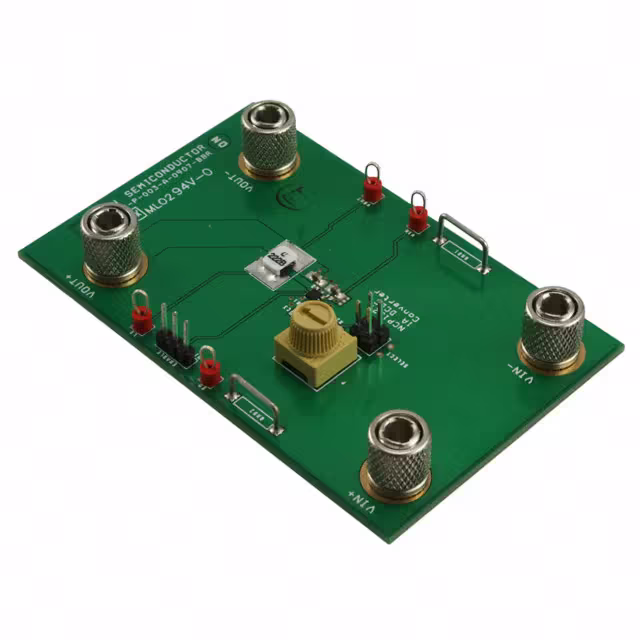

NCP1529MUTBGEVBEVAL BOARD FOR NCP1529 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 3.9V | 1A | 3.6V | Buck | 1.7MHz | Board(s) | NCP1529 |
|
NCV887720BSTGEVBEVAL BOARD FOR NCV887720 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 10V | 2.5A | 3.75V ~ 45V | Boost | 440kHz | Board(s) | NCV887720 |
|
NCV887801BSTGEVBEVAL BOARD FOR NCV887801 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 6.8V | 3.6A | 2.6V ~ 45V | Boost | 450kHz | Board(s) | NCV887801 |
|
|
NCV891330PD50GEVBEVAL BOARD FOR NCV891330 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 36V | Buck | 2MHz | Board(s) | NCV891330 |
