تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EK24108-01EVAL BOARD FOR PE24108 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 1V | 10A | 3V ~ 3.6V | Buck | 800kHz | Board(s) | PE24108 |
|
|
LM5190QEVM-400EVAL BOARD FOR LM5190Q1 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 15V ~ 72V | Buck | 400kHz | Board(s) | LM5190-Q1 |
|

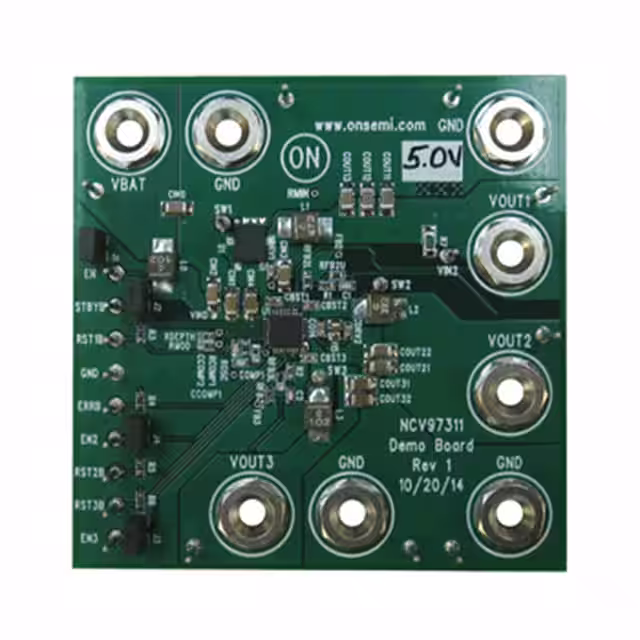

NCV97311MW50GEVBEVAL BOARD FOR NCV97311 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V | 3A, 1.5A, 1.5A | 6V ~ 36V | Buck | 2MHz | Board(s) | NCV97311 |
|
|
NCP3133AGEVBEVAL BOARD FOR NCP3155B |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3A | 2.9V ~ 5.5V | Buck | 1.1MHz | Board(s) | NCP3155B |
|

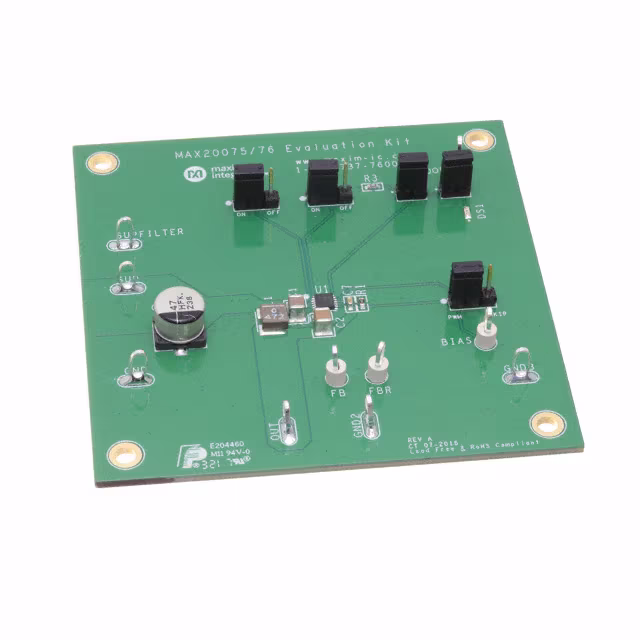

MAX20075EVKIT#EVAL BOARD FOR MAX20075 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 600mA | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX20075 |
|

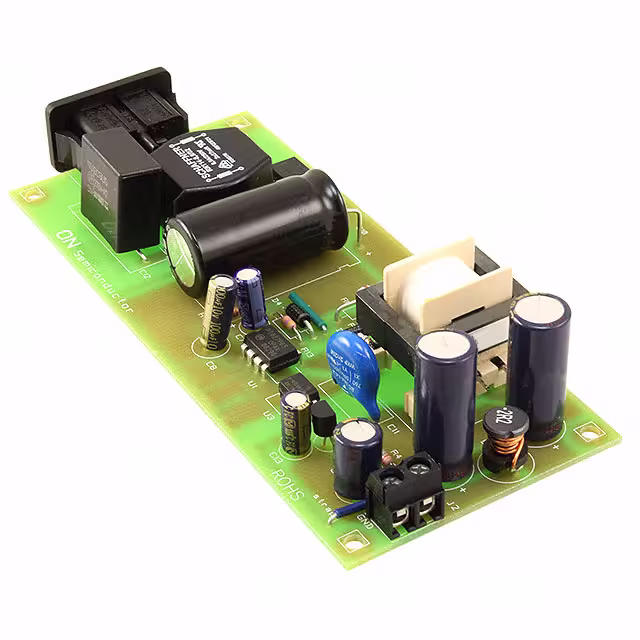

NCP1027ATXGEVBEVAL BOARD FOR NCP1027 |
0 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 10 W | 5V | 2A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | NCP1027 |
|

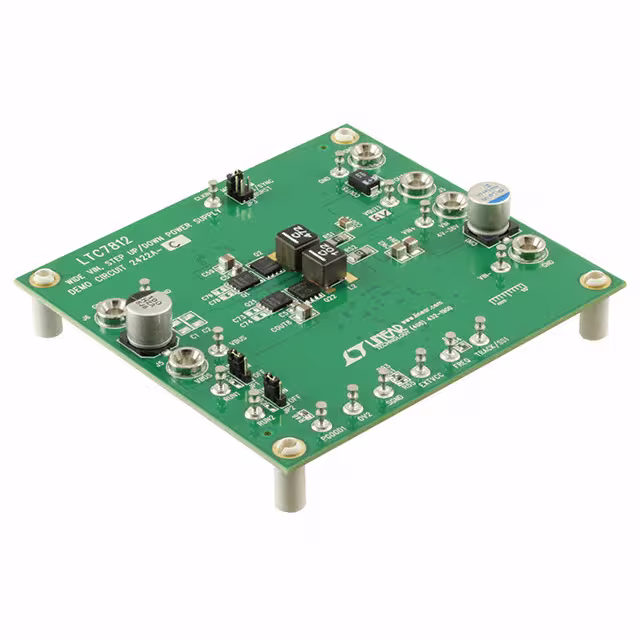

DC2422A-CEVAL BOARD FOR LTC7812 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 8A | 4V ~ 36V | Boost, Buck | - | Board(s) | LTC7812 |
|

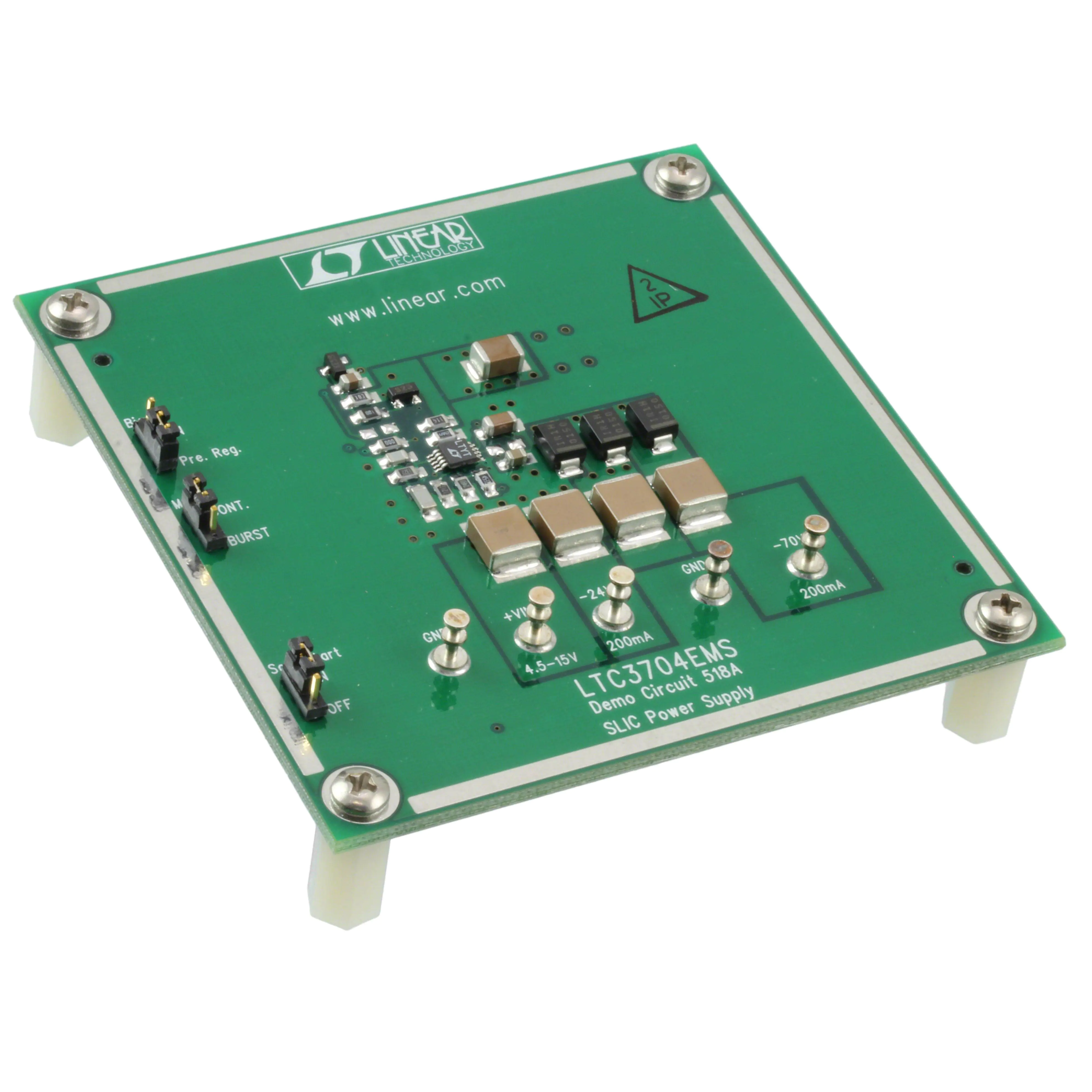

DC518AEVAL BOARD FOR LTC3704 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -24V, -70V | 200mA | 4.5V ~ 15V | Inverting | 200kHz | Board(s) | LTC3704 |
|
|
LMQ644A2QEVM-S2100EVAL BOARD FOR LMQ644A2Q1 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 12A, 12A | 6V ~ 36V | Buck | - | Board(s) | LMQ644A2-Q1 |
|

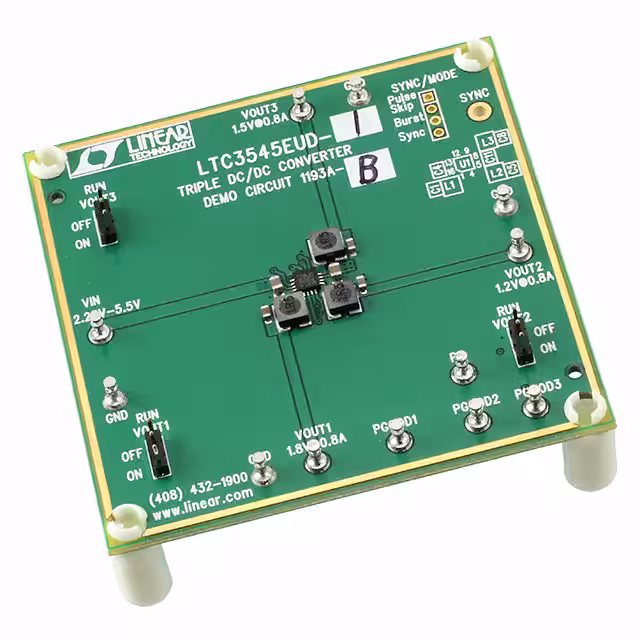

DC1193A-BEVAL BOARD FOR LTC35451 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V | 800mA, 800mA, 800mA | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3545-1 |
|

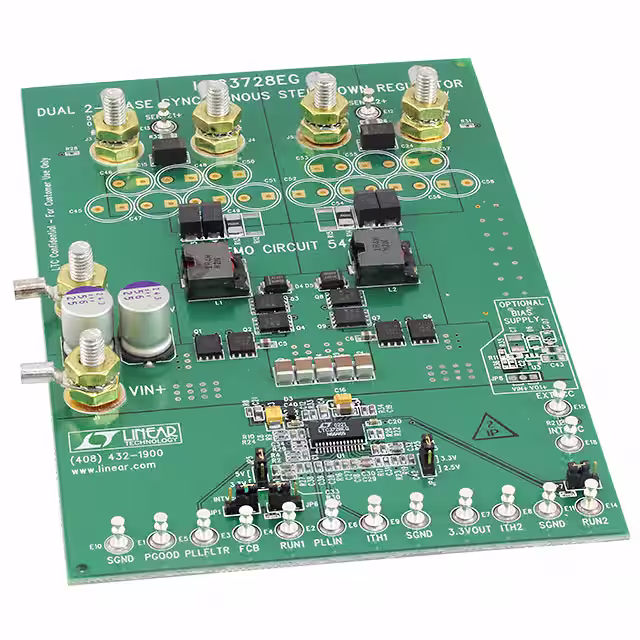

DC542AEVAL BOARD FOR LTC3728 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V or 5V | 12A, 12A | 8V ~ 24V | Buck | - | Board(s) | LTC3728 |
|
|
DC908AEVAL BOARD FOR LTC3773 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V | 15A | 7V ~ 24V | Buck | 220kHz | Board(s) | LTC3773 |
|

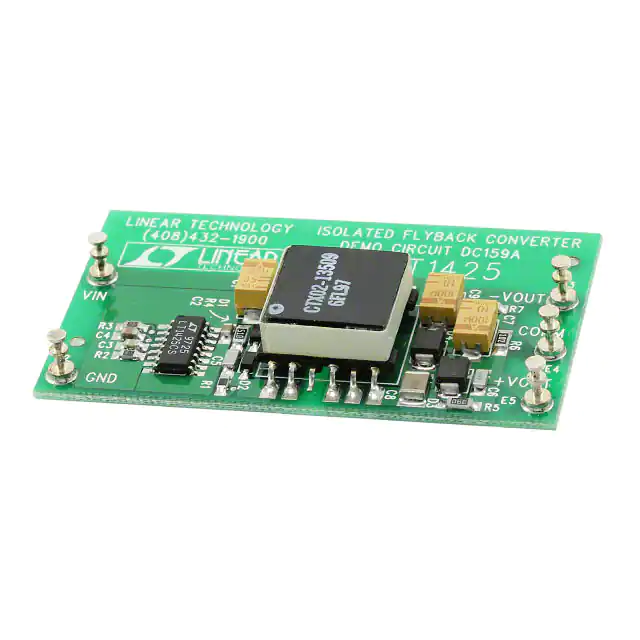

DC159A-AEVAL BOARD FOR LT1425 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 2 Isolated Outputs | - | ±5V | - | 5V ~ 15V | Flyback | - | Board(s) | LT1425 |
|

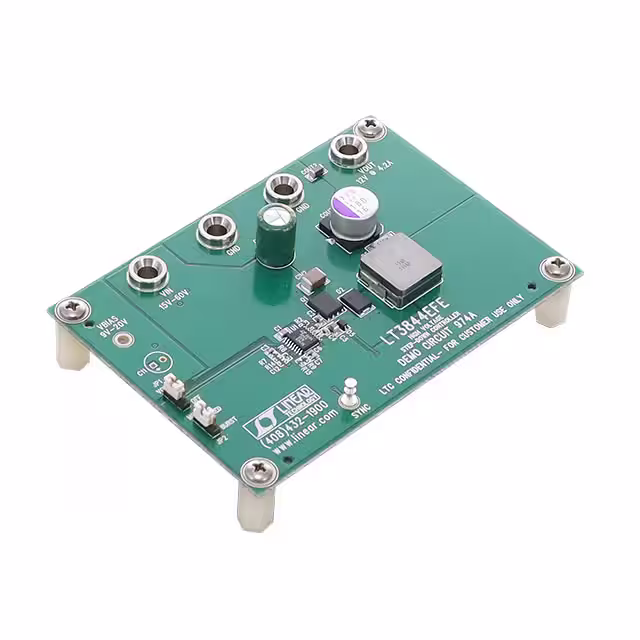

DC974AEVAL BOARD FOR LT3844 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 4.2A | 15V ~ 60V | Buck | 600kHz | Board(s) | LT3844 |
|

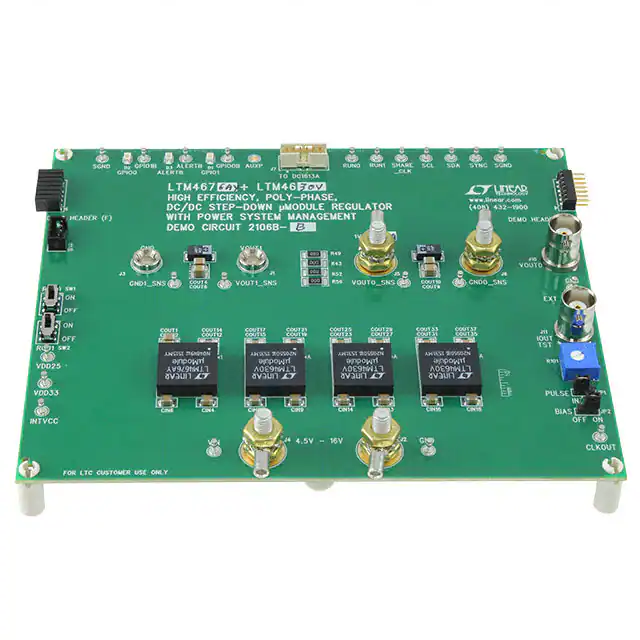

DC2106B-BEVAL BOARD FOR LTM4630 LTM4676A |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 130A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4630, LTM4676A |
|
|
REF60100EDPSTOBO1REF60100EDPSTOBO1 |
1 |
|
برگه مشخصات |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
MAX16425AEVKIT#EVAL BOARD FOR MAX16425A |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 25A | 4.5V ~ 16V | Buck | 1MHz | Board(s) | MAX16425A |
|
|
MAX20810EVKIT#EVAL BOARD FOR MAX20810 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 2.7V ~ 16V | Buck | 500kHz | Board(s) | MAX20810 |
|
|
MAX20830TEVKIT#EVAL BOARD FOR MAX20830T |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 5.8V | 30A | 2.7V ~ 16V | Buck | 500kHz | Board(s) | MAX20830T |
|
|
MAX20830EVKIT#EVAL BOARD FOR MAX20830 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 5.8V | 30A | 2.7V ~ 16V | Buck | 500kHz | Board(s) | MAX20830 |
