تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC645AEVAL BOARD FOR LTC3408 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 3.5V | 600mA | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3408 |
|

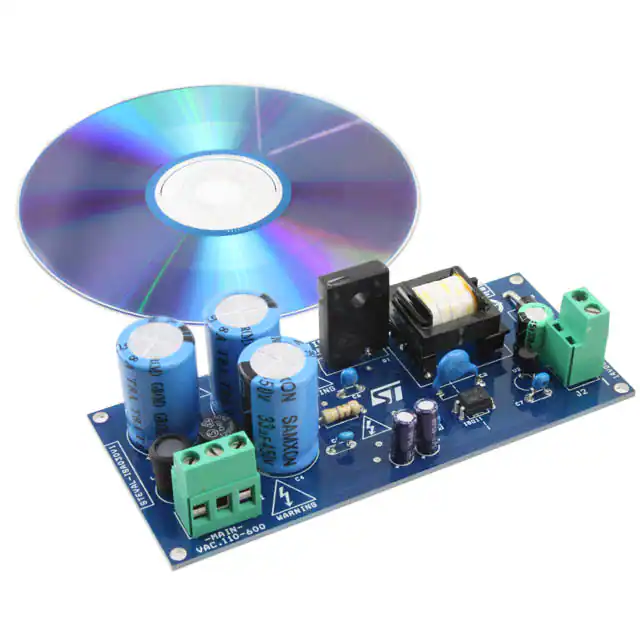

STEVAL-ISA030V1EVAL BOARD L6565 STC04IE170HP |
0 |
|
برگه مشخصات |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 6 W | 14V | 430mA | 180 ~ 240 VAC | Flyback | - | Board(s) | L6565, STC04IE170HP |
|
|
MAX15058EVKIT+EVAL BOARD FOR MAX15058 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 5.4 W | 1.8V | 3A | 2.8V ~ 5.5V | Buck | 1MHz | Board(s) | MAX15058 |
|

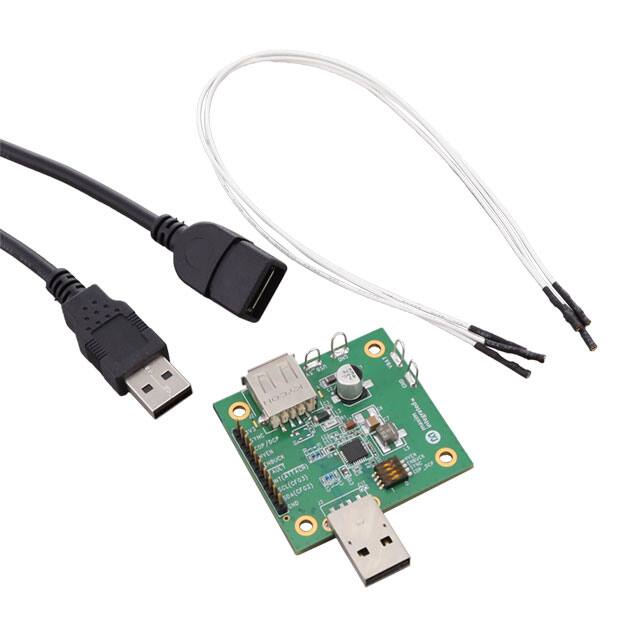

MAX20038EVKIT#EVAL BOARD FOR MAX20038 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 28V | Buck | - | Board(s) | MAX20038 |
|

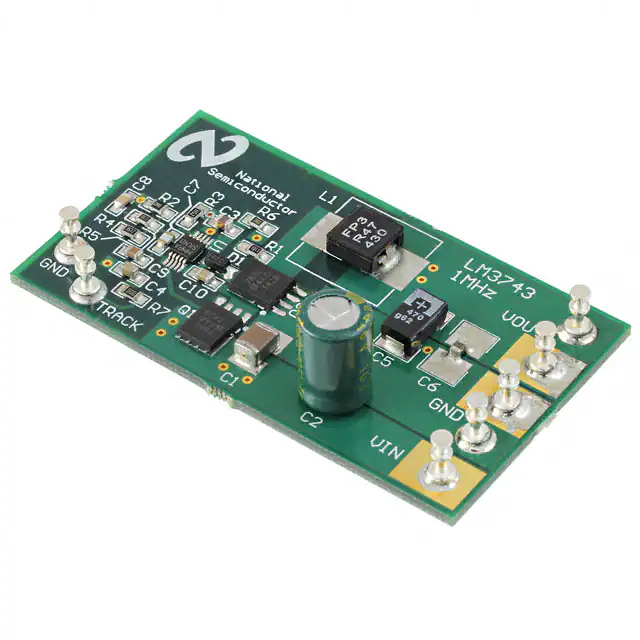

LM3743-1000EVALEVAL BOARD FOR LM3743 |
1 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 9A | 3V ~ 5.5V | Buck | 1MHz | Board(s) | LM3743 |
|
|
MAX629EVKITEVAL BOARD FOR MAX629 |
0 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | ±0.8V ~ 28V | 500mA | 0.8V ~ 28V | Buck-Boost | 300kHz | Board(s) | MAX629 |
|

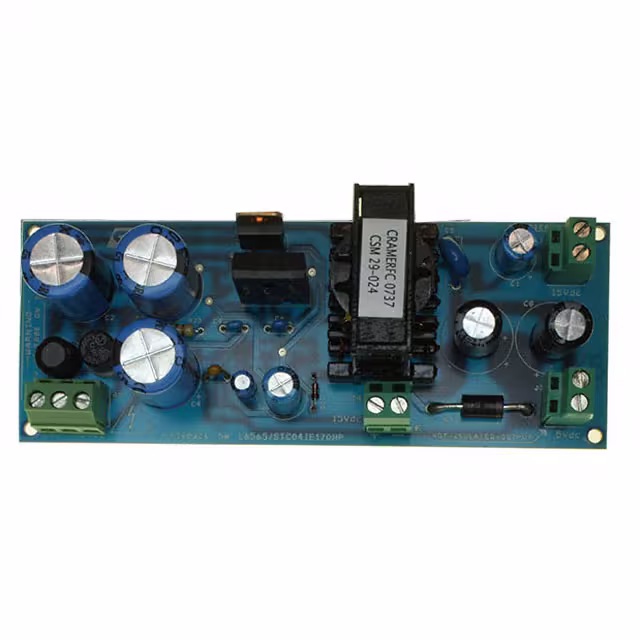

STEVAL-ISA036V1EVAL BOARD L6565 STC04IE170HP |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output, 2 Non-Isolated Outputs | 5 W | 5V, 15V, 15V | 600mA, 66mA, 66mA | 200V ~ 1200V | Flyback | - | Board(s) | L6565, STC04IE170HP |
|

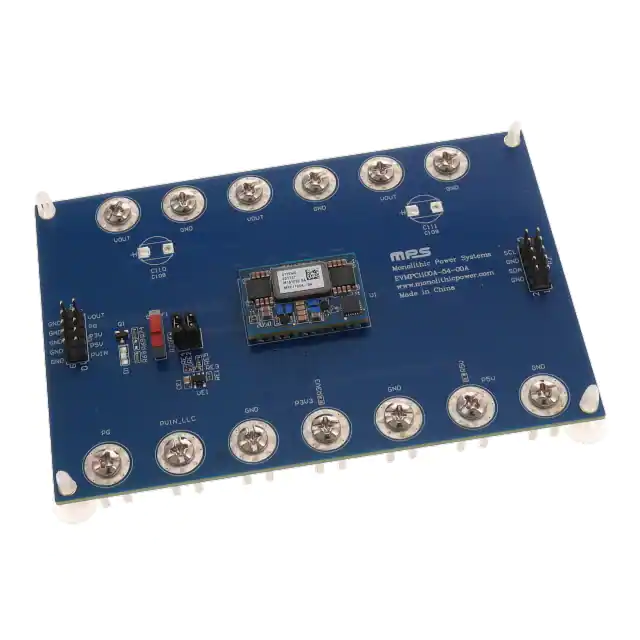

EVMPC1100A-54-00AEVAL BOARD FOR MPC1100A540000 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC Converter | 1 Non-Isolated Output | - | 4V ~ 6V | 60A | 40V ~ 60V | - | 813kHz | Board(s) | MPC1100A-54-0000 |
|
|
APEK8660KES-01-MH-10-410KHZEVAL BOARD |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
IW1830-EVAL1EVAL BOARD FOR IW183000 |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | Flyback | 72kHz | Board(s) | iW1830-00 |
|
|
EVAL_UJT060A0X43-SRPZ (SINGLE)EVALUATION BOARD |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
IL3685P-ILDC11-01EVAL BOARD FOR IL3685P ILDC11 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V | - | 3.3V | Boost | - | Board(s) | IL3685P, ILDC11 |
|
|
IL2985-ILDC11-01EVAL BOARD FOR IL2985 ILDC11 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V | - | 3.3V | Boost | - | Board(s) | IL2985, ILDC11 |
|
|
RTKA212831DR0000BUEVAL BOARD FOR RAA212831 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 3.3V, 5V, 6V ~ 12V | 500mA, 100mA, 50mA | 4.5V ~ 72V | Buck | 350kHz | Board(s) | RAA212831 |
|
|
APEK8653KLP-01-TEVAL BOARD FOR A8653 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2.6A | 4V ~ 36V | Buck | - | Board(s) | A8653 |
|
|
APEK8654KLP-01-MHEVAL BOARD FOR A8654 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 3A | 4V ~ 36V | Buck | - | Board(s) | A8654 |
|

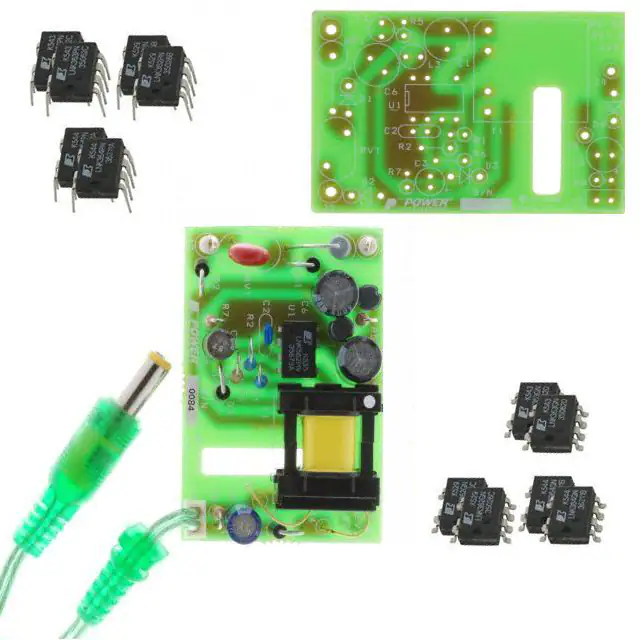

RDK-83EVAL BOARD LNK562 LNK563 LNK564 |
0 |
|
برگه مشخصات |
LinkSwitch®-LP | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 1.6 W | 7.7V | 210mA | 85 ~ 265 VAC | Flyback | 66kHz | Board(s), Accessories | LNK562, LNK563, LNK564 |
|

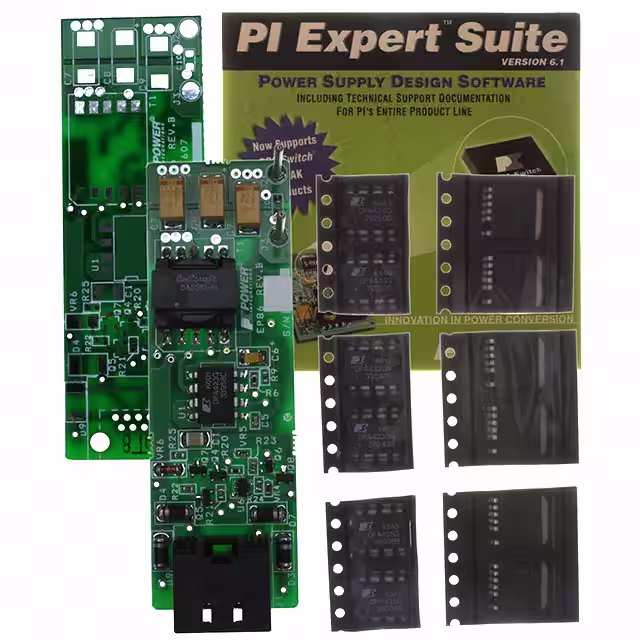

DAK-86EVAL BOARD DPA423 DPA424 DPA425 |
0 |
|
برگه مشخصات |
DPA-Switch® | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 6.6 W | 3.3V | 2A | 33V ~ 57V | Flyback | 400kHz | Board(s) | DPA423, DPA424, DPA425 |
|

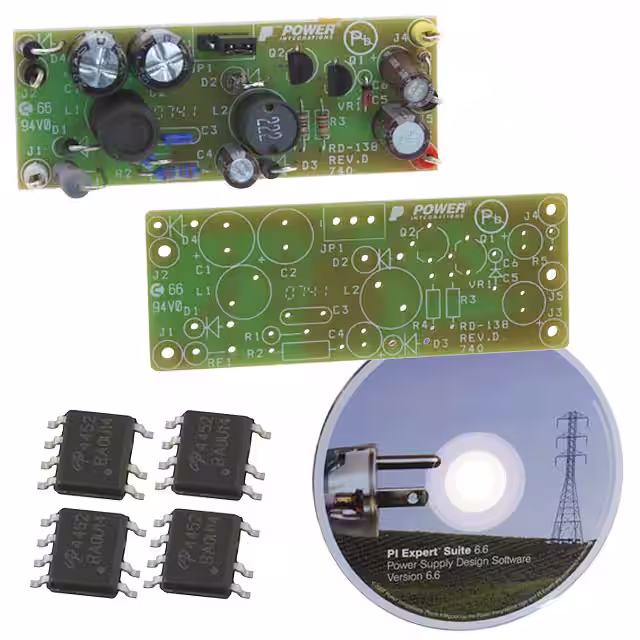

RDK-138EVAL BOARD FOR LNK304 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 1.2 W | 5V, 12V | 80mA, 50mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK304 |
|
DC1519AEVAL BOARD FOR LT3695 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.9V ~ 36V | Buck | 800kHz | Board(s) | LT3695 |
