تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5037EVAL/NOPBEVAL BOARD FOR LM5037 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 10A | 36V ~ 72V | Buck | 300kHz | Board(s) | LM5037 |
|
|
ISL91108IIN-EVZEVAL BOARD FOR ISL91108 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91108 |
|
|
ISL91108IINR-EVZEVAL BOARD FOR ISL91108 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91108 |
|

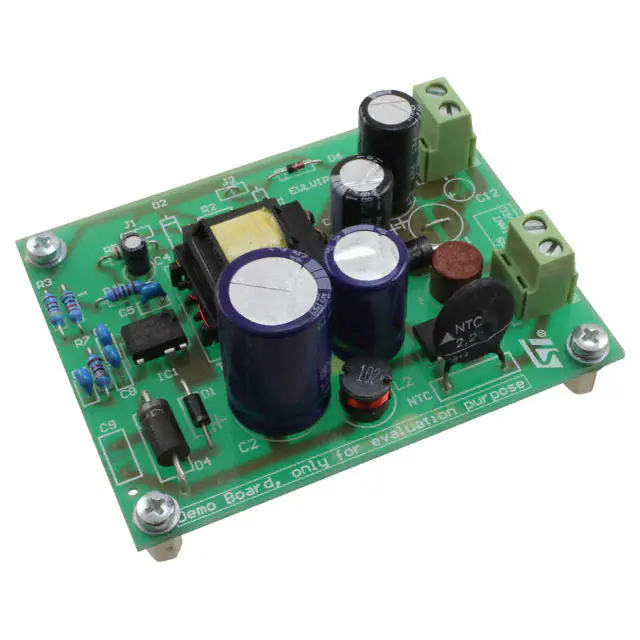

STEVAL-ISA111V1EVAL BOARD FOR VIPER26 |
0 |
|
برگه مشخصات |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 12 W | 12V | 1A | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer26 |
|
STEVAL-PSQ001V1EVAL BOARD FOR PM6680A |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | - | 4A, 2A, 800mA, 400mA, 400mA, 150mA | 5V ~ 36V | Buck | 200kHz, 300kHz | Board(s) | PM6680A |
|

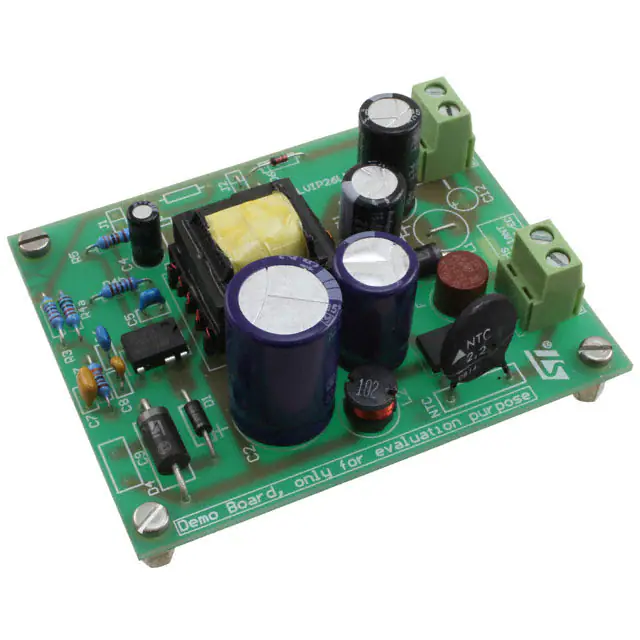

STEVAL-ISA110V1EVAL BOARD FOR VIPER26 |
0 |
|
برگه مشخصات |
VIPer™ plus | Box | Obsolete | AC/DC, Primary Side | 1 Non-Isolated Output | 12 W | 12V | 1A | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer26 |
|
|
ISL8033AEVAL1ZEVAL BOARD FOR ISL8033A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 2.85V ~ 6V | Buck | 2.5MHz | Board(s) | ISL8033A |
|

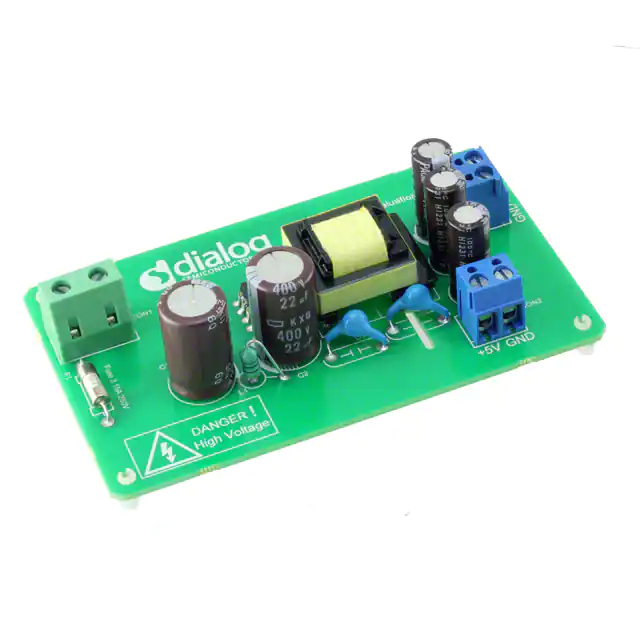

IW1830-EVALEVAL BOARD FOR IW183000 |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 2 Isolated Outputs | 15 W | 5V, 12V | 1A, 500mA | 90 ~ 264 VAC | Flyback | 72kHz | Board(s) | iW1830-00 |
|

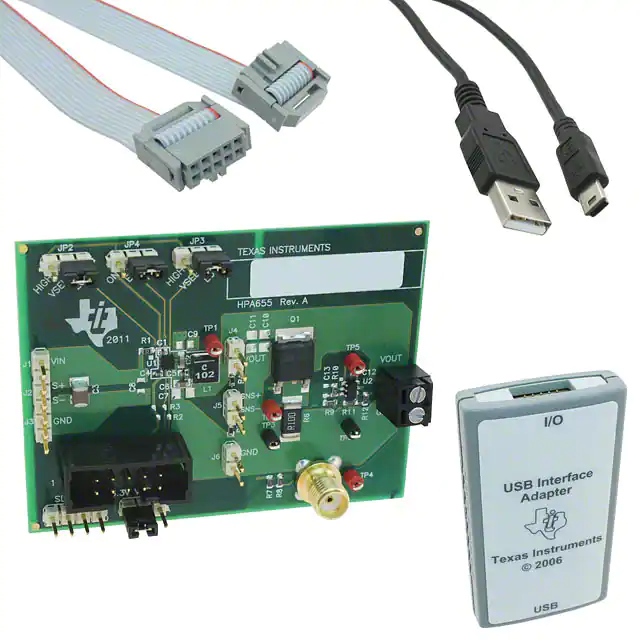

TPS62360EVM-655EVAL BOARD FOR TPS62360 |
1 |
|
برگه مشخصات |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.77V ~ 1.4V | 3A | 2.5V ~ 5.5V | Buck | 2.5MHz | Board(s) | TPS62360 |
|
|
MAX15023EVKIT+EVAL BOARD FOR MAX15023 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 10A, 5A | 9V ~ 16V | Buck | 500kHz | Board(s) | MAX15023 |
|
|
ISL8117ADEMO4ZEVAL BOARD FOR ISL8117A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 6.5V ~ 42V | Buck-Boost | 200kHz | Board(s) | ISL8117A |
|
|
RTKA808015DE0000BUEVAL BOARD FOR RAA808015A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 6 W | 1.2V | 5A | 2.7V ~ 5.5V | Buck | 1.8MHz | Board(s) | RAA808015A |
|
|
RTKA808013DE0000BUEVAL BOARD FOR RAA808013 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | RAA808013 |
|

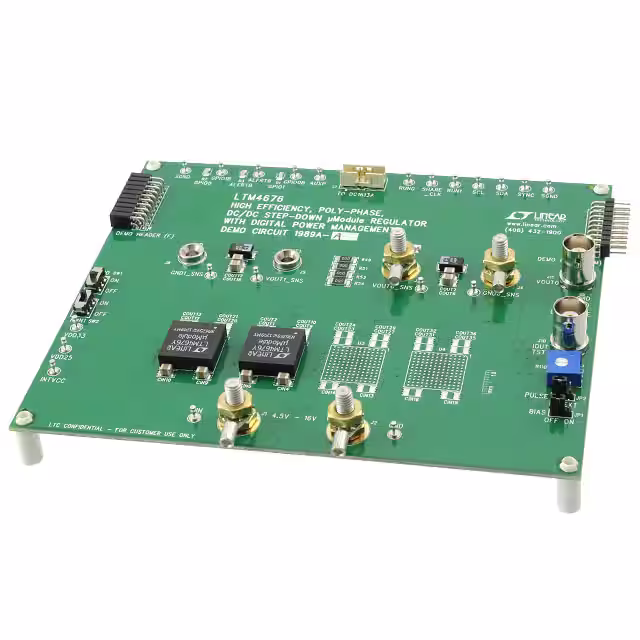

DC1989A-AEVAL BOARD FOR LTM4676 |
0 |
|
برگه مشخصات |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4676 |
|
|
UCC3889EVMEVAL BOARD FOR TPS77401 UCC3889 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | AC/DC, Primary Side | 2 Non-Isolated Outputs | 1.125 W | 5V, 15V | 120mA, 35mA | 85 ~ 265 VAC | Flyback | - | Board(s) | TPS77401, UCC3889 |
|

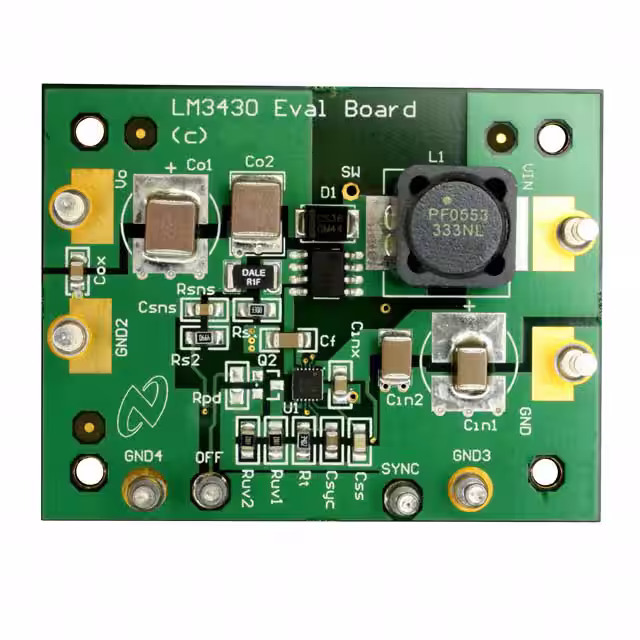

LM3430EVAL/NOPBEVAL BOARD FOR LM3430 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 700mA | 6V ~ 40V | Boost | 600kHz | Board(s) | LM3430 |
|
|
LM5115DC EVALEVAL BOARD FOR LM5115 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 7V ~ 70V | Buck | 215kHz | Board(s) | LM5115 |
|
|
IL4622-01EVAL BOARD FOR IL4622 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V | - | 3.3V | Boost | - | Board(s) | IL4622 |
|
|
TPS5210EVM-126EVAL BOARD FOR TPS5210 |
0 |
|
برگه مشخصات |
- | - | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.3V ~ 3.5V | 45A | 4.5V ~ 13V | Buck | 125kHz | Board(s) | TPS5210 |
|
|
TL5002EVM-180EVAL BOARD FOR TL5002 |
0 |
|
برگه مشخصات |
- | - | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 1.5V | 12A | 3.6V ~ 15V | Buck | 400kHz | Board(s) | TL5002 |
