تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

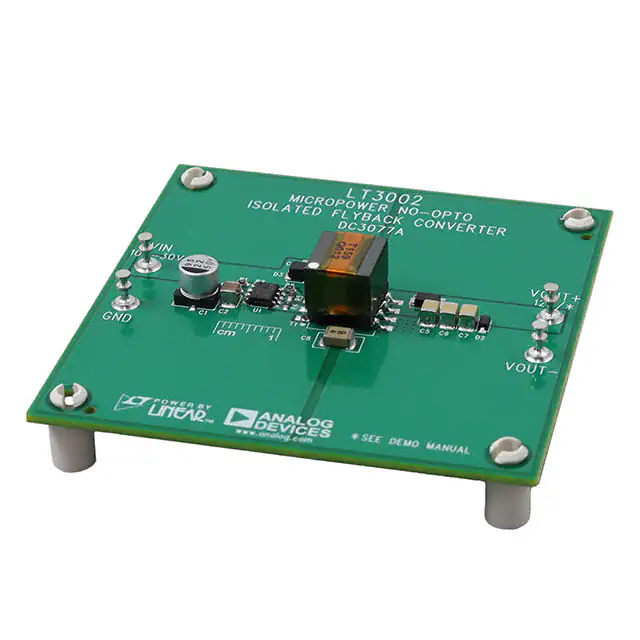

DC3077AEVAL BOARD FOR LT3002 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 1.1A | 10V ~ 30V | Flyback | - | Board(s) | LT3002 |
|

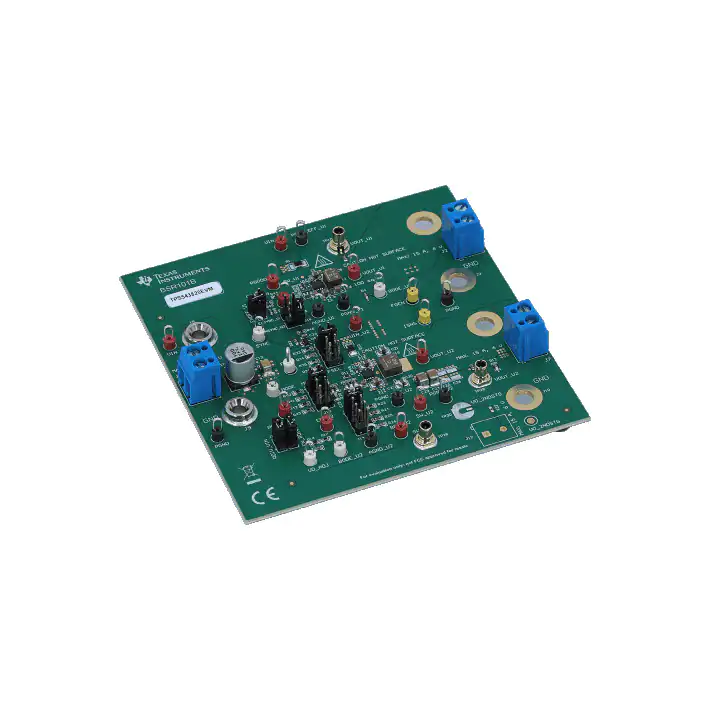

TPS543820EVMEVAL BOARD FOR TPS543820 |
4 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 7V | 8A | 4V ~ 18V | Buck | - | Board(s) | TPS543820 |
|

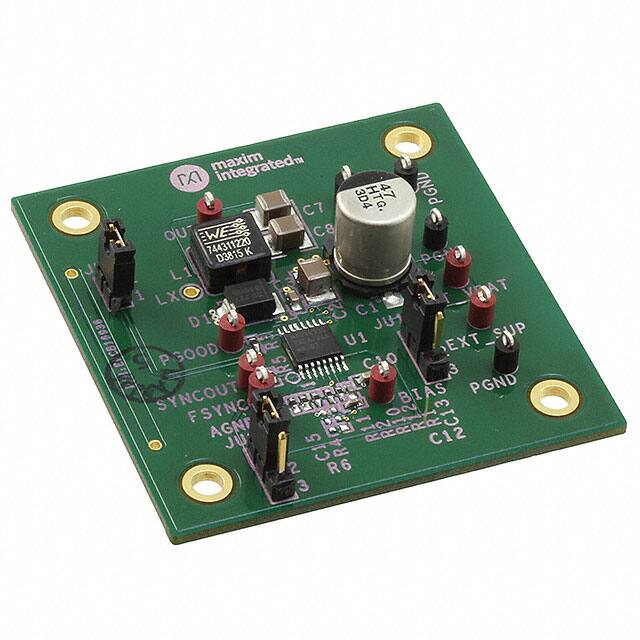

MAX16936EVKIT#EVAL BOARD FOR MAX16936 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 10V | 2.5A | 3.5V ~ 36V | Buck | 220kHz ~ 2.2MHz | Board(s) | MAX16936 |
|
SI3404FB12V3KITEVAL BOARD FOR SI3404 |
2 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 15 W | 12V | 1A | 37V ~ 57V | Flyback | 220kHz | Board(s) | Si3404 |
|

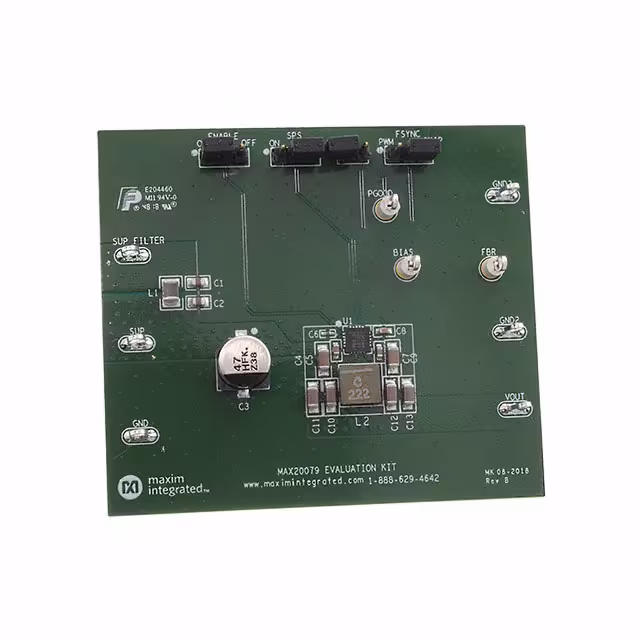

MAX20079EVKIT#EVAL BOARD FOR MAX20079 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX20079 |
|
MYC0409-NA-EVMEVAL BOARD FOR MYC0409NA |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 72 W | 12V | 6A | 20V ~ 60V | Buck | 270kHz | Board(s) | MYC0409-NA |
|
ADP1031CP-3-EVALZEVAL BOARD FOR ADP10313 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 3 Isolated Outputs | - | 3.3V, 24V, -15V | - | 4.5V ~ 60V | Flyback | - | Board(s) | ADP1031-3 |
|

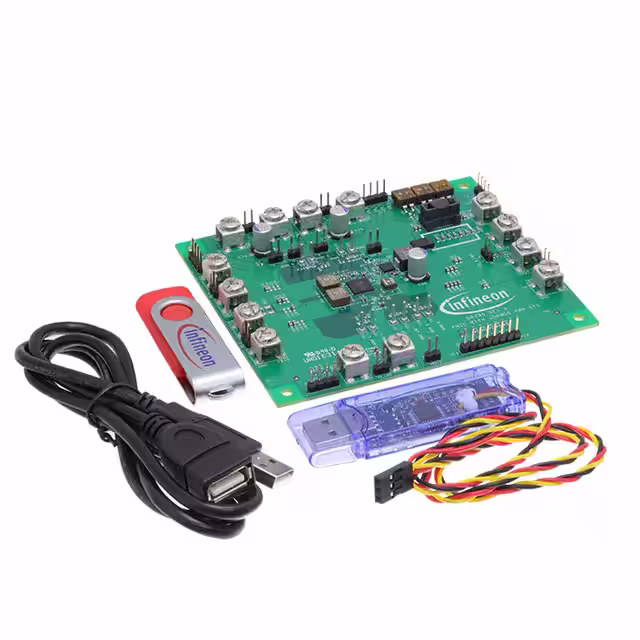

EVALPS540125ATOBO1EVAL BOARD FOR IRPS5401 |
13 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 5 Non-Isolated Outputs | - | 0.25V ~ 5.1V | 4A, 4A, 2A, 2A, 500mA | 6V ~ 12V | Buck | - | Board(s) | IRPS5401 |
|
|
DC2711AEVAL BOARD FOR LT8608S |
10 |
|
برگه مشخصات |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8608S |
|

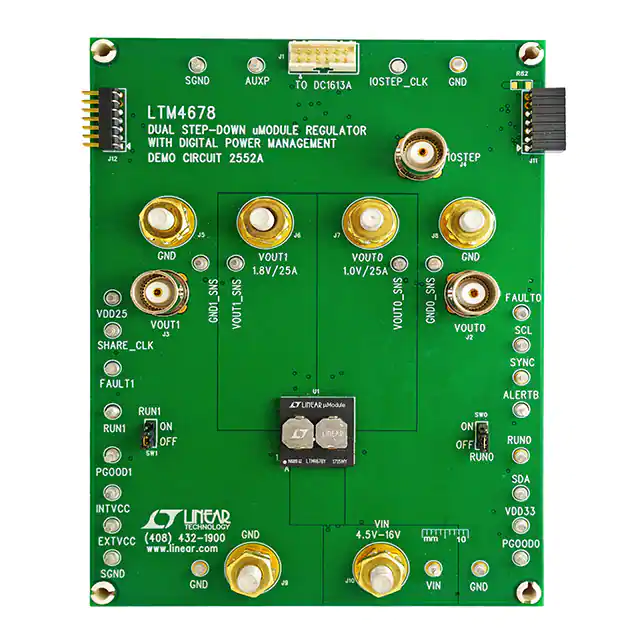

DC2552AEVAL BOARD FOR LTM4678 |
6 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 25A, 25A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4678 |
|

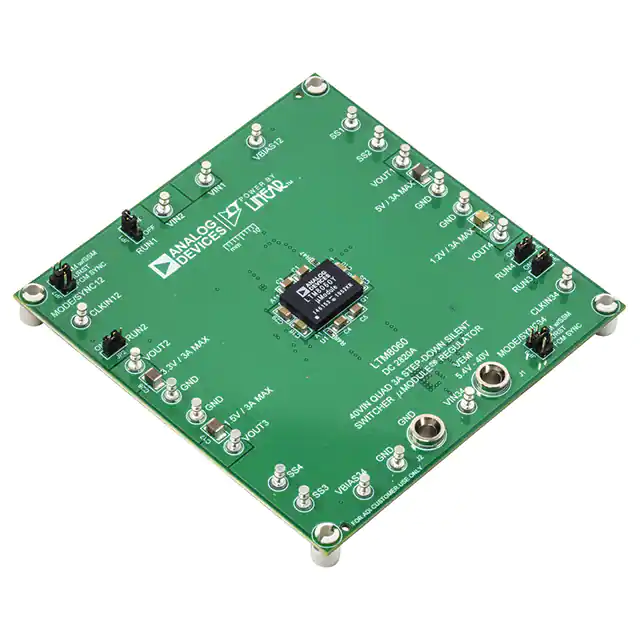

DC2820AEVAL BOARD FOR LTM8060 |
15 |
|
برگه مشخصات |
Silent Switcher®, µModule® | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 3.3, 5V | 3A, 3A, 3A, 3A | 5.4V ~ 40V | Buck | - | Board(s) | LTM8060 |
|

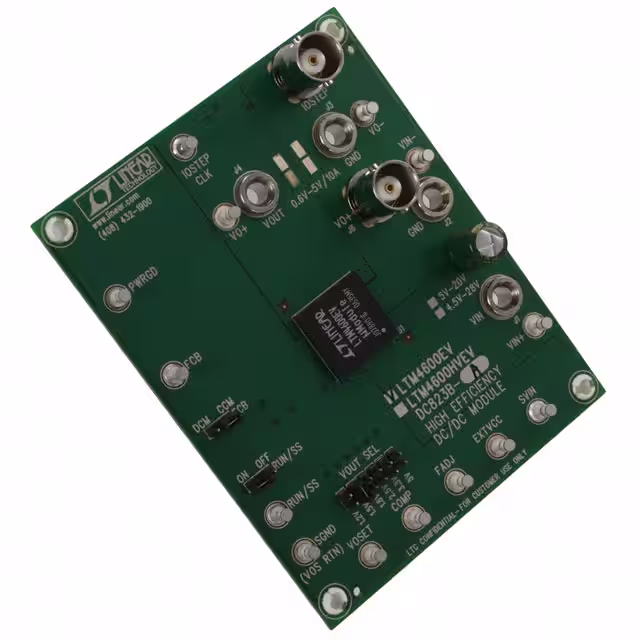

DC823B-AEVAL BOARD FOR LTM4600 |
7 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 10A | 4.5V ~ 20V | Buck | 1.35MHz | Board(s) | LTM4600 |
|

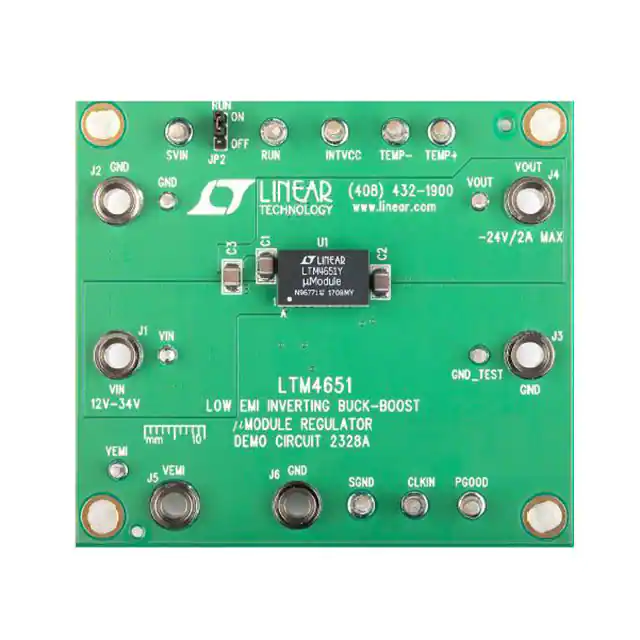

DC2328AEVAL BOARD FOR LTM4651 |
7 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -24V | 2A | 12V ~ 34V | Inverting | 1.2MHz | Board(s) | LTM4651 |
|

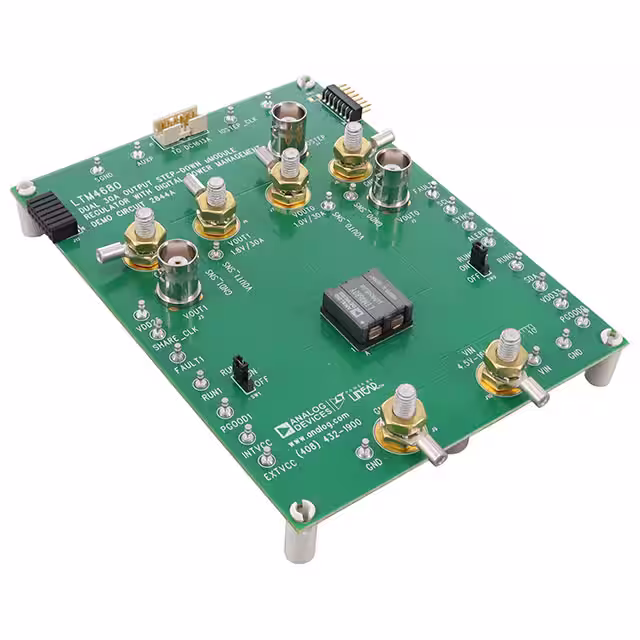

DC2844AEVAL BOARD FOR LTM4680 |
7 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 30A, 30A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4680 |
|

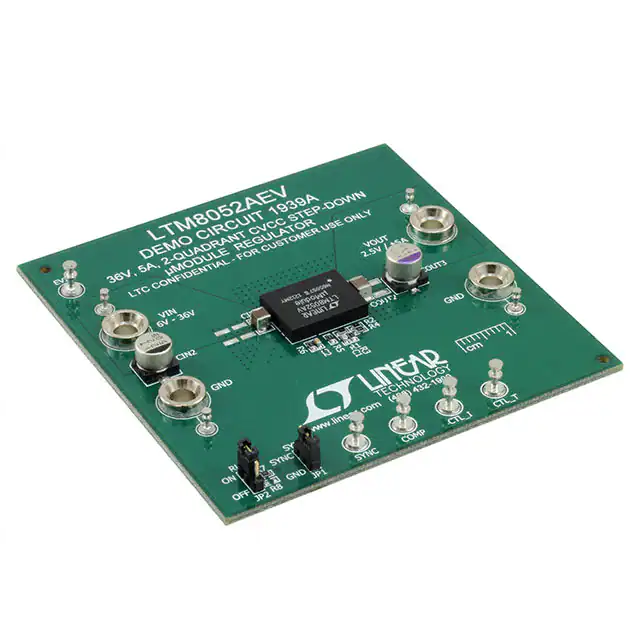

DC1939AEVAL BOARD FOR LTM8052A |
6 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 24V | 5A | 6V ~ 36V | Buck | - | Board(s) | LTM8052A |
|

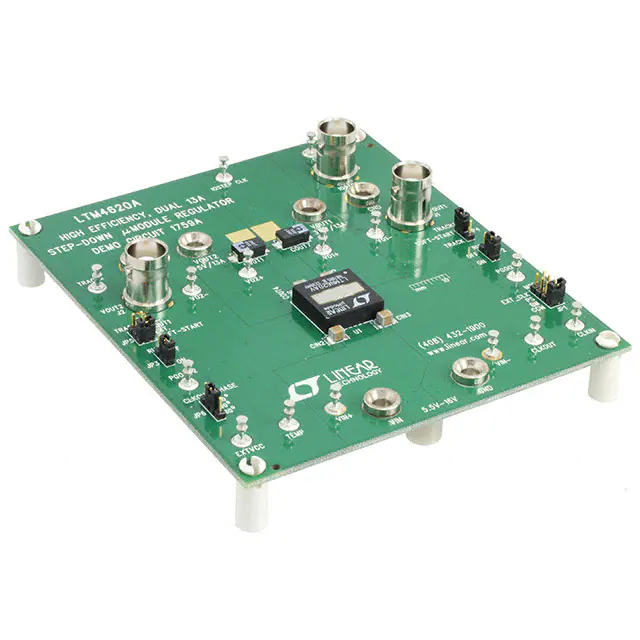

DC1759AEVAL BOARD FOR LTM4620A |
5 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 13A, 13A | 5.5V ~ 16V | Buck | 750kHz | Board(s) | LTM4620A |
|

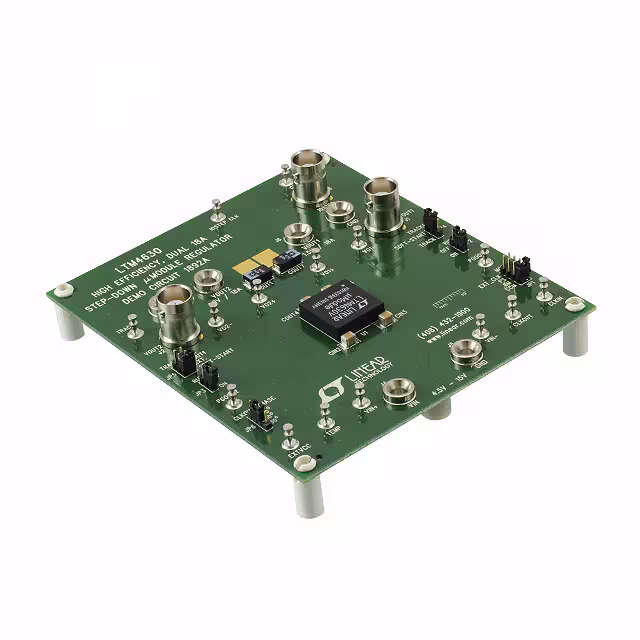

DC1892AEVAL BOARD FOR LTM4630 |
5 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 18A, 18A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4630 |
|

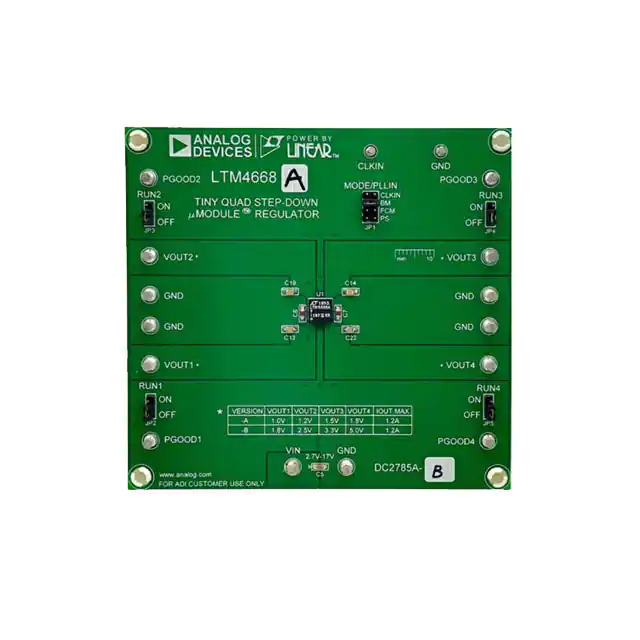

DC2785A-BEVAL BOARD FOR LTM4668A |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V, 5V | 1.2A | 2.7V ~ 17V | Buck | 2.25MHz | Board(s) | LTM4668A |
|

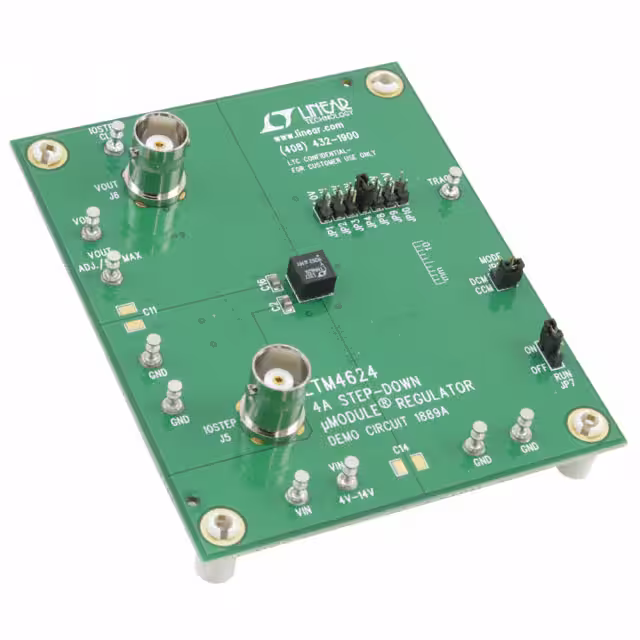

DC1889AEVAL BOARD FOR LTM4624 |
4 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 4A | 4V ~ 14V | Buck | 1MHz | Board(s) | LTM4624 |
|

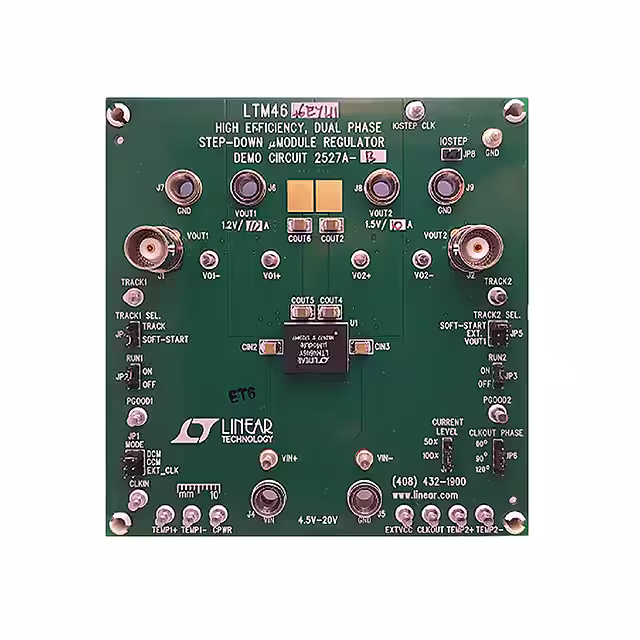

DC2527A-AEVAL BOARD FOR LTM4662 |
4 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5.5V | 15A | 4.5V ~ 20V | Buck | 1MHz | Board(s) | LTM4662 |
