تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

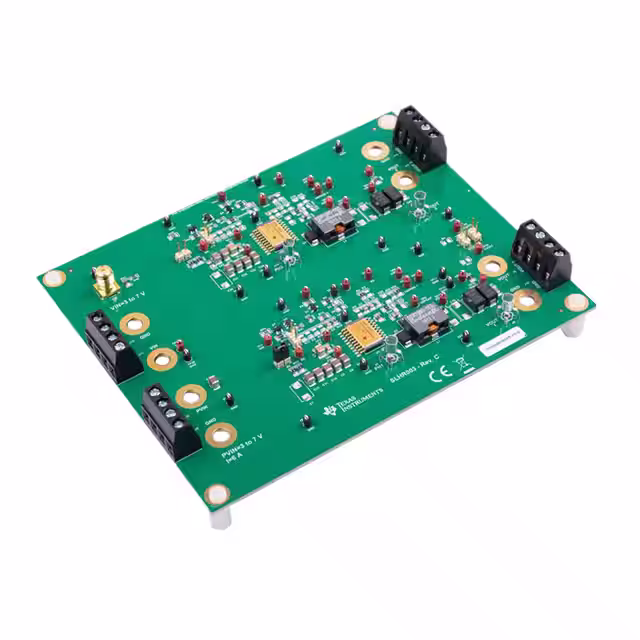

TPS50601ASPEVM-DEVAL BOARD FOR TPS50601ASP |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 6A | 4.5V ~ 6.3V | Buck | 100kHz | Board(s) | TPS50601A-SP |
|
EVAL2KWZVSFBCFD7TOBO1EVAL BOARD FOR ICE3RBR4765JZ |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 2 kW | 45V ~ 56V | - | 350V ~ 420V | Buck | - | Board(s) | ICE3RBR4765JZ |
|

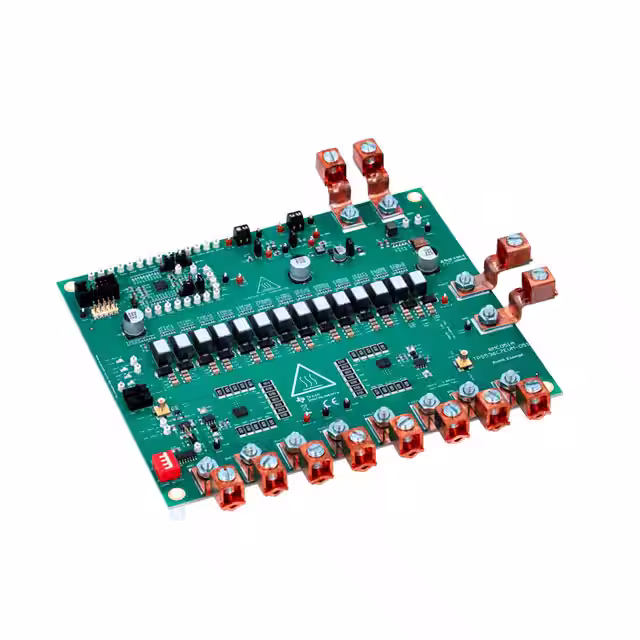

TPS536C7EVM-051EVAL BOARD FOR CSD95410 TPS536C7 |
2 |
|
برگه مشخصات |
D-CAP+™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.88V, 1V | 400A, 50A | 12V | Buck | - | Board(s) | CSD95410, TPS536C7 |
|

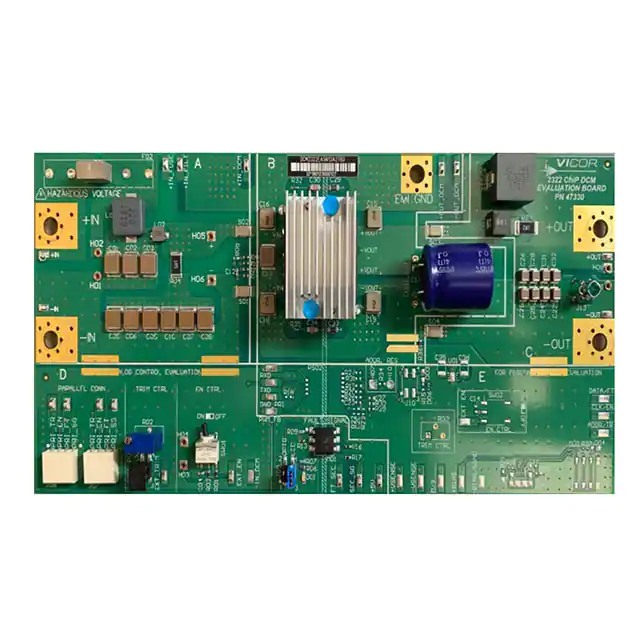

DCM2322EA5N53A2T60EVAL BOARD DCM2322XA5N53A2Y6Z |
3 |
|
برگه مشخصات |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 120 W | 48V | 2.5A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N53A2y6z |
|
DCM3623E50M13C2M70EVAL BOARD DCM3623X50M13C2YZZ |
2 |
|
برگه مشخصات |
VI Chip® DCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 320 W | 12V | 26.67A | 16V ~ 50V | Buck | - | Board(s) | DCM3623x50M13C2yzz |
|
|
DCM3623E50M53C2M00EVAL BOARD DCM3623X50M53C2YZZ |
2 |
|
برگه مشخصات |
VI Chip® DCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 320 W | 48V | 6.67A | 16V ~ 50V | Buck | - | Board(s) | DCM3623x50M53C2yzz |
|
LM3152-3.3DEMOEVAL BOARD FOR LM3152 |
9 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 6V ~ 24V | Buck | 500kHz | Board(s) | LM3152 |
|

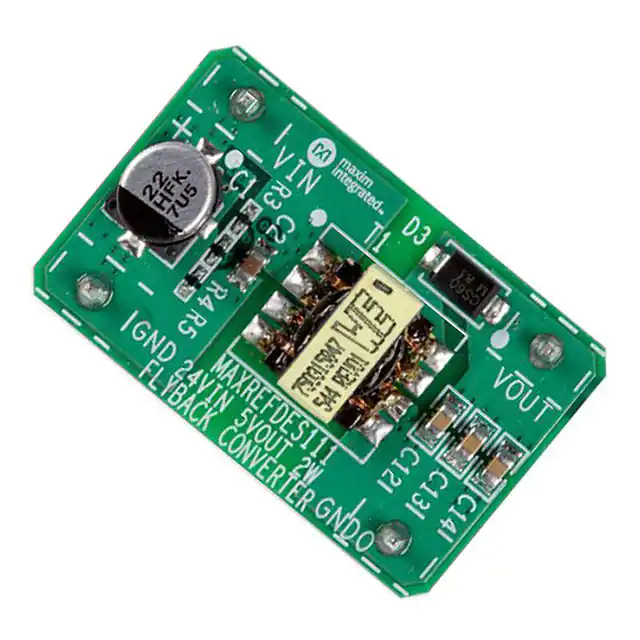

MAXREFDES111A#EVAL BOARD FOR MAX17498B |
8 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 2 W | 5V | 400mA | 18V ~ 36V | Flyback | 500kHz | Board(s) | MAX17498B |
|

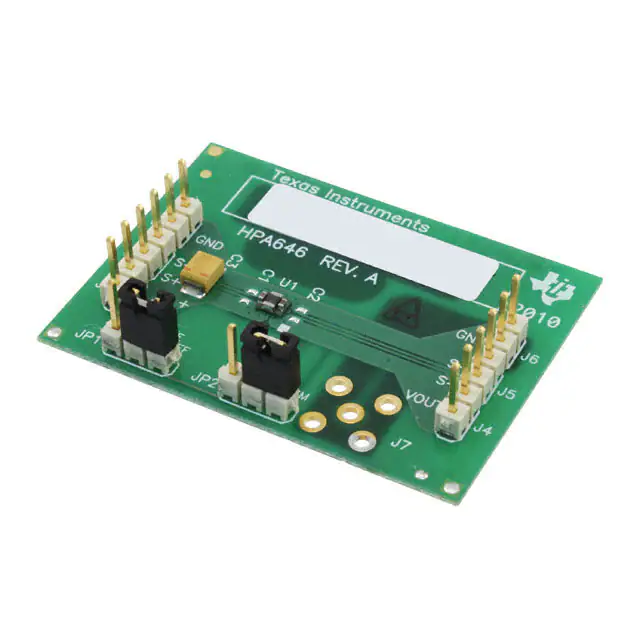

TPS82675EVM-646EVAL BOARD FOR TPS82675646 |
7 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.3V ~ 4.8V | Buck | 6MHz | Board(s) | TPS82675-646 |
|
STEVAL-1PS02DEVAL BOARD FOR ST1PS02DQTR |
9 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 1.35V | 400mA | 1.8V ~ 5.5V | Buck | 2MHz | Board(s) | ST1PS02DQTR |
|
STEVAL-1PS02AEVAL BOARD FOR ST1PS02AQTR |
9 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.4V ~ 1.75V | 400mA | 1.8V ~ 5.5V | Buck | 2MHz | Board(s) | ST1PS02AQTR |
|

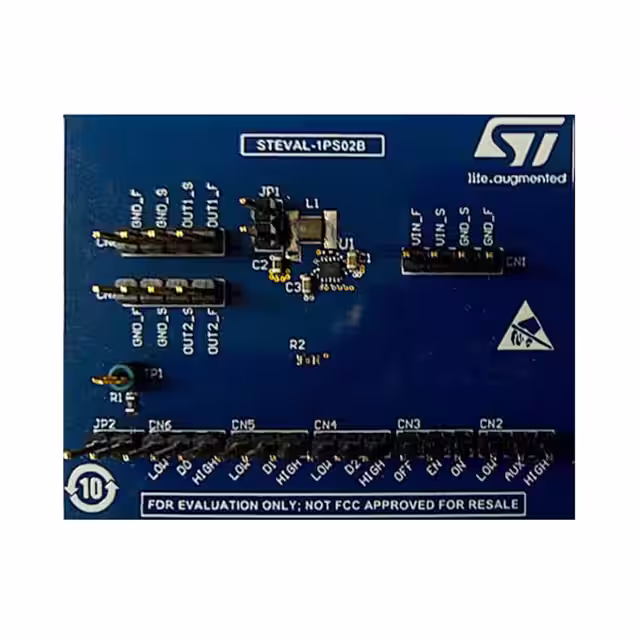

STEVAL-1PS02BEVAL BOARD FOR ST1PS02 |
7 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 2.5V | 400mA | 1.8V ~ 5.5V | Buck | - | Board(s) | ST1PS02 |
|
STEVAL-1PS02CEVAL BOARD FOR ST1PS02CQTR |
7 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.6V ~ 3.3V | 400mA | 1.8V ~ 5.5V | Buck | 2MHz | Board(s) | ST1PS02CQTR |
|

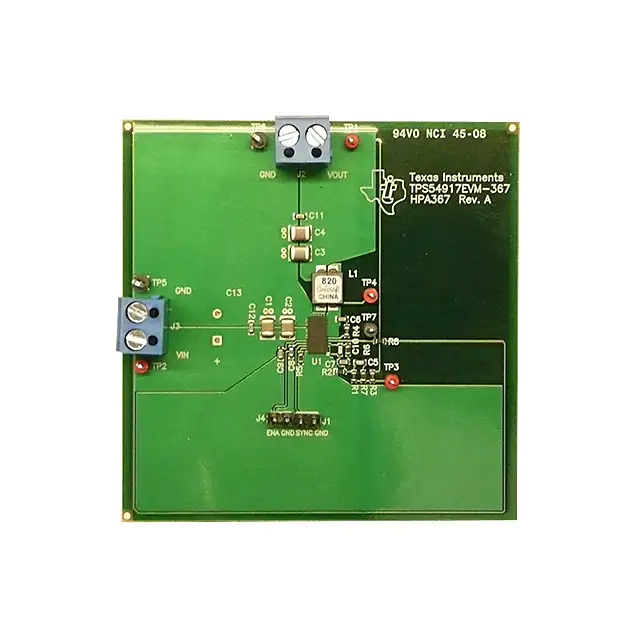

TPS54917EVM-367EVAL BOARD FOR TPS54917 |
10 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 9A | 3V ~ 4V | Buck | 1.6MHz | Board(s) | TPS54917 |
|

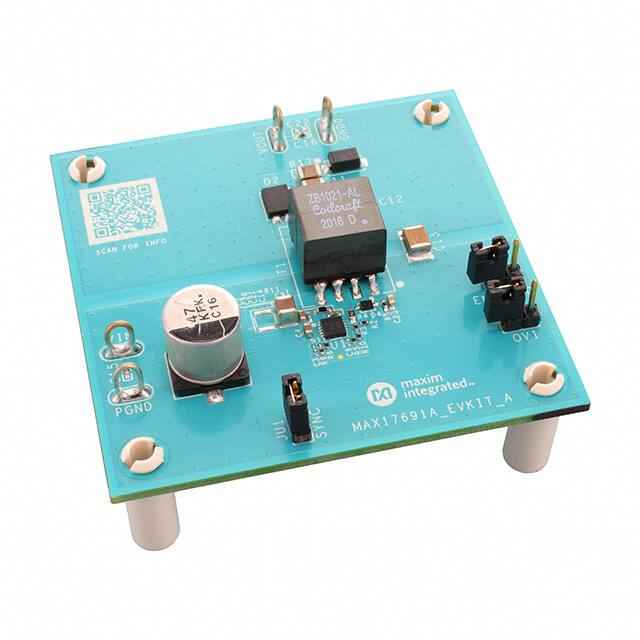

MAX17691AEVKIT#EVAL BOARD FOR MAX17691A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A, 2.5A, 2.4A, 2A, 1.5A | 18V ~ 36V | Flyback | 150kHz | Board(s) | MAX17691A |
|

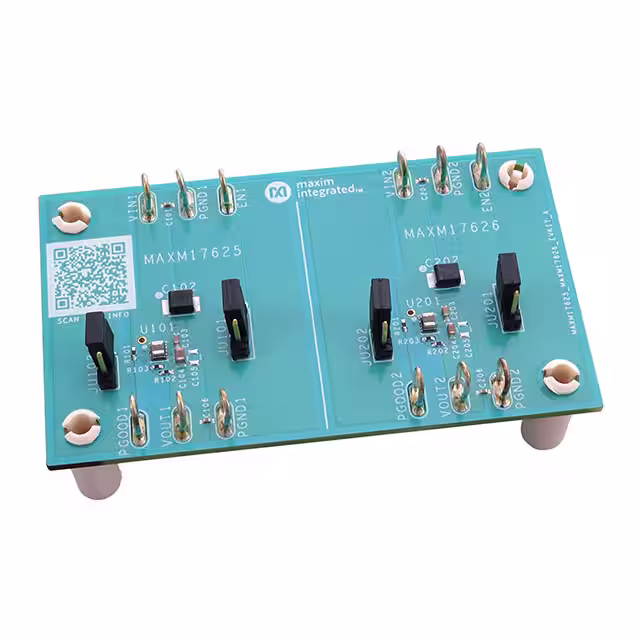

MAXM17625EVKIT#EVAL BOARD FOR MAXM17625 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MAXM17625 |
|
RPM3.3-2.0-EVM-1EVAL BOARD FOR RPM3.32.0 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3V ~ 17V | Buck | - | Board(s) | RPM3.3-2.0 |
|
|
RPM3.3-3.0-EVM-1EVAL BOARD FOR RPM3.33.0 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3V ~ 17V | Buck | - | Board(s) | RPM3.3-3.0 |
|
TPS65273VTEVMEVAL BOARD FOR TPS65273V |
25 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.1V | 3.5A, 3.5A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65273V |
|

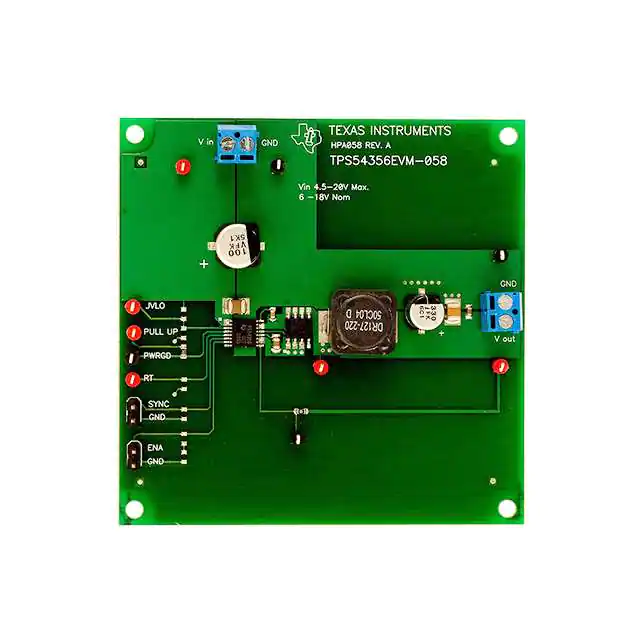

TPS54356EVM-058EVAL BOARD FOR TPS54356 |
21 |
|
برگه مشخصات |
SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 6V ~ 18V | Buck | 500kHz | Board(s) | TPS54356 |
