تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

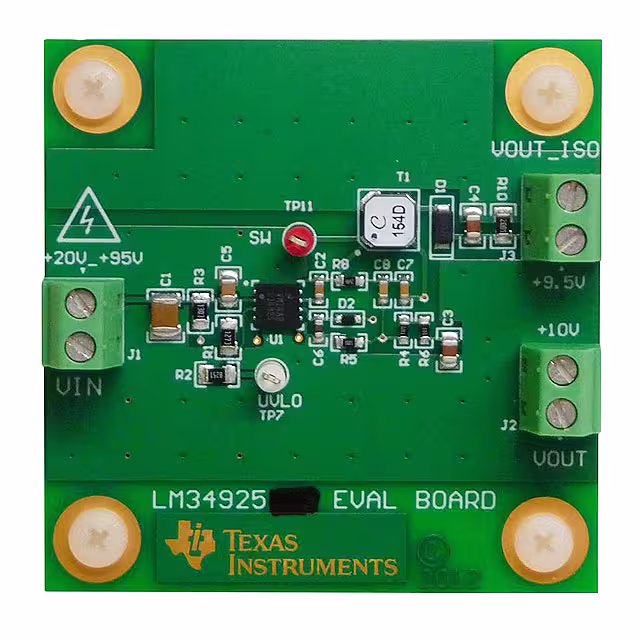

LM34925EVAL/NOPBEVAL BOARD FOR LM34925 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 100mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM34925 |
|

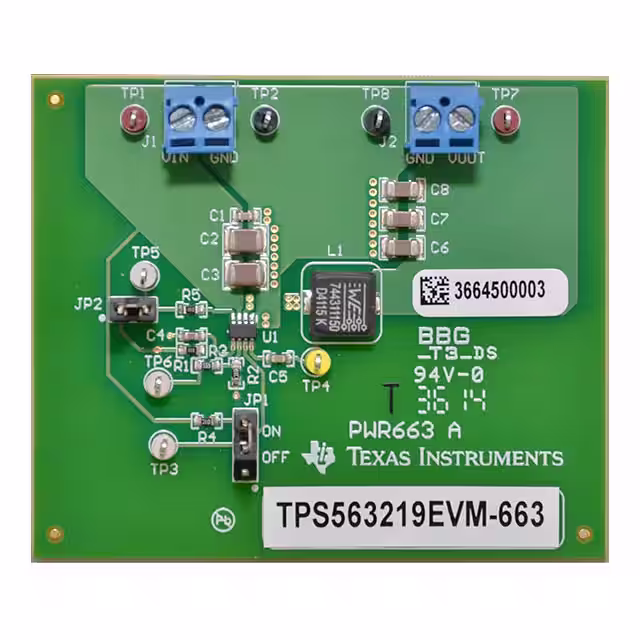

TPS563219EVM-663EVAL BOARD FOR TPS563219 |
3 |
|
برگه مشخصات |
D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS563219 |
|

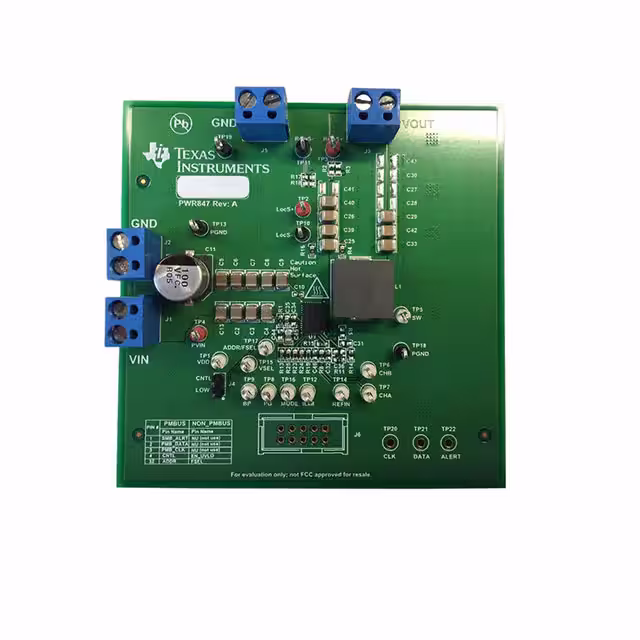

TPS548B22EVM-847EVAL BOARD FOR TPS548B22 |
3 |
|
برگه مشخصات |
SWIFT™, D-CAP3™, Eco-Mode™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 25A | 5V ~ 14V | Buck | 650kHz | Board(s) | TPS548B22 |
|

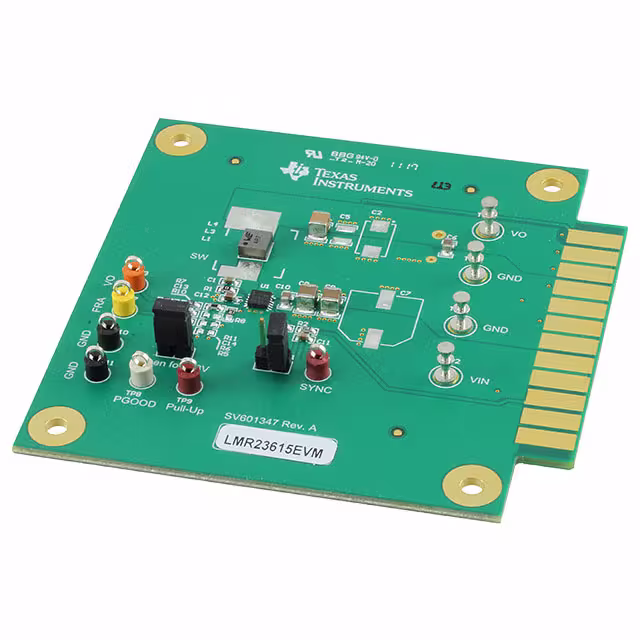

LMR23615EVMEVAL BOARD FOR LMR23615 |
20 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.5A | 4V ~ 36V | Buck | 1.6MHz | Board(s) | LMR23615 |
|
TPSM82864AA0SEVMEVAL BOARD FOR TPSM82864A |
13 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 2.4V ~ 5.5V | Buck | 2.4MHz | Board(s) | TPSM82864A |
|

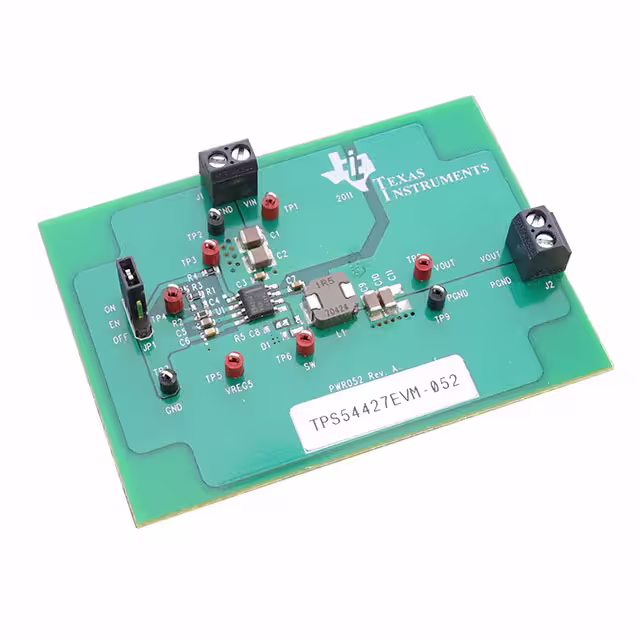

TPS54427EVM-052EVAL BOARD FOR TPS54427 |
8 |
|
برگه مشخصات |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54427 |
|

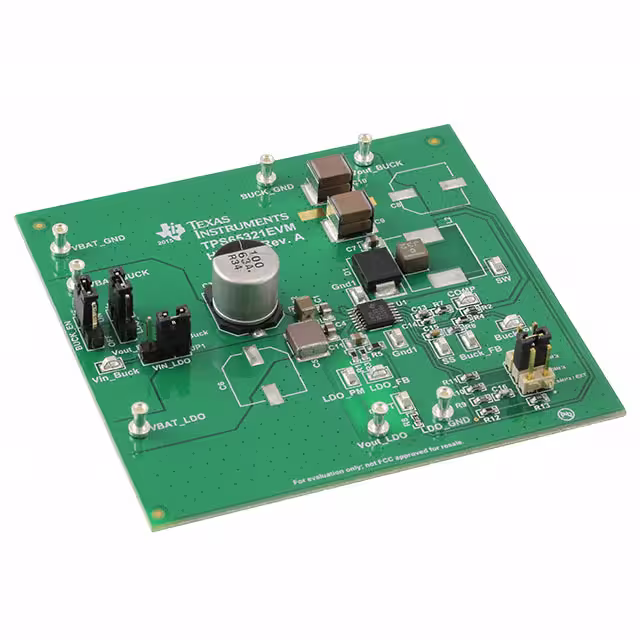

TPS65321EVMEVAL BOARD FOR TPS65321Q1 |
8 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3.2A, 280mA | 3.6V ~ 36V | Buck | - | Board(s) | TPS65321-Q1 |
|

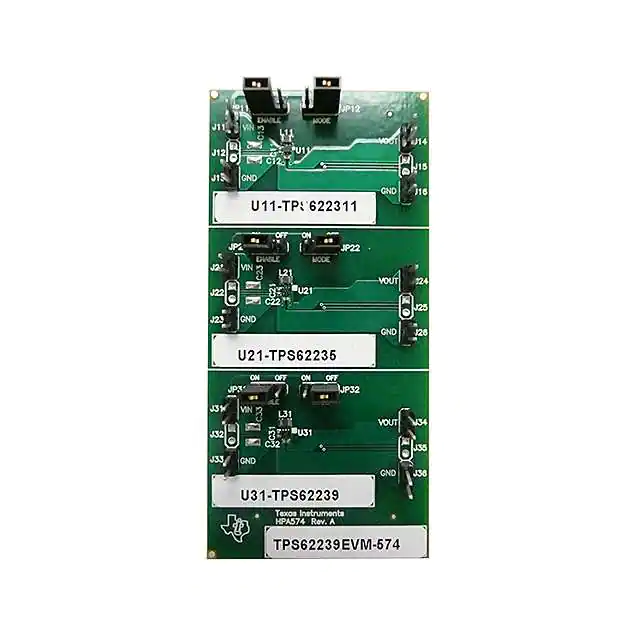

TPS62239EVM-574EVAL BOARD TPS622311 TPS62235 |
7 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1V, 1.1V, 1.2V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 2MHz, 3MHz | Board(s) | TPS622311, TPS62235, TPS62239 |
|
TPS54020EVM-082EVAL BOARD FOR TPS54020 |
7 |
|
برگه مشخصات |
SWIFT™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 8V ~ 17V | Buck | 500kHz | Board(s) | TPS54020 |
|

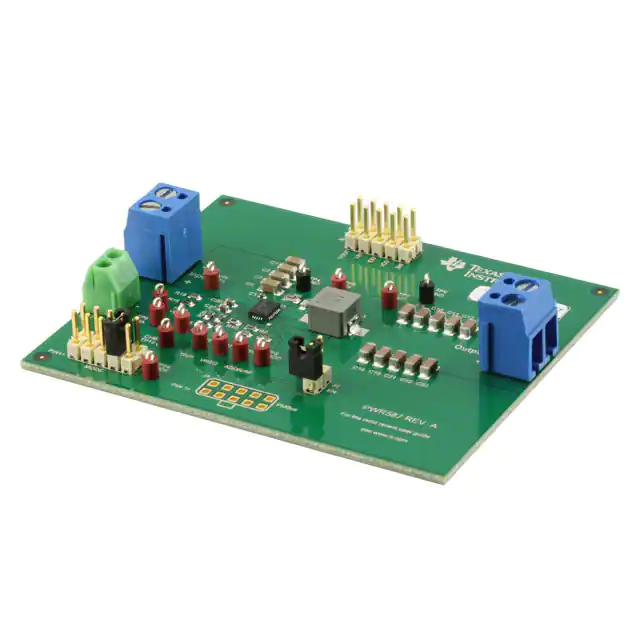

TPS53515EVM-587EVAL BOARD FOR TPS53515 |
7 |
|
برگه مشخصات |
D-CAP3™, Eco-Mode™, SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 5V ~ 18V | Buck | 1MHz | Board(s) | TPS53515 |
|

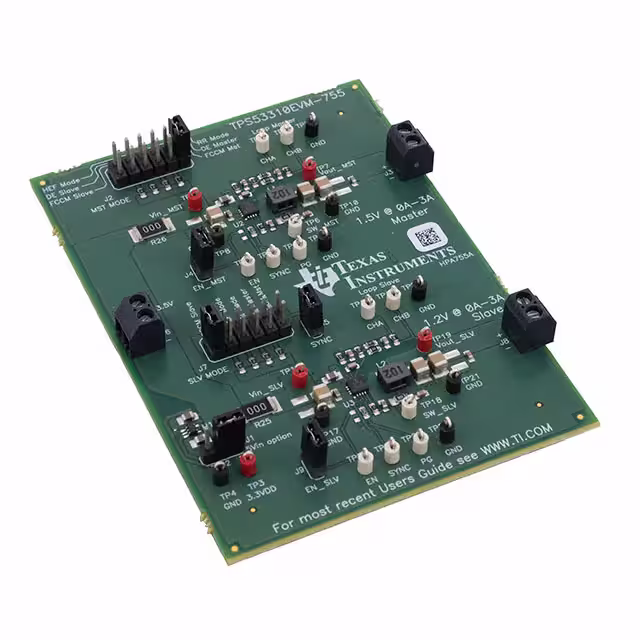

TPS53310EVM-755EVAL BOARD FOR TPS53310 |
6 |
|
برگه مشخصات |
SmoothPWM™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 3A, 3A | 2.9V ~ 6V | Buck | 1.1MHz | Board(s) | TPS53310 |
|

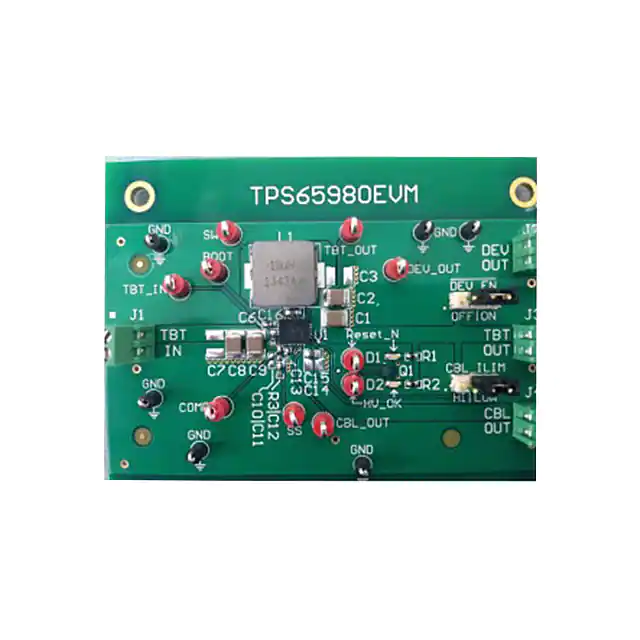

TPS65980EVMEVAL BOARD FOR TPS65980 |
6 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 3.3V, 3.3V, 3.3V | - | 2.5V ~ 15.75V | Buck-Boost | - | Board(s) | TPS65980 |
|
TPS562219EVM-663EVAL BOARD FOR TPS562219 |
6 |
|
برگه مشخصات |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS562219 |
|

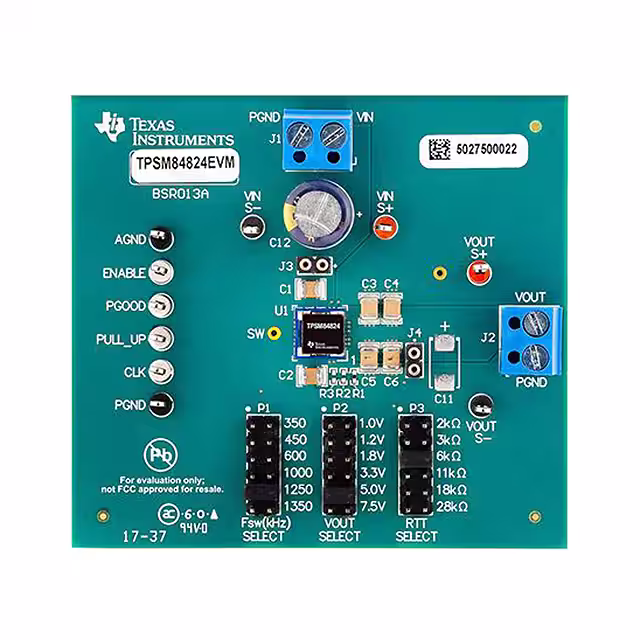

TPSM84824EVM-013EVAL BOARD FOR TPSM84824 |
6 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 10V | 8A | 4.5V ~ 17V | Buck | - | Board(s) | TPSM84824 |
|
LM2593HVEVALEVAL BOARD FOR LM2593 |
5 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 2A | 4.5V ~ 60V | Buck | 150kHz | Board(s) | LM2593 |
|
LM26420XSQEVAL/NOPBEVAL BOARD FOR LM26420 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 2A, 2A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | LM26420 |
|
TPS62236EVM-574EVAL BOARD FOR TPS62234 TPS62236 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.85V, 2.1V, 2.25V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 2MHz, 3MHz | Board(s) | TPS62234, TPS62236, TPS62238 |
|

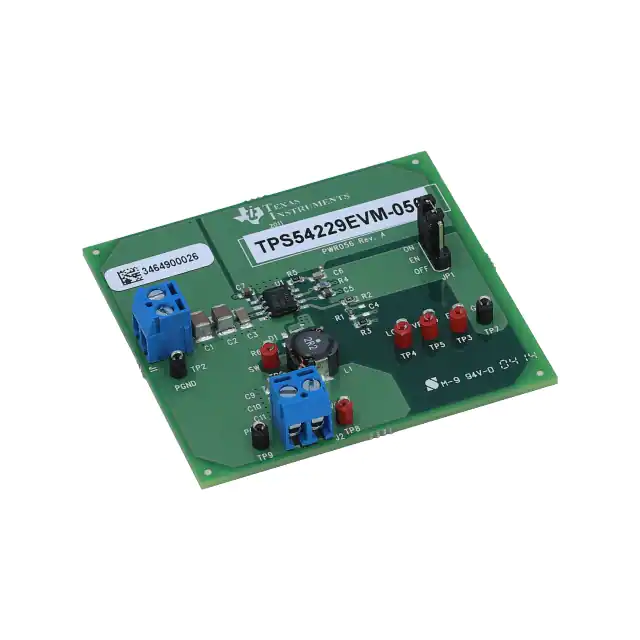

TPS54229EVM-056EVAL BOARD FOR TPS54229 |
5 |
|
برگه مشخصات |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54229 |
|
LMR10510YSDDEMO/NOPBEVAL BOARD FOR LMR10510 |
5 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LMR10510 |
|
TPS56921EVM-188EVAL BOARD FOR TPS56921 |
5 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 9A | 4.5V ~ 17V | Buck | 500kHz | Board(s) | TPS56921 |
