تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

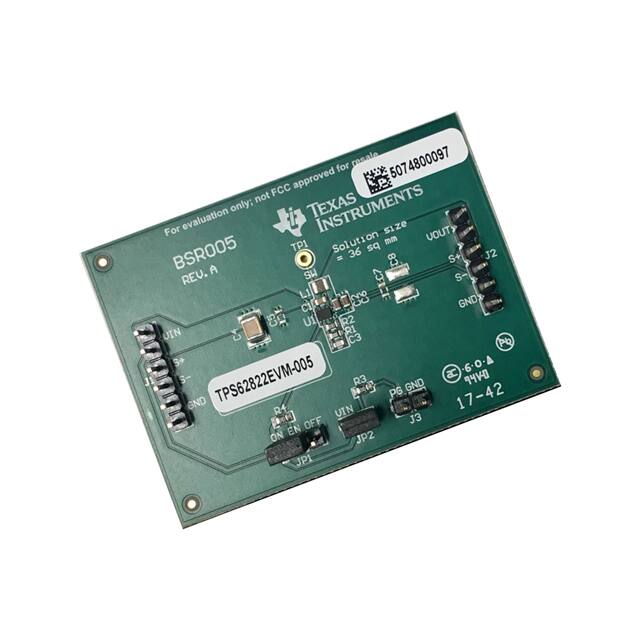

TPS62822EVM-005EVAL BOARD FOR TPS62822 |
3 |
|
برگه مشخصات |
DCS-Control™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS62822 |
|

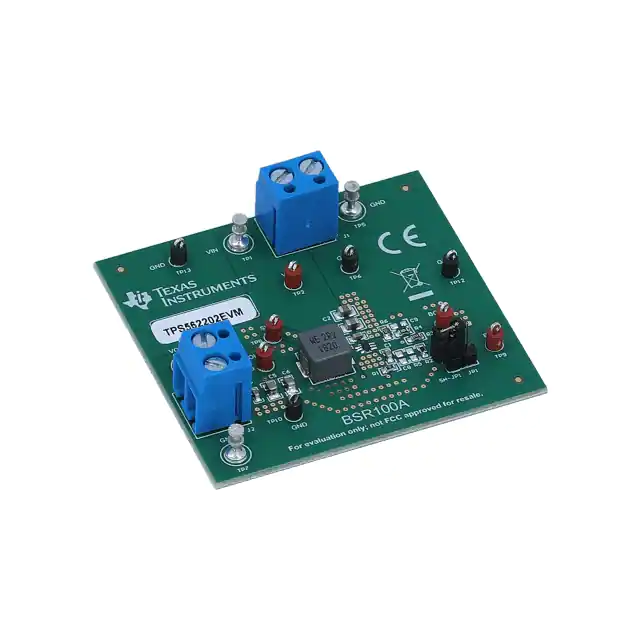

TPS562202EVMEVAL BOARD FOR TPS562202 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.3V ~ 17V | Buck | 580kHz | Board(s) | TPS562202 |
|

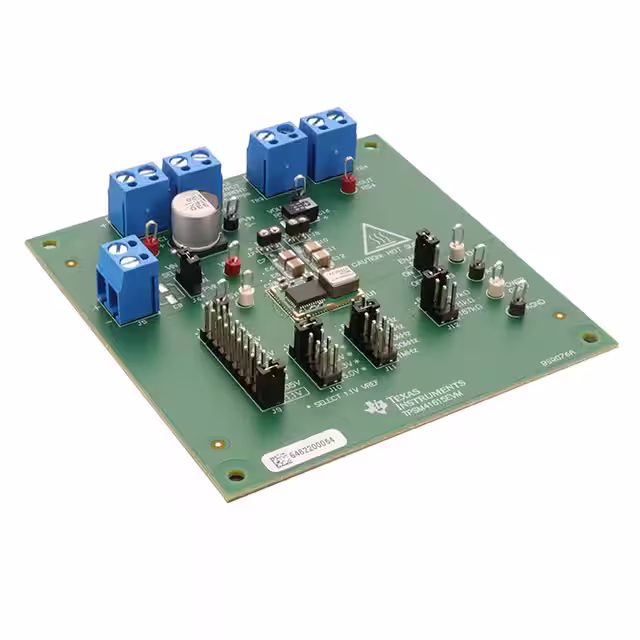

TPSM41615EVMEVAL BOARD FOR TPSM41615 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 7.1V | 15A | 4V ~ 16V | Buck | - | Board(s) | TPSM41615 |
|
LM34966EVM-FLYEVAL BOARD FOR LM34966 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 4A | 18V ~ 36V | Flyback | 250kHz | Board(s) | LM34966 |
|
TPS541620SEVM-050EVAL BOARD FOR TPS541620 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 9V ~ 15V | Buck | 1MHz | Board(s) | TPS541620 |
|

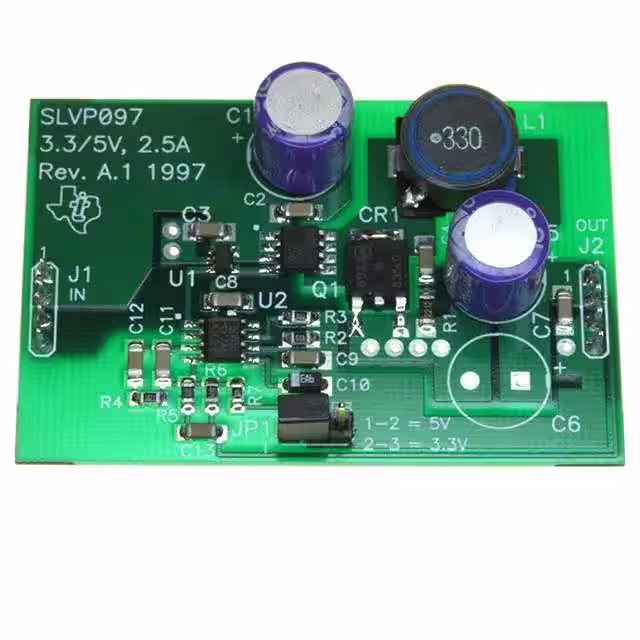

TL5001EVM-097EVAL BOARD FOR TL5001 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V, 5V | 2.6A | 4.5V ~ 12V | Buck | 270kHz | Board(s) | TL5001 |
|
TPS62200EVM-211EVAL BOARD FOR TPS62200 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 300mA | 2.5V ~ 6V | Buck | 1MHz | Board(s) | TPS62200 |
|
TPS65140EVM-031EVAL BOARD FOR TPS65140 |
2 |
|
برگه مشخصات |
- | Bulk | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | 6.81 W | 5V, 10V, 23V, -5V | 650mA, 300mA, 20mA, 20mA | 2.7V ~ 4V | Buck | 1.6MHz | Board(s) | TPS65140 |
|

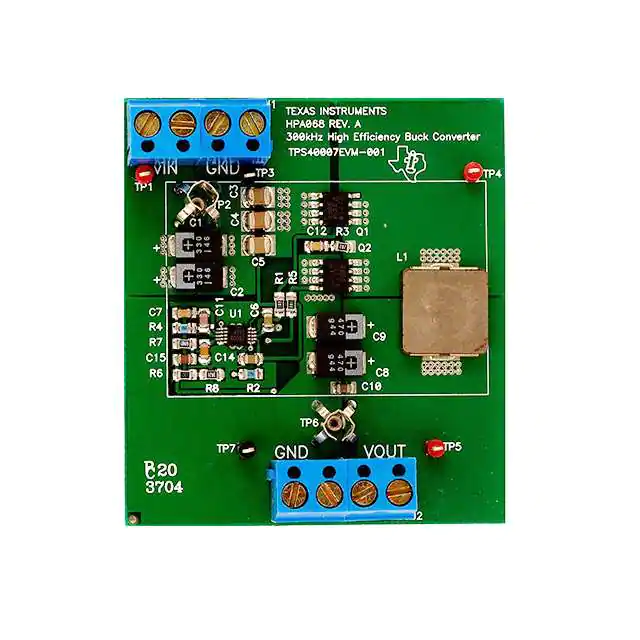

TPS40007EVM-001EVAL BOARD FOR TPS40007 |
2 |
|
برگه مشخصات |
Predictive Gate Drive™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 10A | 3.3V ~ 5V | Buck | 300kHz | Board(s) | TPS40007 |
|

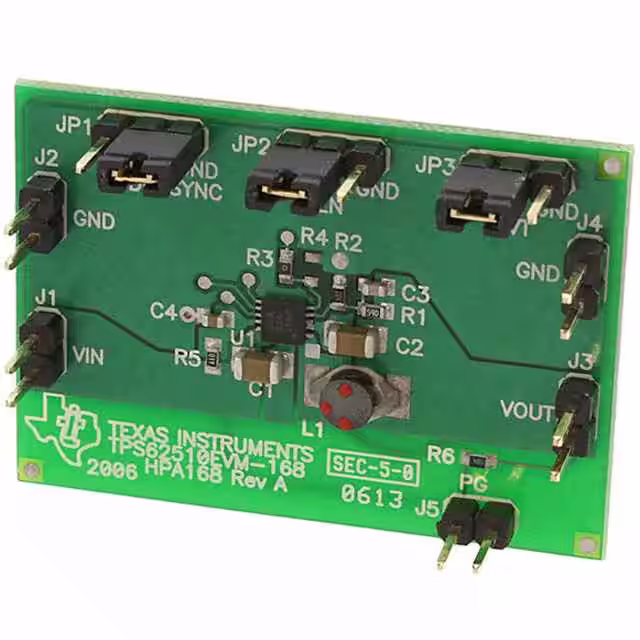

TPS62510EVM-168EVAL BOARD FOR TPS62510 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 1.8V ~ 3.8V | Buck | 1.5MHz | Board(s) | TPS62510 |
|

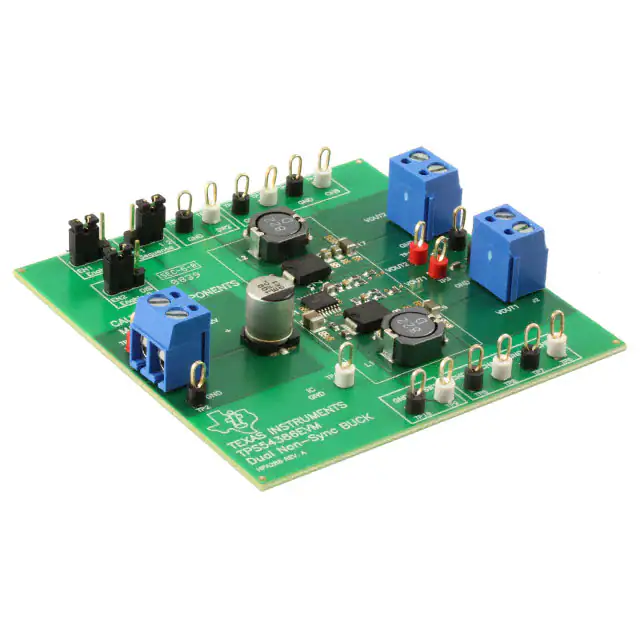

TPS54386EVMEVAL BOARD FOR TPS54386 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 2A | 9.6V ~ 13.2V | Buck | 630kHz | Board(s) | TPS54386 |
|

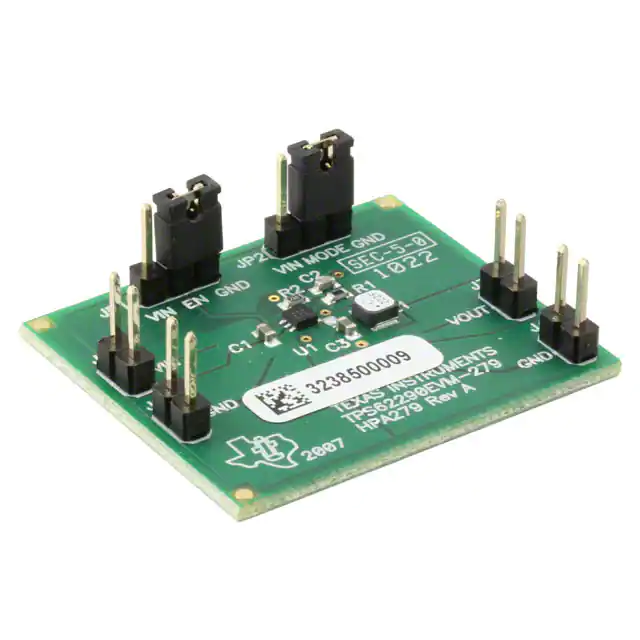

TPS62290EVM-279EVAL BOARD FOR TPS62290 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62290 |
|

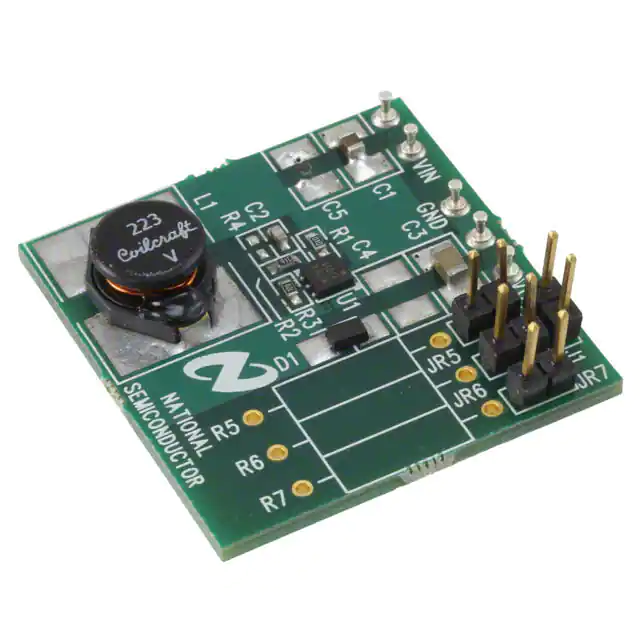

LM2735XSDEVALEVAL BOARD FOR LM2735 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 1.6MHz | Board(s) | LM2735 |
|

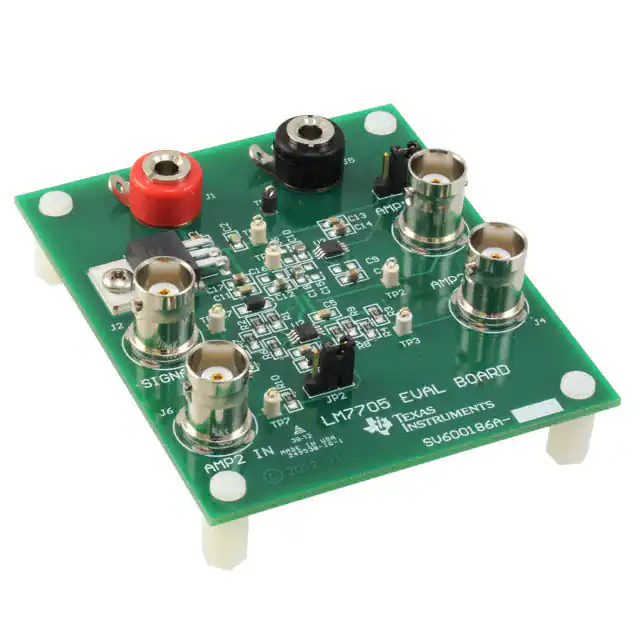

LM7705MMEVALEVAL BOARD FOR LM7705 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -0.23V | 26mA | 3V ~ 5.25V | Inverting | - | Board(s) | LM7705 |
|

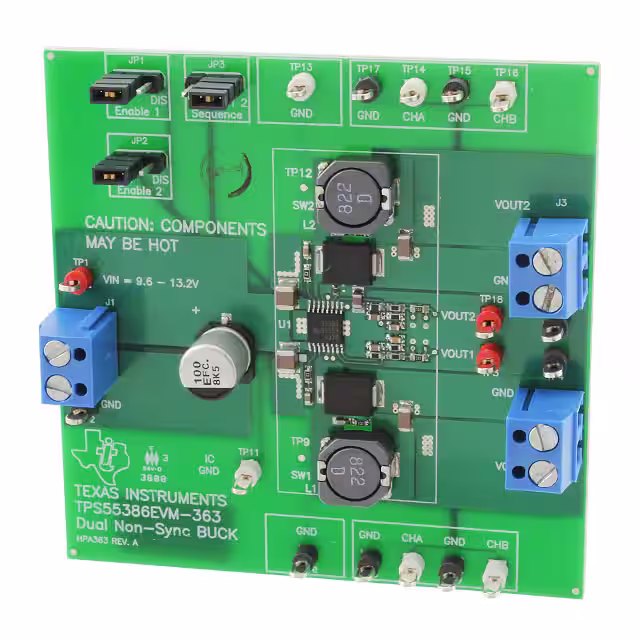

TPS55386EVM-363EVAL BOARD FOR TPS55386 |
2 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5.1V | 3A, 3A | 9.6V ~ 13.2V | Buck | 600kHz | Board(s) | TPS55386 |
|
TPS54060EVM-457EVAL BOARD FOR TPS54060 |
2 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 12V ~ 48V | Buck | 500kHz | Board(s) | TPS54060 |
|

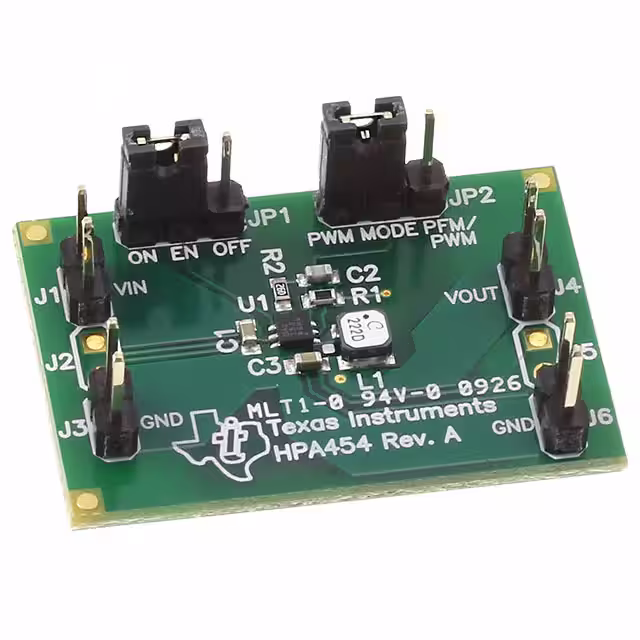

TPS62590EVM-454EVAL BOARD FOR TPS62590 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | TPS62590 |
|

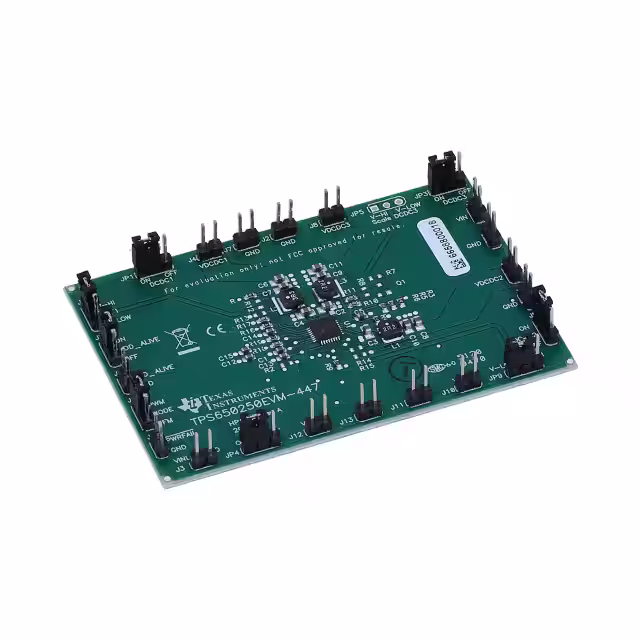

TPS650250EVM-447EVAL BOARD FOR TPS650250 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | 1V, 1.2V, 1.4V, 1.8V, 2.5V, 3.3V | 1.6A, 800mA, 800mA, 200mA, 200mA, 30mA | 3.3V ~ 5.5V | Buck | 2.25MHz | Board(s) | TPS650250 |
|

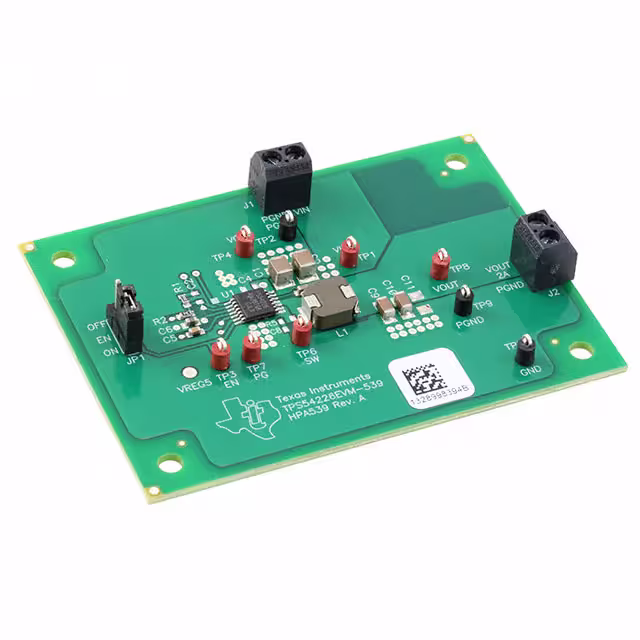

TPS54226EVM-539EVAL BOARD FOR TPS54226 |
2 |
|
برگه مشخصات |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54226 |
|
TPS54326EVM-540EVAL BOARD FOR TPS54326 |
2 |
|
برگه مشخصات |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54326 |
