تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVM3690-50A-BF-00AEVAL BOARD FOR MPM369050A |
9 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 3.2V ~ 16V | Buck | 500kHz | Board(s) | MPM3690-50A |
|
|
EVM3690-50D-BF-00AEVAL BOARD FOR MPM369050D |
8 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 3.2V ~ 16V | Buck | 600kHz | Board(s) | MPM3690-50D |
|
|
EVM3690-20B-BF-00AEVAL BOARD FOR MPM369020B |
7 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 26A | 3.2V ~ 16V | Buck | 500kHz | Board(s) | MPM3690-20B |
|
|
MUN12AD01-SG EVBEVAL BOARD FOR MUN12AD01SG |
10 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | - | 1A | 4.5V ~ 16V | - | - | Board(s) | MUN12AD01-SG |
|
|
EVX2002-Y-00DEVAL BOARD FOR MPX2002 |
10 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 65 W | 5V, 9V, 12V, 15V or 20V | 3.25A | 90 ~ 264 VAC | Flyback | - | Board(s) | MPX2002 |
|
|
EVQ4432-L-00AEVAL BOARD MPQ4432 MPQ4432AEC1 |
3 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.2A | 5V ~ 36V | Buck | - | Board(s) | MPQ4432, MPQ4432-AEC1 |
|
|
RPL-1.0-EVM-1EVAL BOARD FOR RPL1.0 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.8V, 2.5V, 3.3V, 5V, 12V | 1A | 3V ~ 22V | Buck | - | Board(s) | RPL-1.0 |
|
|
EVM3805B-12-QB-00AEVAL BOARD FOR MPM3805B12 |
9 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.5V ~ 6V | Buck | 3.5MHz | Board(s) | MPM3805B-12 |
|

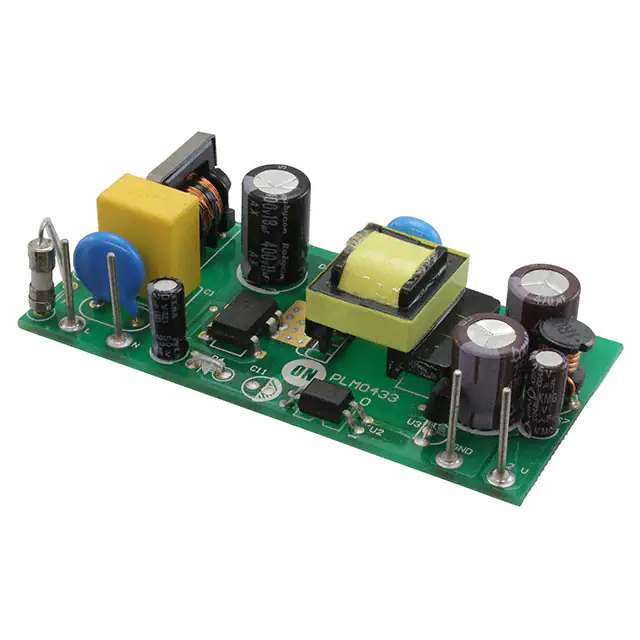

FSL518AFLYGEVBEVAL BOARD FOR FSL518A |
2 |
|
برگه مشخصات |
SENSEFET® | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 8 W | 12V | 660mA | 90 ~ 265 VAC | Flyback | - | Board(s) | FSL518A |
|
|
RTKA211412DE0000BUEVAL BOARD FOR RAA211412 |
7 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5.8V ~ 45V | Buck | 630kHz | Board(s) | RAA211412 |
|
|
EVQ4322-D-00AEVAL BOARD FOR MPQ4322 |
10 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 3.3V ~ 36V | Buck | 2.2MHz | Board(s) | MPQ4322 |
|
|
EVQ4325-R-00A36V, 5A, LOW QUIESCENT CURRENT, |
10 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 5A | 3.3V ~ 36V | Buck | 2.2MHz | Board(s) | MPQ4325 |
|
|
EVL5475-U-00BFULLY INTEGRATED, 12V, 6A, QUAD- |
10 |
|
- |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 6A, 6A, 6A, 6A | 3V ~ 16V | Buck | - | Board(s) | MP5475 |
|
|
EVQ4328-R-00AEVAL BOARD FOR MPQ4328 |
9 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 3.3V ~ 36V | Buck | 2.2MHz | Board(s) | MPQ4328 |
|
|
EVM3808-LE-00AEVAL BOARD FOR MPM3808AEC1 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s), Cable(s) | MPM3808-AEC1 |
|
|
EV2172-J-00AEVAL BOARD FOR MP2172 MPQ2172 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 5.5V | Buck | 2.6MHz | Board(s) | MP2172, MPQ2172 |
|
|
EVQ4316A-R-01AEVAL BOARD FOR MPQ4316AAEC1 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 3.3V ~ 45V | Buck | 410kHz | Board(s) | MPQ4316A-AEC1 |
|
|
EVQ4321-D-01AEVAL BOARD FOR MPQ4321 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 3.3V ~ 36V | Buck | 2.2MHz | Board(s) | MPQ4321 |
|
|
EVQ4323-D-01AEVAL BOARD FOR MPQ4323AEC1 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.3V ~ 36V | Buck | 2.2MHz | Board(s) | MPQ4323-AEC1 |
|
|
EVL9572-QB-00AEVAL BOARD FOR MP9572 |
3 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6V ~ 60V | Buck | 2.2MHz | Board(s) | MP9572 |
