فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-06025DBJW12-AFAN AXIAL 60X25MM 24VDC WIRE |
353 |
|
برگه مشخصات |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.298 in H2O (74.2 Pa) | Ball | Tubeaxial | - | 38.4dB(A) | 2.88 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
CFM-4010B-180-296-20FAN AXIAL 40X10.5MM 12VDC WIRE |
171 |
|
برگه مشخصات |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.6dB(A) | 1.08 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

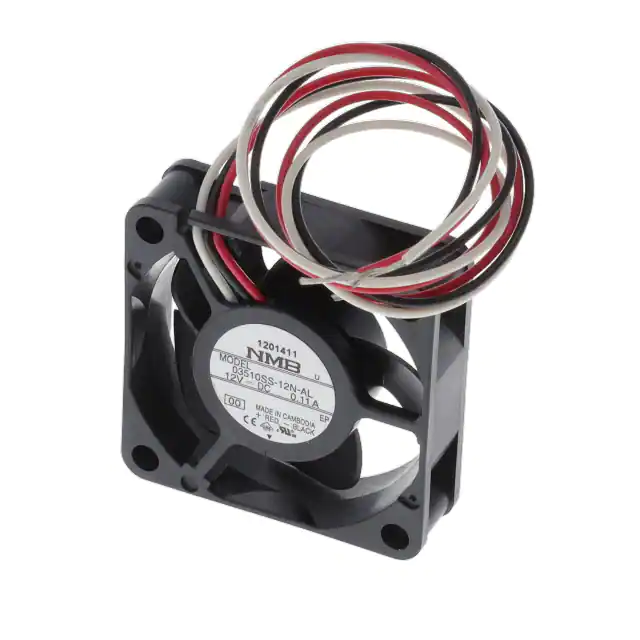

03510SS-12N-AL-00FAN AXIAL 35X10MM 12VDC WIRE |
156 |
|
برگه مشخصات |
03510SS | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB | 840 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109P0512A702FAN AXIAL 52X15MM 12VDC WIRE |
919 |
|
برگه مشخصات |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 2.52 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|

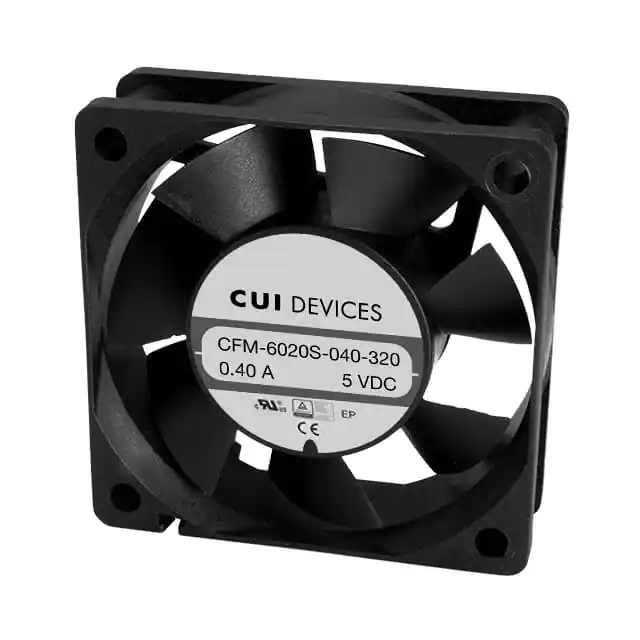

CFM-6020S-040-320FAN AXIAL 60X20MM 5VDC WIRE |
202 |
|
برگه مشخصات |
CFM-60S | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 32.0dB(A) | 2.05 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7015C-150-406FAN AXIAL 70X15.5MM 12VDC WIRE |
104 |
|
برگه مشخصات |
CFM-70C | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 40.6dB(A) | 3.96 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020BF-035-114-20FAN AXIAL 40X20MM BALL 5VDC WIRE |
316 |
|
برگه مشخصات |
CFM-40BF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 11.4dB(A) | 300 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
02510SS-05P-AT-00FAN AXIAL 25X10MM 5VDC WIRE |
533 |
|
برگه مشخصات |
02510SS | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.6 CFM (0.073m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 28.5dB | 900 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|
CFM-9225C-225-317-20FAN AXIAL 92X32MM 24VDC WIRE |
372 |
|
برگه مشخصات |
CFM-92C | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.7dB(A) | 1.92 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

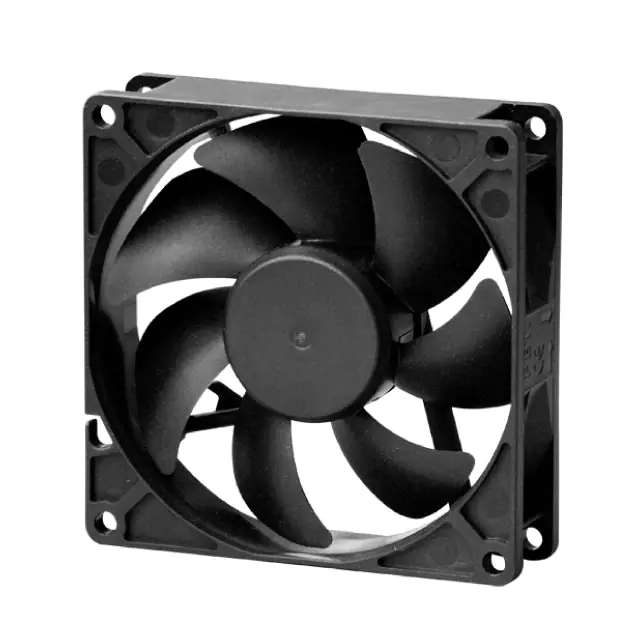

MF92251V2-1000U-F99FAN AXIAL 92X25MM 12VDC WIRE |
224 |
|
برگه مشخصات |
MagLev® MF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB(A) | 1.26 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.203 lb (92.08 g) |
|
CFM-8020CF-235-346-20FAN AXIAL 80X20MM 24VDC WIRE |
207 |
|
برگه مشخصات |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020CF-135-346-20FAN AXIAL 80X20MM 12VDC WIRE |
172 |
|
برگه مشخصات |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.7dB(A) | 1.8 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
04010SA-05M-AAD-0FAN AXIAL 40X10MM BALL 5VDC WIRE |
227 |
|
برگه مشخصات |
04010SA | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 24.5dB | 700 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

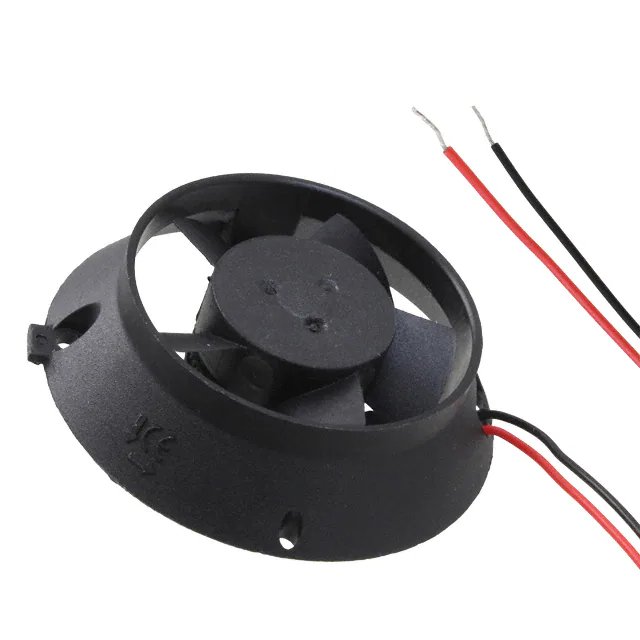

HA30101V3-E00U-A99FAN AXIAL 39.8X10.4MM 12VDC |
460 |
|
برگه مشخصات |
MagLev® HA | Tray | Active | 12VDC | Round - 39.8mm Dia | 10.40mm | 1.9 CFM (0.053m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 10.5dB(A) | 300 mW | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.016 lb (7.26 g) |
|
08015SS-24N-AA-00FAN AXIAL 80X15MM 24VDC WIRE |
119 |
|
برگه مشخصات |
08015SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.9 CFM (0.949m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.0dB | 2.88 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-08025CBHW12-AFAN AXIAL 80X25MM 12VDC WIRE |
594 |
|
برگه مشخصات |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 35.8dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
CFM-3510CF-190-277FAN AXIAL 35X10.3MM 12VDC WIRE |
144 |
|
برگه مشخصات |
CFM-35CF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 5.9 CFM (0.165m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.7dB(A) | 1.44 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DB0511512U2B-2T0FAN BLOWER 51.2X15MM 12VDC WIRE |
297 |
|
برگه مشخصات |
DB | Box | Active | 12VDC | Square/Rounded - 51.2mm L x 51.2mm H | 15.00mm | 4.6 CFM (0.129m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Blower | Locked Rotor Protection | 45.0dB(A) | 1.8 W | 6500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|

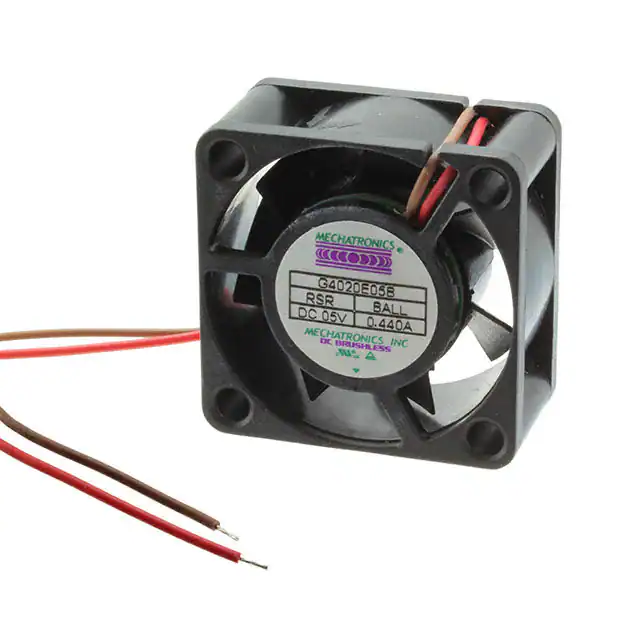

G4020E05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
1,146 |
|
برگه مشخصات |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
CFM-6025V-138-220FAN AXIAL 60X25MM 12VDC WIRE |
183 |
|
برگه مشخصات |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 22.0dB(A) | 1 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
