فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
03510SS-05N-AT-00FAN AXIAL 35X10MM 5VDC WIRE |
619 |
|
برگه مشخصات |
03510SS | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 27.0dB | 1 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
CFM-5015V-150-290-20FAN AXIAL 50X15MM 12VDC WIRE |
324 |
|
برگه مشخصات |
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 0.65 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
|
CFM-8025V-126-280-20FAN AXIAL 80X25MM 12VDC WIRE |
916 |
|
برگه مشخصات |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 900 mW | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
CFM-4020V-180-275-20FAN AXIAL 40X20MM 12VDC WIRE |
1,984 |
|
برگه مشخصات |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 1.11 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
ASB0305HA-DR00FAN AXIAL 30X10MM 5VDC WIRE |
4,236 |
|
برگه مشخصات |
ASB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.214 in H2O (53.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Sensor | 27.0dB(A) | 700 mW | 10500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
CFM-4010C-080-296FAN AXIAL 40X10.5MM 5VDC WIRE |
350 |
|
برگه مشخصات |
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 29.6dB(A) | 1.2 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020V-157-390FAN AXIAL 60X20MM 12VDC WIRE |
514 |
|
برگه مشخصات |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 25.6 CFM (0.717m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 39.0dB(A) | 1.97 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|

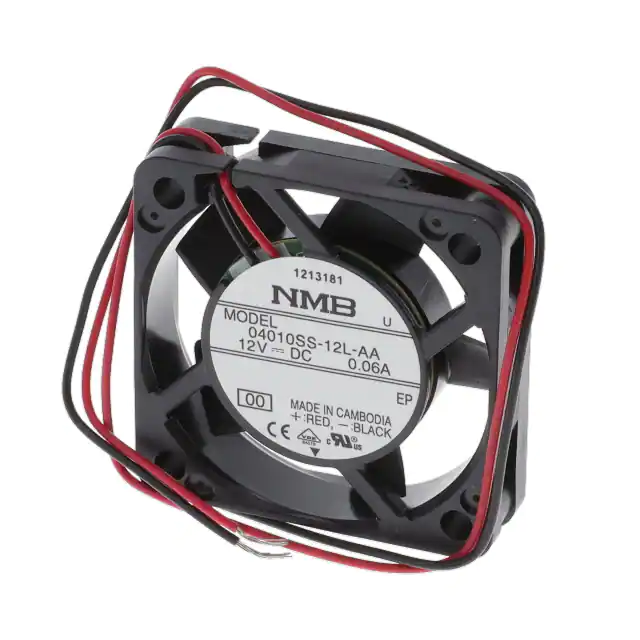

04010SS-12L-AA-00FAN AXIAL 40X10MM 12VDC WIRE |
383 |
|
برگه مشخصات |
04010SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 21.0dB | 400 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

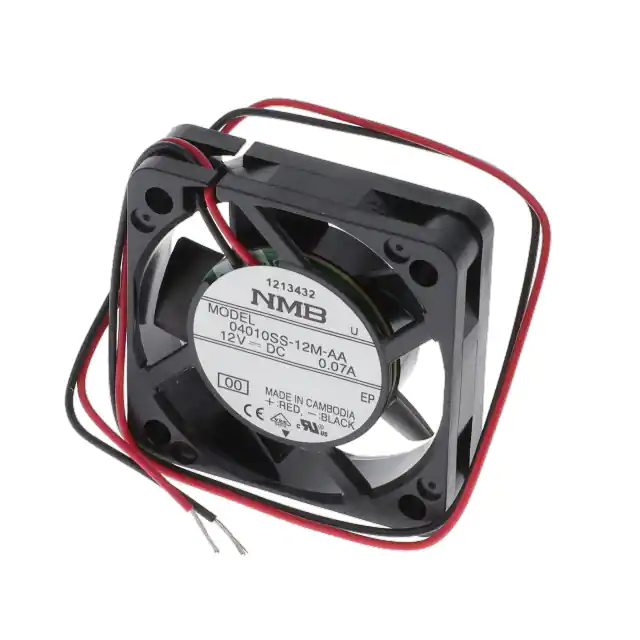

04010SS-12M-AA-00FAN AXIAL 40X10MM 12VDC WIRE |
150 |
|
برگه مشخصات |
04010SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 24.0dB | 600 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-6015CF-245-332FAN AXIAL 60X15.5MM 24VDC WIRE |
387 |
|
برگه مشخصات |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 33.2dB(A) | 2.64 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

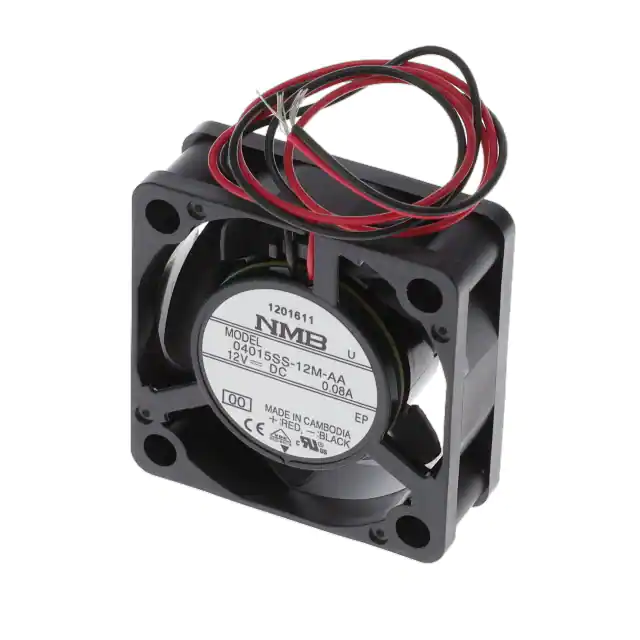

04015SS-12M-AA-00FAN AXIAL 40X15MM 12VDC WIRE |
329 |
|
برگه مشخصات |
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 29.0dB | 600 mW | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04010SS-05L-AA-00FAN AXIAL 40X10MM 5VDC WIRE |
991 |
|
برگه مشخصات |
04010SS | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 21.0dB | 450 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
ASB0305LA-DF00FAN AXIAL 30X10MM 5VDC WIRE |
1,432 |
|
برگه مشخصات |
ASB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 500 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.017 lb (7.71 g) |
|
CFM-9225V-124-280-20FAN AXIAL 92X25MM 12VDC WIRE |
1,158 |
|
برگه مشخصات |
CFM-92V | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 1.05 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
CFM-9225V-130-340-20FAN AXIAL 92X25MM 12VDC WIRE |
335 |
|
برگه مشخصات |
CFM-92V | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.94 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
09225SA-24K-AA-D0FAN AXIAL 92X25MM 24VDC WIRE |
514 |
|
برگه مشخصات |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 33.5 CFM (0.938m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Auto Restart | - | 960 mW | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-9225V-224-280FAN AXIAL 92X25MM 24VDC WIRE |
899 |
|
برگه مشخصات |
CFM-92V | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 28.0dB(A) | 1.23 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
CFM-9225V-227-320FAN AXIAL 92X25MM 24VDC WIRE |
279 |
|
برگه مشخصات |
CFM-92V | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.5 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 32.0dB(A) | 1.54 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
FAD1-04020DBHW11FAN AXIAL 40X20MM 24VDC WIRE |
1,195 |
|
برگه مشخصات |
FAD1-04020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 1.68 W | 7800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
FAD1-04020CBMW11FAN AXIAL 40X20MM 12VDC WIRE |
939 |
|
برگه مشخصات |
FAD1-04020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 960 mW | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
