فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FBA08A24H1AFAN AXIAL 80X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.52 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA09A12L1AFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 27.0dB | 1.32 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A12M1AFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 48.0 CFM (1.34m³/min) | 0.118 in H2O (29.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 1.8 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A12H1AFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 2.7 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

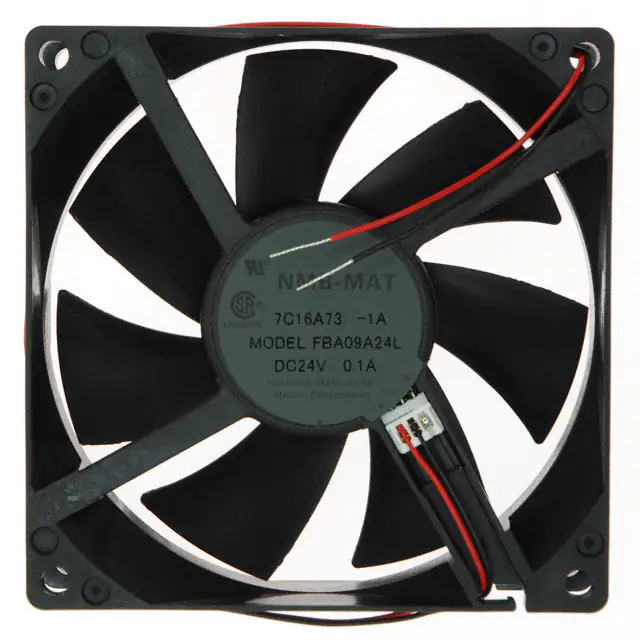

FBA09A24L1AFAN AXIAL 92X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 27.0dB | 1.92 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A24M1AFAN AXIAL 92X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 48.0 CFM (1.34m³/min) | 0.118 in H2O (29.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.64 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A24H1AFAN AXIAL 92X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 3.36 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

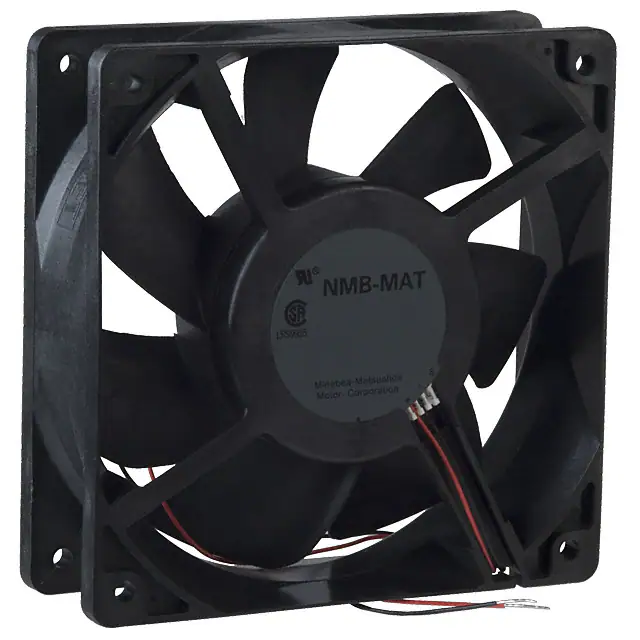

FBA12G12L1AFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 68.9 CFM (1.93m³/min) | 0.130 in H2O (32.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.04 W | 1700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

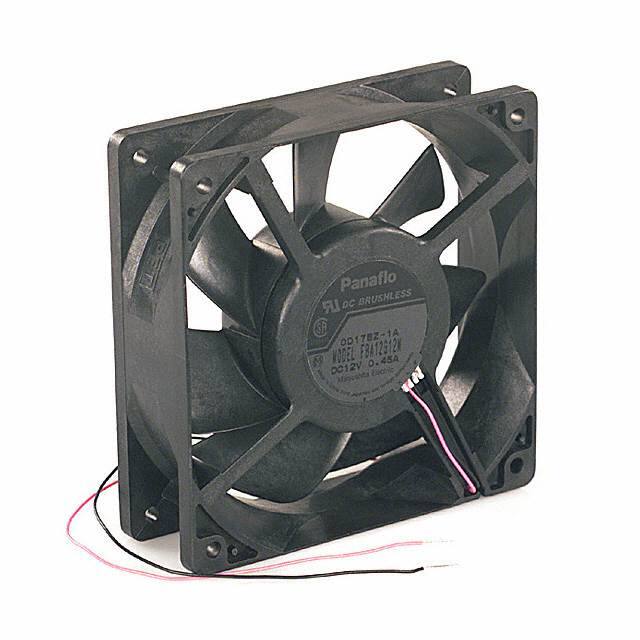

FBA12G12M1AFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 86.5 CFM (2.42m³/min) | 0.189 in H2O (47.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.5dB | 3.36 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G12H1AFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 41.5dB | 4.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G24L1AFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 68.9 CFM (1.93m³/min) | 0.130 in H2O (32.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.3 W | 1700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G24M1AFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 86.5 CFM (2.42m³/min) | 0.189 in H2O (47.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.5dB | 2.98 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G24H1AFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 41.5dB | 4.8 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA09A12U1AFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 68.8 CFM (1.93m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 43.0dB | 5.16 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA12G12U1AFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.313 in H2O (78.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 45.5dB | 6.12 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

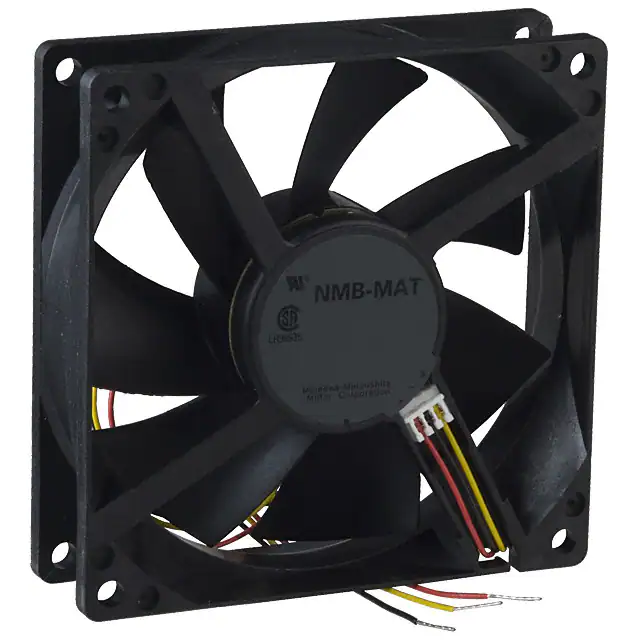

FBA09A24H1BXFAN AXIAL 92X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 35.0dB | 3.36 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA09A24H1AZFAN AXIAL 92X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 3.36 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

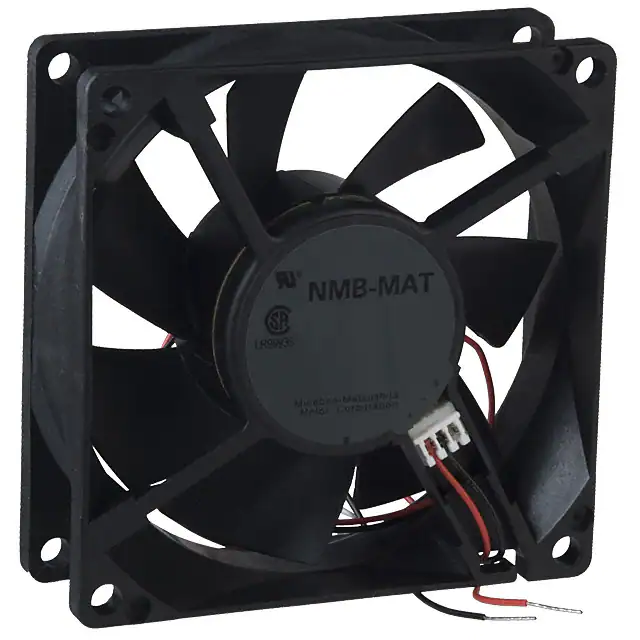

FBA08A12U1AFAN AXIAL 80X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 46.9 CFM (1.31m³/min) | 0.188 in H2O (46.8 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 38.2dB | 3.24 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|

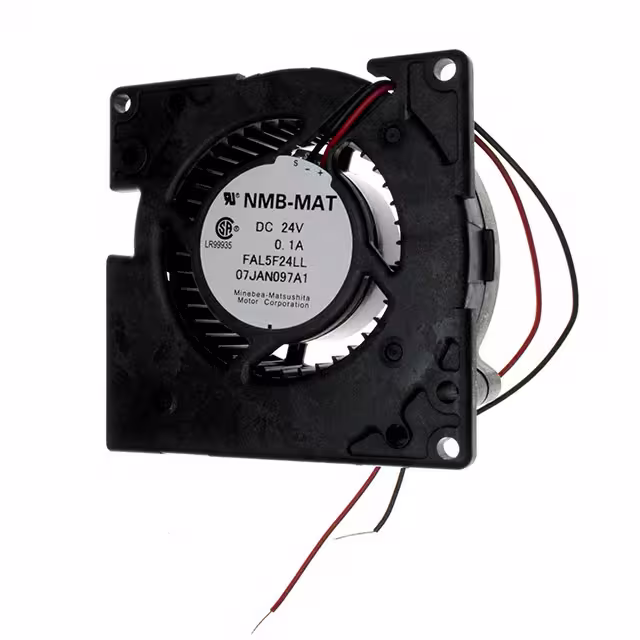

FAL5F24LLFAN BLOWER 76X28MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FAL-5F | - | Obsolete | 24VDC | Square/Rounded - 76mm L x 76mm H | 28.00mm | 8.8 CFM (0.246m³/min) | 0.244 in H2O (60.8 Pa) | Hydro-wave (HWB) | Blower | - | 30.0dB | 1.68 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FAL6F24LHFAN BLOWER 109X28.1MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FAL-6F | - | Obsolete | 24VDC | Rectangular/Rounded - 109mm L x 111.4mm H | 28.10mm | 23.7 CFM (0.664m³/min) | 0.776 in H2O (193.2 Pa) | Hydro-wave (HWB) | Blower | - | 45.0dB | 7.08 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.551 lb (249.93 g) |
