فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAL6F24LLFAN BLOWER 109X28.1MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FAL-6F | - | Obsolete | 24VDC | Rectangular/Rounded - 109mm L x 111.4mm H | 28.10mm | 18.7 CFM (0.524m³/min) | 0.453 in H2O (112.8 Pa) | Hydro-wave (HWB) | Blower | - | 40.0dB | 3.72 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.551 lb (249.93 g) |
|
FAL5F24LHFAN BLOWER 76X28MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FAL-5F | - | Obsolete | 24VDC | Square/Rounded - 76mm L x 76mm H | 28.00mm | 10.6 CFM (0.297m³/min) | 0.382 in H2O (95.1 Pa) | Hydro-wave (HWB) | Blower | - | 36.0dB | 2.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA06A12M1AFAN AXIAL 60X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 16.6 CFM (0.465m³/min) | 0.155 in H2O (38.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.44 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
FBA06A24M1AFAN AXIAL 60X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 16.6 CFM (0.465m³/min) | 0.155 in H2O (38.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.68 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

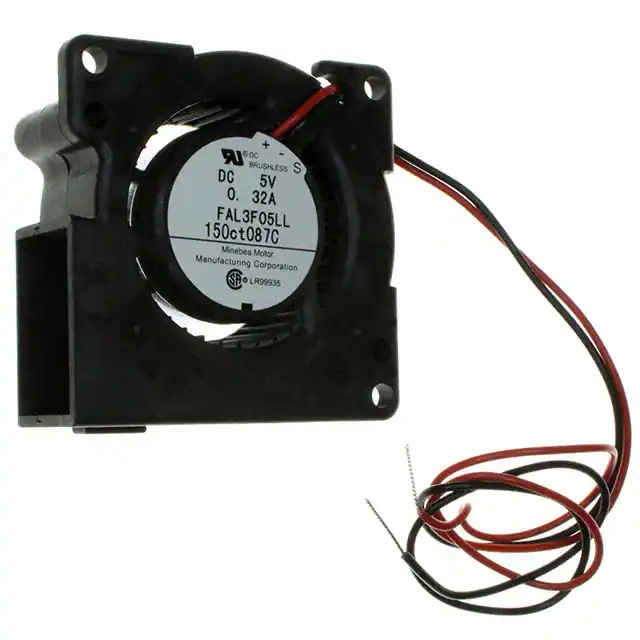

FAL3F05LLFAN BLOWER 50X20MM 5VDC WIRE |
0 |
|
برگه مشخصات |
FAL-3F | - | Obsolete | 5VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 3.9 CFM (0.109m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Blower | - | 28.5dB | 1.64 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|

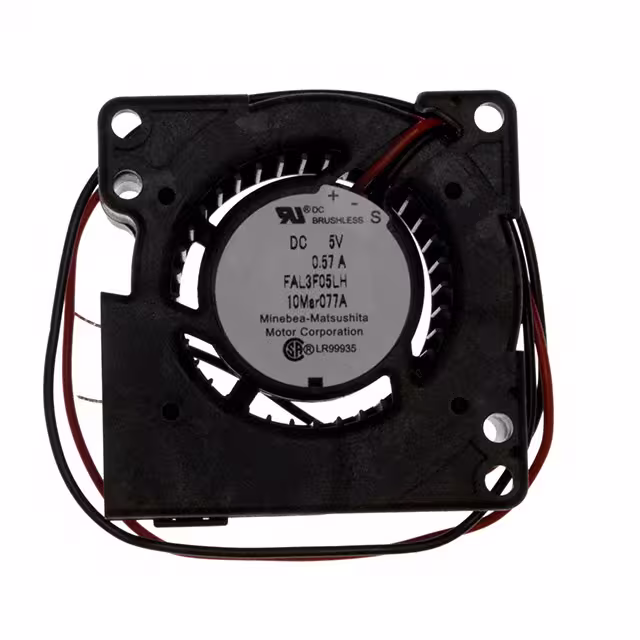

FAL3F05LHFAN BLOWER 50X20MM 5VDC WIRE |
0 |
|
برگه مشخصات |
FAL-3F | - | Obsolete | 5VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Blower | - | 36.0dB | 1.9 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|
FAL3F12LLFAN BLOWER 50X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FAL-3F | - | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 3.9 CFM (0.109m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Blower | - | 28.5dB | 1.33 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|
FAL3F12LHFAN BLOWER 50X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FAL-3F | - | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Blower | - | 35.0dB | 2.22 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|

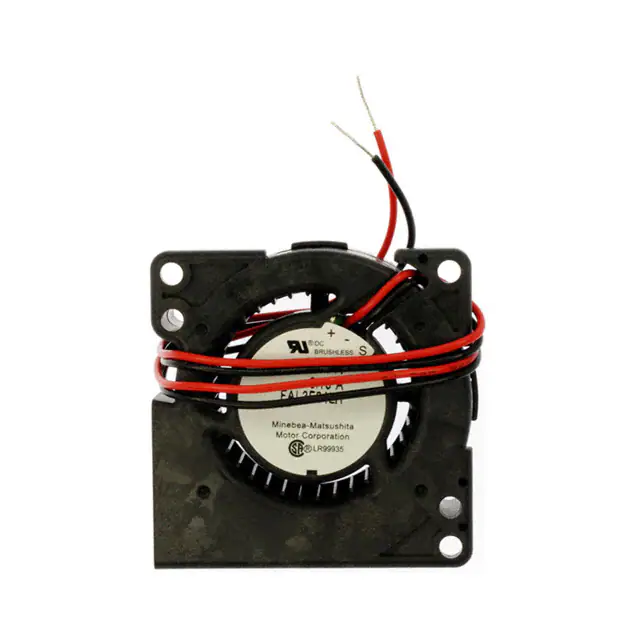

FAL3F24LHFAN BLOWER 50X20MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FAL-3F | - | Obsolete | 24VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Blower | - | 35.0dB | 2.52 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|
FBA06A12H1BXFAN AXIAL 60X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 19.1 CFM (0.535m³/min) | 0.204 in H2O (51.0 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 32.0dB | 1.86 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

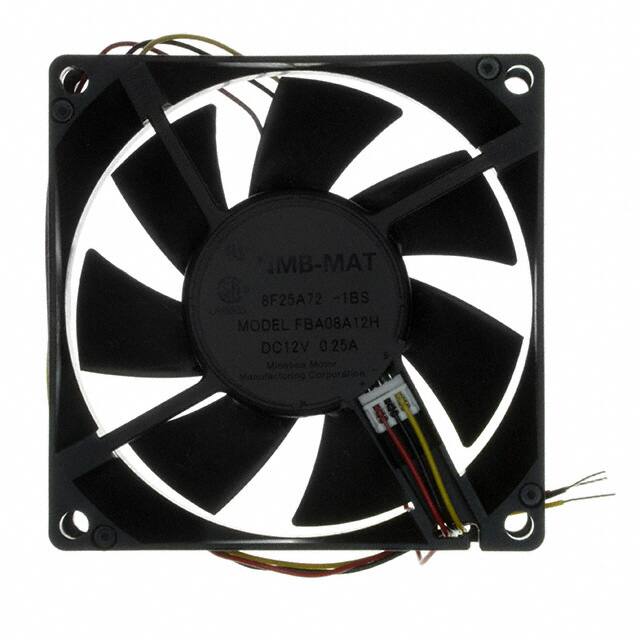

FBA08A12H1BSFAN AXIAL 80X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 32.0dB | 2.08 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA09A12H1BXFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 35.0dB | 2.7 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

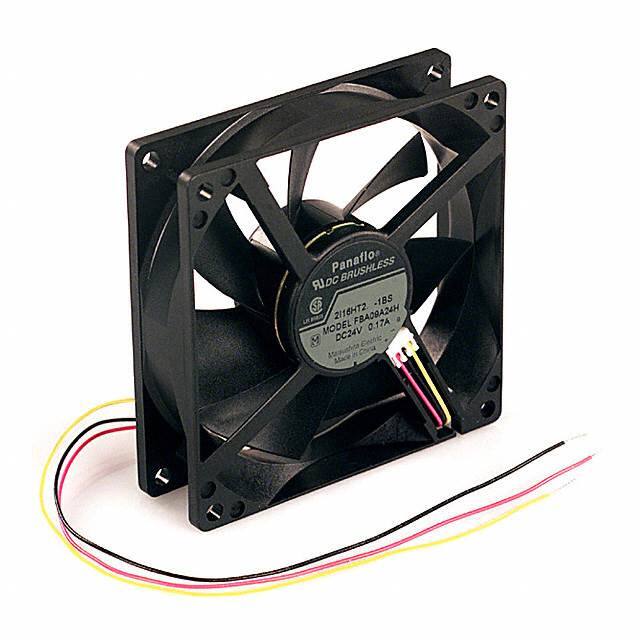

FBA09A24H1BSFAN AXIAL 92X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.36 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA12G12H1BXFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 41.5dB | 4.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

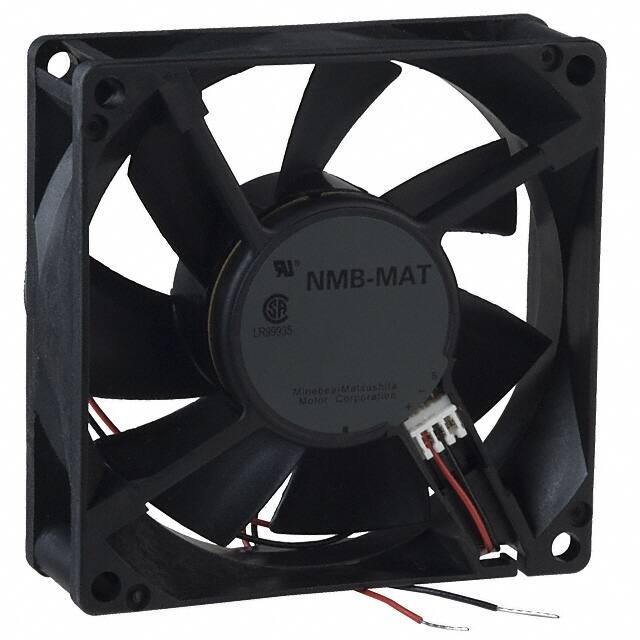

FBA08A12L1AZFAN AXIAL 80X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 21.0dB | 820 mW | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA08A12H1AZFAN AXIAL 80X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.08 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA09A12H1AZFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 2.7 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA12G12H1AZFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 41.5dB | 4.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
FBA09A12L1BSFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 27.0dB | 1.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

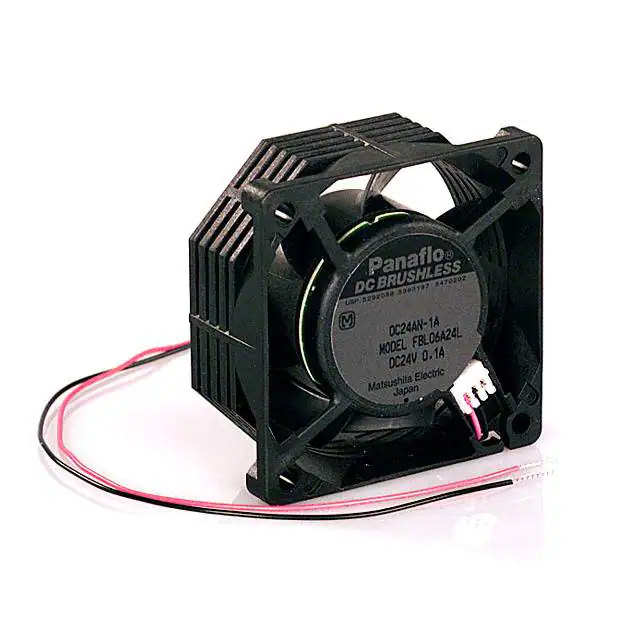

FBL06A24L1AFAN AXIAL 60X25.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FBL | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
