فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF50151V1-B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
2,747 |
|
برگه مشخصات |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 4.5 CFM (0.126m³/min) | 0.670 in H2O (166.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 39.8dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.067 lb (30.39 g) |
|
AUB0912L-CFAN AXIAL 92X25.4MM 12VDC |
690 |
|
برگه مشخصات |
AUB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 39.4 CFM (1.10m³/min) | 0.094 in H2O (23.4 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 2000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | - |
|

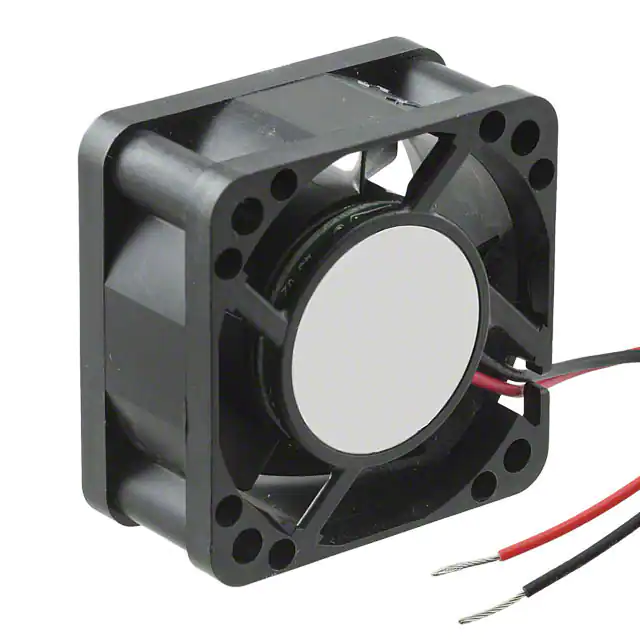

1608VL-05W-B40-B00FAN AXIAL 40.1X20MM 24VDC WIRE |
2,688 |
|
برگه مشخصات |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.2 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
ASB0405HHA-AF00FAN AXIAL 40X10MM 5VDC WIRE |
443 |
|
برگه مشخصات |
ASB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.5dB(A) | 650 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|
EE92251B2-000U-999FAN AXIAL 92X25MM 12VDC WIRE |
1,393 |
|
برگه مشخصات |
EE | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|
2410SB-04W-B40-B00FAN AXIAL 60X25MM 12VDC WIRE |
1,048 |
|
برگه مشخصات |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
DSB0624VH-AFAN AXIAL 60X25.4MM 24VDC WIRE |
157 |
|
- |
DSB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.7 CFM (0.776m³/min) | 0.294 in H2O (73.2 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 5.52 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
1608VL-05W-B59-B00FAN AXIAL 40.1X20MM 24VDC WIRE |
3,062 |
|
برگه مشخصات |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.308 in H2O (76.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.4dB(A) | 1.68 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
1608VL-04W-B69-B00FAN AXIAL 40.1X20MM 12VDC WIRE |
281 |
|
برگه مشخصات |
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 11.3 CFM (0.316m³/min) | 0.399 in H2O (99.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.6dB(A) | 1.56 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
1608VL-04W-B69-B50FAN AXIAL 40.1X20MM 12VDC WIRE |
238 |
|
برگه مشخصات |
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 11.3 CFM (0.316m³/min) | 0.399 in H2O (99.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.6dB(A) | 1.56 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
3110SB-04W-B50-E00FAN AXIAL 80X25MM 12VDC WIRE |
4,646 |
|
برگه مشخصات |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.68 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
EE80251BX-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
1,016 |
|
برگه مشخصات |
EE | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 1.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.196 lb (88.9 g) |
|
CFM-6020V-245-335-20FAN AXIAL 60X20MM 24VDC WIRE |
177 |
|
برگه مشخصات |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 25.5 CFM (0.714m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.0dB(A) | 2.09 W | 5700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
BW05115012BL-6(B085)51X15MM 12V BALL 4500RPM, 2 WIRE |
994 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2410ML-04W-B89-E50FAN AXIAL 60X25MM 12VDC WIRE |
616 |
|
برگه مشخصات |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB | 6.2 W | 7800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
2410SB-04W-B29-B50FAN AXIAL 60X25MM 12VDC WIRE |
1,375 |
|
برگه مشخصات |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
3610SB-05W-B20-B00FAN AXIAL 92X25MM 24VDC WIRE |
2,137 |
|
برگه مشخصات |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | - | 25.0dB | 840 mW | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|

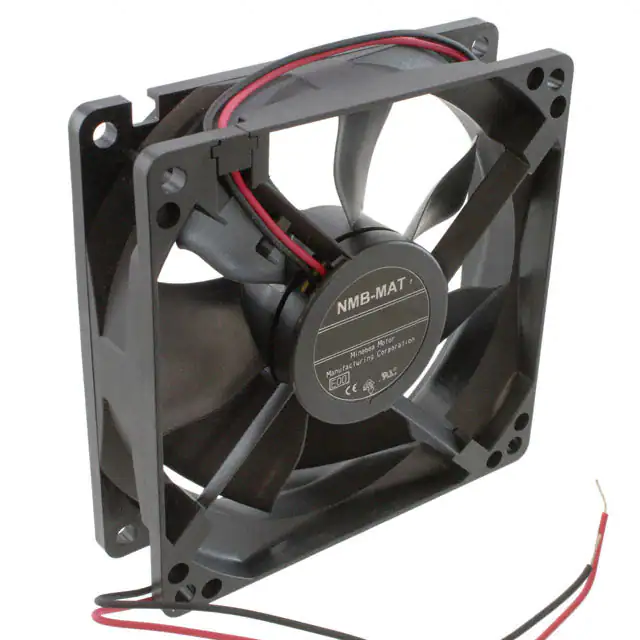

09225SA-24M-EA-00FAN AXIAL 92X25MM 24VDC WIRE |
1,415 |
|
برگه مشخصات |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.4 CFM (1.35m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 32.0dB | 1.56 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.209 lb (94.8 g) |
|
3610SB-04W-B40-E00FAN AXIAL 92X25MM 12VDC WIRE |
356 |
|
برگه مشخصات |
09225SA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.4 CFM (1.35m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 32.0dB | 1.56 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
MF50151VX-B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
1,135 |
|
برگه مشخصات |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 42.2dB(A) | 2.04 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | 0.067 lb (30.39 g) |
