فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2410ML-05W-B40-E00FAN AXIAL 60X25MM 24VDC WIRE |
568 |
|
برگه مشخصات |
2410ML | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Tubeaxial | - | 33.5dB | 2.16 W | 4550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B50-B00FAN AXIAL 60X25MM 24VDC WIRE |
138 |
|
برگه مشخصات |
2410ML | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB | 2.4 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
DC0602012J2B-2T0FAN AXIAL 60X20MM 12VDC WIRE |
400 |
|
برگه مشخصات |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 840 mW | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
2410ML-05W-B10-B00FAN AXIAL 60X25MM 24VDC WIRE |
363 |
|
برگه مشخصات |
2410ML | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 13.7 CFM (0.384m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Auto Restart | 23.0dB | 1.44 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
NYW06025012BSS-NCB-6IPX4(A610)60X25MM 6800RPM 12V W/CONN+IPX4, |
175 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
G4020M05B2-RSR-WSFAN AXIAL 40X20MM BALL 5VDC WIRE |
590 |
|
برگه مشخصات |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
3610VL-05W-B70-B00FAN AXIAL 92X25MM 24VDC WIRE |
547 |
|
برگه مشخصات |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 9.12 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
2406VL-05W-B69-B50FAN AXIAL 60X15MM 24VDC WIRE |
1,122 |
|
برگه مشخصات |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.5dB | 1.68 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B39-B50FAN AXIAL 60X15MM 24VDC WIRE |
3,232 |
|
برگه مشخصات |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.5 CFM (0.406m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.5dB | 960 mW | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
F6025X12B1-RHRFAN AXIAL 60X25MM 12VDC WIRE |
165 |
|
برگه مشخصات |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

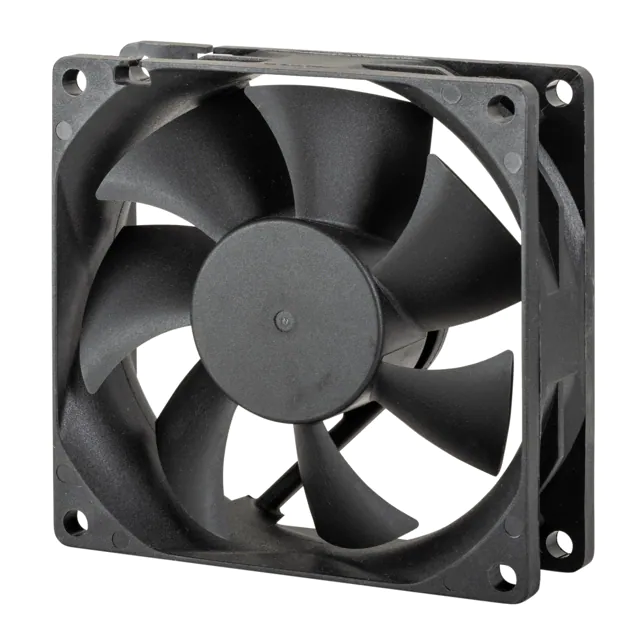

R8025Y12BPLB2AFAN AXIAL 80X25MM 12VDC WIRE |
108 |
|
برگه مشخصات |
Intelligent Motion | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 57.7 CFM (1.64m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 40.6dB(A) | 4.8 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
2410ML-05W-B69-B00FAN AXIAL 60X25MM 24VDC WIRE |
1,172 |
|
برگه مشخصات |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.0dB | 3.12 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2406VL-04W-B69-B50FAN AXIAL 60X15MM 12VDC WIRE |
233 |
|
برگه مشخصات |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.5dB | 1.56 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
1608VL-05W-B50-B00FAN AXIAL 40.1X20MM 24VDC WIRE |
1,610 |
|
برگه مشخصات |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.308 in H2O (76.6 Pa) | Ball | Tubeaxial | Auto Restart | 31.4dB(A) | 1.68 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
1608VL-05W-B60-B00FAN AXIAL 40.1X20MM 24VDC WIRE |
1,009 |
|
برگه مشخصات |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 11.3 CFM (0.316m³/min) | 0.399 in H2O (99.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.6dB(A) | 2.4 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
1608VL-04W-B50-B00FAN AXIAL 40.1X20MM 12VDC WIRE |
163 |
|
برگه مشخصات |
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 0.308 in H2O (76.6 Pa) | Ball | Tubeaxial | Auto Restart | 31.4dB(A) | 1.32 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
AFB04512HAFAN AXIAL 45X10MM 12VDC WIRE |
257 |
|
- |
AFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.8 CFM (0.330m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.5dB(A) | 2.04 W | 6000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.035 lb (15.88 g) |
|

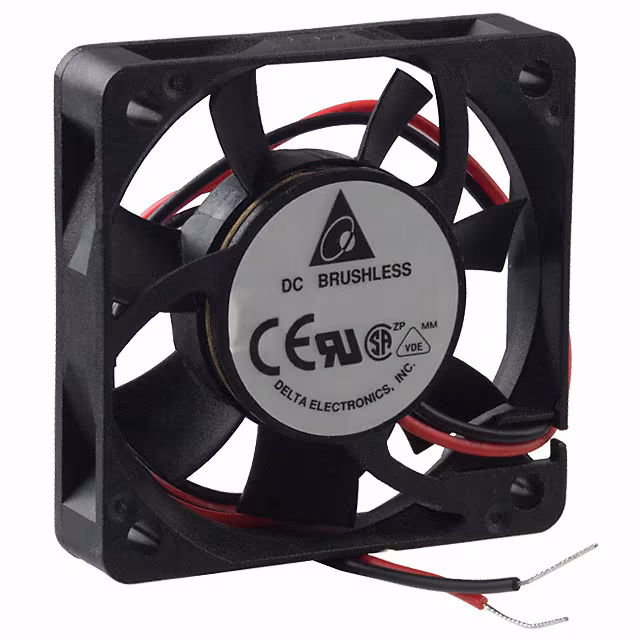

AFB04512MAFAN AXIAL 45X10MM 12VDC WIRE |
147 |
|
برگه مشخصات |
AFB | Tray | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.32 W | 5000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.035 lb (15.88 g) |
|
|
04020VA-24J-AA-00FAN AXIAL 40X20MM 24VDC WIRE |
350 |
|
برگه مشخصات |
04020VA | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.8 CFM (0.134m³/min) | 0.098 in H2O (24.5 Pa) | Ball | Tubeaxial | Auto Restart | 21.0dB | 720 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
4710KL-05W-B50-E00FAN AXIAL 119X25.5MM 24VDC WIRE |
189 |
|
برگه مشخصات |
4710KL | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | - | 41.5dB | 6.96 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
