هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF196 PM6249COSMO INDIA PM CORES MN-ZN |
500 |
|
برگه مشخصات |
- | Bulk | Active | PM | PM 62 x 49 | N27 | 2.441" (62.00mm) | 9.2 µH | -20%, +30% | Ungapped | - | 2000 | 0.191 | 109.0 | 570.0 | - | 62000.0 | Uncoated | 0.965" (24.50mm) | - | - |
|
|
CF297 PM5039COSMO INDIA PM CORES MN-ZN |
500 |
|
- |
- | Bulk | Active | PM | PM 50 x 39 | 3C95 | 1.969" (50.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.535" (39.00mm) | - | - |
|
|
CF297A PM5039COSMO INDIA PM CORES MN-ZN |
500 |
|
برگه مشخصات |
- | Bulk | Active | PM | PM 50 x 39 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5099 93-76-30-0000U Core |
1,152 |
|
برگه مشخصات |
- | Bulk | Active | U | U 93 x 76 x 30 | 5099 | - | - | ±25% | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
50ALL 93-76-30-0000U Core |
1,152 |
|
برگه مشخصات |
- | Bulk | Active | U | U 93 x 76 x 30 | 50ALL | - | - | ±25% | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
N001 93-76-30-0000U Core |
1,152 |
|
برگه مشخصات |
- | Bulk | Active | U | U 93 x 76 x 30 | N001 | - | - | ±25% | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
7099 93-76-30-0000U Core |
1,152 |
|
برگه مشخصات |
- | Bulk | Active | U | U 93 x 76 x 30 | 7099 | - | - | ±25% | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
7070 93-76-30-0000U Core |
1,152 |
|
برگه مشخصات |
- | Bulk | Active | U | U 93 x 76 x 30 | 7070 | - | - | ±25% | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
CF297 UU100115COSMO INDIA U CORE FLAT/ VERTIC |
500 |
|
- |
- | Bulk | Active | U | U 100 x 57 x 25 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | - | - | 0.984" (25.00mm) |
|
|
CF297A UU100115COSMO INDIA U CORE FLAT/ VERTIC |
500 |
|
برگه مشخصات |
- | Bulk | Active | U | U 100 x 57 x 25 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.248" (57.10mm) | 4.000" (101.60mm) | 1.000" (25.40mm) |
|
|
CF297A UU9330COSMO INDIA U CORE FLAT/ VERTIC |
500 |
|
- |
- | Bulk | Active | U | U 93 x 76 x 30 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
CF297A UU12620COSMO INDIA U CORE FLAT/ VERTIC |
500 |
|
برگه مشخصات |
- | Bulk | Active | U | U 126 x 91 x 20 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 3.583" (91.00mm) | 4.961" (126.00mm) | 0.787" (20.00mm) |
|
|
CF297 UU9330COSMO INDIA U CORE FLAT/ VERTIC |
500 |
|
برگه مشخصات |
- | Bulk | Active | U | U 93 x 76 x 30 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
CF297 T14025COSMO INDIA TOROIDAL RINGS MN-Z |
500 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 140 x 106 x 25 | 3C90 | 5.528" (140.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.996" (25.30mm) | - | - |
|
|
CF139 PM8770COSMO INDIA PM CORES MN-ZN |
500 |
|
برگه مشخصات |
- | Bulk | Active | PM | PM 87 x 70 | N87 | 3.425" (87.00mm) | 12 µH | -20%, +30% | Ungapped | - | 2200 | 0.16 | 146.0 | 910.0 | - | 133000.0 | Uncoated | 1.378" (35.00mm) | - | - |
|
|
CF190 T14025COSMO INDIA TOROIDAL RINGS MN-Z |
500 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 140 x 106 x 25 | - | 5.528" (140.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.996" (25.30mm) | - | - |
|
5952020801FERRITE CORE TOROID 52 |
83 |
|
برگه مشخصات |
- | Tray | Active | Toroid | - | 52 | - | - | ±25% | Ungapped | - | 250 | - | 87.9 | 79.2 | - | 6959.0 | Uncoated | 0.500" (12.70mm) | - | - |
|

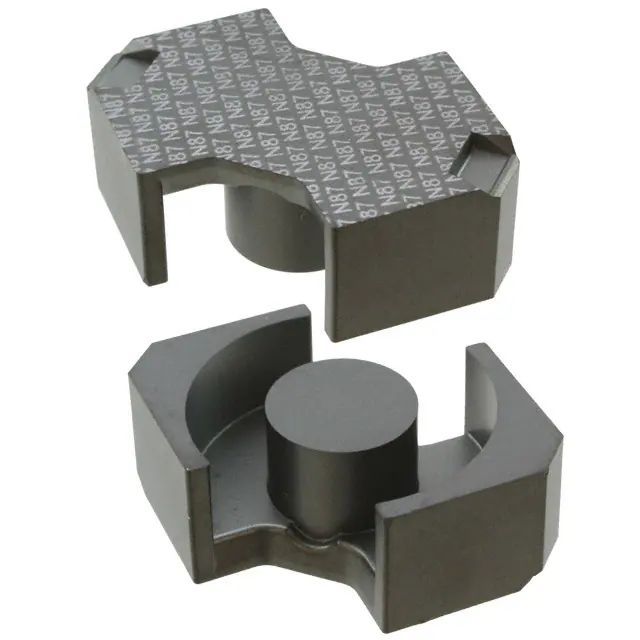

B65815E0000R087FERRITE CORE RM 5.3UH N87 2PCS |
53 |
|
برگه مشخصات |
RM12 | Box | Active | RM | RM 12 | N87 | - | 5.3 µH | -20%, +30% | Ungapped | 1640.0 | 2200 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|

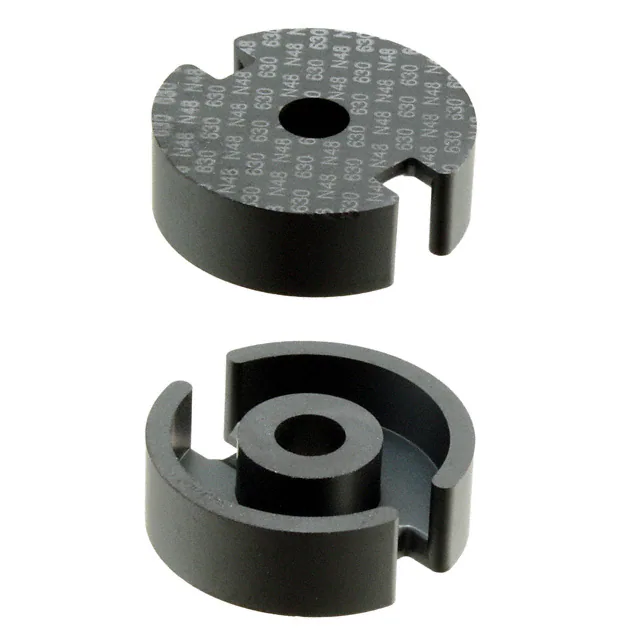

B65671T0630A048FERRITE CORE P 630NH N48 2PCS |
36 |
|
برگه مشخصات |
P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | N48 | 1.024" (26.00mm) | 630 nH | ±3% | Gapped | 201.0 | - | 0.4 | 37.2 | 93.0 | 76.5 | 3460.0 | Uncoated | 0.321" (8.15mm) | - | - |
|

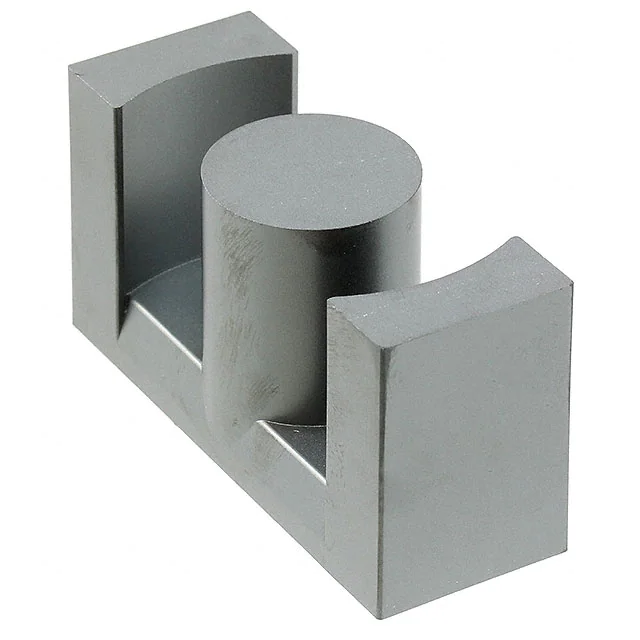

B66397G0000X197FERRITE CORE ETD N97 1PC |
37 |
|
برگه مشخصات |
ETD59/31/22 | Box | Active | ETD | ETD 59 x 31 x 22 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
