هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66417U0250K187FERRITE CORE EFD N87 |
782 |
|
برگه مشخصات |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | ±10% | Gapped | 300.0 | 2200 | 1.52 | 47.0 | 31.0 | 31.0 | 1460.0 | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
B66302G0000X187FERRITE CORE E N87 1PC |
725 |
|
برگه مشخصات |
E8.8/4/2 | Box | Active | E | E 8 x 8 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 0.354" (9.00mm) | 0.079" (2.00mm) |
|
EFD25/13/9-3F46FERRITE CORE EFD 3F46 |
704 |
|
برگه مشخصات |
- | Bulk | Active | EFD | EFD 25 x 13 x 9 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
|
B66311G0250X187FERRITE CORE E N87 1PC |
460 |
|
برگه مشخصات |
E20/10/6 | Tray | Active | E | E 20 x 10 x 6 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
|
EFD25/13/9-3F36FERRITE CORE EFD 3F36 |
79 |
|
برگه مشخصات |
- | Bulk | Active | EFD | EFD 25 x 13 x 9 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
|
4077375411FERRITE CORE ROD 77 |
48 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 77 | 0.374" (9.50mm) | - | - | Ungapped | 29.0 | 2000 | - | 25.0 | 7.07 | - | - | Uncoated | - | 1.625" (41.28mm) | - |
|

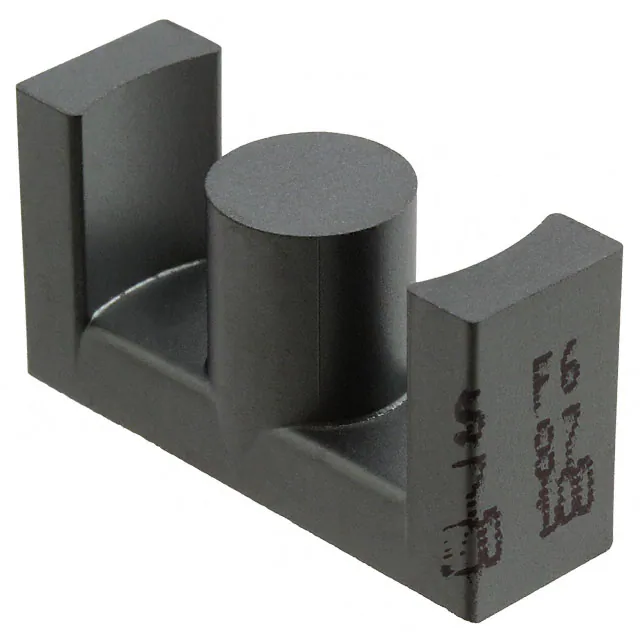

B66358G1000X187FERRITE CORE ETD N87 1PC |
89 |
|
برگه مشخصات |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|

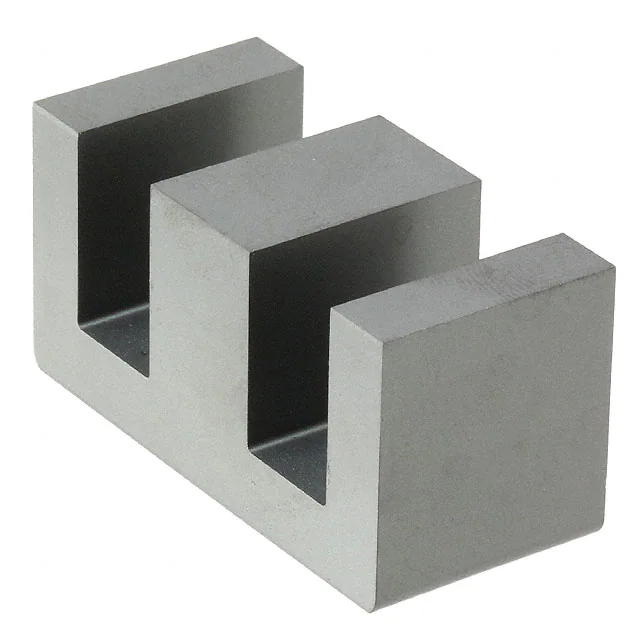

B66329G0000X187FERRITE CORE E N87 1PC |
36 |
|
برگه مشخصات |
E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|
E38/8/25-3F36FERRITE CORE E 3F36 |
55 |
|
برگه مشخصات |
- | Bulk | Active | E | E 38 x 8 x 25 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.325" (8.26mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
B66365G0000X197FERRITE CORE ETD N97 1PC |
63 |
|
برگه مشخصات |
ETD44/22/15 | Box | Active | ETD | ETD 44 x 22 x 15 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) |
|
CMC030020012HNANOCRYSTALLINE CORE TOROID 55UH |
32 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Nanocrystalline | 1.181" (30.00mm) | 55 µH | ±30% | Ungapped | - | 80000 | - | 79.0 | 49.0 | - | - | Polyester | 0.472" (12.00mm) | - | - |
|
5975021921FERRITE CORE TOROID 6.5UH 75 |
53 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 75 | 1.984" (50.40mm) | 6.5 µH | -30%, +25% | Ungapped | - | 5000 | 1.059 | 127.0 | 120.0 | - | 15300.0 | Plastic | 0.663" (16.85mm) | - | - |
|
|
0P48020ECFERRITE CORE E 5.08UH P |
73 |
|
برگه مشخصات |
- | Bulk | Active | E | - | P | - | 5.08 µH | - | Ungapped | - | 2500 | - | 184.0 | 392.0 | 392.0 | 72300.0 | Uncoated | 1.500" (38.10mm) | 3.150" (80.00mm) | 0.780" (19.80mm) |
|
B66395G0000X197FERRITE CORE ETD N97 1PC |
97 |
|
برگه مشخصات |
ETD54/28/19 | Box | Active | ETD | ETD 54 x 28 x 19 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.156" (54.50mm) | 0.760" (19.30mm) |
|
RM12/I-3C95FERRITE CORE RM 3C95 2PC SET |
83 |
|
برگه مشخصات |
- | Bulk | Active | RM | RM 12 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.965" (24.50mm) | 1.472" (37.40mm) | 0.634" (16.10mm) |
|
|
PQ35/35-3F46FERRITE CORE PQ 3F46 2PC SET |
36 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 35 x 35 | 3F46 | - | - | ±25% | Ungapped | - | - | 0.454 | 86.1 | 190.0 | 162.0 | 16300.0 | Uncoated | 1.366" (34.70mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|
B65879Q0100K095FERRITE CORE PQ 100NH N95 |
67 |
|
برگه مشخصات |
PQ32/30 | Bulk | Active | PQ | PQ 32 x 30 | N95 | - | 100 nH | ±10% | Distributed Gapped | - | 3000 | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.597" (15.17mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
|
B65879Q0150K095FERRITE CORE PQ 150NH N95 |
50 |
|
برگه مشخصات |
PQ32/30 | Bulk | Active | PQ | PQ 32 x 30 | N95 | - | 150 nH | ±10% | Distributed Gapped | - | 3000 | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.597" (15.17mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
|
0077726A7FERRITE CORE TOROID 175NH KOOLMU |
86 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 2.028" (51.51mm) | 175 nH | ±8% | Ungapped | - | 60 | - | 113.5 | 262.0 | - | 29700.0 | Coated | 0.850" (21.59mm) | - | - |
|
|
ETD59/31/22-3C95FERRITE CORE ETD 3C95 |
71 |
|
برگه مشخصات |
- | Bulk | Active | ETD | ETD 59 x 31 x 22 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.220" (31.00mm) | 2.354" (59.80mm) | 0.852" (21.65mm) |
