هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65883A0000R092FERRITE CORE PQ 3.2UH N92 2PCS |
61 |
|
برگه مشخصات |
PQ40/40 | Box | Active | PQ | PQ 40 x 40 | N92 | - | 3.2 µH | -20%, +30% | Ungapped | 1250.0 | 1500 | 0.49 | 92.5 | 188.3 | 159.9 | 17430.0 | Uncoated | 0.783" (19.90mm) | 1.594" (40.50mm) | 1.102" (28.00mm) |
|
B66387G1500X187FERRITE CORE E N87 1PC |
65 |
|
برگه مشخصات |
E65/32/27 | Box | Active | E | E 65 x 32 x 27 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
PC47EER42/42/20-ZFERRITE CORE E 5.34UH PCS47 2PC |
76 |
|
برگه مشخصات |
E | Tray | Active | E | EER 42 x 42 x 20 | PC47 | - | 5.34 µH | ±25% | Ungapped | - | - | 0.41 | 98.6 | 240.0 | - | 23700.0 | Uncoated | 0.835" (21.20mm) | 1.659" (42.15mm) | 0.772" (19.60mm) |
|
T58/41/18-3C90FERRITE CORE TOROID 3C90 |
12 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 3C90 | 2.295" (58.30mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.693" (17.60mm) | - | - |
|
PQ50/35-3F36FERRITE CORE PQ 3F36 2PC SET |
58 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 50 x 35 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.378" (35.00mm) | 2.008" (51.00mm) | 1.260" (32.00mm) |
|
B66371Q0100K187FERRITE CORE E 100NH N87 |
57 |
|
برگه مشخصات |
E70/33/32 | Bulk | Active | E | E 70 x 33 x 32 | N87 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.22 | 149.0 | 683.0 | 676.0 | 102000.0 | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|
9478207002FERRITE CORE E 78 SET |
27 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 15.4 | 80.7 | 520.0 | 515.0 | 41500.0 | Uncoated | 0.407" (10.34mm) | 2.520" (64.00mm) | 2.008" (51.00mm) |
|
B66371G1500X127FERRITE CORE E N27 1PC |
30 |
|
برگه مشخصات |
E70/33/32 | Box | Active | E | E 70 x 33 x 32 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|

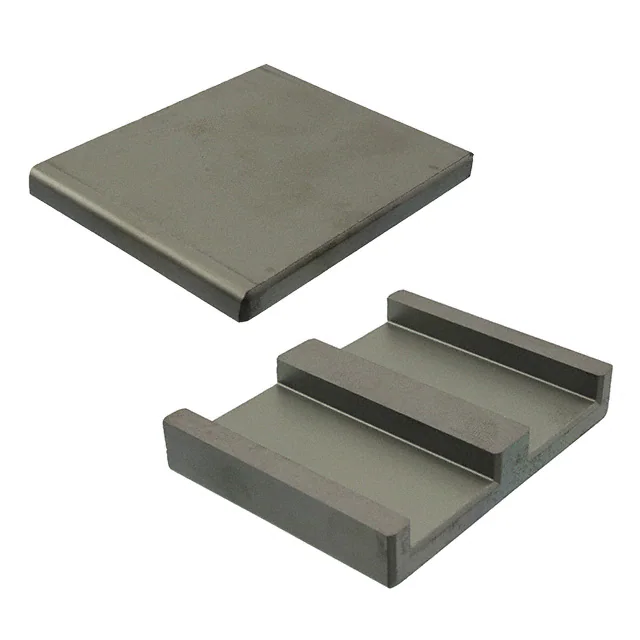

7895400721FERRITE CORE PLANAR E/I 95 SET |
43 |
|
برگه مشخصات |
- | Bulk | Active | Planar E/I | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 14.0 | 70.0 | 518.0 | 515.0 | 36300.0 | Uncoated | 0.407" (10.34mm) | 2.520" (64.00mm) | 2.008" (51.00mm) |
|
B66371Q0100K195FERRITE CORE E 100NH N95 |
48 |
|
برگه مشخصات |
B66371 | Bulk | Active | E | E 70 x 33 x 32 | N95 | - | 100 nH | ±10% | Gapped | - | 2200 | 0.22 | 149.0 | 683.0 | 676.0 | 102000.0 | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|
TX63/38/25-3C94FERRITE CORE TOROID 3C94 |
78 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 3C94 | 2.480" (63.00mm) | - | ±25% | Ungapped | 2300.0 | - | 0.497 | 152.0 | 306.0 | - | 46500.0 | Epoxy | 0.984" (25.00mm) | - | - |
|
B65646A0630A027FERRITE CORE PM 630NH N27 2PCS |
44 |
|
برگه مشخصات |
PM50/39 | Box | Active | PM | PM 50 x 39 | N27 | 1.969" (50.00mm) | 630 nH | ±3% | Gapped | 114.0 | 2000 | 0.227 | 84.0 | 370.0 | 280.0 | 31000.0 | Uncoated | 0.768" (19.50mm) | - | - |
|
B65981Q0400K095FERRITE CORE PQ 400NH N95 |
64 |
|
برگه مشخصات |
PQ50/50 | Bulk | Active | PQ | PQ 50 x 50 | N95 | - | 400 nH | ±10% | Distributed Gapped | - | 3000 | 0.342 | 113.0 | 332.0 | 314.0 | 37630.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.260" (32.00mm) |
|

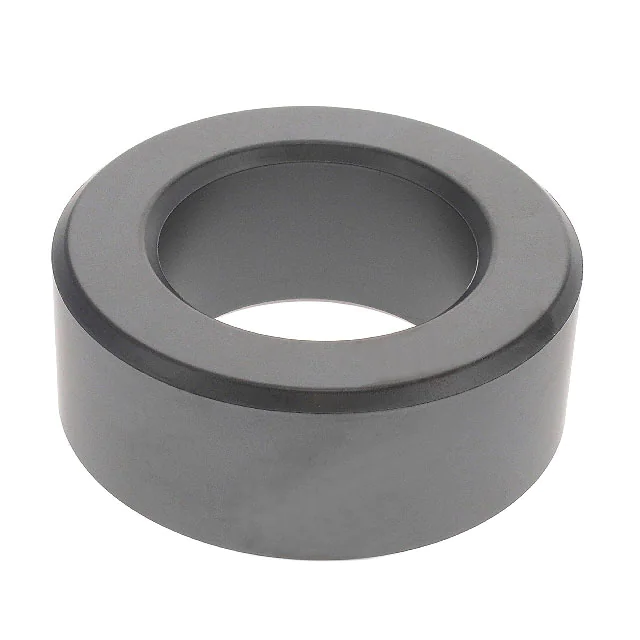

B64290A0699X830FERRITE CORE TOROID 10.8UH N30 |
98 |
|
برگه مشخصات |
T63/38/25 | Box | Active | Toroid | R 63 x 38 x 25 | N30 | 2.480" (63.00mm) | 10.8 µH | ±25% | Ungapped | - | 4300 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Uncoated | 0.984" (25.00mm) | - | - |
|
|
B65684A0630A027FERRITE CORE PM 630NH N27 2PCS |
66 |
|
برگه مشخصات |
PM62/49 | Box | Active | PM | PM 62 x 49 | N27 | 2.441" (62.00mm) | 630 nH | ±3% | Gapped | 95.0 | 2000 | 0.191 | 109.0 | 570.0 | 470.0 | 62000.0 | Uncoated | 0.965" (24.50mm) | - | - |
|
B67345B0003X027FERRITE CORE U N27 1PC |
20 |
|
برگه مشخصات |
U93/76/16 | Box | Active | U | U 93 x 76 x 16 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 0.630" (16.00mm) |
|
|
B65982Q0250K097FERRITE CORE PQ 250NH N97 |
14 |
|
برگه مشخصات |
PQ65/60 | Tray | Active | PQ | PQ 65 x 60 | N97 | - | 250 nH | ±10% | Distributed Gapped | - | - | 0.228 | 137.0 | 171.0 | 531.0 | 81950.0 | Uncoated | 1.181" (30.00mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
T102/66/15-3C90FERRITE CORE TOROID 3C90 |
58 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 3C90 | 4.016" (102.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | - | - |
|
5978014001FERRITE CORE TOROID 78 |
9 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 78 | - | - | ±25% | Ungapped | - | 2300 | - | 274.0 | 324.0 | - | 88700.0 | Uncoated | - | - | - |
|
|
T102/66/15-3E27FERRITE CORE TOROID 3E+27 |
6 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 3E27 | 4.016" (102.00mm) | - | ±25% | - | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | - | - |
