هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX102/66/15-3C11FERRITE CORE TOROID 3C11 |
18 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 3C11 | 4.031" (102.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.602" (15.30mm) | - | - |
|
HF60T80X20X50FERRITE CORE TOROID |
25 |
|
برگه مشخصات |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.787" (20.00mm) | - | - |
|
PC95SP110X40X20FERRITE CORE SP PCS95 1PCS |
41 |
|
برگه مشخصات |
SP | Tray | Active | SP | SP 110 x 40 x 20 | PC95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 4.331" (110.00mm) | 1.575" (40.00mm) |
|
B65982Q0400K097FERRITE CORE PQ 400NH N97 |
6 |
|
برگه مشخصات |
PQ65/60 | Tray | Active | PQ | PQ 65 x 60 | N97 | - | 400 nH | ±10% | Distributed Gapped | - | - | 0.228 | 137.0 | 171.0 | 531.0 | 81950.0 | Uncoated | 1.181" (30.00mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
|
TX107/65/18-3E27FERRITE CORE TOROID 3E+27 |
22 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 107 x 65 x 18 | 3E27 | 4.228" (107.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.720" (18.30mm) | - | - |
|

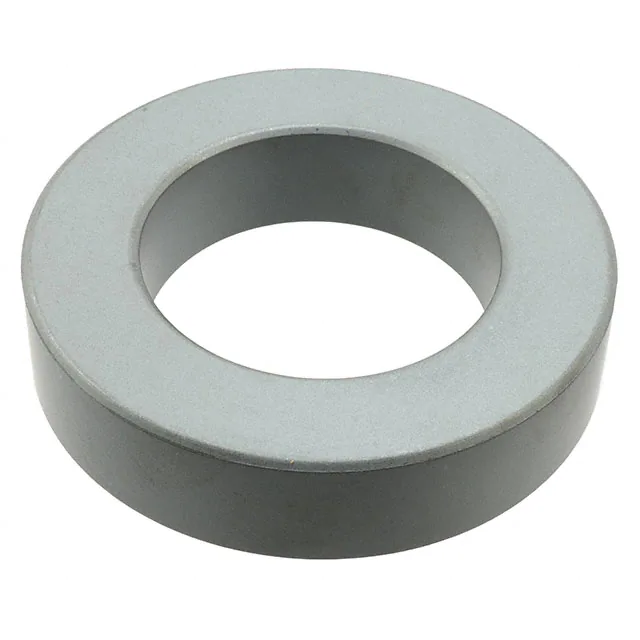

T107/65/25-3E27FERRITE CORE TOROID 3E+27 |
9 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 3E27 | 4.213" (107.00mm) | - | - | Ungapped | - | - | 0.504 | 259.0 | 514.0 | - | 133000.0 | Uncoated | 0.984" (25.00mm) | - | - |
|

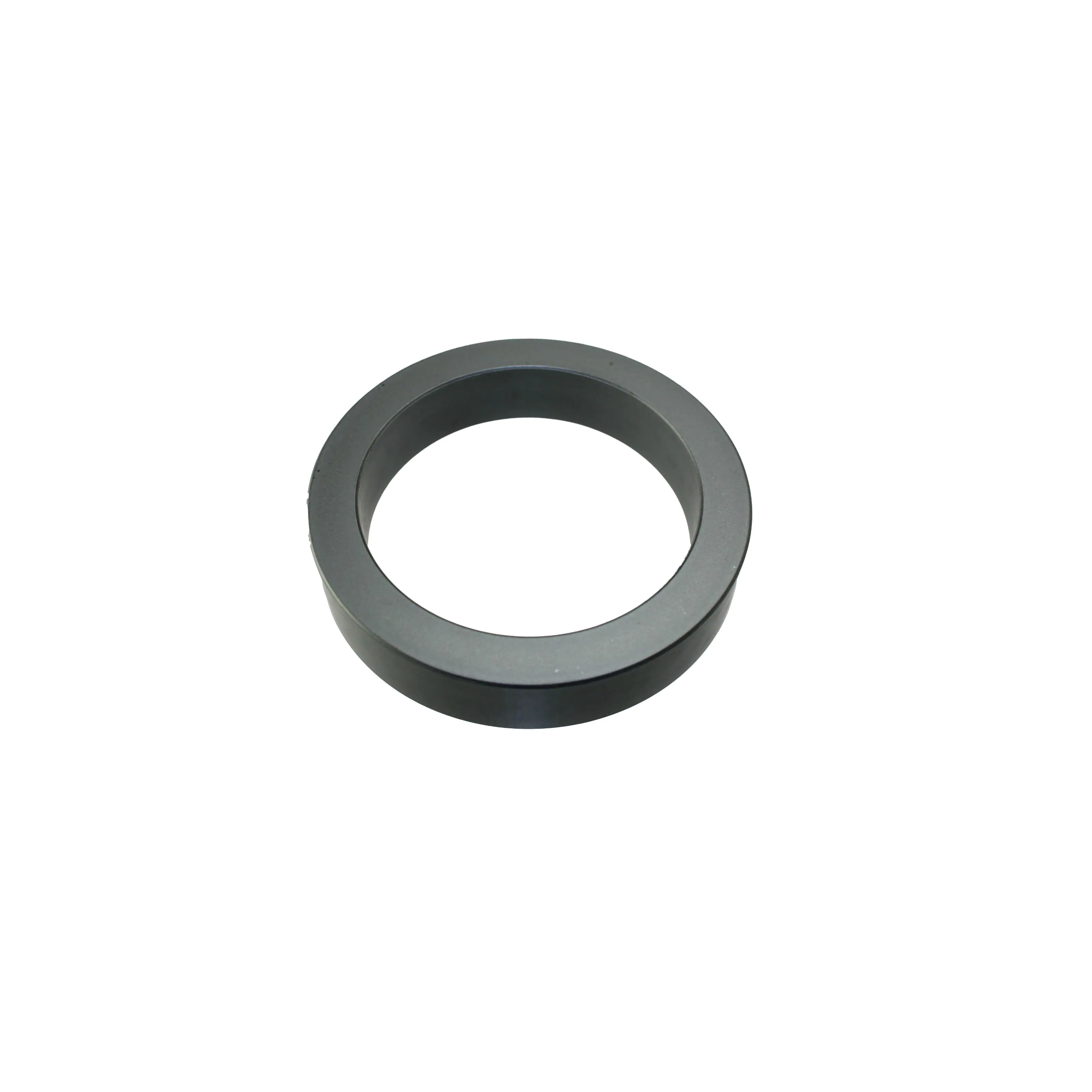

HF90T104X20X80FERRITE CORE TOROID |
16 |
|
برگه مشخصات |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.787" (20.00mm) | - | - |
|
|
PC95SP135X65X20FERRITE CORE SP PCS95 1PCS |
18 |
|
برگه مشخصات |
SP | Tray | Active | SP | SP 135 x 65 x 20 | PC95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 5.315" (135.00mm) | 2.559" (65.00mm) |
|
|
TX140/106/25-3C90FERRITE CORE TOROID 3C90 |
8 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 140 x 106 x 25 | 3C90 | 5.528" (140.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.996" (25.30mm) | - | - |
|
5978008001FERRITE CORE TOROID 78 |
4 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 78 | - | - | ±25% | Ungapped | - | 2300 | - | 313.0 | 760.0 | - | 237000.0 | Uncoated | 0.750" (19.05mm) | - | - |
|
B64290A0711X010FERRITE CORE TOROID 970NH K10 |
2 |
|
برگه مشخصات |
T202/153/25 | Box | Active | Toroid | R 202 x 153 x 25 | K10 | 7.953" (202.00mm) | 970 nH | ±25% | Ungapped | - | 700 | 0.9 | 550.5 | 608.6 | - | 335030.0 | Uncoated | 0.984" (25.00mm) | - | - |
|
B64290A0044X087FERRITE CORE TOROID 1.12UH N87 |
156 |
|
برگه مشخصات |
T12.5/7.5/5 | Box | Active | Toroid | R 12.5 x 7.5 x 5 | N87 | 0.492" (12.50mm) | 1.12 µH | ±25% | Ungapped | - | 2200 | 2.46 | 30.09 | 12.23 | - | 368.0 | Uncoated | 0.197" (5.00mm) | - | - |
|
|
6678353621FERRITE CORE PQ 78 SET |
100 |
|
برگه مشخصات |
- | Bulk | Active | PQ | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 48.2 | 88.2 | 183.0 | 161.7 | 16130.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | - |
|
|
T60006-L2017-P003FERRITE CORE TOROID |
60 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Nanocrystalline | 0.756" (19.20mm) | 10.3 µH | - | Ungapped | - | - | - | 47.3 | 11.5 | - | - | Epoxy | 0.319" (8.10mm) | - | - |
|
|
T60006-L2012-P002FERRITE CORE TOROID |
52 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Nanocrystalline | 0.555" (14.10mm) | 9.48 µH | - | Ungapped | - | - | - | 31.4 | 7.0 | - | - | Epoxy | 0.248" (6.30mm) | - | - |
|
|
T60006-L2009-P001FERRITE CORE TOROID |
39 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Nanocrystalline | 0.441" (11.20mm) | 25.6 µH | - | Ungapped | - | - | - | 25.6 | 5.8 | - | - | Epoxy | 0.228" (5.80mm) | - | - |
|
|
00K5529U026FERRITE CORE U 85NH KOOL MU |
31 |
|
برگه مشخصات |
- | Bulk | Active | U | - | Kool Mu | - | 85 nH | ±8% | Ungapped | - | 26 | - | 168.0 | 244.0 | - | 40.992 | Uncoated | 1.085" (27.56mm) | 2.160" (54.86mm) | 0.912" (23.16mm) |
|
|
0R49938ECFERRITE CORE E 9.81UH |
77 |
|
برگه مشخصات |
- | Bulk | Active | E | - | - | - | 9.81 µH | - | Ungapped | - | 2300 | - | 148.0 | 540.0 | - | 79800.0 | Uncoated | 0.799" (20.30mm) | 4.016" (102.00mm) | 1.476" (37.50mm) |
|
|
ZP47313TCFERRITE CORE TOROID 4.024UH P |
44 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | P | 2.955" (75.06mm) | 4.024 µH | ±25% | Ungapped | - | 2500 | - | 165.0 | 210.0 | - | 34771.0 | Epoxy | 0.525" (13.34mm) | - | - |
|
|
0079083A7FERRITE CORE TOROID 81NH KOOL MU |
84 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu MAX | 1.605" (40.77mm) | 81 nH | ±8% | Ungapped | - | 60 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.605" (15.37mm) | - | - |
