هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4061378111FERRITE CORE ROD 61 |
451 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 61 | 0.374" (9.50mm) | - | - | Ungapped | - | 125 | - | - | - | - | - | Uncoated | - | 1.000" (25.40mm) | - |
|

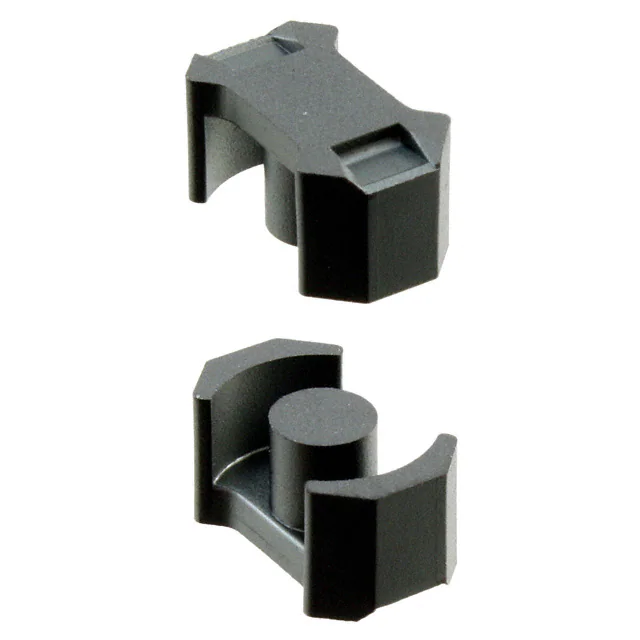

B65803J0000R087FERRITE CORE RM 1.1UH N87 2PCS |
8,178 |
|
برگه مشخصات |
RM4 | Box | Active | RM | RM 4 | N87 | - | 1.1 µH | -20%, +30% | Ungapped | 1480.0 | 2200 | 1.7 | 22.0 | 13.0 | 11.3 | 286.0 | Uncoated | 0.207" (5.25mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|
263180110231 ROUND SUPPRESSION CORE |
2,176 |
|
برگه مشخصات |
- | Bag | Active | Toroid | - | 31 | 0.490" (12.45mm) | - | - | Ungapped | - | - | - | 31.2 | 15.0 | - | 466.0 | Uncoated | 0.240" (6.10mm) | - | - |
|
|
0077310A7FERRITE CORE TOROID 90NH KOOL MU |
1,806 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 0.930" (23.62mm) | 90 nH | ±8% | Ungapped | - | 125 | - | 56.7 | 31.7 | - | 1800.0 | Coated | 0.330" (8.38mm) | - | - |
|
|
2867006802FERRITE CORE 4 HOLE 180NH 67 |
1,108 |
|
برگه مشخصات |
- | Tray | Active | Multi-Hole (2) | - | 67 | - | 180 nH | - | Ungapped | - | 40 | - | - | - | - | - | Uncoated | 1.062" (26.97mm) | 0.525" (13.34mm) | 0.295" (7.49mm) |
|
5943001601FERRITE CORE TOROID 43 |
404 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 43 | - | - | ±20% | Ungapped | - | 800 | - | 76.0 | 47.0 | - | 3530.0 | Uncoated | - | - | 0.311" (7.90mm) |
|
|
0077059A7FERRITE CORE TOROID 43NH KOOL MU |
1,625 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 0.930" (23.62mm) | 43 nH | ±8% | Ungapped | - | 60 | - | 56.7 | 31.7 | - | 1800.0 | Coated | 0.330" (8.38mm) | - | - |
|
B66283K0000X149FERRITE CORE I N49 |
479 |
|
برگه مشخصات |
I18/2/10 | Tray | Active | I | I 18 x 2 x 10 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
|
0059050A2FERRITE CORE TOROID 56NH EDGE |
4,430 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Edge | 0.500" (12.70mm) | 56 nH | ±8% | Ungapped | - | 125 | - | 31.2 | 10.9 | - | 340.0 | Coated | 0.187" (4.75mm) | - | - |
|
B66358G0200X187FERRITE CORE ETD N87 1PC |
342 |
|
برگه مشخصات |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|
TX25/15/10-3E10-MFERRITE CORE TOROID |
178 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 25 x 15 x 10 | - | 1.007" (25.95mm) | - | ±30% | Ungapped | 10000.0 | - | 1.23 | 60.2 | 48.9 | - | 2944.0 | Epoxy | 0.429" (10.90mm) | - | - |
|
PC95ELT15.5X5.8-ZFERRITE CORE ELH 3.68UH 1SET |
1,044 |
|
برگه مشخصات |
Planar | Tray | Active | ELH, PLT | ELT 15.5 x 5.8 | PC95 | - | 3.68 µH | ±25% | Ungapped | - | - | 0.6 | 32.9 | 19.6 | 31.9 | 646.0 | Uncoated | 0.174" (4.42mm) | 0.610" (15.50mm) | 0.488" (12.40mm) |
|

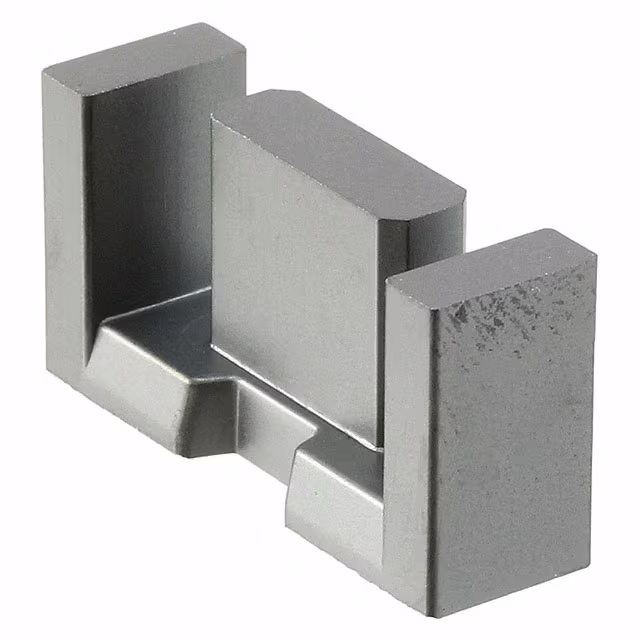

B66423G0000X197FERRITE CORE EFD N97 1PC |
882 |
|
برگه مشخصات |
EFD30/15/9 | Box | Active | EFD | EFD 30 x 15 x 9 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
3078990911FERRITE CORE ROD 78 |
1,647 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 78 | 0.315" (8.00mm) | - | - | Ungapped | 20.0 | 2300 | - | - | 50.3 | - | - | Uncoated | - | 1.772" (45.00mm) | - |
|
E22/6/16/R-3C95FERRITE CORE E 3C95 |
1,143 |
|
برگه مشخصات |
- | Bulk | Active | E | E 22 x 6 x 16 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
|
ZW41809TCTOROID GREY COATED |
1,004 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | W | 0.764" (19.41mm) | 12.2 µH | ±30% | Ungapped | - | 10000 | - | 41.1 | 43.1 | - | 1783.0 | Epoxy | 0.434" (11.02mm) | - | - |
|
B66283G0000X149FERRITE CORE ELP N49 1PC |
5,874 |
|
برگه مشخصات |
ELP18/4/10 | Box | Active | ELP | ELP 18 x 4 x 10 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
B64290L0719X038FERRITE CORE TOROID 7.57UH T38 |
3,480 |
|
برگه مشخصات |
TX22/14/7.9 | Box | Active | Toroid | - | T38 | 0.917" (23.30mm) | 7.57 µH | ±30% | Ungapped | - | 10000 | 1.66 | 54.2 | 32.6 | - | 1763.0 | Epoxy | 0.354" (9.00mm) | - | - |
|
B64290L0719X049FERRITE CORE TOROID 1.13UH N49 |
1,136 |
|
برگه مشخصات |
TX22/14/7.9 | Box | Active | Toroid | - | N49 | 0.917" (23.30mm) | 1.13 µH | ±25% | Ungapped | - | 1500 | 1.66 | 54.2 | 32.6 | - | 1763.0 | Epoxy | 0.354" (9.00mm) | - | - |
|
|
ZW42206TCFERRITE CORE TOROID 6.04UH W |
1,942 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | W | 0.908" (23.07mm) | 6.04 µH | ±30% | Ungapped | - | 10000 | - | 54.2 | 25.7 | - | 1393.0 | Epoxy | 0.276" (7.00mm) | - | - |
