هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0077350A7FERRITE CORE TOROID 105NH KOOLMU |
1,666 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 0.958" (24.33mm) | 105 nH | ±8% | Ungapped | - | 125 | - | 58.8 | 38.8 | - | 2280.0 | Coated | 0.380" (9.65mm) | - | - |
|

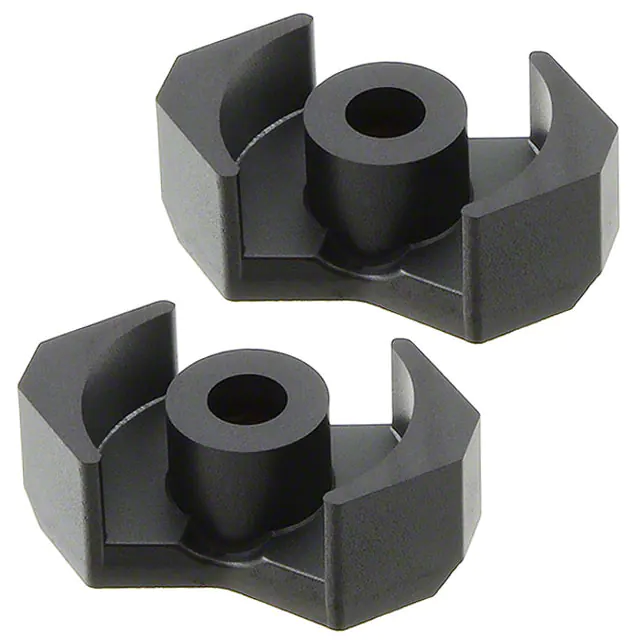

B65807N0400A048FERRITE CORE RM 400NH N48 2PCS |
2,956 |
|
برگه مشخصات |
RM6 | Box | Active | RM | RM 6 | N48 | - | 400 nH | ±3% | Gapped | 274.0 | - | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
5978007601FERRITE CORE TOROID 78 |
1,523 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 78 | 0.870" (22.10mm) | - | ±25% | Ungapped | - | 2300 | - | 54.0 | 52.0 | - | 2830.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
PLT30/20/3-3C95FERRITE CORE PLT 3C95 |
1,254 |
|
برگه مشخصات |
- | Bulk | Active | PLT | PLT 30 x 20 x 3 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.106" (2.70mm) | 1.181" (30.00mm) | 0.787" (20.00mm) |
|
|
5975001401FERRITE CORE TOROID 75 |
979 |
|
برگه مشخصات |
- | Tray | Active | Toroid | - | 75 | 1.000" (25.40mm) | - | ±20% | Ungapped | - | 5000 | - | 62.0 | 41.0 | - | 2520.0 | Uncoated | 0.320" (8.13mm) | - | - |
|
B65933A0000X022FERRITE CORE PS N22 1PC |
5,656 |
|
برگه مشخصات |
PS7.35/3.6 | Box | Active | PS | PS 7.35 x 3.6 | N22 | 0.289" (7.35mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.142" (3.60mm) | - | - |
_3C91.jpg)
|
P14/8-3C91FERRITE CORE P 3C91 2PC SET |
4,016 |
|
برگه مشخصات |
- | Bulk | Active | P (Pot Core) | P 14 x 8 | 3C91 | 0.563" (14.30mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.165" (4.20mm) | - | - |
|
|
PLT32/20/3.2/R-3F4FERRITE CORE PLT 3F4 |
1,756 |
|
برگه مشخصات |
- | Bulk | Active | PLT | PLT 32 x 20 x 3.2 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.125" (3.18mm) | 1.250" (31.75mm) | 0.800" (20.32mm) |
|
|
ZW42915TCFERRITE CORE TOROID 12.894UH W |
5,347 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | W | 1.142" (29.00mm) | 12.894 µH | ±30% | Ungapped | - | 10000 | - | 73.2 | 74.9 | - | 5481.0 | Epoxy | 0.598" (15.20mm) | - | - |
|
EQ25-3C95FERRITE CORE EQ 3C95 |
2,044 |
|
برگه مشخصات |
- | Bulk | Active | EQ | EQ 25 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.315" (8.00mm) | 0.984" (25.00mm) | 0.709" (18.00mm) |
|
E42/21/15-3C94FERRITE CORE E 3C94 |
912 |
|
برگه مشخصات |
- | Bulk | Active | E | E 42 x 21 x 15 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827" (21.00mm) | 1.693" (43.00mm) | 0.598" (15.20mm) |
|
TX25/15/10-3E27FERRITE CORE TOROID 3E+27 |
1,352 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 25 x 15 x 10 | 3E27 | 1.007" (25.95mm) | - | ±25% | Ungapped | 5500.0 | - | 1.23 | 60.2 | 48.9 | - | 2944.0 | Epoxy | 0.429" (10.90mm) | - | - |
|
EFD15/8/5-3F36-SFERRITE CORE EFD 3F36 2PC SET |
937 |
|
برگه مشخصات |
- | Bulk | Active | EFD | EFD 15 x 8 x 5 | 3F36 | - | - | ±25% | Ungapped | 1170.0 | - | 2.27 | 34.0 | 15.0 | 12.2 | 510.0 | Uncoated | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.183" (4.65mm) |
|

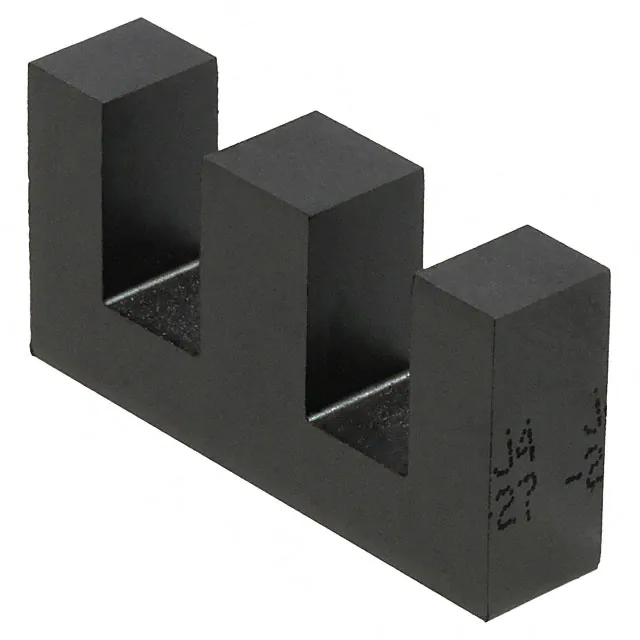

B66381G0000X187FERRITE CORE E N87 1PC |
753 |
|
برگه مشخصات |
E40/16/12 | Box | Active | E | E 40 x 16 x 12 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.650" (16.50mm) | 1.598" (40.60mm) | 0.492" (12.50mm) |
|
|
5975006401FERRITE CORE TOROID 75 |
258 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 75 | 1.000" (25.40mm) | - | ±20% | Ungapped | - | 5000 | - | 62.0 | 62.0 | - | 3800.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
TX29/19/7.6-3E27FERRITE CORE TOROID 3E+27 |
2,354 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 29 x 19 x 7.6 | 3E27 | 1.179" (29.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.329" (8.35mm) | - | - |
|
|
ZJ42212TCFERRITE CORE TOROID 6.04UH |
2,140 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | - | 0.900" (22.86mm) | 6.04 µH | ±20% | Ungapped | - | 5000 | - | 54.1 | 52.3 | - | 2834.0 | Epoxy | 0.525" (13.34mm) | - | - |
|
PQ20/16-3C97FERRITE CORE PQ 3C97 2PC SET |
773 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 20 x 16 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.638" (16.20mm) | 0.839" (21.30mm) | 0.551" (14.00mm) |
|

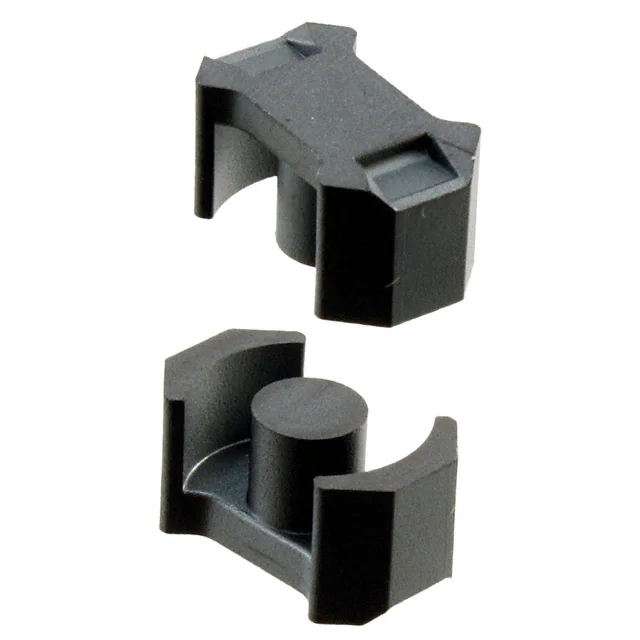

B65803J0000R030FERRITE CORE RM 1.9UH N30 2PCS |
3,885 |
|
برگه مشخصات |
RM4 | Box | Active | RM | RM 4 | N30 | - | 1.9 µH | -20%, +30% | Ungapped | 2560.0 | 4300 | 1.7 | 22.0 | 13.0 | 11.3 | 286.0 | Uncoated | 0.207" (5.25mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|
ETD39/20/13-3C97FERRITE CORE ETD 3C97 |
3,566 |
|
برگه مشخصات |
- | Bulk | Active | ETD | ETD 39 x 20 x 13 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.780" (19.80mm) | 1.575" (40.00mm) | 0.504" (12.80mm) |
