هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66295G0000X149FERRITE CORE ELP N49 1PC |
683 |
|
برگه مشخصات |
ELP64/10/50 | Box | Active | ELP | ELP 64 x 10 x50 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
ZP48613TCFERRITE CORE TOROID 2.726UH P |
300 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | P | 3.440" (87.38mm) | 2.726 µH | ±25% | Ungapped | - | 2500 | - | 214.9 | 188.8 | - | 40852.0 | Epoxy | 0.525" (13.34mm) | - | - |
|
|
0077617A7FERRITE CORE TOROID 189NH KOOLMU |
583 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 2.484" (63.09mm) | 189 nH | ±8% | Ungapped | - | 60 | - | 144.0 | 360.0 | - | 51800.0 | Coated | 1.020" (25.91mm) | - | - |
|
B66295K0000X149FERRITE CORE I N49 |
119 |
|
برگه مشخصات |
I64/5/50 | Tray | Active | I | I 64 x 5 x 50 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
|
P42/29-3C90FERRITE CORE P 3C90 2PC SET |
201 |
|
برگه مشخصات |
- | Bulk | Active | P | P 42 x 29 | 3C90 | 1.669" (42.40mm) | - | ±25% | Ungapped | - | - | 0.259 | 68.6 | 265.0 | 214.0 | 18200.0 | Uncoated | 1.157" (29.40mm) | - | - |
|
B65981A0000R097FERRITE CORE PQ 6.7UH N97 2PCS |
226 |
|
برگه مشخصات |
PQ50/50 | Box | Active | PQ | PQ 50 x 50 | N97 | - | 6.7 µH | -20%, +30% | Ungapped | 1825.0 | - | 0.342 | 113.0 | 330.0 | 290.0 | 37270.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.260" (32.00mm) |
|
|
B65631J0000R048FERRITE CORE P 9.5UH N48 2PCS |
104 |
|
برگه مشخصات |
PM47/28 | Box | Active | P (Pot Core) | P 47 x 28 | N48 | 1.850" (47.00mm) | 9.5 µH | -20%, +30% | Ungapped | - | - | 0.22 | 69.1 | 310.0 | 263.0 | 21428.0 | Uncoated | 0.551" (14.00mm) | - | - |
|
|
C058254A2FERRITE CORE TOROID 168NH HI FLX |
342 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | High Flux | 1.605" (40.77mm) | 168 nH | ±8% | Ungapped | - | 125 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.605" (15.37mm) | - | - |
|
|
ZJ46326TCFERRITE CORE TOROID 12.5UH |
212 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | - | 2.555" (64.90mm) | 12.5 µH | ±20% | Ungapped | - | 5000 | - | 152.0 | 297.0 | - | 45226.0 | Epoxy | 1.016" (25.81mm) | - | - |
|
|
0W48613TCFERRITE CORE TOROID 11.04UH W |
172 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | W | 3.374" (85.70mm) | 11.04 µH | ±30% | Ungapped | - | 10000 | - | 215.0 | 188.8 | - | 40852.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
B64290L0082X038FERRITE CORE TOROID 17.4UH T38 |
118 |
|
برگه مشخصات |
TX50/30/20 | Tray | Active | Toroid | - | T38 | 2.040" (51.80mm) | 17.4 µH | ±30% | Ungapped | - | 8500 | 0.62 | 120.4 | 195.7 | - | 23560.0 | Epoxy | 0.839" (21.30mm) | - | - |
|
TX80/40/15-3C94FERRITE CORE TOROID 3C94 |
199 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 80 x 40 x 15 | 3C94 | 3.268" (83.00mm) | - | ±25% | Ungapped | 2300.0 | - | 0.604 | 174.0 | 288.0 | - | 50200.0 | Epoxy | 0.626" (15.90mm) | - | - |
|
|
C055071A2FERRITE CORE TOROID 61NH MPP |
128 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 1.291" (32.80mm) | 61 nH | ±8% | Ungapped | - | 60 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.420" (10.67mm) | - | - |
|
|
0070439A7KOOL MU ULTRA 060 PERM BLACK |
146 |
|
برگه مشخصات |
- | Tray | Active | Toroid | - | Kool Mµ | 1.840" (46.74mm) | 139 nH | ±8% | Ungapped | - | 60 | - | 107.0 | 198.0 | - | 21300.0 | Uncoated | 0.710" (18.03mm) | - | - |
|

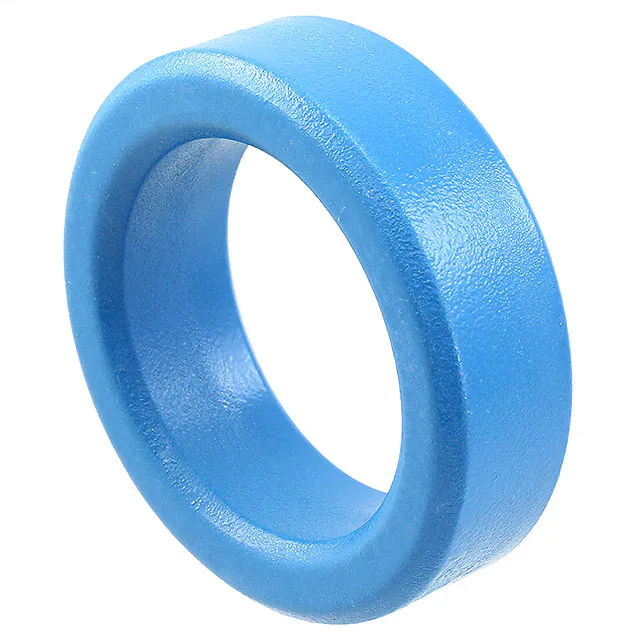

B64290L0040X037FERRITE CORE TOROID 7.16UH T37 |
433 |
|
برگه مشخصات |
TX58.3/40.8/17.6 | Box | Active | Toroid | - | T37 | 2.366" (60.10mm) | 7.16 µH | ±25% | Ungapped | - | 5700 | 1.0 | 152.4 | 152.4 | - | 23230.0 | Epoxy | 0.740" (18.80mm) | - | - |
|
|
00K114LE026FERRITE CORE E 235NH KOOL MU |
154 |
|
برگه مشخصات |
- | Bulk | Active | E | - | Kool Mu | - | 235 nH | ±8% | Ungapped | - | 26 | - | 215.0 | 1220.0 | - | 262000.0 | Uncoated | 1.818" (46.18mm) | 4.500" (114.30mm) | 1.376" (34.94mm) |
|
|
0078097A7FERRITE CORE TOROID 35NH XFLUX |
126 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | XFlux | 4.055" (103.00mm) | 35 nH | ±8% | Ungapped | - | 19 | - | 243.0 | 358.0 | - | 86900.0 | Coated | 0.705" (17.91mm) | - | - |
|
|
C055076A2FERRITE CORE TOROID 56NH MPP |
141 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 1.410" (35.81mm) | 56 nH | ±8% | Ungapped | - | 60 | - | 89.8 | 67.8 | - | 6.09 | Coated | 0.412" (10.46mm) | - | - |
|

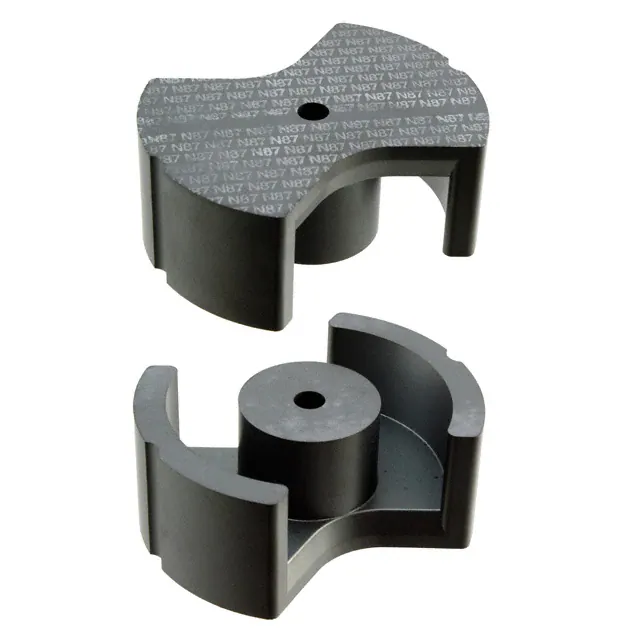

B65684A0000R087FERRITE CORE PM 9.2UH N87 2PCS |
153 |
|
برگه مشخصات |
PM62/49 | Box | Active | PM | PM 62 x 49 | N87 | 2.441" (62.00mm) | 9.2 µH | -20%, +30% | Ungapped | 1400.0 | 2200 | 0.191 | 109.0 | 570.0 | 470.0 | 62000.0 | Uncoated | 0.965" (24.50mm) | - | - |
|
|
B65981A0000R095FERRITE CORE PQ 8.2UH N95 2PCS |
281 |
|
برگه مشخصات |
PQ50/50 | Box | Active | PQ | PQ 50 x 50 | N95 | - | 8.2 µH | -20%, +30% | Ungapped | 2230.0 | - | 0.342 | 113.0 | 330.0 | 290.0 | 37270.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.260" (32.00mm) |
