هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5961000811FERRITE CORE TOROID 15NH 61 |
5,902 |
|
برگه مشخصات |
- | Box | Active | Toroid | - | 61 | - | 15 nH | - | Ungapped | - | 125 | 876.0 | 9.2 | 1.1 | - | 9.7 | Parylene | - | - | - |
|
B64290L0038X027FERRITE CORE TOROID N27 |
1,425 |
|
برگه مشخصات |
TX10/6/4 | Box | Active | Toroid | - | N27 | - | - | - | Gapped | - | 2000 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.157" (4.00mm) | 0.394" (10.00mm) | 0.236" (6.00mm) |
|
5952020201FERRITE CORE TOROID 52 |
1,677 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 52 | - | - | ±25% | Ungapped | - | 250 | - | 12.8 | 2.0 | - | 25.6 | Uncoated | 0.060" (1.52mm) | - | - |
|
3078990861FERRITE CORE ROD 78 |
1,274 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 78 | - | - | - | Ungapped | 34.0 | 2300 | - | - | 4.91 | - | - | Uncoated | - | - | - |
|
|
5979000201FERRITE CORE TOROID 626NH 79 |
13,731 |
|
برگه مشخصات |
HF | Bag | Active | Toroid | - | 79 | 0.374" (9.50mm) | 626 nH | ±25% | Ungapped | - | 1400 | 2.85 | 20.7 | 7.2 | - | 150.0 | Uncoated | 0.126" (3.20mm) | - | - |
|
|
AB2.8X4.5DYFERRITE CORE ROD |
2,824 |
|
- |
AB | Bag | Active | Rod | - | - | 0.157" (4.00mm) | - | - | Ungapped | - | - | - | - | - | - | - | Coated | 0.224" (5.70mm) | - | - |
|

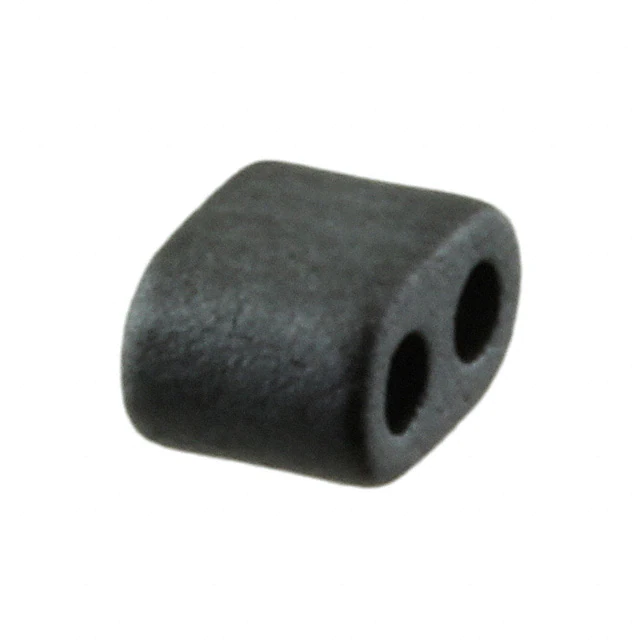

B62152A0008X030FERRITE CORE 2 HOLE 3.1UH N30 |
39,698 |
|
برگه مشخصات |
MHB2-2.5/3.6/2.1 | Box | Active | Multi-Hole (2) | - | N30 | - | 3.1 µH | ±30% | Ungapped | - | 4300 | 1.78 | 3.7 | 2.1 | - | 7.8 | Uncoated | 0.098" (2.50mm) | 0.142" (3.60mm) | 0.083" (2.10mm) |
|
E19/8/5-3C94FERRITE CORE E 3C94 |
86,942 |
|
برگه مشخصات |
- | Bulk | Active | E | E 19 x 8 x 5 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.319" (8.10mm) | 0.752" (19.10mm) | 0.185" (4.70mm) |
|
B64290L0044X027FERRITE CORE TOROID 1.02UH N27 |
11,943 |
|
برگه مشخصات |
TX12.5/7.5/5 | Box | Active | Toroid | - | N27 | 0.535" (13.60mm) | 1.02 µH | ±25% | Ungapped | - | 2000 | 2.46 | 30.09 | 12.23 | - | 368.0 | Epoxy | 0.234" (5.95mm) | - | - |
|
B66305G0000X130FERRITE CORE E N30 1PC |
10,334 |
|
برگه مشخصات |
E13/7/4 | Box | Active | E | E 13 x 7 x 4 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.256" (6.50mm) | 0.496" (12.60mm) | 0.146" (3.70mm) |
|
|
E13/6/6-3C94FERRITE CORE E 3C94 |
1,169 |
|
برگه مشخصات |
- | Bulk | Active | E | E 13 x 6 x 6 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.500" (12.70mm) | 0.252" (6.40mm) |
|
B64290L0658X830FERRITE CORE TOROID 1.9UH N30 |
4,440 |
|
برگه مشخصات |
TX14/9/5 | Box | Active | Toroid | - | N30 | 0.594" (15.10mm) | 1.9 µH | ±25% | Ungapped | - | 4300 | 2.84 | 34.98 | 12.3 | - | 430.0 | Epoxy | 0.236" (6.00mm) | - | - |
|
|
4077172011FERRITE CORE ROD 77 |
3,898 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 77 | - | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - | - | - |
|
B66300G0000X187FERRITE CORE E N87 1PC |
15,000 |
|
برگه مشخصات |
E6.3 | Box | Active | E | E 6 x 3 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.114" (2.90mm) | 0.248" (6.30mm) | 0.079" (2.00mm) |
|
B64290L0062X065FERRITE CORE TOROID 2.05UH T65 |
3,990 |
|
برگه مشخصات |
TX9.5/4.8/3.2 | Box | Active | Toroid | - | T65 | 0.413" (10.50mm) | 2.05 µH | ±30% | Ungapped | - | 4600 | 2.85 | 20.72 | 7.28 | - | 151.0 | Epoxy | 0.161" (4.10mm) | - | - |
|

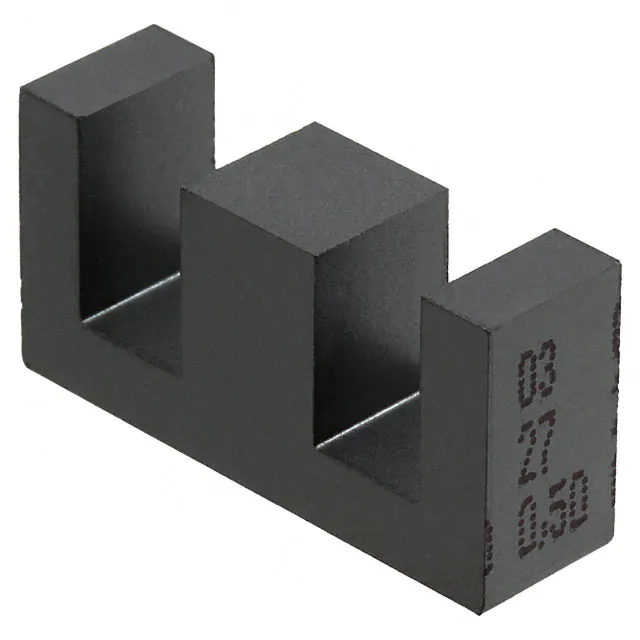

B66311G0500X127FERRITE CORE E N27 1PC |
2,785 |
|
برگه مشخصات |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
7878400121FERRITE CORE E 78 SET |
1,455 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 109.0 | 16.6 | 15.2 | 15.0 | 252.0 | Uncoated | - | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
TX14/9/5-3C94FERRITE CORE TOROID 3C94 |
2,880 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 14 x 9 x 5 | 3C94 | 0.561" (14.25mm) | - | ±30% | Ungapped | - | - | 2.84 | 35.0 | 12.3 | - | 430.0 | Epoxy | 0.207" (5.25mm) | - | - |
|
B66307G0000X130FERRITE CORE E N30 1PC |
1,151 |
|
برگه مشخصات |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|

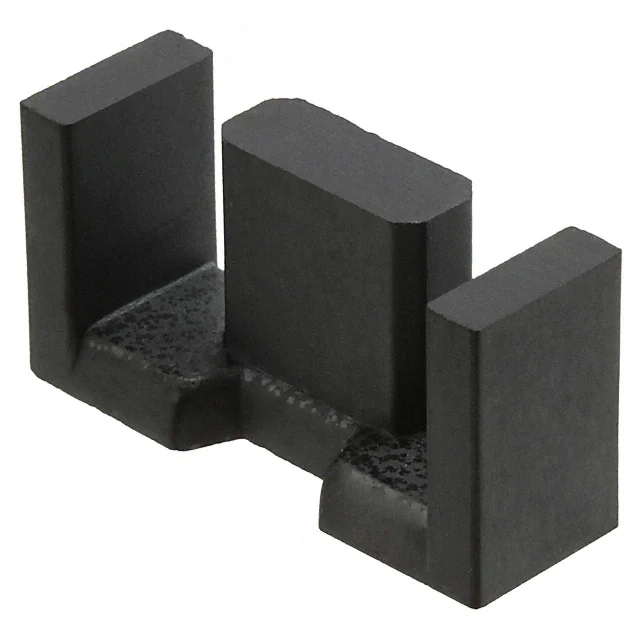

B66417G0000X149FERRITE CORE EFD N49 1PC |
2,274 |
|
برگه مشخصات |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
