هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX36/23/10-3E6FERRITE CORE TOROID |
334 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 36 x 23 x 10 | - | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.430" (10.92mm) | - | - |
|
B65807N0160A048FERRITE CORE RM 160NH N48 2PCS |
257 |
|
برگه مشخصات |
RM6 | Box | Active | RM | RM 6 | N48 | - | 160 nH | ±3% | Gapped | 109.0 | - | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
PQ26/20-3F36FERRITE CORE PQ 3F36 2PC SET |
1,017 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 26 x 20 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.795" (20.20mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
|
|
B65807N0315A048FERRITE CORE RM 315NH N48 2PCS |
2,040 |
|
برگه مشخصات |
RM6 | Box | Active | RM | RM 6 | N48 | - | 315 nH | ±3% | Gapped | 215.0 | - | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B65803N0063A033FERRITE CORE RM 63NH M33 2PCS |
1,724 |
|
برگه مشخصات |
RM4 | Box | Active | RM | RM 4 | M33 | - | 63 nH | ±3% | Gapped | 96.0 | 750 | 1.9 | 21.0 | 11.0 | - | 231.0 | Uncoated | 0.207" (5.25mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|

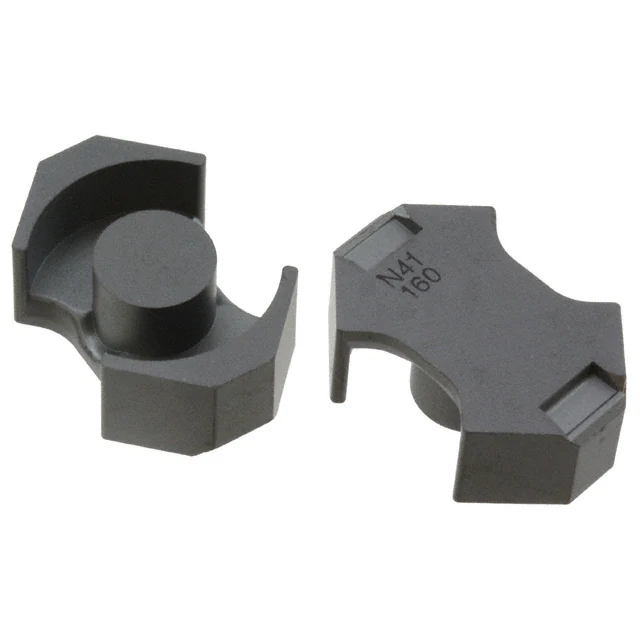

B65811J0160A041FERRITE CORE RM 160NH N41 2PCS |
871 |
|
برگه مشخصات |
RM8 | Box | Active | RM | RM 8 | N41 | - | 160 nH | ±3% | Gapped | 76.0 | 2800 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
PC47EI35-ZFERRITE CORE E 3.8UH PCS47 1SET |
1,251 |
|
برگه مشخصات |
E | Tray | Active | E | - | PC47 | - | 3.8 µH | ±25% | Ungapped | - | 2500 | 0.664 | 67.1 | 101.0 | - | 6780.0 | Uncoated | - | 1.378" (35.00mm) | 0.394" (10.00mm) |
|
|
5979002701FERRITE CORE |
269 |
|
- |
HF | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B65805N0100A033FERRITE CORE RM 100NH M33 2PCS |
794 |
|
برگه مشخصات |
RM5 | Box | Active | RM | RM 5 | M33 | - | 100 nH | ±3% | Gapped | 79.6 | - | 1.0 | 20.8 | 20.8 | - | 433.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
B65807J0000R608FERRITE CORE RM PCS200 |
1,572 |
|
برگه مشخصات |
RM6 | Bulk | Active | RM | RM 6 | PC200 | - | - | -20%, +30% | Ungapped | 680.0 | 800 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.492" (12.50mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B66506G0000X197FERRITE CORE EQ N97 1PC |
119 |
|
برگه مشخصات |
EQ30/8/20 | Box | Active | EQ | EQ 30 x 8 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.315" (8.00mm) | 1.181" (30.00mm) | 0.787" (20.00mm) |
|

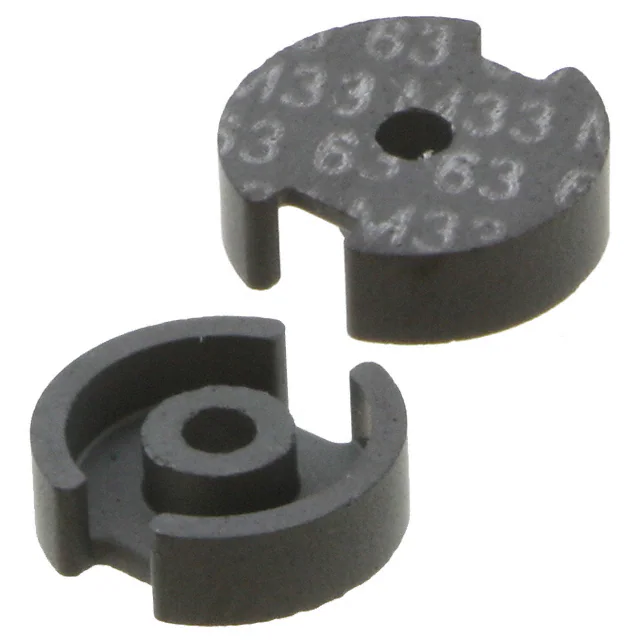

B65511A0063A033FERRITE CORE P 63NH M33 2PCS |
4,240 |
|
برگه مشخصات |
P7/4 | Box | Active | P (Pot Core) | P 7 x 4 | M33 | 0.289" (7.35mm) | 63 nH | ±3% | Gapped | 72.0 | 750 | 1.43 | 10.0 | 7.0 | - | 70.0 | Uncoated | 0.083" (2.10mm) | - | - |
|
|
PQ26/25-3F36FERRITE CORE PQ 3F36 2PC SET |
749 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 26 x 25 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.972" (24.70mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
|
B65875A0000R097FERRITE CORE PQ 2.75UH N97 2PCS |
326 |
|
برگه مشخصات |
PQ20/20 | Box | Active | PQ | PQ 20 x 20 | N97 | - | 2.75 µH | -20%, +30% | Ungapped | 1565.0 | 2300 | 0.718 | 45.2 | 62.9 | 54.4 | 2843.0 | Uncoated | 0.398" (10.10mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
B64290L0647X830FERRITE CORE TOROID 5.63UH N30 |
6,430 |
|
برگه مشخصات |
TX29/19/15 | Box | Active | Toroid | - | N30 | 1.220" (31.00mm) | 5.63 µH | ±25% | Ungapped | - | 4300 | 0.96 | 73.78 | 76.98 | - | 5680.0 | Epoxy | 0.634" (16.10mm) | - | - |
|
B65819J0000R049FERRITE CORE RM 1.9UH N49 2PCS |
1,094 |
|
برگه مشخصات |
RM7 | Box | Active | RM | RM 7 | N49 | - | 1.9 µH | -20%, +30% | Ungapped | 1070.0 | 1500 | 0.7 | 30.4 | 43.0 | 39.0 | 1310.0 | Uncoated | 0.265" (6.75mm) | 0.799" (20.30mm) | - |
|
|
B65813J0250A087FERRITE CORE RM N87 |
800 |
|
برگه مشخصات |
RM10 | Bulk | Active | RM | RM 10 | N87 | - | - | - | Gapped | - | 2200 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
|
B65875A0000R049FERRITE CORE PQ 2UH N49 2PCS |
384 |
|
برگه مشخصات |
PQ20/20 | Box | Active | PQ | PQ 20 x 20 | N49 | - | 2 µH | -20%, +30% | Ungapped | 1150.0 | 1500 | 0.718 | 45.2 | 62.9 | 54.4 | 2843.0 | Uncoated | 0.398" (10.10mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
B65875B0000R097FERRITE CORE PQ 3.2UH N97 2PCS |
470 |
|
برگه مشخصات |
PQ20/16 | Box | Active | PQ | PQ 20 x 16 | N97 | - | 3.2 µH | -20%, +30% | Ungapped | 1475.0 | 2300 | 0.579 | 37.0 | 64.0 | 57.6 | 2367.0 | Uncoated | 0.319" (8.10mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
|
5995002701FERRITE CORE TOROID 3290NH 95 |
268 |
|
برگه مشخصات |
HF | Tray | Active | Toroid | - | 95 | 1.400" (35.56mm) | 3290 nH | ±25% | Ungapped | - | 3000 | 0.01146 | 8.9 | 78.3 | - | 7024.0 | Uncoated | 0.500" (12.70mm) | - | - |
