هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66459K0000X187FERRITE CORE I N87 |
567 |
|
برگه مشخصات |
I38/4/25 | Bag | Active | I | I 38 x 4 x 25 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
HF60T28X13X16FERRITE CORE TOROID |
102 |
|
برگه مشخصات |
T | Tray | Active | Toroid | - | - | 1.102" (28.00mm) | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|

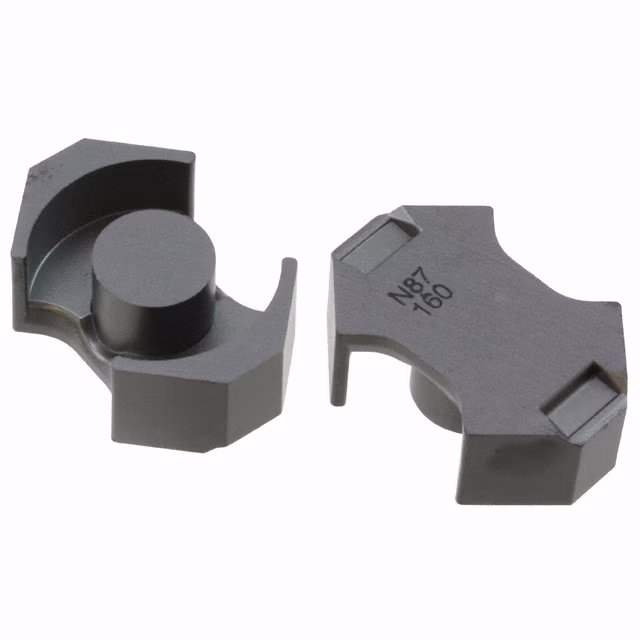

B65811J0160A087FERRITE CORE RM N87 2PCS |
376 |
|
برگه مشخصات |
RM8 | Box | Active | RM | RM 8 | N87 | - | - | - | Gapped | - | - | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B65807J0160A048FERRITE CORE RM 160NH N48 2PCS |
3,786 |
|
برگه مشخصات |
RM6 | Cut Tape (CT) | Active | RM | RM 6 | N48 | - | 160 nH | ±3% | Gapped | 109.0 | - | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|

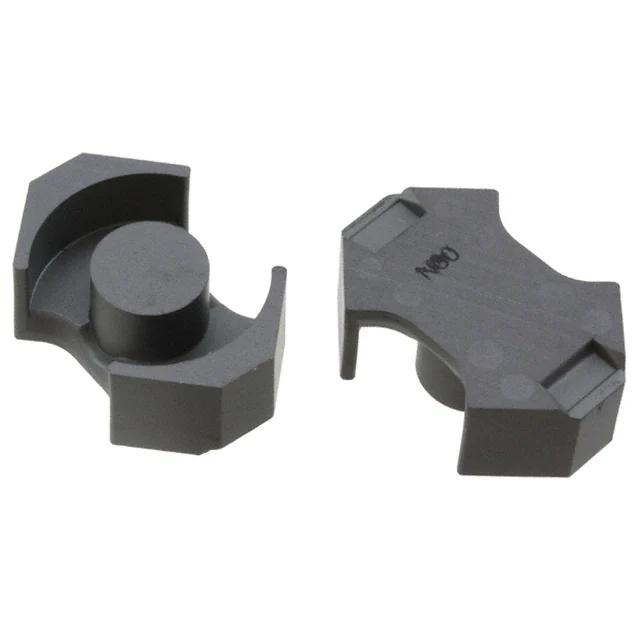

B65811J0000R030FERRITE CORE RM 5.7UH N30 2PCS |
1,392 |
|
برگه مشخصات |
RM8 | Box | Active | RM | RM 8 | N30 | - | 5.7 µH | -20%, +30% | Ungapped | 2690.0 | 4300 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B64290L0615X038FERRITE CORE TOROID 16.1UH T38 |
743 |
|
برگه مشخصات |
TX25.3/14.8/15 | Box | Active | Toroid | - | T38 | 1.047" (26.60mm) | 16.1 µH | ±30% | Ungapped | - | 10000 | 0.78 | 60.07 | 76.89 | - | 4619.0 | Epoxy | 0.638" (16.20mm) | - | - |
|
B65501D0000R033FERRITE CORE P 350NH M33 2PCS |
6,658 |
|
برگه مشخصات |
P5.8/3.3 | Box | Active | P (Pot Core) | P 5.8 x 3.3 | M33 | 0.228" (5.80mm) | 350 nH | -20%, +30% | Ungapped | 470.0 | 750 | 1.68 | 7.9 | 4.7 | - | 37.0 | Uncoated | 0.067" (1.70mm) | - | - |
|
B66363G0000X127FERRITE CORE ETD N27 1PC |
730 |
|
برگه مشخصات |
ETD39/20/13 | Box | Active | ETD | ETD 39 x 20 x 13 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|
PC47EPC25B-ZFERRITE CORE EPCS 1.56UH 2PC |
157 |
|
برگه مشخصات |
EPC | Tray | Active | EPC | EPC 25 | PC47 | - | 1.56 µH | ±25% | Ungapped | - | - | 1.39 | 46.2 | 33.3 | - | 1540.0 | Uncoated | 0.450" (11.45mm) | 0.988" (25.10mm) | 0.256" (6.50mm) |
|
B65875B0000R087FERRITE CORE PQ 3.1UH N87 2PCS |
329 |
|
برگه مشخصات |
PQ20/16 | Box | Active | PQ | PQ 20 x 16 | N87 | - | 3.1 µH | -20%, +30% | Ungapped | 1430.0 | 2200 | 0.579 | 37.0 | 64.0 | 57.6 | 2367.0 | Uncoated | 0.319" (8.10mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
B66457G0000X197FERRITE CORE ELP N97 1PC |
784 |
|
برگه مشخصات |
ELP32/6/20 | Tray | Active | ELP | ELP 32 x 6 x 20 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
B66287G0000X197FERRITE CORE ELP N97 1PC |
720 |
|
برگه مشخصات |
ELP32/6/20 | Box | Active | ELP | ELP 32 x 6 x 20 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
TX36/23/10-3E27FERRITE CORE TOROID 3E+27 |
364 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 36 x 23 x 10 | 3E27 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.430" (10.92mm) | - | - |
|
4278453509FERRITE CORE ROD 78 |
214 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 78 | - | - | - | Ungapped | - | 2300 | - | - | - | - | - | Uncoated | - | - | - |
|
B65805C0100A033FERRITE CORE RM 100NH M33 2PCS |
745 |
|
برگه مشخصات |
RM5 | Cut Tape (CT) | Active | RM | RM 5 | M33 | - | 100 nH | ±3% | Gapped | 79.6 | 750 | 1.0 | 20.8 | 20.8 | - | 433.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
|
P9/5-3C91FERRITE CORE P 3C91 2PC SET |
666 |
|
برگه مشخصات |
- | Bulk | Active | P (Pot Core) | P 9 x 5 | 3C91 | 0.366" (9.30mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.213" (5.40mm) | - | - |
|
|
PC47EI30-ZFERRITE CORE E 4.69UH PCS47 1SET |
670 |
|
برگه مشخصات |
E | Tray | Active | E | - | PC47 | - | 4.69 µH | ±25% | Ungapped | - | 2500 | 0.522 | 58.0 | 111.0 | - | 6440.0 | Uncoated | - | 1.181" (30.00mm) | 0.421" (10.70mm) |
|
TX32/19/13-3E10-MFERRITE CORE TOROID |
186 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 32 x 19 x 13 | - | 1.281" (32.55mm) | - | ±30% | Ungapped | 10000.0 | - | 0.99 | 76.0 | 76.5 | - | 5820.0 | Epoxy | 0.528" (13.40mm) | - | - |
|
E38/8/25-3F4FERRITE CORE E 3F4 |
990 |
|
برگه مشخصات |
- | Bulk | Active | E | E 38 x 8 x 25 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.325" (8.26mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
5977001721FERRITE CORE TOROID 2.09UH 77 |
281 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 77 | 1.299" (33.00mm) | 2.09 µH | -30%, +25% | Ungapped | - | 2000 | 1.2947 | 76.4 | 59.0 | - | 4510.0 | Plastic | 0.406" (10.30mm) | - | - |
