هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65877A0000R049FERRITE CORE PQ 3.3UH N49 2PCS |
339 |
|
برگه مشخصات |
PQ26/25 | Box | Active | PQ | PQ 26 x 25 | N49 | - | 3.3 µH | -20%, +30% | Ungapped | 1235.0 | 1500 | 0.44 | 53.6 | 122.0 | 108.7 | 6530.0 | Uncoated | 0.487" (12.38mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
B65887P0000R087FERRITE CORE RM 7.1UH N87 |
207 |
|
برگه مشخصات |
RM14/LP | Box | Active | RM | - | N87 | - | 7.1 µH | -20%, +30% | Ungapped | 1430.0 | 2200 | 0.25 | 50.9 | 201.0 | 170.0 | 10230.0 | Uncoated | - | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
B66395G2000X187FERRITE CORE ETD N87 1PC |
199 |
|
برگه مشخصات |
ETD54/28/19 | Box | Active | ETD | ETD 54 x 28 x 19 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.156" (54.50mm) | 0.760" (19.30mm) |
|
B66344Q0400K187FERRITE CORE E 400NH N87 |
200 |
|
برگه مشخصات |
E55/28/25 | Tray | Active | E | E 55 x 28 x 25 | N87 | - | 400 nH | ±10% | Distributed Gapped | - | - | 0.3 | 124.0 | 420.0 | 420.0 | 52100.0 | Uncoated | 0.984" (25.00mm) | 2.165" (55.00mm) | 1.094" (27.80mm) |
|
5978018601FERRITE CORE TOROID 78 |
119 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 78 | - | - | ±25% | Ungapped | - | 2300 | - | 98.0 | 178.0 | - | 17500.0 | Uncoated | - | - | - |
|
PC95PQ26/20Z-12FERRITE CORE PQ 7.47UH PCS95 2PC |
124 |
|
برگه مشخصات |
PQ | Tray | Active | PQ | PQ 26 x 20 | PC95 | - | 7.47 µH | ±25% | Ungapped | - | - | 0.39 | 46.3 | 119.0 | - | 5490.0 | Uncoated | 0.793" (20.15mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
PLT64/50/5-3C92FERRITE CORE PLT 3C92 |
600 |
|
برگه مشخصات |
- | Bulk | Active | PLT | PLT 64 x 50 x 5 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.200" (5.08mm) | 2.520" (64.00mm) | 0.228" (5.80mm) |
|
E65/32/27-3C92FERRITE CORE E 3C92 |
243 |
|
برگه مشخصات |
- | Bulk | Active | E | E 65 x 32 x 27 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
|
B65881A0000R087FERRITE CORE PQ 4.5UH N87 2PCS |
419 |
|
برگه مشخصات |
PQ35/35 | Box | Active | PQ | PQ 35 x 35 | N87 | - | 4.5 µH | -20%, +30% | Ungapped | 1670.0 | 2200 | 0.467 | 79.2 | 169.7 | 146.5 | 13440.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
B66397Q0250K195FERRITE CORE ETD 250NH N95 |
170 |
|
برگه مشخصات |
ETD59/31/22 | Bulk | Active | ETD | ETD 59 x 31 x 22 | N95 | - | 250 nH | ±10% | Distributed Gapped | - | - | 0.38 | 139.0 | 368.0 | 368.0 | 51200.0 | Uncoated | 0.870" (22.10mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
|
B66397Q0250K187FERRITE CORE ETD 250NH N87 |
108 |
|
برگه مشخصات |
ETD59/31/22 | Bulk | Active | ETD | ETD 59 x 31 x 22 | N87 | - | 250 nH | ±10% | Distributed Gapped | - | - | 0.38 | 139.0 | 368.0 | 368.0 | 51200.0 | Uncoated | 0.870" (22.10mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
7878400721FERRITE CORE E 78 SET |
149 |
|
برگه مشخصات |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 14.0 | 70.0 | 518.0 | 515.0 | 36300.0 | Uncoated | 0.407" (10.34mm) | 2.520" (64.00mm) | 2.008" (51.00mm) |
|
|
B66397Q0100K195FERRITE CORE ETD 100NH N95 |
137 |
|
برگه مشخصات |
ETD59/31/22 | Bulk | Active | ETD | ETD 59 x 31 x 22 | N95 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.38 | 139.0 | 368.0 | 368.0 | 51200.0 | Uncoated | 0.870" (22.10mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
|
B65887P0000R092FERRITE CORE RM N92 |
140 |
|
برگه مشخصات |
RM14/LP | Box | Active | RM | - | N92 | - | - | -20%, +30% | Ungapped | 1090.0 | 1500 | 0.25 | 50.9 | 201.0 | 170.0 | 10230.0 | Uncoated | - | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
B64290L0042X037FERRITE CORE TOROID 8UH T37 |
181 |
|
برگه مشخصات |
TX58.3/40.8/20.2 | Box | Active | Toroid | - | T37 | 2.366" (60.10mm) | 8 µH | ±25% | Ungapped | - | 5600 | 0.87 | 152.4 | 174.9 | - | 26660.0 | Epoxy | 0.846" (21.50mm) | - | - |
|
|
PC95PQ60/42-ZFERRITE CORE PQ 14.3UH PCS95 2PC |
360 |
|
برگه مشخصات |
Large PQ | Tray | Active | PQ | PQ 60 x 42 | PC95 | - | 14.3 µH | ±25% | Ungapped | - | - | 0.2 | 98.1 | 483.0 | - | 47360.0 | Uncoated | 1.634" (41.50mm) | 2.323" (59.00mm) | 1.535" (39.00mm) |
|

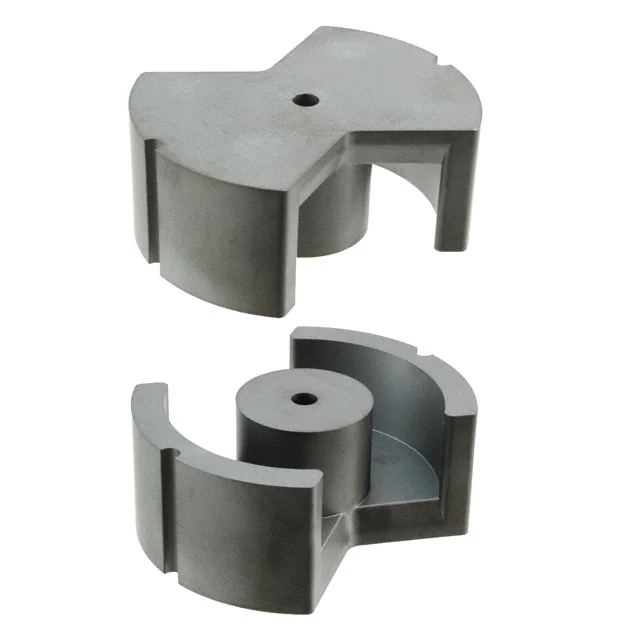

B65686A0000R027FERRITE CORE PM 10UH N27 2PCS |
42 |
|
برگه مشخصات |
PM74/59 | Box | Active | PM | PM 74 x 59 | N27 | 2.913" (74.00mm) | 10 µH | -20%, +30% | Ungapped | 1290.0 | 2000 | 0.162 | 128.0 | 790.0 | 630.0 | 101000.0 | Uncoated | 1.161" (29.50mm) | - | - |
|
|
2673079901FERRITE |
9,490 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4052098411FERRITE CORE ROD 52 |
7,600 |
|
برگه مشخصات |
- | Bulk | Active | ROD | - | 52 | - | - | - | Ungapped | - | 250 | - | - | - | - | - | Uncoated | - | - | - |
|
|
2643003701FERRITE CORE 40OHM SOLID 1.30MM |
4,920 |
|
برگه مشخصات |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
