هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66287K0000X192FERRITE CORE I N92 |
545 |
|
برگه مشخصات |
I32/3/20 | Tray | Active | I | I 32 x 3 x 20 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
B66457K0000X197FERRITE CORE I N97 |
254 |
|
برگه مشخصات |
I32/3/20 | Tray | Active | I | I 32 x 3 x 20 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|

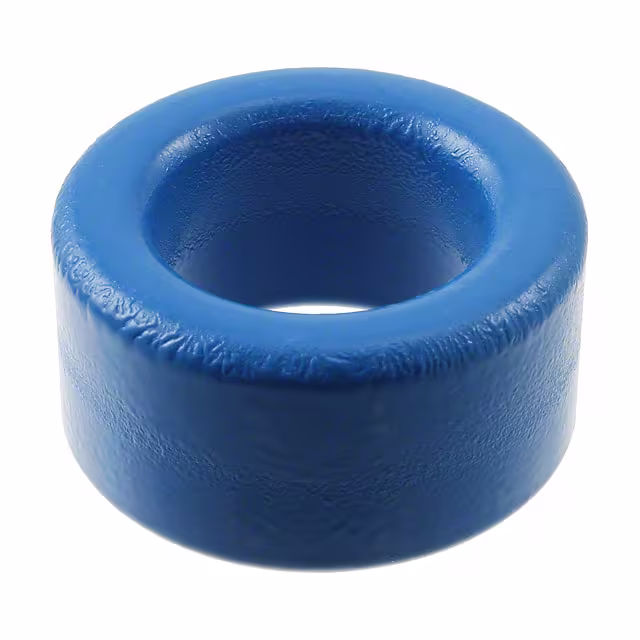

B64290L0647X037FERRITE CORE TOROID 8.5UH T37 |
902 |
|
برگه مشخصات |
TX29/19/15 | Box | Active | Toroid | - | T37 | 1.220" (31.00mm) | 8.5 µH | ±25% | Ungapped | - | 6500 | 0.96 | 73.78 | 76.98 | - | 5680.0 | Epoxy | 0.634" (16.10mm) | - | - |
|
TX32/19/13-3E65FERRITE CORE TOROID |
487 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 32 x 19 x 13 | - | 1.281" (32.55mm) | - | ±25% | Ungapped | 5200.0 | - | 0.99 | 76.0 | 76.5 | - | 5820.0 | Epoxy | 0.528" (13.40mm) | - | - |
|
E42/21/20-3C92FERRITE CORE E 3C92 |
232 |
|
برگه مشخصات |
- | Bulk | Active | E | E 42 x 21 x 20 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827" (21.00mm) | 1.693" (43.00mm) | 0.787" (20.00mm) |
|
|
0F43019UGFERRITE CORE P 8.1UH |
618 |
|
برگه مشخصات |
- | Bulk | Active | P | - | - | 1.181" (30.00mm) | 8.1 µH | ±25% | Ungapped | - | 3000 | - | 45.2 | 137.0 | - | 6190.0 | Uncoated | 0.744" (18.90mm) | - | - |
|
B65651W0000R087FERRITE CORE P 3.6UH N87 2PCS |
2,553 |
|
برگه مشخصات |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N87 | 0.724" (18.40mm) | 3.6 µH | -20%, +30% | Ungapped | 1630.0 | 2200 | 0.57 | 26.6 | 46.7 | 33.9 | 1242.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
|
B64290L0657X037FERRITE CORE TOROID 6.4UH T37 |
219 |
|
برگه مشخصات |
TX30/20/12 | Box | Active | Toroid | - | T37 | 1.264" (32.10mm) | 6.4 µH | ±25% | Ungapped | - | 6100 | 1.19 | 77.02 | 64.66 | - | 4980.0 | Epoxy | 0.531" (13.50mm) | - | - |
|

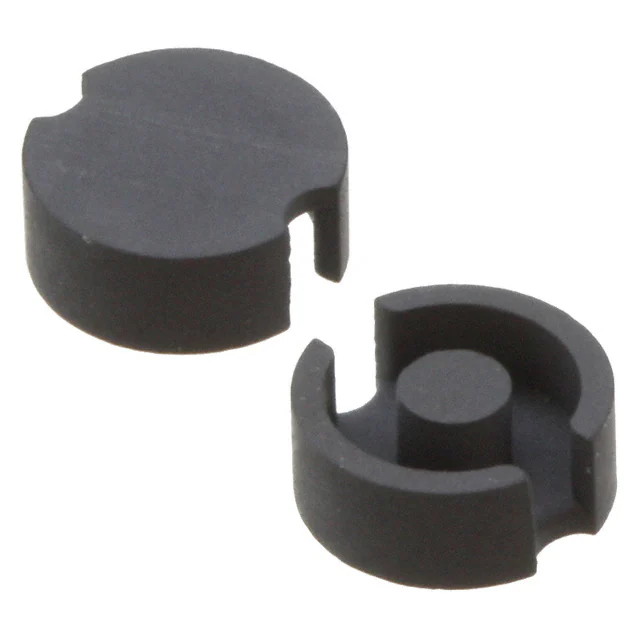

B65491C0000Y001FERRITE CORE P 25NH K1 2PCS |
1,079 |
|
برگه مشخصات |
P3.3/2.6 | Box | Active | P (Pot Core) | P 3.3 x 2.6 | K1 | 0.132" (3.35mm) | 25 nH | -30%, +40% | Ungapped | 75.0 | 80 | 3.72 | 5.1 | 1.37 | - | 7.0 | Uncoated | 0.051" (1.29mm) | - | - |
|
TX39/20/13-3E12FERRITE CORE TOROID |
134 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 39 x 20 x 13 | - | 1.567" (39.80mm) | - | ±30% | Ungapped | 12000.0 | - | 0.76 | 84.9 | 112.0 | - | 9513.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
P22/13/I-3F46FERRITE CORE P 3F46 2PC SET |
226 |
|
برگه مشخصات |
- | Bulk | Active | P (Pot Core) | P 22 x 13 | 3F46 | 0.866" (22.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.528" (13.40mm) | - | - |
|
B66461K0000X187FERRITE CORE I N87 |
485 |
|
برگه مشخصات |
I43/4/28 | Bag | Active | I | I 43 x 4 x 28 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
B66335Q0100K187FERRITE CORE E 100NH N87 |
1,226 |
|
برگه مشخصات |
E55/28/21 | Bulk | Active | E | E 55 x 28 x 21 | N87 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.35 | 124.0 | 354.0 | 351.0 | 43900.0 | Uncoated | 0.827" (21.00mm) | 2.165" (55.00mm) | 1.094" (27.80mm) |
|
35T1000-00HFERRITE CORE TOROID 4.83UH |
7,269 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | - | 1.050" (26.67mm) | 4.83 µH | ±20% | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.434" (11.02mm) | - | - |
|
|
B66335Q0400K187FERRITE CORE E 400NH N87 |
171 |
|
برگه مشخصات |
E55/28/21 | Bulk | Active | E | E 55 x 28 x 21 | N87 | - | 400 nH | ±10% | Distributed Gapped | - | - | 0.35 | 124.0 | 354.0 | 351.0 | 43900.0 | Uncoated | 0.827" (21.00mm) | 2.165" (55.00mm) | 1.094" (27.80mm) |
|
|
E56/24/19-3C92FERRITE CORE E 3C92 |
112 |
|
برگه مشخصات |
- | Bulk | Active | E | E 56 x 24 x 19 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.929" (23.60mm) | 2.209" (56.10mm) | 0.740" (18.80mm) |
|
PC47EER40-ZFERRITE CORE E 3.62UH PCS47 2PC |
102 |
|
برگه مشخصات |
E | Tray | Active | E | EER 40 | PC47 | - | 3.62 µH | ±25% | Ungapped | - | - | 0.66 | 98.0 | 149.0 | - | 14600.0 | Uncoated | 0.882" (22.40mm) | 1.575" (40.00mm) | 0.524" (13.30mm) |
|
RM12/ILP-3C95FERRITE CORE RM 3C95 2PC SET |
239 |
|
برگه مشخصات |
- | Bulk | Active | RM | RM 12 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.661" (16.80mm) | 1.472" (37.40mm) | 0.634" (16.10mm) |
|
|
B65611D0000R027FERRITE CORE N27 |
200 |
|
برگه مشخصات |
P36/22 | Box | Active | - | P 36 x 22 | N27 | 1.417" (36.00mm) | - | - | - | - | 2000 | 0.26 | 52.0 | 202.0 | - | 10500.0 | Uncoated | 0.433" (11.00mm) | - | - |
|
B66344Q0100K187FERRITE CORE E 100NH N87 |
185 |
|
برگه مشخصات |
E55/28/25 | Tray | Active | E | E 55 x 28 x 25 | N87 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.3 | 124.0 | 420.0 | 420.0 | 52100.0 | Uncoated | 0.984" (25.00mm) | 2.165" (55.00mm) | 1.094" (27.80mm) |
