صنعتی، منابع تغذیه ریلی DIN
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع ورودی | تعداد خروجی ها | ولتاژ AC - ورودی | ولتاژ DC - ورودی (حداقل) | ولتاژ DC - ورودی (حداکثر) | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

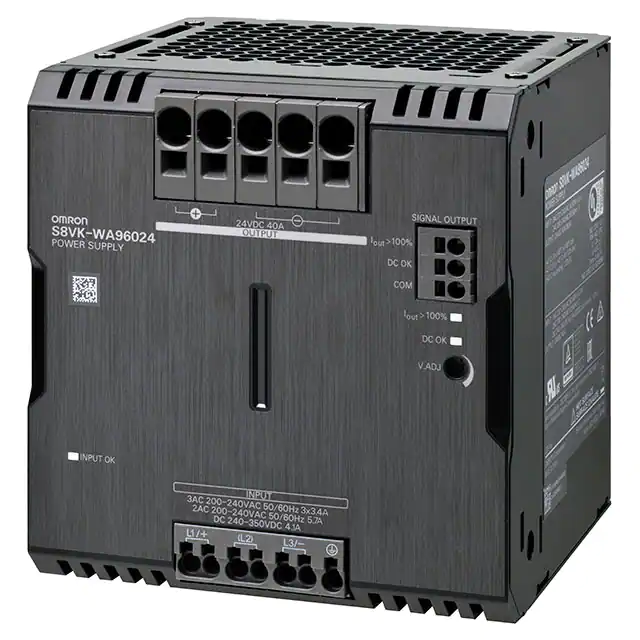

S8VK-WA96024AC/DC DIN RAIL SUPPLY 24V 960W |
51 |
|
برگه مشخصات |
S8VK-WA (960W) | Bulk | Active | AC or DC | 1 | 170 ~ 264 VAC, 265 ~ 300 VAC (3 Phase) | 240V | 350V | 24V | - | - | - | - | - | 40A | 960W | 3 kV | ITE (Commercial) | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.39" L x 4.65" W x 4.88" H (111.4mm x 118.0mm x 124.0mm) | CE, cURus, RCM, TUV, UL | - |
|
56YSD30S-1502000AC/DC DIN RAIL SUPPLY 15V 30W |
154 |
|
برگه مشخصات |
56YSD30S (30W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 2A | 30W | - | Industrial, ITE (Commercial) | 89% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 1.38" W x 2.28" H (90.0mm x 35.0mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|

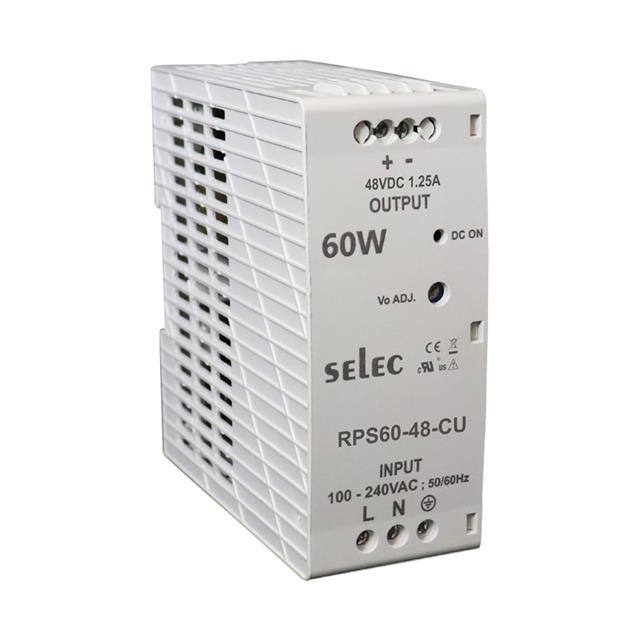

RPS60-48-CUAC/DC DIN RAIL SUPPLY 48V 60W |
191 |
|
برگه مشخصات |
RPS60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 1.25A | 60W | 4 kV | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.85" L x 1.69" W x 4.32" H (97.8mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|
CFM60C240-DRAC/DC DIN RAIL SUPPLY 24V 60W |
44 |
|
برگه مشخصات |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | ITE (Commercial) | 86% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV | - |
|
PSDIN-48-120WAC/DC DIN RAIL SUPPLY 48V 120W |
0 |
|
برگه مشخصات |
- | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 70°C | Adjustable Output, Universal Input | - | - | - |
|

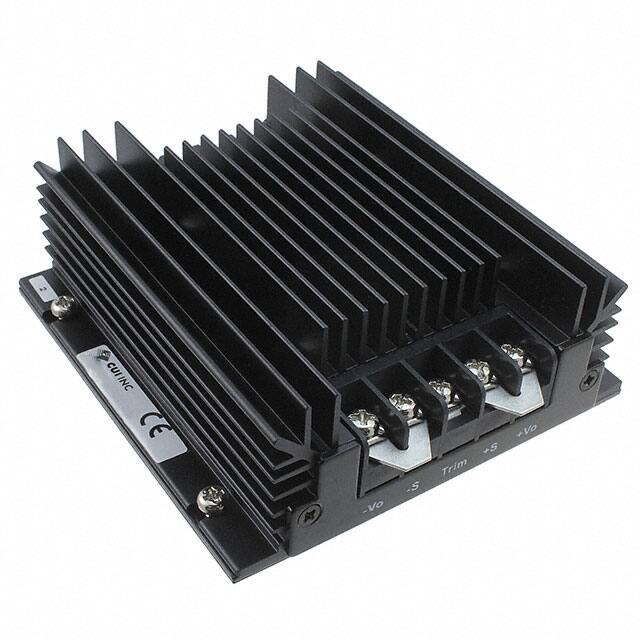

VHK50W-Q48-S5-DINDC/DC DIN RAIL SUPPLY 5V 50W |
58 |
|
برگه مشخصات |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 10A | 50W | - | - | 80% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
56YSD20L-1501340AC/DC DIN RAIL SUPPLY 15V 20W |
200 |
|
برگه مشخصات |
56YSD20L-xy (20W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1.34A | 20W | 3 kV | ITE (Commercial) | 81% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 0.91" L x 3.94" W x 3.62" H (23.0mm x 100.0mm x 92.0mm) | - | 62368-1; UL 508 |
|
|
56YSD20L-2401000AC/DC DIN RAIL SUPPLY 24V 24W |
198 |
|
برگه مشخصات |
56YSD20L-xy (20W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1A | 24W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 0.91" L x 3.94" W x 3.62" H (23.0mm x 100.0mm x 92.0mm) | - | 62368-1; UL 508 |
|
|
56YSD20L-1201670AC/DC DIN RAIL SUPPLY 12V 20W |
199 |
|
برگه مشخصات |
56YSD20L-xy (20W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 1.67A | 20W | 3 kV | ITE (Commercial) | 80% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 0.91" L x 3.94" W x 3.62" H (23.0mm x 100.0mm x 92.0mm) | - | 62368-1; UL 508 |
|
|
56YSD20L-0503000AC/DC DIN RAIL SUPPLY 5V 15W |
196 |
|
برگه مشخصات |
56YSD20L-xy (20W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 76% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 0.91" L x 3.94" W x 3.62" H (23.0mm x 100.0mm x 92.0mm) | - | 62368-1; UL 508 |
|
|
REDIIN240-24240W AC/DC-CONVERTER 'DIN-RAIL' |
42 |
|
برگه مشخصات |
REDIIN240 (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial), Laboratory | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.60" L x 1.57" W x 4.87" H (116.8mm x 39.9mm x 123.7mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
|
KNX-20E-640AC/DC DIN RAIL SUPPLY 30V 19W |
0 |
|
برگه مشخصات |
KNX-20E (20W) | Box | Active | AC or DC | 1 | 180 ~ 264 VAC | 230V | 370V | 30V | - | - | - | - | - | 640mA | 19W | 3 kV | ITE (Commercial) | 86% | -30°C ~ 70°C (With Derating) | IP20 | 2.30" L x 2.07" W x 3.54" H (58.5mm x 52.5mm x 90.0mm) | CE, EAC, TUV | - |
|
|
DRF-48V120W1GTADIN-RAIL PS 120W / 48V (COATED) |
26 |
|
برگه مشخصات |
Force-GT (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 375V | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | ITE (Commercial), Laboratory | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | 4.60" L x 1.18" W x 4.87" H (116.8mm x 30.0mm x 123.7mm) | CB, CCC, CE, cURus, EAC, KC, TUV, UKCA | 61010-1;60950-1;62368-1 |
|
ECE60US09-SDAC/DC DIN RAIL SUPPLY 9V 60W |
26 |
|
برگه مشخصات |
ECE60 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 9V | - | - | - | - | - | 6.67A | 60W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Universal Input | 4.45" L x 1.57" W x 1.12" H (113.0mm x 40.0mm x 28.5mm) | CB, TUV, UL | 62368-1 |
|
ADN5-24-3PM-CAC/DC DIN RAIL SUPPLY 24V 120W |
136 |
|
برگه مشخصات |
ADN-C (120-960W) | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC (3 Phase) | 450V | 760V | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC | 4.85" L x 1.97" W x 4.36" H (123.0mm x 50.0mm x 111.0mm) | CE | - |
|
|
ADN5-24-1PM-CAC/DC DIN RAIL SUPPLY 24V 120W |
92 |
|
برگه مشخصات |
ADN-C (120-960W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.37" L x 1.97" W x 4.85" H (111.0mm x 50.0mm x 123.0mm) | CE, cULus, UL | Class I Div 2; 508; 60950-1 |
|
|
DRB480-24-3-A0AC/DC CONVERTER 24V 480W |
33 |
|
برگه مشخصات |
DRB480-3 (480W) | Bulk | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial), Laboratory | 95.1% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | 5.86" L x 2.56" W x 5.08" H (148.8mm x 65.1mm x 129.0mm) | - | 60950-1; 61010-1; 62368-1 |
|
LOK4601-2RKAC/DC DIN RAIL SUPPLY 24V 50W |
40 |
|
برگه مشخصات |
Melcher LOK4 (50W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2A | 50W | 4.3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|

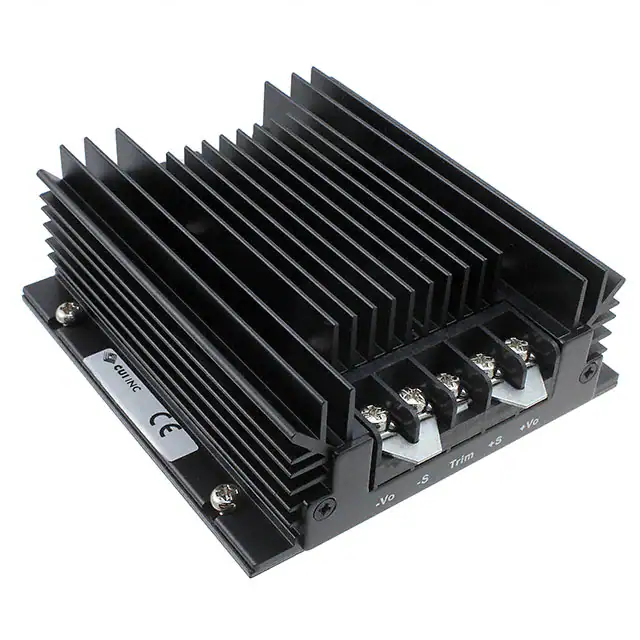

VHK75W-Q24-S24-DINDC/DC DIN RAIL SUPPLY 24V 75W |
33 |
|
برگه مشخصات |
VHK75W-DIN (75W) | Box | Active | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 3.12A | 75W | - | - | 83% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
DRB480-24-3-A1AC/DC CONVERTER 24V 480W |
37 |
|
برگه مشخصات |
DRB480-3 (480W) | Bulk | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial), Laboratory | 95.1% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | 5.86" L x 2.56" W x 5.08" H (148.8mm x 65.1mm x 129.0mm) | - | 60950-1; 61010-1; 62368-1 |
