سنسور فشار، مبدل - صنعتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78150-00000040-15PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
برگه مشخصات |
5000 | Cylinder, Threaded | Bulk | Active | Medical Ventilation | Switch | 3.1PSI ~ 7PSI (21.37kPa ~ 48.26kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121.1°C | - |
|
|
78152-00000150-15PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
برگه مشخصات |
5000 | Cylinder, Threaded | Bulk | Active | Medical Ventilation | Switch | 15PSI (103.42kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 150PPSI (1034.21kPa) | -40°C ~ 120°C | - |
|
|
78155-00001200-01PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
برگه مشخصات |
5000 | Cylinder, Threaded | Bulk | Active | Medical Ventilation | Switch | 100PSI (689.48kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 150PPSI (1034.21kPa) | -40°C ~ 120°C | - |
|
PX2AF1XX300PSAAXPRESSURE TRANSDUCER PSIG 300PSI |
0 |
|
برگه مشخصات |
PX2 | Cylinder | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1000PSI (6894.76kPa) | -40°C ~ 125°C | - |
|

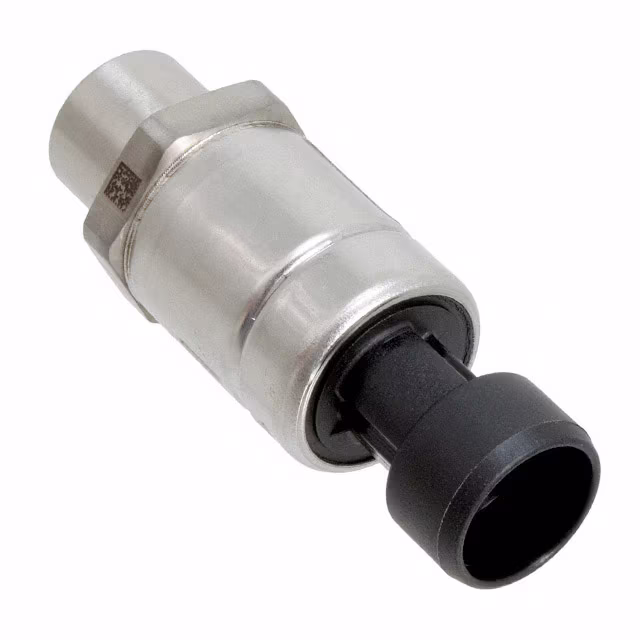

PX2AF1XX667PSAAXPRESSURE TRANSDUCER 667PSI |
0 |
|
برگه مشخصات |
PX2 | Cylinder | Box | Obsolete | Industrial Automation | Sealed Gauge | 667PSI (4598.8kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1000PSI (6894.76kPa) | -40°C ~ 125°C | - |
|
PX2AF1XX500PSAAXPRESSURE TRANSDUCER PSIS |
0 |
|
برگه مشخصات |
PX2 | Cylinder | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1000PSI (6894.76kPa) | -40°C ~ 125°C | - |
|
|
9013FHG19J27M1PPRESSURE SWITCH 575VAC 1HP F +OP |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

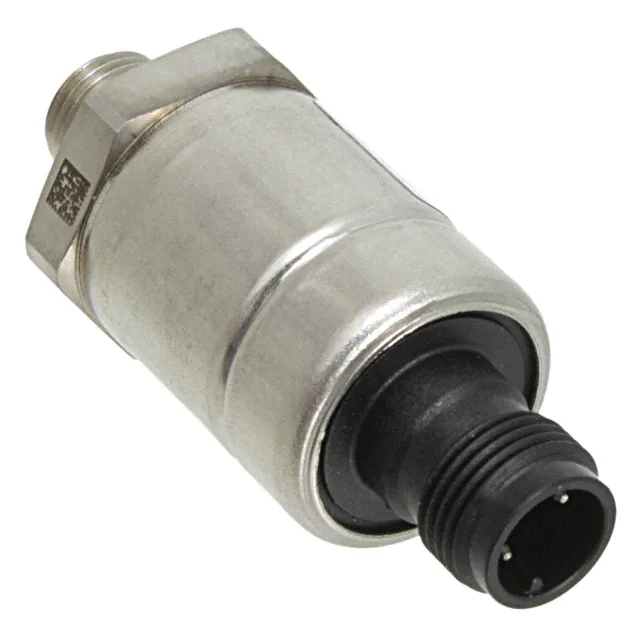

PX2BN2XX100PAAAXPRESSURE TRANSDUCER 100PSI |
1 |
|
برگه مشخصات |
PX2 | Cylinder | Box | Obsolete | Industrial Automation | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Connector | 450PSI (3102.64kPa) | -40°C ~ 125°C | - |
|
77021-00000040-01SWITCH PRESSURE SPST N.C. 5PSI |
0 |
|
برگه مشخصات |
5000 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Switch | 5PSI (34.47kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Connector | 500PSI (3447.38kPa) | -40°C ~ 121.1°C | - |
|
PX2AN1XX100PSCHXPRESSURE TRANSDUCER PSIS |
0 |
|
برگه مشخصات |
PX2 | Cylinder | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 450PSI (3102.64kPa) | -40°C ~ 125°C | - |
|
|
87CP755M35ANAC/R PRESSURE SENSOR, BRASS, 7/1 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5PSI ~ 507.63PSI (100kPa ~ 3500kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 7/16" (11.11mm) UNF | Threaded | - | Packard, 3 Pin | 761.45PSI (5250kPa) | -40°C ~ 135°C | - |
|
|
87CP757M19ANAC/R PRESSURE SENSOR, BRASS, 7/1 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5PSI ~ 278.47PSI (100kPa ~ 1920kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 7/16" (11.11mm) UNF | Threaded | - | Packard, 3 Pin | 417.71PSI (2880kPa) | -40°C ~ 135°C | - |
|
|
87CP755M20ANAC/R PRESSURE SENSOR, BRASS, 7/1 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5 ~ 290.08PSI (100 ~ 2000kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 7/16" (11.11mm) UNF | Threaded | - | Packard, 3 Pin | 435.11PSI (3000kPa) | -40°C ~ 135°C | - |
|
|
87CP725M16GVAC/R PRESSURE SENSOR, BRASS, 1/8 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Gauge | 14.5PSI ~ 232.06PSI (100kPa ~ 1600kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | - | Packard, 3 Pin | 348.09PSI (2400kPa) | -40°C ~ 135°C | - |
|
|
87CP755M16ANAC/R PRESSURE SENSOR, BRASS, 7/1 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5PSI ~ 232.06PSI (100kPa ~ 1600kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 7/16" (11.11mm) UNF | Threaded | - | Packard, 3 Pin | 348.09PSI (2400kPa) | -40°C ~ 135°C | - |
|
|
87CP725M35ANAC/R PRESSURE SENSOR, BRASS, 1/8 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5PSI ~ 507.63PSI (100kPa ~ 3500kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | - | Packard, 3 Pin | 761.45PSI (5250kPa) | -40°C ~ 135°C | - |
|
|
87CP725M20ANAC/R PRESSURE SENSOR, BRASS, 1/8 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5 ~ 290.08PSI (100 ~ 2000kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | - | Packard, 3 Pin | 435.11PSI (3000kPa) | -40°C ~ 135°C | - |
|
|
87CP757M08ANAC/R PRESSURE SENSOR, BRASS, 7/1 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 7.25PSI ~ 116.03PSI (50kPa ~ 800kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 7/16" (11.11mm) UNF | Threaded | - | Packard, 3 Pin | 174.05PSI (1200kPa) | -40°C ~ 135°C | - |
|
|
87CP757M31ANAC/R PRESSURE SENSOR, BRASS, 7/1 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5PSI ~ 449.62PSI (100kPa ~ 3100kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 7/16" (11.11mm) UNF | Threaded | - | Packard, 3 Pin | 674.43PSI (4650kPa) | -40°C ~ 135°C | - |
|
|
87CP725M16ANAC/R PRESSURE SENSOR, BRASS, 1/8 |
0 |
|
برگه مشخصات |
87CP | Cylinder, Threaded | Bulk | Active | Industrial Automation, Medical Ventilation | Absolute | 14.5PSI ~ 232.06PSI (100kPa ~ 1600kPa) | Analog Current | 4 ~ 20 mA | ±0.8% | 6V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | - | Packard, 3 Pin | 348.09PSI (2400kPa) | -40°C ~ 135°C | - |
