سنسور فشار، مبدل - صنعتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
114991178WATER PRESSURE SENSOR |
596 |
|
برگه مشخصات |
- | Cylinder, Metal | Bulk | Active | Industrial Automation | Gauge | 174.05PSI (1200kPa) | - | 0.5 V ~ 4.5 V | ±1.5% | 5V | - | Threaded | - | Screw Terminal | 348.09PSI (2400kPa) | -20°C ~ 105°C | - |
|
76575-00000040-01SWITCH PRESSURE N.O. 4PSI |
547 |
|
برگه مشخصات |
5000 | Cylinder | Box | Active | Industrial Automation | Switch | 4PSI (27.58kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - |
|

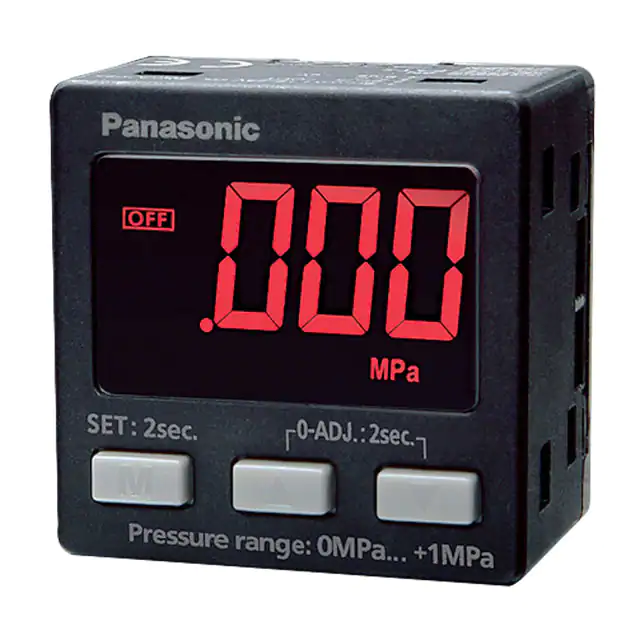

DP-002-PSENSOR DIGITAL PRESSURE PNP HIGH |
26 |
|
برگه مشخصات |
DP-0 | Module Box with Display | Box | Active | Industrial Automation | Vented Gauge | 145.04PSI (1000kPa) | PNP - Open Collector | - | - | 12V ~ 24V | Female - M5 | Threaded | - | Cable/Wire Leads | 217.56PSI (1500kPa) | 0°C ~ 50°C | - |
|
M3234-000005-100PGPRESSURE SENSOR 100PSI GAUGE |
377 |
|
برگه مشخصات |
M3200 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 2.7V ~ 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Packard, 3 Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - |
|

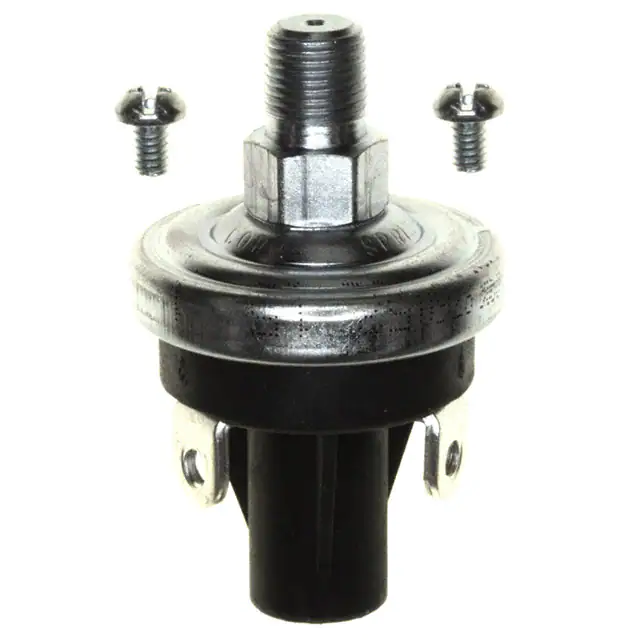

76052-00000150-01SWITCH PRESSURE N.O. 15PSI |
146 |
|
برگه مشخصات |
5000 | Cylinder | Box | Active | Industrial Automation | Switch | 15PSI (103.42kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - |
|
MS121-00000U-250PGSENSOR 250PSIG O-RING 100MV 2' |
72 |
|
برگه مشخصات |
MSP100 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Vented Gauge | 250PSI (1723.69kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (5V) | - | 5V ~ 14V | Male - 0.36" (9.14mm) O-Ring | Barbed | Temperature Compensated | Cable 2' | 375PSI (2585.53kPa) | 0°C ~ 55°C | - |
|
M3031-000005-2K5PGTRANSDUCER .5-4.5VDC 2500# PRES |
1,089 |
|
برگه مشخصات |
MSP300 | Cylinder | Bulk | Active | Industrial Automation | Vented Gauge | 2500PSI (17236.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 5000PSI (34473.79kPa) | -20°C ~ 85°C | - |
|

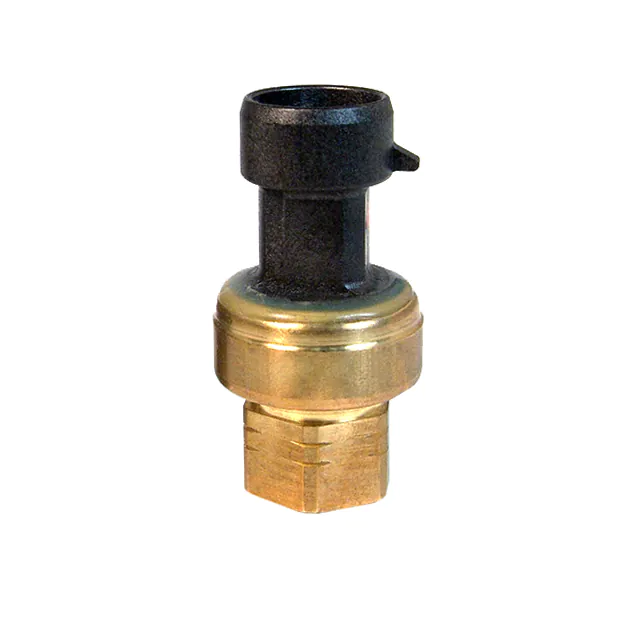

2CP5-71-46SENSOR PRES ABS 0-150PSI 0-5V OU |
164 |
|
برگه مشخصات |
2CP | Cylinder, Threaded | Bulk | Active | Industrial Automation | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.8% | 4.5V ~ 5.5V | Female - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Connector | 450PSI (3102.64kPa) | -40°C ~ 135°C | - |
|
|
2CP5-71-47SENSOR PRES ABS 0-500PSI 0-5V OU |
162 |
|
برگه مشخصات |
2CP | Cylinder, Threaded | Bulk | Active | Industrial Automation | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.8% | 4.5V ~ 5.5V | Female - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Connector | 1000PSI (6894.76kPa) | -40°C ~ 135°C | - |
|
76053-00000350-01SWITCH PRESSURE N.O. 35PSI |
108 |
|
برگه مشخصات |
5000 | Cylinder | Box | Active | Industrial Automation | Switch | 35PSI (241.32kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - |
|
76061-00000020-01SWITCH PRESSURE N.C. 2PSI |
46 |
|
برگه مشخصات |
5000 | Cylinder | Box | Active | Industrial Automation | Switch | 2PSI (13.79kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - |
|
MGA-100-A-9V-RSENSOR DIGITAL GAUGE 100PSI LCD |
26 |
|
برگه مشخصات |
MG-9V | Module Box with Display | Box | Active | Industrial Automation | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | LCD Display | ±1% | 9V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 300PSI (2068.43kPa) | -10°C ~ 60°C | MediaGauge |
|
DPH-102SENSOR PRESSURE 1MPA GAUGE |
161 |
|
برگه مشخصات |
DPH-100 | Module | Box | Active | Industrial Automation | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 12V ~ 24V | Female - M5, Male - 1/8" (3.18mm) BSPT | Threaded | - | Connector | 217.56PSI (1500kPa) | 0°C ~ 50°C | - |
|
DPH-103-M5SENSOR PRESSURE -101KPA GAUGE |
51 |
|
برگه مشخصات |
DPH-100 | Module | Box | Active | Industrial Automation | Vacuum | -14.65PSI (-101kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 12V ~ 24V | Male - M5 | Threaded | - | Connector | -72.52PSI (-500kPa) | 0°C ~ 50°C | - |
|
DPH-102-M5SENSOR PRESSURE 1MPA GAUGE |
46 |
|
برگه مشخصات |
DPH-100 | Module | Box | Active | Industrial Automation | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 12V ~ 24V | Male - M5 | Threaded | - | Connector | 217.56PSI (1500kPa) | 0°C ~ 50°C | - |
|
|
2CP50-71-106SENSOR PRES ABS 0-750PSI 0-5V OU |
21 |
|
برگه مشخصات |
2CP | Cylinder, Threaded | Bulk | Active | Industrial Automation | Absolute | 750PSI (5171.07kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.8% | 4.5V ~ 5.5V | Female - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Connector | 1500PSI (10342.14kPa) | -40°C ~ 135°C | - |
|
|
MGA-300-A-9V-RSENSOR DIGITAL GAUGE 300PSI LCD |
59 |
|
برگه مشخصات |
MG-9V | Module Box with Display | Box | Active | Industrial Automation | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | LCD Display | ±1% | 9V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 900PSI (6205.28kPa) | -10°C ~ 60°C | MediaGauge |
|
M32JM-00000E-010BGPRESS XDCR M32JM-00000E-010BG |
35 |
|
برگه مشخصات |
- | Cylinder, Threaded | Box | Active | Industrial Automation | Gauge | 145.04PSI (1000kPa) | I2C | 24 b | ±0.25% | 2.7V ~ 5V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Cable | 290.08PSI (2000kPa) | -40°C ~ 125°C | - |
|
DP-101ZL3-M-PSENSOR DIGITAL PRESSURE PNP |
88 |
|
برگه مشخصات |
DP-100L | Module Box with Display | Box | Active | Industrial Automation | Gauge | -14.5 ~ 14.5PSI (-100 ~ 100kPa) | PNP - Open Collector | - | - | 12V ~ 24V | Female - M5 | Threaded | - | Cable | 72.52PSI (500kPa) | -10°C ~ 50°C | - |
|
76583-00000040-01SWITCH PRESSURE SPST N.O. 4PSI |
35 |
|
برگه مشخصات |
5000 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Switch | 4PSI (27.58kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 121.1°C | - |
