سنسور فشار، مبدل - صنعتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

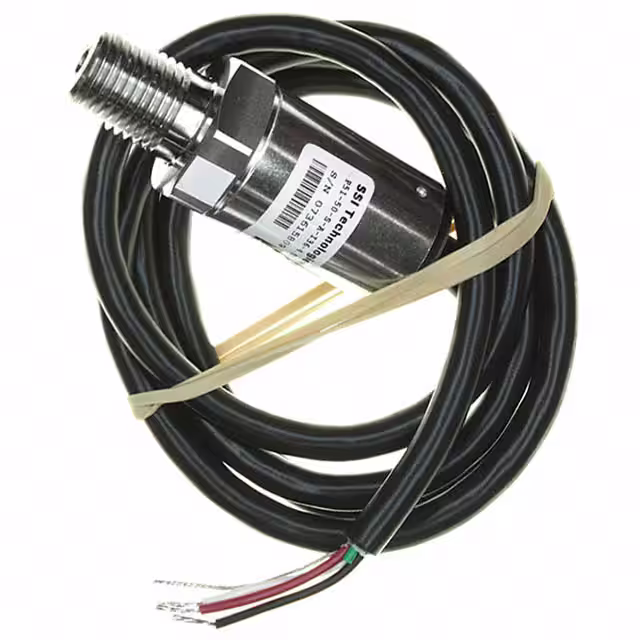

P51-50-S-A-I36-4.5V-000-000SENSOR 50PSIS 1/4NPT 4.5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

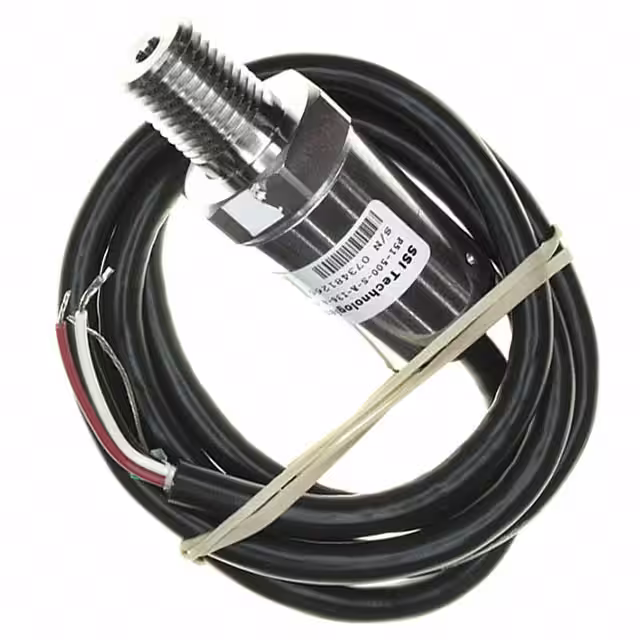

P51-500-S-A-I36-4.5V-000-000SENSOR 500PSIS 1/4NPT 4.5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

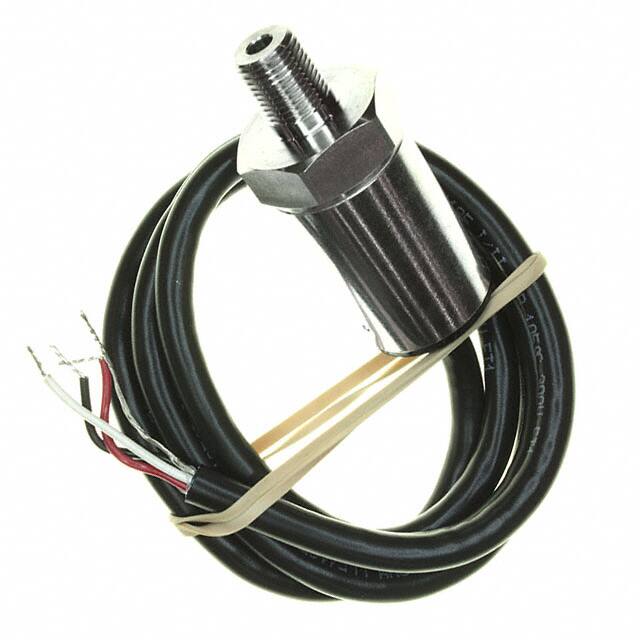

P51-15-S-UB-I36-4.5V-000-000SENSOR 15PSIS 1/8NPT 4.5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

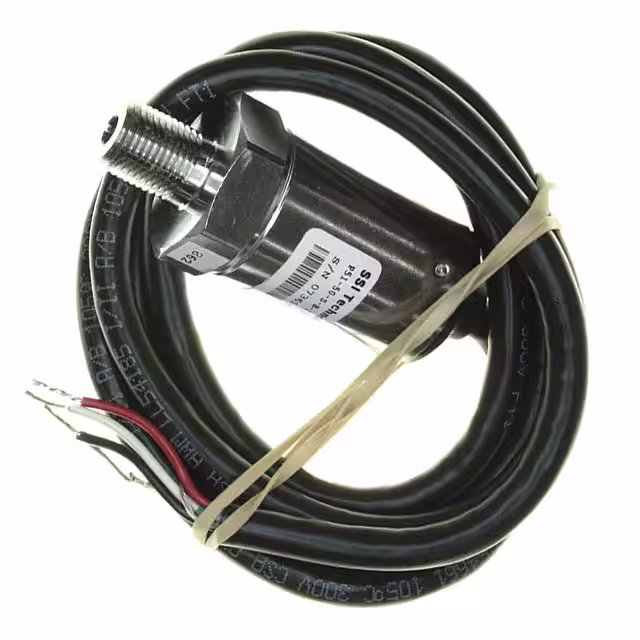

P51-50-S-B-I36-4.5V-000-000SENSOR 50PSIS 1/8NPT 4.5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-500-S-B-I36-4.5V-000-000SENSOR 500PSIS 1/8NPT 4.5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-S-UC-I36-5V-000-000SENSOR 15PSIS 1/4NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 15PSI (103.42kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-50-S-A-I36-5V-000-000SENSOR 50PSIS 1/4NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-100-S-A-I36-5V-000-000SENSOR 100PSIS 1/4NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-500-S-A-I36-5V-000-000SENSOR 500PSIS 1/4NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

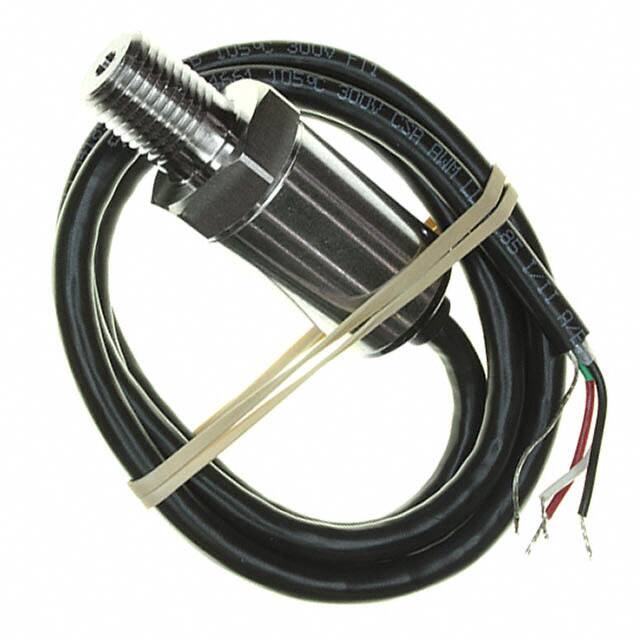

P51-1000-S-A-I36-5V-000-000SENSOR 1000PSIS 1/4NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-S-UB-I36-5V-000-000SENSOR 15PSIS 1/8NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 15PSI (103.42kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

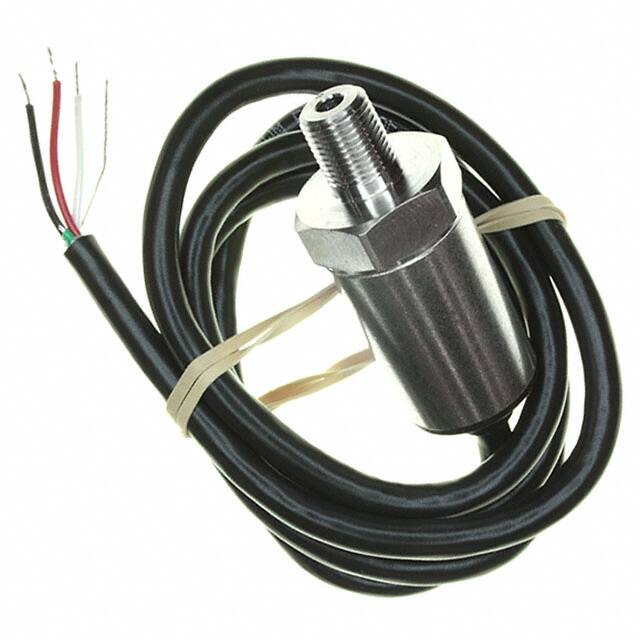

P51-50-S-B-I36-5V-000-000SENSOR 50PSIS 1/8NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-100-S-B-I36-5V-000-000SENSOR 100PSIS 1/8NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-500-S-B-I36-5V-000-000SENSOR 500PSIS 1/8NPT 5V |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 1 V ~ 5 V | ±0.5% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-S-UC-I36-20MA-000-000SENSOR 15PSIS 1/4NPT 20MA |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 15PSI (103.42kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-50-S-A-I36-20MA-000-000SENSOR 50PSIS 1/4NPT 20MA |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-100-S-A-I36-20MA-000-000SENSOR 100PSIS 1/4NPT 20MA |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

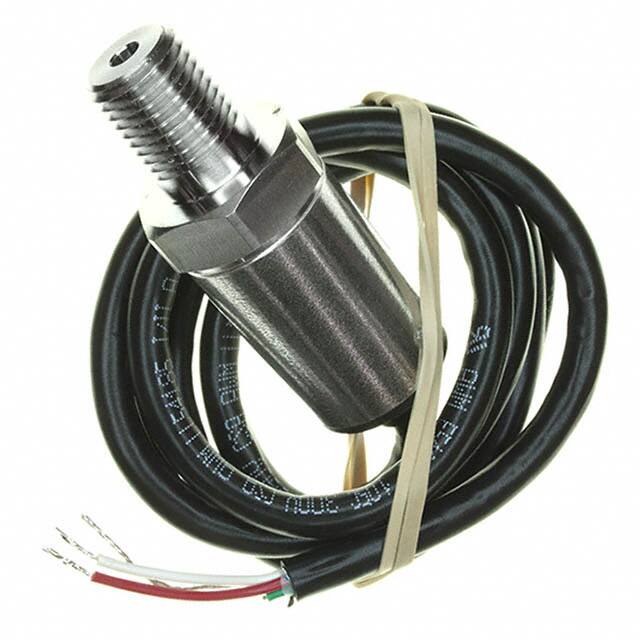

P51-1000-S-A-I36-20MA-000-000SENSOR 1000PSIS 1/4NPT 20MA |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-S-UB-I36-20MA-000-000SENSOR 15PSIS 1/8NPT 20MA |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 15PSI (103.42kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-50-S-B-I36-20MA-000-000SENSOR 50PSIS 1/8NPT 20MA |
0 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
