سنسور فشار، مبدل - صنعتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

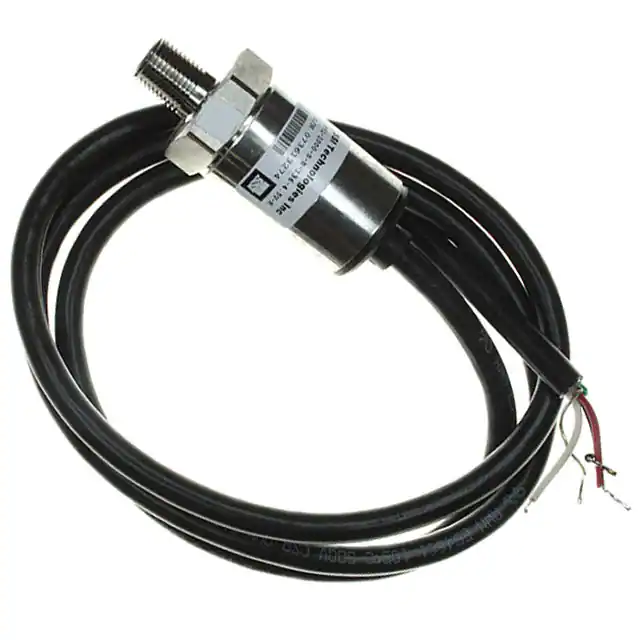

P51-1000-S-B-I36-4.5V-000000SENSOR 1000PSIS 1/8NPT 4.5V |
62 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-200-G-A-I36-20MA-000-000SENSOR 200PSIG 1/4NPT 20MA |
34 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 200PSI (1378.95kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-100-G-B-I36-4.5V-000-000SENSOR 100PSIG 1/8NPT 4.5V |
57 |
|
برگه مشخصات |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
DP-101-NSENSOR DIGITAL PRESSURE NPN |
208 |
|
برگه مشخصات |
DP-100 | Module | Box | Active | Industrial Automation | Vented Gauge | ±14.5PSI (±100kPa) | NPN - Open Collector | - | - | 12V ~ 24V | Female - M5, Male - 1/8" (3.18mm) NPT | Threaded | - | Connector | ±72.52PSI (±500kPa) | -10°C ~ 50°C | - |
|
DP-102-N-PSENSOR DIGITAL PRESSURE PNP |
117 |
|
برگه مشخصات |
DP-100 | Module | Box | Active | Industrial Automation | Vented Gauge | -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa) | PNP - Open Collector | - | - | 12V ~ 24V | Female - M5, Male - 1/8" (3.18mm) NPT | Threaded | - | Connector | -21.76PSI ~ 217.56PSI (-150kPa ~ 1500kPa) | -10°C ~ 50°C | - |
|
DP-101-N-PSENSOR DIGITAL PRESSURE PNP |
30 |
|
برگه مشخصات |
DP-100 | Module | Box | Active | Industrial Automation | Vented Gauge | ±14.5PSI (±100kPa) | PNP - Open Collector | - | - | 12V ~ 24V | Female - M5, Male - 1/8" (3.18mm) NPT | Threaded | - | Connector | ±72.52PSI (±500kPa) | -10°C ~ 50°C | - |
|
|
DP-102A-NSENSOR DIGITAL PRESSURE NPN |
58 |
|
برگه مشخصات |
DP-100 | Module | Box | Active | Industrial Automation | Vented Gauge | -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa) | Analog Current/Voltage, NPN - Open Collector | - | - | 12V ~ 24V | Female - M5, Male - 1/8" (3.18mm) NPT | Threaded | - | Connector | -21.76PSI ~ 217.56PSI (-150kPa ~ 1500kPa) | -10°C ~ 50°C | - |
|
112CP3-6SENSOR PRES ABS 9-149PSI W/TEMP |
185 |
|
برگه مشخصات |
112CP | Cylinder | Bulk | Active | Industrial Automation | Absolute | 9PSI ~ 149PSI (62.05kPa ~ 1027.32kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.8% | 4.5V ~ 5.5V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 300PSI (2068.43kPa) | -40°C ~ 135°C | - |
|
|
112CP3-9SENSOR PRES ABS 9-500PSI W/TEMP |
77 |
|
برگه مشخصات |
112CP | Cylinder | Bulk | Active | Industrial Automation | Absolute | 9PSI ~ 500PSI (62.05kPa ~ 3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.8% | 4.5V ~ 5.5V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 1000PSI (6894.76kPa) | -40°C ~ 135°C | - |
|

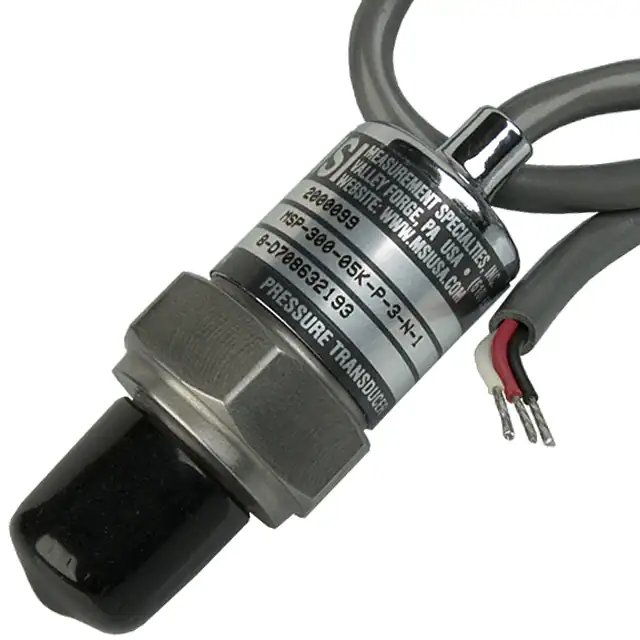

M3031-000005-05KPGTRANSDUCER .5-4.5VDC 5000# PRES |
121 |
|
برگه مشخصات |
MSP300 | Cylinder | Bulk | Active | Industrial Automation | Vented Gauge | 5000PSI (34473.79kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 10000PSI (68947.57kPa) | -20°C ~ 85°C | - |
|
M3031-000005-10KPGTRANSDUCER .5-4.5VDC 10000# PRES |
121 |
|
برگه مشخصات |
MSP300 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Vented Gauge | 10000PSI (68947.57kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 20000PSI (137895.15kPa) | -20°C ~ 85°C | - |
|
MG1-5000-A-9V-RSENSOR DIGITAL GAUGE 5000PSI LCD |
38 |
|
برگه مشخصات |
MG1-9V | Module Box with Display | Box | Active | Industrial Automation | Vented Gauge | 5000PSI (34473.79kPa) | Wheatstone Bridge | LCD Display | ±1% | 9V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 15000PSI (103421.36kPa) | -10°C ~ 60°C | MediaGauge |
|
|
DP-112-E-P-JSENSOR DGTL PNP -0.100 TO +1 MPA |
50 |
|
برگه مشخصات |
DP-100 | Module | Box | Active | Industrial Automation | Vented Gauge | -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa) | Analog Current/Voltage, PNP - Open Collector | - | - | 12V ~ 24V | Female - M5, Male - 1/8" (3.18mm) BSPP | Threaded | - | Connector | -21.76PSI ~ 217.56PSI (-150kPa ~ 1500kPa) | -10°C ~ 50°C | - |
|
M7139-350BG-200000SENSOR |
60 |
|
برگه مشخصات |
M7100 | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 5076.32PSI (35000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | Connector | 10152.64PSI (70000kPa) | -40°C ~ 125°C | - |
|
PX2EN1XX100PSAAXPRESSURE TRANSDUCER 100PSI NPT |
132 |
|
برگه مشخصات |
PX2 | Cylinder | Tray | Active | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Wire Leads | 450PSI (3102.64kPa) | -40°C ~ 125°C | - |
|

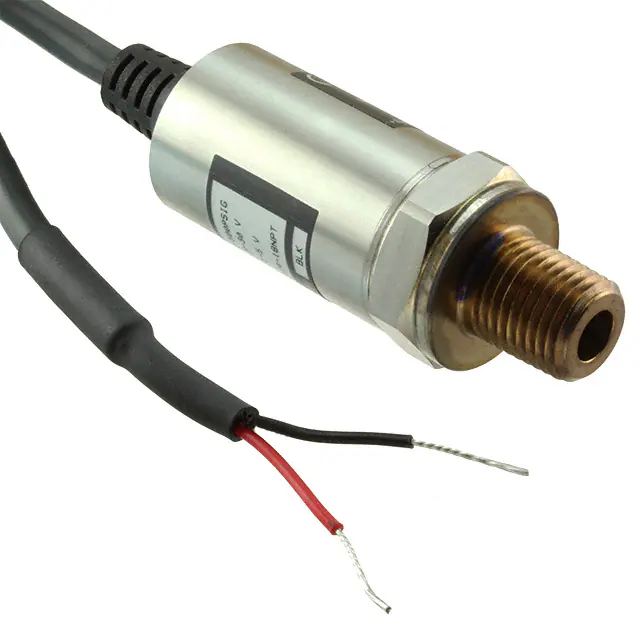

M5251-000005-050PGTRANSDUCER 4-20MA 50PSI |
134 |
|
برگه مشخصات |
M5200 | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 50PSI (344.74kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Cable | 100PSI (689.48kPa) | -40°C ~ 125°C | - |
|

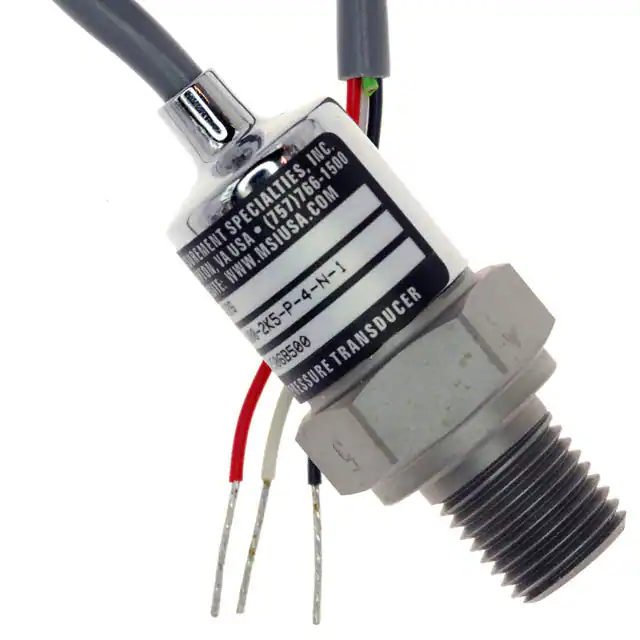

M3041-000005-05KPGTRANSDUCER 1-5V 5000# PRES |
435 |
|
برگه مشخصات |
MSP300 | Cylinder, Threaded | Box | Active | Industrial Automation | Vented Gauge | 5000PSI (34473.79kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 10000PSI (68947.57kPa) | -20°C ~ 85°C | - |
|
|
M3041-000005-250PGTRANSDUCER 1-5V 250# PRES |
176 |
|
برگه مشخصات |
MSP300 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Vented Gauge | 250PSI (1723.69kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 500PSI (3447.38kPa) | -20°C ~ 85°C | - |
|
|
M3041-000005-2K5PGTRANSDUCER 1-5V 2500# PRES |
111 |
|
برگه مشخصات |
MSP300 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Vented Gauge | 2500PSI (17236.89kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 5000PSI (34473.79kPa) | -20°C ~ 85°C | - |
|
|
M3041-000006-100PGTRANSDUCER 1-5V 100# PRES |
102 |
|
برگه مشخصات |
MSP300 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 10V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable | 2000PSI (13789.51kPa) | -20°C ~ 85°C | - |
