سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG1401BRMZ-REEL7IC SWITCH SPST-NCX1 1.3OHM 8MSOP |
3,417 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG1401BRMZIC SWITCH SPST-NCX1 1.3OHM 8MSOP |
1,164 |
|
برگه مشخصات |
- | Tube | Active | SPST - NC | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
MAX4648EUT+TIC SWITCH SPST-NO X 1 25OHM SOT6 |
3,228 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 25Ohm | 800mOhm | 9V ~ 36V | ±4.5V ~ 20V | 100ns, 100ns | - | 4pC | 6pF, 6pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX4625EUT+TIC SWITCH SPDT X 1 1OHM SOT6 |
9,206 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1Ohm | 60mOhm | 1.8V ~ 5.5V | - | 50ns, 50ns | - | 65pC | 32pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
MUX36D04IPWRIC MUX DUAL 4:1 170OHM 16TSSOP |
2,747 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 4:1 | 2 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 4.3pF | 400pA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG417BRZ-REELIC SWITCH SPST-NCX1 35OHM 8SOIC |
4,384 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 35Ohm | - | 12V | ±15V | 160ns, 100ns | - | 7pC | 6pF, 6pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX4624EUT+TIC SWITCH SPDT X 1 1OHM SOT6 |
7,698 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1Ohm | 60mOhm | 1.8V ~ 5.5V | - | 50ns, 50ns | - | 65pC | 32pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
ADG759BCPZ-REEL7IC SWITCH SP4TX2 4.5OHM 20LFCSP |
8,848 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 42pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
MAX4649EKA+TIC SWITCH SPDT X 1 45OHM SOT23-8 |
13,609 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 45Ohm | 600mOhm | 9V ~ 36V | ±4.5V ~ 20V | - | - | 2pC | 6pF | 2nA | -92dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
MAX4634EUB+TIC SWITCH SP4T X 1 4OHM 10UMAX |
2,201 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 18ns, 11ns | - | 2pC | 13pF, 52pF | 100pA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|

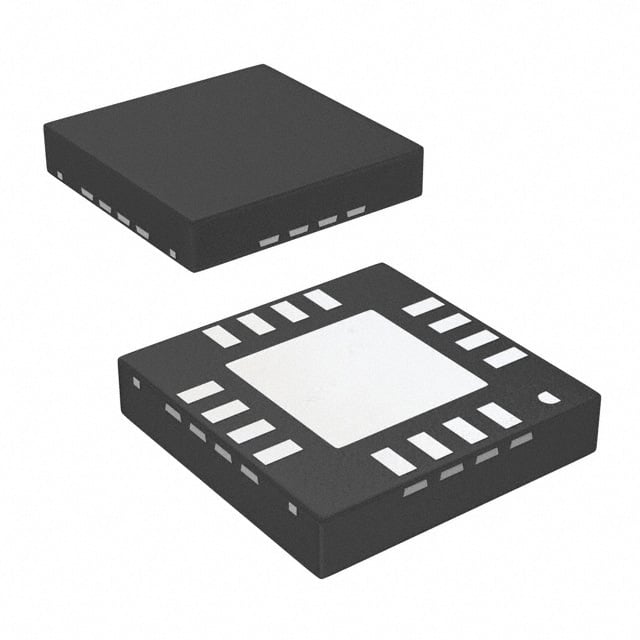

TMUX7462FRRPRIC SW SPST-NCX4 10.5OHM 16WQFN |
2,719 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 10.5Ohm | 500mOhm | 8V ~ 44V | ±5V ~ 22V | - | 550MHz | - | - | - | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
ADG812YRUZ-REEL7IC SW SPST-NOX4 650MOHM 16TSSOP |
6,155 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 25ns, 5ns | 90MHz | 30pC | 30pF, 35pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4707EXK+TIC SWITCH SPST-NOX1 3OHM SC70-5 |
2,075 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5.5V | - | 20ns, 15ns | 190MHz | 5pC | 17pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
ADG811YRUZIC SW SPST-NCX4 650MOHM 16TSSOP |
1,109 |
|
برگه مشخصات |
- | Tube | Active | SPST - NC | 1:1 | 4 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 25ns, 5ns | 90MHz | 30pC | 30pF, 35pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG1419BRMZ-REEL7IC SWITCH SPDT X 1 2.4OHM 8MSOP |
3,592 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 2.4Ohm | 50mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 110ns, 140ns | 135MHz | -16pC | 19pF, 44pF | 500pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG1419BRMZIC SWITCH SPDT X 1 2.4OHM 8MSOP |
3,479 |
|
برگه مشخصات |
- | Tube | Active | SPDT | 2:1 | 1 | 2.4Ohm | 50mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 110ns, 140ns | 135MHz | -16pC | 19pF, 44pF | 500pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ADG1421BCPZ-REEL7IC SW SPST-NOX2 2.4OHM 10LFCSP |
3,539 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 2.4Ohm | 20mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 145ns, 145ns | 180MHz | -5pC | 18pF, 22pF | 500pA | -74dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-LFCSP-WD (3x3) |
|
ADG888YCPZ-REEL7IC SWITCH DPDTX2 480MOHM 16LFCSP |
3,247 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | DPDT | 4:2 | 2 | 480mOhm | 40mOhm | 1.8V ~ 5.5V | - | 30ns, 17ns | 29MHz | 70pC | 58pF | 200pA (Typ) | -99dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|
TMUX7412FRRPRIC SWITCH SPST-NCX4 11OHM 16WQFN |
3,053 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 11Ohm | 60mOhm | 8V ~ 44V | ±5V ~ 22V | 740ns, 100ns | 550MHz | 330pC | 10pF, 12pF | 700pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
ADG611YRUZ-REEL7IC SW SPST-NCX4 115OHM 16TSSOP |
4,955 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 40ns | 680MHz | -0.5pC | 5pF, 5pF | 100pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
