سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG1423BRMZ-REEL7IC SW SPST-NO/NCX2 2.4OHM 10MSOP |
690 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 2 | 2.4Ohm | 20mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 145ns, 145ns | 180MHz | -5pC | 18pF, 22pF | 500pA | -74dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG1421BRMZIC SW SPST-NOX2 2.4OHM 10MSOP |
481 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 2 | 2.4Ohm | 20mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 145ns, 145ns | 180MHz | -5pC | 18pF, 22pF | 500pA | -74dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
MAX4636EUB+IC SWITCH SPDT X 2 4OHM 10UMAX |
1,519 |
|
برگه مشخصات |
- | Tube | Active | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns | - | 2pC | 9pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
DG1412EEQ-T1-GE4IC SW SPST-NOX4 1.5OHM 16TSSOP |
9,561 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 1.5Ohm | 40mOhm | 4.5V ~ 24V | ±4.5V ~ 15V | 140ns, 110ns | 150MHz | -41pC | 24pF, 23pF | 500pA | -104dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG1413EEQ-T1-GE4IC SW SPST-NO/NC 1.5OHM 16TSSOP |
4,639 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 1.5Ohm | 40mOhm | 4.5V ~ 24V | ±4.5V ~ 15V | 140ns, 110ns | 150MHz | -41pC | 24pF, 23pF | 500pA | -104dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

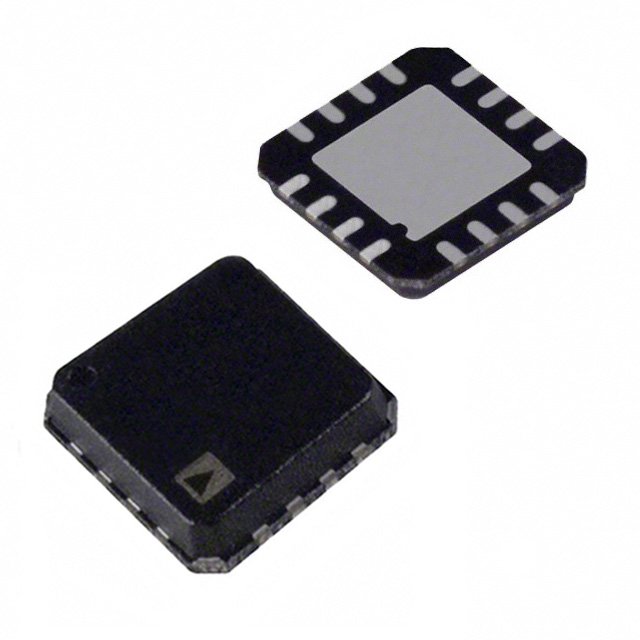

ADG1612BCPZ-REELIC SW SPST-NCX4 1.1OHM 16LFCSP |
6,222 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 156ns, 87ns | 38MHz | 170pC | 60pF, 60pF | 300pA | -110dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP (4x4) |
|
|
ADG1611BCPZ-REEL7IC SW SPST-NCX4 1.1OHM 16LFCSP |
5,852 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 156ns, 87ns | 38MHz | 170pC | 60pF, 60pF | 300pA | -110dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|
|
ADG1612BCPZ-REEL7IC SW SPST-NCX4 1.1OHM 16LFCSP |
784 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 156ns, 87ns | 38MHz | 170pC | 60pF, 60pF | 300pA | -110dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP (4x4) |
|
MAX4659EUA+IC SWITCH SPDT X 1 25OHM 8UMAX |
3,435 |
|
برگه مشخصات |
- | Tube | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
MAX4647EUT+TIC SWITCH SPST-NC X 1 25OHM SOT6 |
3,937 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 25Ohm | 800mOhm | 9V ~ 36V | ±4.5V ~ 20V | 100ns, 100ns | - | 4pC | 6pF, 6pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
MAX14662ETI+IC SWITCH SPST-NOX8 1OHM 28TQFN |
2,036 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 8 | 1Ohm | 20mOhm | 1.6V ~ 5.5V | - | 35µs (Max), 5.5µs (Typ) | 400MHz | - | - | 50nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (4x4) |
|
ADG212AKRZIC SW SPST-NOX4 115OHM 16SOIC |
1,181 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 115Ohm | 5.75Ohm | 15V | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 5nA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4717EUB+TIC SWITCH SPDT X 2 4.5OHM 10UMAX |
3,099 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 4.5Ohm | 100mOhm | 1.8V ~ 5.5V | - | 80ns, 40ns | 300MHz | 5pC | 9pF | 500pA | -110dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
ADG4612BCPZ-REEL7IC SW SPST-NOX4 5.1OHM 16LFCSP |
3,340 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 5.1Ohm | 50mOhm | 3V ~ 12V | ±3V ~ 5.5V | 73ns, 91ns | 250MHz | 292pC | 11.5pF, 11.5pF | 10nA | -74dB @ 1MHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 16-LFCSP (3x3) |
|
MAX4684EBC+TIC SWITCH SPDTX2 800MOHM 12UCSP |
4,975 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 60mOhm | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 200pC | 84pF, 37pF | 1nA | -68dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UCSP |
|
|
ADG1636BCPZ-REEL7IC SWITCH SPDTX2 1.1OHM 16LFCSP |
12,171 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 95ns, 161ns | 27MHz | 150pC | 65pF, 120pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|
|
ADG1604BCPZ-REEL7IC SWITCH SP4TX1 1.1OHM 16LFCSP |
4,593 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 95ns, 173ns | 19MHz | 125pC | 60pF, 270pF | 200pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|
|
ADG1636BCPZ-REELIC SWITCH SPDTX2 1.1OHM 16LFCSP |
3,997 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 95ns, 161ns | 27MHz | 150pC | 65pF, 120pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|
TMUX8212RUMR100-V, FLAT RON, 1:1 (SPST), FOU |
782 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 7Ohm | 200mOhm | 10V ~ 100V | ±10V ~ 50V | 4µs, 100ns (Typ) | 420MHz | -1.3nC | 12pF, 12pF | 10pA (Typ) | -100dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
TMUX8212PWRIC SWITCH SPST X 4 7OHM 16TSSOP |
222 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 7Ohm | 200mOhm | 10V ~ 100V | ±10V ~ 50V | 4µs, 100ns (Typ) | 420MHz | -1300pC | 12pF, 12pF | 2nA | -100dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
