سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG5412BCPZ-REEL7IC SW SPST-NOX4 10OHM 16LFCSP |
4,579 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (4x4) |
|
|
ADG5413BCPZ-REEL7IC SW SPST-NO/NCX4 10OHM 16LFCSP |
4,500 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (4x4) |
|
ADG728BRUZ-REEL7IC MUX 8:1 4.5OHM 16TSSOP |
2,440 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG728BRUZIC MUX 8:1 4.5OHM 16TSSOP |
1,796 |
|
برگه مشخصات |
- | Tube | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG729BRUZ-REEL7IC SWITCH SP4TX2 4.5OHM 16TSSOP |
1,388 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 100MHz | 3pC | 13pF, 42pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

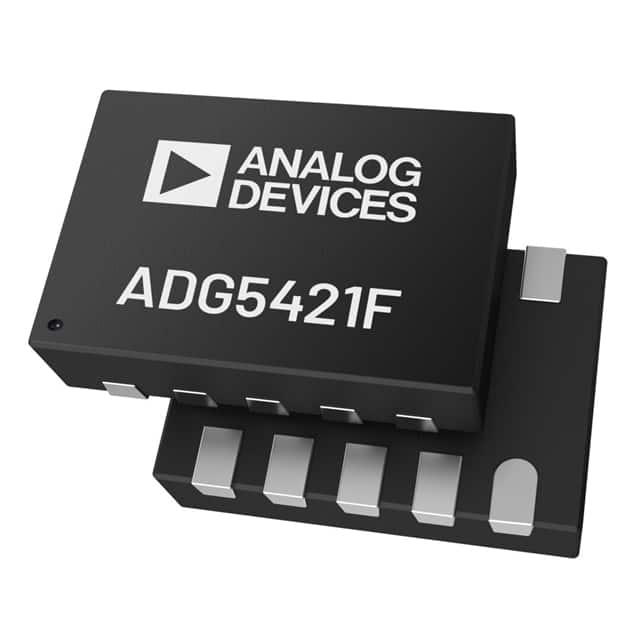

ADG5421FBCPZ-RL7IC SW SPST-NCX2 14OHM 10LFCSP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 14Ohm | 20mOhm | 8V ~ 44V | ±5V ~ 22V | 15.9µs, 160ns | 630MHz | -150pC | 6pF, 5pF | 200pA | -78dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 10-LFCSP (3x2) |
|
MAX4782EUE+TIC SWITCH SP4T X 2 1OHM 16TSSOP |
1,482 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 1Ohm | 300mOhm | 1.6V ~ 3.6V | - | 25ns, 15ns | - | -110pC | 38pF, 158pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4052AESE+TIC SWITCH SP4T X 2 100OHM 16SOIC |
623 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4051ACSE+TIC MUX 8:1 100OHM 16SOIC |
775 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4660EUA+TIC SWITCH SPDT X 1 25OHM 8UMAX |
5,955 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX-EP|8-uSOP-EP |
|
MAX4659ESA+TIC SWITCH SPDT X 1 25OHM 8SOIC |
1,419 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADG1412YRUZIC SW SPST-NOX4 1.8OHM 16TSSOP |
5,247 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 1.8Ohm | 100mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 120ns | 170MHz | -20pC | 23pF, 23pF | 550pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG5412BRUZ-REEL7IC SW SPST-NOX4 10OHM 16TSSOP |
3,025 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
MAX392CSE+IC SWITCH SPST-NOX4 35OHM 16SOIC |
1,833 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 35Ohm | 300mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | - | 2pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG5412BRUZIC SW SPST-NOX4 10OHM 16TSSOP |
1,133 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG608BRUZ-REEL7IC MUX 8:1 30OHM 16TSSOP |
8,652 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 30Ohm | 5Ohm (Max) | 3.3V ~ 5V | ±5V | 75ns, 45ns | - | 6pC | 9pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4052AEEE+IC SWITCH SP4T X 2 100OHM 16QSOP |
450 |
|
برگه مشخصات |
- | Tube | Active | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4659EUA+TIC SWITCH SPDT X 1 25OHM 8UMAX |
3,411 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|

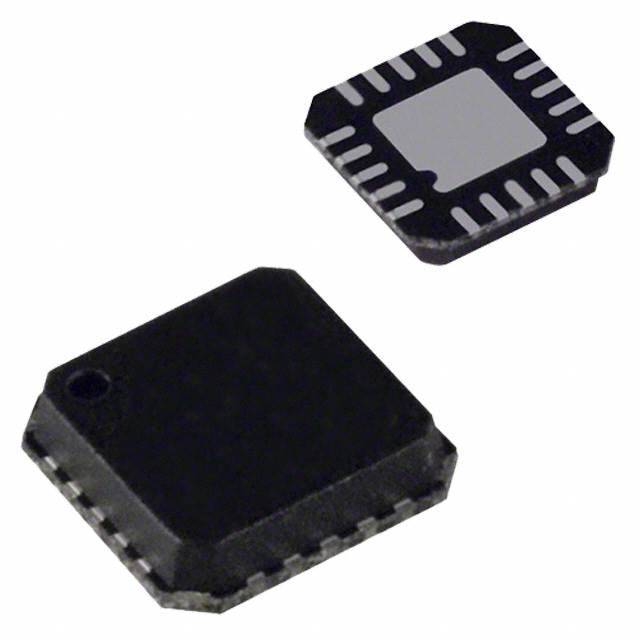

ADG1634BCPZ-REEL7IC SWITCH SPDTX4 4.5OHM 20LFCSP |
16,001 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | 120mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 38ns, 152ns | 109MHz | -12.4pC | 19pF, 32pF | 100pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
|
MAX4617ESE+IC MUX 8:1 10OHM 16SOIC |
2,408 |
|
برگه مشخصات |
- | Tube | Active | - | 8:1 | 1 | 10Ohm | 200mOhm | 2V ~ 5.5V | - | 15ns, 10ns | - | 3pC | 5pF, 27pF | 1nA | -96dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
