COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27H4000-C-83LED COB VERO 18C WM WH RND 2700K |
42 |
|
برگه مشخصات |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4405lm (Typ) | 1.05A | 25°C | 33.9V | 124 lm/W | 3A | 97 (Typ) | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
CXA2540-0000-000N00U427FLED COB XLAMP WARM WHT SQU 2700K |
85 |
|
برگه مشخصات |
XLamp® CXA2540 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 1.1A | 85°C | 37V | 101 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CTM-22-5022-90-36-TW01LED COB CTM22 WHITE |
78 |
|
برگه مشخصات |
Salud™ | Tray | Active | Chip On Board (COB) | White, Warm / White, Cool | 2200K ~ 5000K | - | Square | 3060lm (Typ) | 875mA | 85°C | 37V | 95 lm/W | 1.1A | 90 | - | - | 28.00mm L x 28.00mm W | 1.58mm | 22.00mm Dia | Flat |
|
BXEB-L1120Z-35S4000-C-C3LED MOD EB SER WH LNR STRP 3500K |
98 |
|
برگه مشخصات |
EB Series™ Gen 3 Thrive | Bulk | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5380lm (Typ) | 960mA | 25°C | 40.6V | 138 lm/W | 1.92A | 98 (Typ) | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
BXRE-27G6500-C-83LED COB V22 WARM WHT SQU 2700K |
73 |
|
برگه مشخصات |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8600lm (Typ) | 1.2A | 25°C | 50.7V | 141 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
|
BXRE-35E6500-C-83LED COB V22 WARM WHT SQU 3500K |
49 |
|
برگه مشخصات |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 11337lm (Typ) | 1.2A | 25°C | 50.7V | 186 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
BXRE-40E6500-C-83LED COB V SER GEN 8 WHT SQ 4000K |
42 |
|
برگه مشخصات |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11277lm (Typ) | 1.2A | 25°C | 50.7V | 187 lm/W | - | 80 | - | - | - | - | 22.00mm Dia | Flat |
|
CMA2550-0000-000N0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
82 |
|
برگه مشخصات |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 7231lm (Typ) | 1.4A | 85°C | 34V | 152 lm/W | 3.3A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CLU048-1212C4-403H7K4LED COB CLU048 NEUT WHT SQ 4000K |
8 |
|
برگه مشخصات |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4317lm (Typ) | 1.08A | 85°C | 34.6V | 116 lm/W | 2.76A | 97 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
BXRE-50E6501-C-83LED COB V22 CL WHT SQUARE 5000K |
30 |
|
برگه مشخصات |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 11532lm (Typ) | 1.2A | 25°C | 50.7V | 190 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|

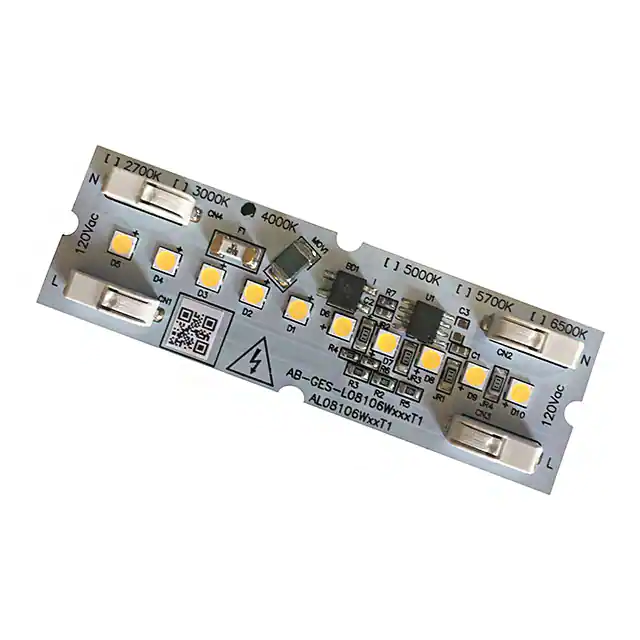

AB-GES-L08106W304T1LED ENG AB-GES WH LNR STRP 3000K |
49 |
|
برگه مشخصات |
AB-GES | Tray | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 600lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 76.00mm L x 24.00mm W | - | - | Flat |
|
BXRC-30G10K0-B-73-SELED COB VERO WHT RND 3000K |
28 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12449lm (Typ) | 1.8A | 25°C | 52V | 133 lm/W | 3.6A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
CXB3050-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
94 |
|
برگه مشخصات |
XLamp® CXB3050 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 1.4A | 85°C | 34V | - | 2.5A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
25 |
|
برگه مشخصات |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11140lm (Typ) | 1.62A | 85°C | 50.5V | 136 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
BXRC-17E10K0-D-74-SELED COB VERO SE 29 WHT RND 1750K |
98 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 6948lm (Typ) | 2.1A | 25°C | 37.6V | 88 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
CLU04Q-1812E1-352H5X3LED COB CLU04Q WARM WHT SQ 3500K |
30 |
|
برگه مشخصات |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 8319lm (Typ) | 1.08A | 85°C | 50.7V | 141 lm/W | 2.76A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1812E1-402H5X3LED COB CLU04Q NEUT WHT SQ 4000K |
20 |
|
برگه مشخصات |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 8654lm (Typ) | 1.08A | 85°C | 50.7V | 147 lm/W | 2.76A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
CXA3050-0000-000N0HW240FLED COB XLAMP NEUT WHT SQU 4000K |
58 |
|
برگه مشخصات |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 37V | 97 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
CXB1520-0000-000N0UP230GLED COB XLAMP WARM WHT SQ 3000K |
32 |
|
برگه مشخصات |
XLamp® CXB1520 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 500mA | 85°C | 33V | 115 lm/W | 1.4A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 9.00mm Dia | Flat |
|
|
CXB3070-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
82 |
|
برگه مشخصات |
XLamp® CXB3070 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 1.9A | 85°C | 36V | - | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
