COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB3590-0000-000N0HCD50ELED COB XLAMP COOL WHT SQU 5000K |
48 |
|
برگه مشخصات |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
BXRC-50G10K1-C-83LED COB VERO 29C WHT ROUND 5000K |
26 |
|
برگه مشخصات |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 14439lm (Typ) | 1.3A | 25°C | 66.7V | 167 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-65E10K1-C-83LED COB VERO 29C WHT ROUND 6500K |
11 |
|
برگه مشخصات |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 16232lm (Typ) | 1.3A | 25°C | 66.7V | 187 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
CLU05Q-1825E1-503L7X4LED COB CLU05Q COOL WHT SQ 5000K |
19 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 21028lm (Typ) | 2.25A | 85°C | 50.7V | 172 lm/W | 5.75A | 70 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-1825E1-352M2X2LED COB CLU05Q WARM WHT SQ 3500K |
20 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 19501lm (Typ) | 2.25A | 85°C | 50.7V | 160 lm/W | 5.75A | 80 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXB3590-0000-000N0HCD40GLED COB XLAMP NEUT WHT SQU 4000K |
59 |
|
برگه مشخصات |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
AB-FA01240-19712-8A1LED MOD AB-FA WH LNR STRP 4000K |
17 |
|
برگه مشخصات |
AB-FA | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 720lm | 660mA | 25°C | 12V | 91 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|

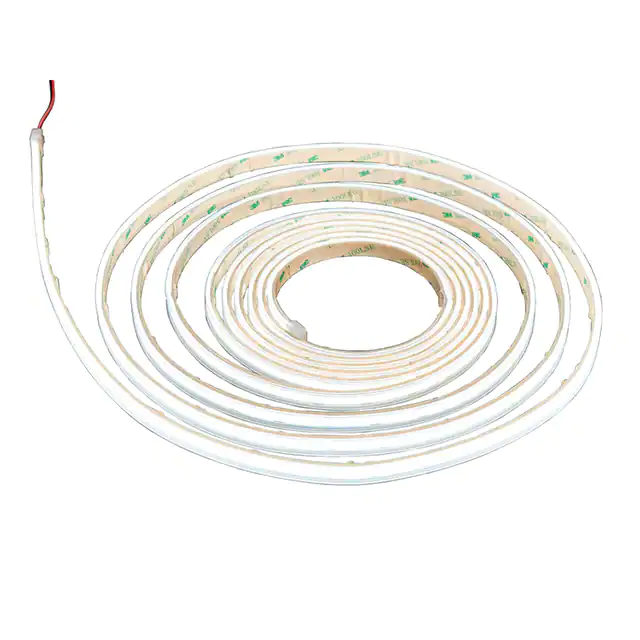

4839LED COB CL WHT LNR STRIP 6500K |
6 |
|
برگه مشخصات |
- | Bulk | Active | Chip On Board (COB) | White, Cool | 6500K | - | Linear Light Strip, Flexible | 1100lm | - | - | 9V ~ 12V | - | - | 90 | 180° | IP20, IP65 | 5000.00mm L x 8.00mm W | - | - | Flat |
|

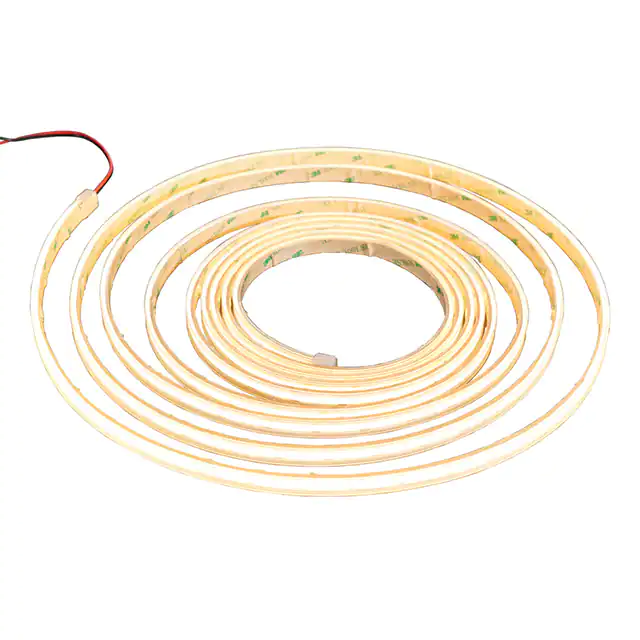

4840LED COB WM WHT LNR STRP 3000K |
6 |
|
برگه مشخصات |
- | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K | - | Linear Light Strip, Flexible | 1100lm | - | - | 9V ~ 12V | - | - | 90 | 180° | IP20, IP65 | 5000.00mm L x 8.00mm W | - | - | Flat |
|
AB-FC02465-19712-8A1LED MOD AB-FC WH LNR STRP 6500K |
23 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 760lm | 330mA | - | 24V | 96 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC012BL-19712-XA1LED MOD AB-FC BLUE LNR STRIP |
8 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 152lm | 660mA | - | 12V | 19 lm/W | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC01230-19712-8A1LED MOD AB-FC WH LNR STRP 3000K |
6 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 720lm | 660mA | - | 12V | 91 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC01240-19712-8A1LED MOD AB-FC WH LNR STRP 4000K |
7 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 720lm | 660mA | - | 12V | 91 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC02440-19712-8A1LED MOD AB-FC WH LNR STRP 4000K |
8 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 760lm | 330mA | - | 24V | 96 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC024BL-19712-XA1LED MOD AB-FC BLUE LNR STRIP |
7 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 152lm | 330mA | - | 24V | 19 lm/W | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
AB-FA02408-19712-8A1LED MOD AB-FA RGBW LNR STRIP |
9 |
|
برگه مشخصات |
AB-FA | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 523nm Green, 468nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 590mA Red, 590mA Green, 590mA Blue, 590mA White | - | 24V | 6 lm/W Red, 16 lm/W Green, 4 lm/W Blue, 24 lm/W White | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | - | - | Flat |
|
AB-FA01206-19712-XA2LED MOD AB-FA RGB LNR STRIP |
7 |
|
برگه مشخصات |
AB-FA | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | 25°C | 12V | - | - | - | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
PT-39-DR-L51-BD100LED MOD PT-39 RED RECT |
15 |
|
برگه مشخصات |
PT-39 | Tray | Active | LED Module | Red | - | - | Rectangle | 2700mW (2600mW ~ 2800mW) | 7.5A | 40°C | 2.3V | - | 10A | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.87mm L x 2.09mm W | Flat |
|
|
AB-FA02406-19712-XA2LED MOD AB-FA RGB LNR STRIP |
4 |
|
برگه مشخصات |
AB-FA | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | 25°C | 24V | - | - | - | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
|
ZFS-105000-24NWLED NEUT WHT LNR LGT STRIP 4250K |
2 |
|
برگه مشخصات |
- | Bulk | Active | LED Module | White, Neutral | 4250K | - | Linear Light Strip, Flexible | 9120lm (Typ) | - | 25°C | 24V | - | 2.5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
