COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-40E4000-C-73LED COB VERO 18 WHT RND 4000K |
176 |
|
برگه مشخصات |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 5887lm (Typ) | 1.17A | 85°C | 34.1V | 148 lm/W | 2.34A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
BXRC-30E4000-C-73LED COB VERO 18 WM WH RND 3000K |
150 |
|
برگه مشخصات |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5713lm (Typ) | 1.17A | 85°C | 34.1V | 143 lm/W | 2.34A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
BXRV-TR-2765S-10A0-B-23-S2LED COB VESTA WHITE ROUND 6500K |
187 |
|
برگه مشخصات |
Vesta™ SE Tunable White Gen 2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Round | 757lm Warm White, 910lm Cool White | 250mA | 25°C | 34.8V Warm White, 34.8V Cool White | 97 lm/W Warm White, 116 lm/W Cool White | 480mA | 95 | 130° | With Holder | 36.20mm Dia | 3.80mm | 10.30mm Dia | Flat |
|
BXRC-30E4000-D-83LED COB VERO 18C WHT RND 3000K |
161 |
|
برگه مشخصات |
Gen 8 Vero® 18 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4308lm (Typ) | 850mA | 25°C | 28.2V | 180 lm/W | 2.5A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.50mm Dia | Flat |
|
SI-N9V1624B1CNLED ACOM ROUND 100MM T-24 CN |
146 |
|
برگه مشخصات |
- | Tray | Active | LED Module | White, Warm | 3000K | - | Round | 1540lm (Typ) | - | 65°C | 120VAC | 94 lm/W | - | 90 | 115° | - | 100.00mm Dia | 12.00mm | - | Flat |
|
|
BXRE-65S4001-C-74LED COB V18 THRIVE WHT SQ 6500K |
875 |
|
برگه مشخصات |
Gen 7 V18 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 5205lm (Typ) | 1.17A | 25°C | 34.4V | 129 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | Flat |
|
|
BXRE-57S4001-C-74LED COB V18 THRIVE WHT SQ 5700K |
153 |
|
برگه مشخصات |
Gen 7 V18 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 5312lm (Typ) | 1.17A | 25°C | 34.4V | 132 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | Flat |
|
|
S4SM-1564509736-0B500H3S-00001LED COB SUNLIKE COOL WH SQ 5000K |
196 |
|
برگه مشخصات |
SunLike | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1620lm (Typ) | 430mA | 85°C | 35V | 108 lm/W | 860mA | 97 (Typ) | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
|
XHP50B-00-0000-0D0HH227G-SB01LED MOD XHP50.2 WH STARBD 2700K |
711 |
|
برگه مشخصات |
XHP50.2 | Tray | Active | LED Module | White, Warm | 2700K | - | Starboard | 900lm (Typ) | 700mA | 85°C | 11.2V | 115 lm/W | 1.5A | 80 | - | - | 19.89mm Dia | - | - | Domed |
|

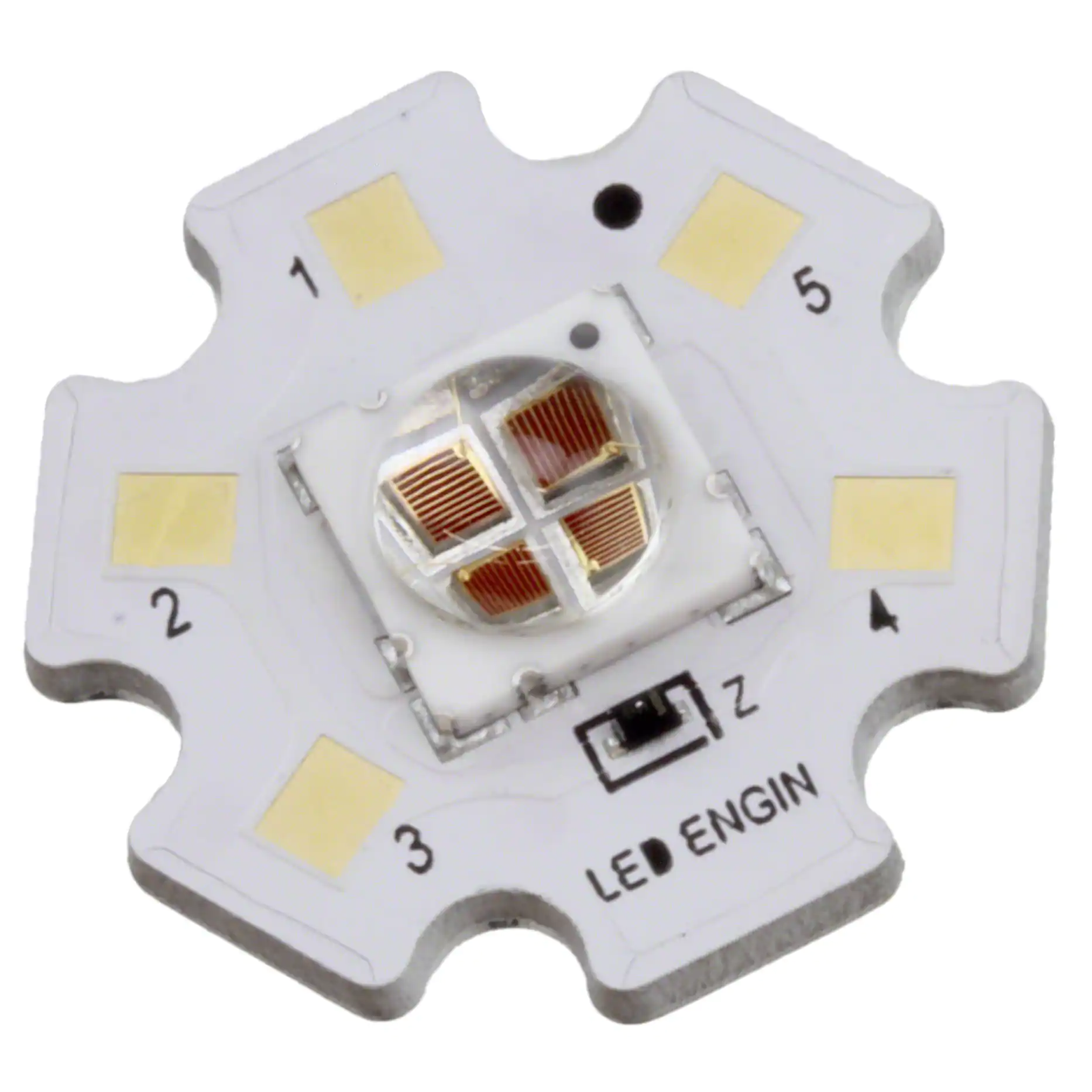

LZ4-40R108-0000LED MOD LZ4 RED STARBOARD |
105 |
|
برگه مشخصات |
LZ4 | Tray | Active | LED Module | Red | - | 623nm | Starboard | 456lm (356lm ~ 556lm) | 700mA | 25°C | 10V | 65 lm/W | 1A | - | 100° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|

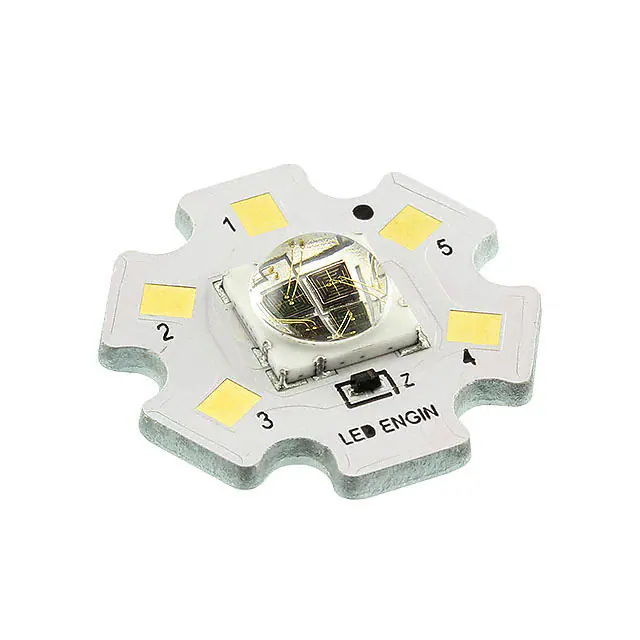

LZ4-40B208-0000LED MOD LZ4 BLUE STARBOARD |
116 |
|
برگه مشخصات |
LZ4 | Tray | Active | LED Module | Blue | - | 460nm | Starboard | 161lm (93lm ~ 228lm) | 700mA | 25°C | 12.8V | 18 lm/W | 1A | - | 100° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
BXRC-40E4000-C-83-SELED COB VERO SE 18C WH RND 4000K |
145 |
|
برگه مشخصات |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 6503lm (Typ) | 1.05A | 25°C | 33.9V | 183 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
BXRV-TR-2765G-1KA0-A-23LED COB VESTA WHITE SQUARE 4600K |
189 |
|
برگه مشخصات |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 7043lm (Typ) | 1.05A | 25°C | 52.4V | 128 lm/W | 1.8A | 92 | 130° | - | 32.05mm L x 32.05mm W | 1.65mm | 29.60mm Dia | Flat |
|
|
BXRC-30G4000-C-83-SELED COB VERO SE18C WH RND 3000K |
256 |
|
برگه مشخصات |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5128lm (Typ) | 1.05A | 25°C | 33.9V | 144 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
XHP50A-00-0000-0D0BJ450E-SB01LED MOD XLAMP WH STARBOARD 5000K |
258 |
|
برگه مشخصات |
Xlamp® XHP50 | Tray | Not For New Designs | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Starboard | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 12V | 72 lm/W | 1.5A | 70 | 120° | - | 19.89mm Dia | - | - | Domed |
|
CXM-22-40-80-54-AC40-F5-3LED COB CXM-22 GEN4 WHT SQ 4000K |
280 |
|
برگه مشخصات |
CXM-22 Gen4 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9155lm (Typ) | 1.05A | 85°C | 50V | 174 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
SI-B8V521B20WWLED MOD F-SER GEN3 LNR 3000K |
380 |
|
برگه مشخصات |
F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 8670lm (Typ) | 1.12A | 65°C | 46V | 168 lm/W | - | 80 | - | With Connector | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
|
BXRC-27G4000-C-83-SELED COB VERO SE 18C WH RND 2700K |
167 |
|
برگه مشخصات |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4905lm (Typ) | 1.05A | 25°C | 33.9V | 138 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
BXRV-TR-2765S-20A0-A-23-S2LED COB VESTA WHITE ROUND 6500K |
117 |
|
برگه مشخصات |
Vesta™ SE Tunable White Gen 2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Round | 1550lm Warm White, 1801lm Cool White | 500mA | 25°C | 35.2V Warm White, 36.3V Cool White | 98 lm/W Warm White, 110 lm/W Cool White | 700mA | 95 | 130° | With Holder | 36.20mm Dia | 3.80mm | 14.30mm Dia | Flat |
|
S4SM-1566509736-0C500H3S-00001LED COB SUNLIKE COOL WH SQ 5000K |
427 |
|
برگه مشخصات |
SunLike | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2655lm (Typ) | 720mA | 85°C | 35.2V | 105 lm/W | 1.44A | 97 (Typ) | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
