COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRV-DR-1830G-4000-A-13-S2LED COB VESTA SE WM WH RND 1800K |
183 |
|
برگه مشخصات |
Vesta™ SE | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 4887lm (Typ) | 1.29A | 25°C | 33.8V | 112 lm/W | 1.4A | 90 | 110° | With Holder | 45.00mm Dia | 3.80mm | 18.30mm Dia | Flat |
|
BXEB-TL-L0560Z-2750S2000-A-C3LED MOD VESTA WHT LNR STRP 5000K |
160 |
|
برگه مشخصات |
Vesta™ Tunable Linear Gen 3 | Bulk | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2960lm Warm White, 3360lm Cool White | 1.2A | 25°C | 20.3V | 122 lm/W Warm White, 138 lm/W Cool White | 2A | 98 | 120° | - | 560.00mm L x 31.00mm W | 5.60mm | - | Flat |
|
BXRC-35E10K0-B-73-SELED COB VERO SE 29 WHT RND 3500K |
225 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 15350lm (Typ) | 1.8A | 25°C | 52V | 164 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-27E10K0-D-73-SELED COB VERO SE 29 WHT RND 2700K |
128 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12081lm (Typ) | 2.1A | 25°C | 37.6V | 153 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
E1300.jpg)
|
L2C5-30801205E1300LED COB LUXEON WHT RECT 3000K |
135 |
|
برگه مشخصات |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2905lm (Typ) | 600mA | 85°C | 35V | 138 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|

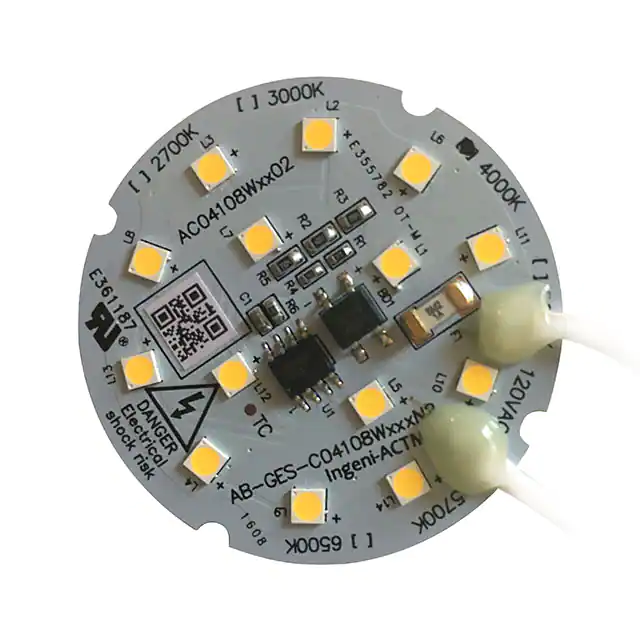

AB-GES-C04108W30BN2LED ENG AB-GES WH ROUND 3000K |
182 |
|
برگه مشخصات |
AB-GES | Bag | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 830lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 45.00mm Dia | - | - | Flat |
|
CXA3050-0000-000N0HX250FLED COB XLAMP COOL WHT SQU 5000K |
105 |
|
برگه مشخصات |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.4A | 85°C | 37V | 112 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
BXRC-40G10K0-D-73LED COB VERO 29 WHT RND 4000K |
149 |
|
برگه مشخصات |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 11223lm (Typ) | 2.1A | 25°C | 37.6V | 142 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
CXM-32-50-80-54-AC30-F4-3LED COB CXM-32 GEN3 WHT SQ 5000K |
462 |
|
- |
CXM-32 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 18170lm (Typ) | 2.2A | 85°C | 51V | 162 lm/W | 4.5A | 80 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
LST1-01G08-UV01-01LED MOD LST1 ULTRAVIOL STARBRD |
104 |
|
برگه مشخصات |
LST1 | Tray | Active | LED Module | UltraViolet | - | 275nm ~ 280nm | Starboard | 30mW (Typ) | 350mA | 25°C | 6.5V | - | 800mA | - | 130° | - | 19.89mm Dia | 2.90mm | - | Flat |
|

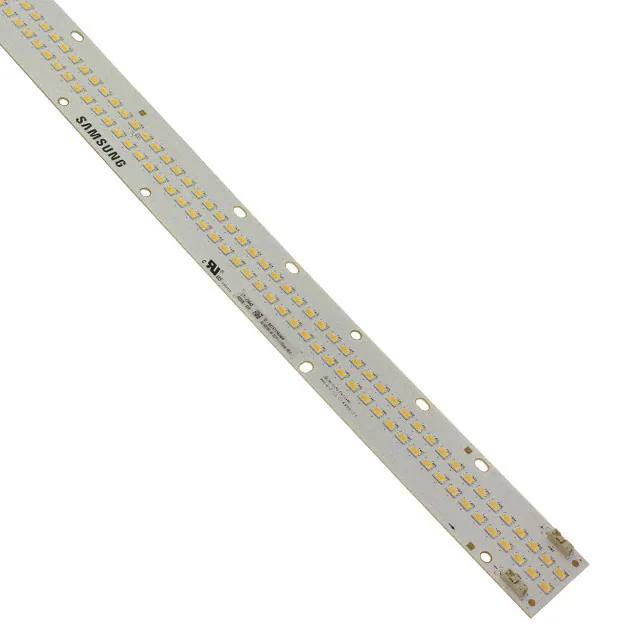

SI-B8V521560WWLED MOD F-SER GEN3 LNR 3000K |
428 |
|
برگه مشخصات |
F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 8670lm (Typ) | 1.12A | 65°C | 46V | 168 lm/W | - | 80 | - | With Connector | 559.70mm L x 39.80mm W | 5.20mm | - | Flat |
|
|
BXEB-TL-L1120Z-2750S4000-A-C3LED MOD VESTA WHT LNR STRP 5000K |
113 |
|
برگه مشخصات |
Vesta™ Tunable Linear Gen 3 | Bulk | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5920lm Warm White, 6720lm Cool White | 1.2A | 25°C | 40.6V | 122 lm/W Warm White, 138 lm/W Cool White | 2A | 98 | 120° | - | 1120.00mm L x 31.00mm W | 5.60mm | - | Flat |
|
|
LZC-B3MD07-0000_G2LED MOD LZC RGBW STARBRD 5500K |
461 |
|
برگه مشخصات |
LED ENGIN LuxiGen® | Tray | Active | LED Module | Red, Green, Blue, White (RGBW) | - | - | Starboard | 340lm Red, 625lm Green, 89lm Blue, 635lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | - | - | - | - | - | - | - | 27.60mm Dia | 6.70mm | 8.20mm Dia | Domed |
|
|
NELM-30/40/00-40-90-DLED MOD NEU WHITE ROUND 4000K |
26 |
|
برگه مشخصات |
- | Bulk | Active | LED Module | White, Neutral | 4000K | - | Round, Plug and Play | 3012lm (Typ), 4008lm (Typ) | - | 55°C | 33.7V, 34.6V | - | 750mA, 1.1A | 90 | 102° | - | 88.20mm Dia | 60.30mm | 61.30mm Dia | Domed |
|
|
WLF12PXRGB300SQPFLEXIBLE STRIP LIGHT, 300MM |
43 |
|
برگه مشخصات |
WLF12 | Box | Active | LED Module | Red, Green, Blue (RGB) | - | 618nm Red, 520nm Green, 464nm Blue | Linear Light Strip, Flexible | 30lm Red, 55lm Green, 10lm Blue | - | 25°C | 12V Red, 12V Green, 12V Blue | - | 250mA Red, 250mA Green, 250mA Blue | - | 120° | Dimming, IP66, IP67, IP69K, With Connector | 300.00mm L | 6.40mm | - | Flat |
|
CBT-90-W65S-C11-NA102LED MOD CBT-90 CL WH RECT 6500K |
58 |
|
برگه مشخصات |
CBT-90 | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
PT-39-G-L51-CD100-R2LED MOD PT-39 GREEN RECT |
58 |
|
برگه مشخصات |
PT-39 | Tray | Active | LED Module | Green | - | 520nm | Rectangle | 2700mW (2600mW ~ 2800mW) | - | 40°C | 5V | - | 12A | - | - | - | 21.85mm L x 15.00mm W | 3.70mm | - | Flat |
|

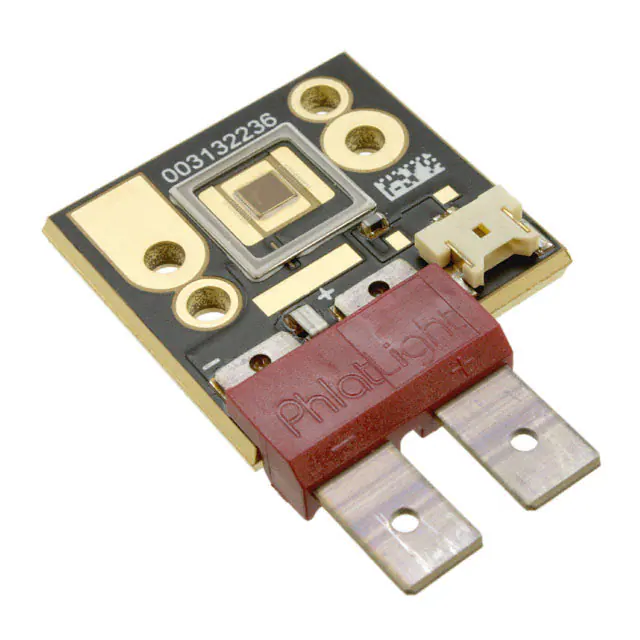

CBT-90-RX-L15-BN101LED MOD CBT-90 RED RECT |
39 |
|
برگه مشخصات |
CBT-90 | Tray | Active | LED Module | Red | - | 621nm (615nm ~ 627nm) | Rectangle | 1060lm (970lm ~ 1150lm) | 13.5A | 40°C | 2.8V | 28 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

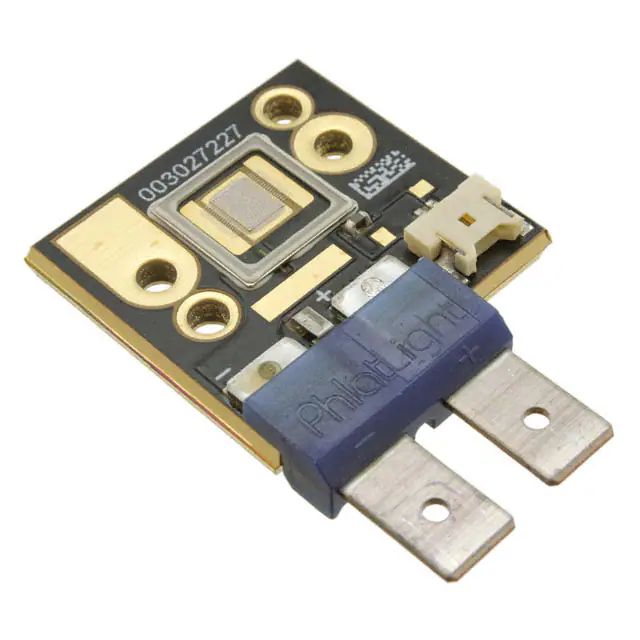

PT-121-B-L11-EPELED MOD PT-121 BLUE RECT |
35 |
|
برگه مشخصات |
PT-121 | Tray | Active | LED Module | Blue | - | 462nm | Rectangle | 980lm (815lm ~ 1145lm) | 18A | 40°C | 3.9V | 14 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat |
|
PT-121-G-L11-MPLLED MOD PT-121 GREEN RECT |
34 |
|
برگه مشخصات |
PT-121 | Tray | Active | LED Module | Green | - | 525nm | Rectangle | 5300lm (4400lm ~ 6200lm) | 18A | 40°C | 5.2V | 57 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat |
