COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZC-B3MD07-0W60LED MOD LZC RGBW STARBRD 6000K |
0 |
|
برگه مشخصات |
LZC | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6000K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 240lm Red, 318lm Green, 89lm Blue, 525lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 7V Red, 10.5V Green, 10.5V Blue, 10.5V White | 49 lm/W Red, 43 lm/W Green, 12 lm/W Blue, 71 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 | 95° | - | 28.00mm Dia | 6.80mm | 8.20mm Dia | Domed |
|
|
LZC-B3MD07-0W70LED MOD LZC RGBW STARBRD 7000K |
0 |
|
برگه مشخصات |
LZC | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 7000K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 240lm Red, 318lm Green, 89lm Blue, 525lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 7V Red, 10.5V Green, 10.5V Blue, 10.5V White | 49 lm/W Red, 43 lm/W Green, 12 lm/W Blue, 71 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 | 95° | - | 28.00mm Dia | 6.80mm | 8.20mm Dia | Domed |
|
LZP-D0CW0R-0055LED MOD LZP WHT STARBOARD 5500K |
0 |
|
برگه مشخصات |
LZP | Tray | Obsolete | LED Module | White, Cool | 5500K | - | Starboard | 4400lm (3800lm ~ 5100lm) | 4 x 700mA | 25°C | 18.9V | 83 lm/W | 1A | 75 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LZP-D0CW0R-0065LED MOD LZP WHT STARBOARD 6500K |
0 |
|
برگه مشخصات |
LZP | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 4400lm (3800lm ~ 5100lm) | 4 x 700mA | 25°C | 18.9V | 83 lm/W | 1A | 75 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LZ1-10B200-0000LED MOD LZ1 BLUE STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | Blue | - | 465nm | Starboard | 40lm (24lm ~ 60lm) | 1A | 25°C | 3.6V | 11 lm/W | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
|
LZ1-10CW00-0000LED MOD LZ1 WHT STARBOARD 6500K |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | White, Cool | 5000K ~ 6500K | - | Starboard | 227lm (182lm ~ 282lm) | 1A | 25°C | 3.6V | 63 lm/W | 1.2A | 75 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|

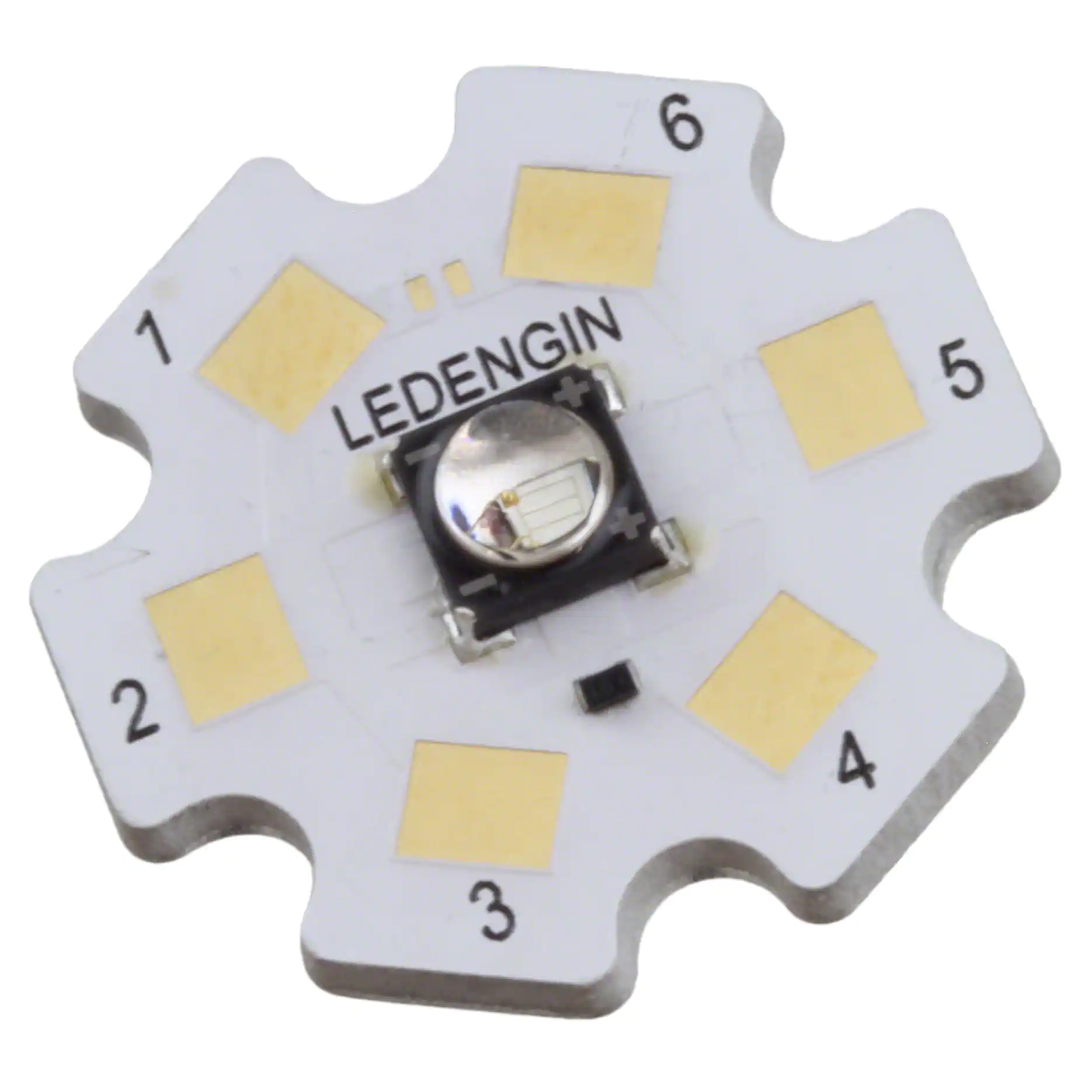

LZ1-10DB00-0000LED MOD LZ1 BLUE STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Discontinued | LED Module | Blue | - | 460nm | Starboard | - | 700mA | 25°C | 3.6V | - | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
LZ1-10G100-0000LED MOD LZ1 GREEN STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | Green | - | 525nm | Starboard | 200lm (145lm ~ 285lm) | 1A | 25°C | 3.7V | 53 lm/W | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
LZ1-10R100-0000LED MOD LZ1 RED STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | Red | - | 623nm | Starboard | 160lm (117lm ~ 228lm) | 1A | 25°C | 2.6V | 62 lm/W | 1.2A | - | 76° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
|
LZ1-10R200-0000LED MOD LZ1 RED STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | Red | - | 660nm | Starboard | - | 1A | 25°C | 2.6V | - | 1.2A | - | 90° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
|
LZ1-10R300-0000LED MOD LZ1 RED STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | Red | - | 740nm | Starboard | - | 1A | 25°C | 2.6V | - | 1.2A | - | 76° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
|
LZ4-20MD00-0000LED MOD LZ4 RGBW STARBRD 6500K |
0 |
|
برگه مشخصات |
LZ4 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 115lm Red, 160lm Green, 30lm Blue, 190lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 2.2V Red, 3.35V Green, 3.2V Blue, 3.2V White | 75 lm/W Red, 68 lm/W Green, 13 lm/W Blue, 85 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 | 95° | - | 19.90mm Dia | 5.60mm | 5.60mm Dia | Domed |
|

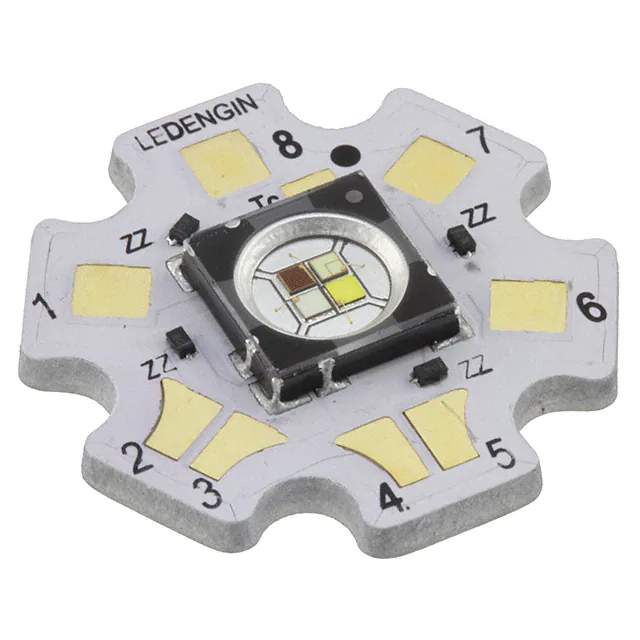

LZ4-24MDCA-0000LED MOD LUXIGEN STARBRD 6500K |
0 |
|
برگه مشخصات |
LuxiGen™ LZ4 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 623nm Red, 523nm Green, 460nm Blue | Starboard | 65lm (Typ) Red, 125lm (Typ) Green, 30lm (Typ) Blue, 180lm (Typ) White | 700mA | 25°C | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White | 37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White | 1.5A | - | 110° | - | 19.90mm Dia | 3.20mm | - | Flat |
|
LZ4-40R208-0000LED MOD LZ4 RED STARBOARD |
0 |
|
برگه مشخصات |
LZ4 | Tray | Obsolete | LED Module | Red | - | 660nm | Starboard | 2.5W (2W ~ 3W) | 700mA | 25°C | 10.5V | - | 1A | - | 95° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
LZ4-64MDC9-0000LED MOD LZ4 RGBW STARBRD 6500K |
0 |
|
برگه مشخصات |
LZ4 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 623nm Red, 523nm Green, 460nm Blue | Starboard | 65lm (Typ) Red, 125lm (Typ) Green, 30lm (Typ) Blue, 180lm (Typ) White | 700mA | 25°C | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White | 37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White | 1A | - | 110° | - | 19.90mm Dia | 2.80mm | - | - |
|
LZC-C0CW0R-0065LED MOD LZC WHT STARBOARD 6500K |
0 |
|
برگه مشخصات |
LZC | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 2350lm (1908lm ~ 3200lm) | 2 x 700mA | 25°C | 18.9V | 89 lm/W | 1A | 70 (Typ) | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
|
L235-2780AHLCBAAC0LED MOD LUXEON WH LNR STR 2700K |
0 |
|
برگه مشخصات |
LUXEON XF-3535L | Strip | Obsolete | LED Module | White, Warm | 2700K | - | Linear Light Strip, Flexible | 1476lm (Typ) | 600mA | 25°C | 18V | 137 lm/W | 1.2A | 80 | - | - | 300.00mm L x 10.00mm W (100.00mm L per Segment) | 1.23mm | - | Flat |
|
|
L235-5080AHLCBBAC0LED MOD LUXEON WH LNR STR 5000K |
0 |
|
برگه مشخصات |
LUXEON XF-3535L | Strip | Obsolete | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | 1692lm (Typ) | 600mA | 25°C | 18V | 157 lm/W | 1.2A | 80 | - | - | 300.00mm L x 10.00mm W (100.00mm L per Segment) | 1.23mm | - | Flat |
|
|
L235-5080AULM5JAI0LED MOD LUXEON WH LNR STR 5000K |
0 |
|
برگه مشخصات |
LUXEON XF-3535L | Strip | Obsolete | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | 5076lm (Typ) | 900mA | 25°C | 36V | 157 lm/W | 1.2A | 80 | - | - | 1150.00mm L x 5.25mm W | 1.23mm | - | Flat |
|
|
L235-5770AULM5JAI0LED MOD LUXEON WH LNR STR 5700K |
0 |
|
برگه مشخصات |
LUXEON XF-3535L | Strip | Obsolete | LED Module | White, Cool | 5700K | - | Linear Light Strip, Flexible | 5076lm (Typ) | 900mA | 25°C | 36V | 157 lm/W | 1.2A | 70 | - | - | 1150.00mm L x 5.25mm W | 1.23mm | - | Flat |
