| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L202-3080033C30000LED MOD LUXEON WM WH RECT 3000K |
0 |
|
برگه مشخصات |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | 1362lm (1320lm ~ 1403lm) | 300mA | 25°C | 33V | 142 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|

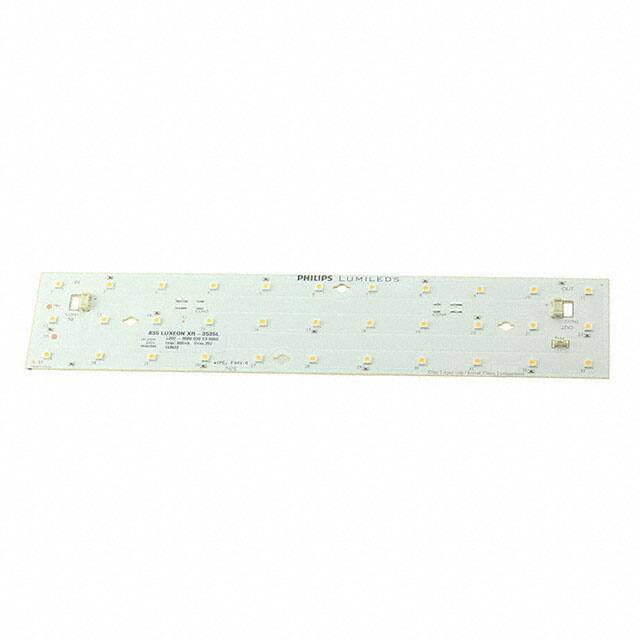

L202-3580033C30000LED MOD LUXEON WM WH RECT 3500K |
0 |
|
برگه مشخصات |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Warm | 3500K 5-Step MacAdam Ellipse | - | Rectangle | 1428lm (1386lm ~ 1469lm) | 300mA | 25°C | 33V | 148 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|
L2C1-2780120206A00LED COB LUXEON WM WHT RECT 2700K |
0 |
|
برگه مشخصات |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 725lm (Typ) | 200mA | 85°C | 35.5V | 102 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|
|
L2C1-3090120206A00LED COB LUXEON WHT RECT 3000K |
0 |
|
برگه مشخصات |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 625lm (Typ) | 200mA | 85°C | 35.5V | 88 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|
|
L2C1-3590120206A00LED COB LUXEON WM WHT RECT 3500K |
0 |
|
برگه مشخصات |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 650lm (Typ) | 200mA | 85°C | 35.5V | 92 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|
|
L2C1-4090120206A00LED COB LUXEON WHT RECT 4000K |
0 |
|
برگه مشخصات |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 700lm (Typ) | 200mA | 85°C | 35.5V | 99 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|

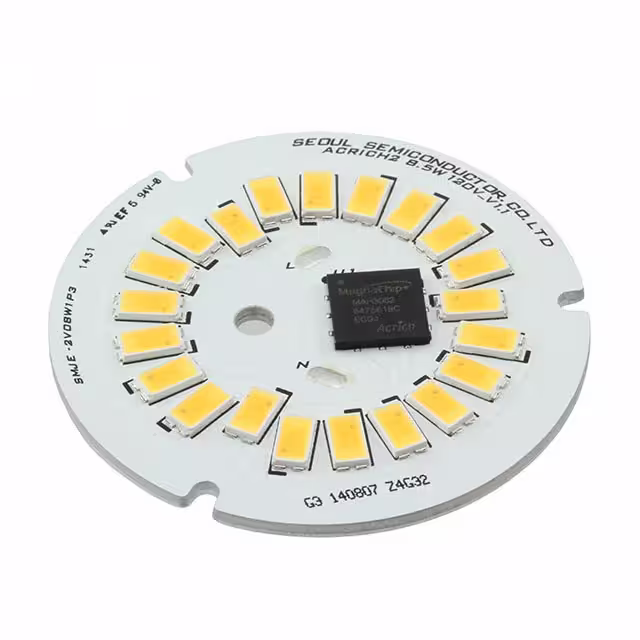

SMJE-2V08W1P3-8B-GALED ENG ACRICH2 WM WH RND 3000K |
0 |
|
برگه مشخصات |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 800lm (Typ) | - | 25°C | 120VAC | - | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|
SI-B8V341550WWLED MOD LT-F552A LNR STRP 3000K |
0 |
|
- |
LT-F552A | Tray | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 4310lm (Typ) | 1.35A | 60°C | 24.7V | 129 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

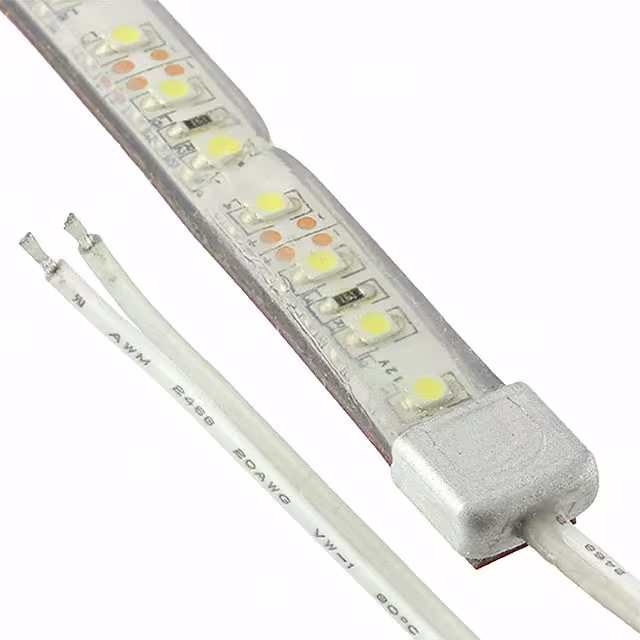

ZFS-85020WR-CWLED ENG CL WHT LNR STRP 6000K 5M |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 1900lm (Typ) | 4A | 25°C | 12V | 40 lm/W | - | - | 120° | - | 5000.00mm L x 13.00mm W | 5.60mm | - | Flat |
|
LZ1-10A102-0000LED MOD LZ1 AMBER STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | Amber | - | 590nm | Starboard | 84lm (75lm ~ 93lm) | 1A | 25°C | 2.6V | 32 lm/W | 1.2A | - | 76° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
LZ1-10CW02-0065LED MOD LZ1 WHT STARBOARD 6500K |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 227lm (182lm ~ 285lm) | 1A | 25°C | 3.6V | 63 lm/W | 1.2A | 75 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
|
LZ1-10G102-0G23LED MOD LZ1 GREEN STARBOARD |
0 |
|
برگه مشخصات |
LZ1 | Tray | Obsolete | LED Module | Green | - | 525nm | Starboard | 164lm (145lm ~ 182lm) | 1A | 25°C | 4.5V | 36 lm/W | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
99013LED ENG WM WHT LNR STRP 3000K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Warm | 3000K | - | Linear Light Strip | 726lm (Typ) | 833mA | 25°C | 12VAC | 73 lm/W | 1.3A | - | 120° | With Connector | 254.00mm L x 10.00mm W | 5.50mm | - | Flat |
|
|
99048LED ENG WH LNR LGT STRIP 4000K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Neutral | 4000K | - | Linear Light Strip | 2427lm (Typ) | 240mA | 25°C | 120VAC | 84 lm/W | 290mA | - | 120° | With Connector | 561.40mm L x 28.60mm W | 6.00mm | - | Flat |
|

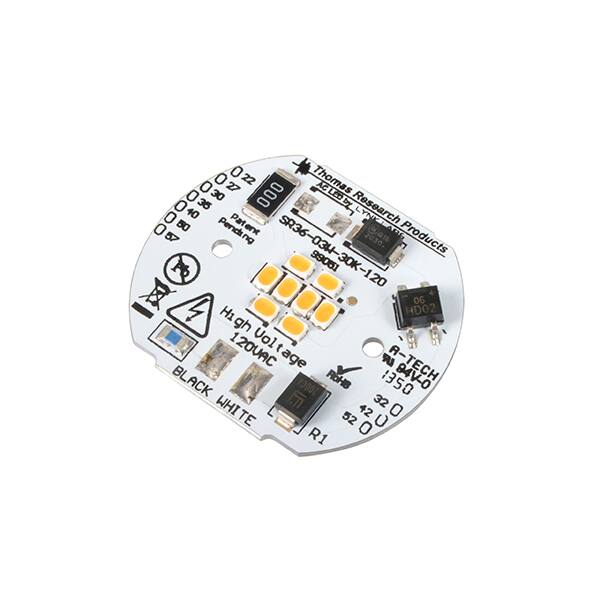

99051LED ENG WARM WHT ROUND 3000K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 214lm (Typ) | 25mA | 25°C | 120VAC | 71 lm/W | 30mA | - | 120° | - | 18.00mm Dia | 3.70mm | - | Flat |
|
99063LED ENG WARM WHT ROUND 2500K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Warm | 2200K ~ 2500K | - | Round | 706lm (Typ) | 82mA | 25°C | 120VAC | 72 lm/W | 90mA | - | 120° | Dimming - Warm | 46.00mm Dia | 3.50mm | - | Flat |
|
|
99064LED ENG WARM WHT ROUND 3000K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Warm | 2200K ~ 3000K | - | Round | 710lm (Typ) | 82mA | 25°C | 120VAC | 72 lm/W | 90mA | - | 120° | Dimming - Warm | 46.00mm Dia | 3.50mm | - | Flat |
|
99072LED ENG WARM WHT ROUND 3000K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 1290lm (Typ) | 152mA | 25°C | 120VAC | 71 lm/W | 170mA | - | 120° | - | 80.00mm Dia | 6.00mm | - | Flat |
|

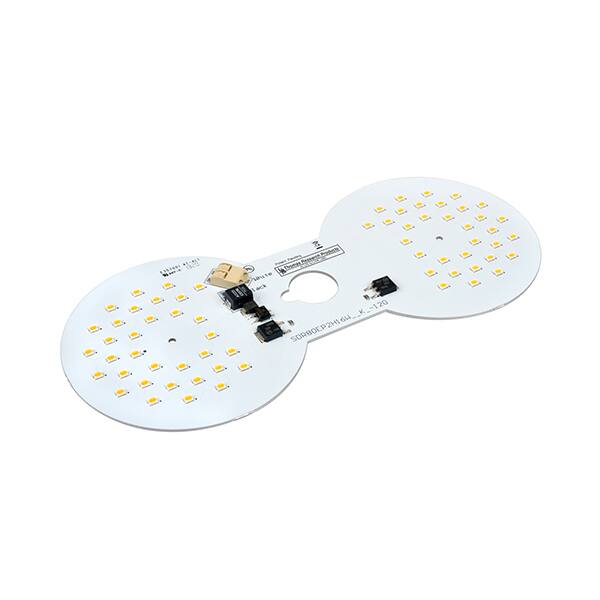

99078LED ENG NEUT WHT ROUND 4000K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Neutral | 4000K | - | Round, Dual | 1490lm (Typ) | 176mA | 25°C | 120VAC | 71 lm/W | 190mA | - | 120° | - | - | 5.70mm | - | Flat |
|
99084LED ENG WARM WHT ROUND 3000K |
0 |
|
- |
- | Bulk | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 445lm (Typ) | 50mA | 25°C | 120VAC | 74 lm/W | 60mA | - | 120° | Dimming - Warm | 43.00mm Dia | 3.50mm | - | Flat |
