COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-50C3001-D-24LED COB V15 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V15 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3654lm (Typ) | 700mA | 25°C | 36V | 145 lm/W | 1.4A | 70 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 15.20mm Dia | Flat |
|
BXRE-50C4000-F-24LED COB V18 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V18 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 4603lm (Typ) | 1.05A | 25°C | 29.5V | 149 lm/W | 2.1A | 70 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 18.60mm Dia | Flat |
|
BXRE-50E0400-A-24LED COB V6 ARR COOL WHT SQ 5000K |
0 |
|
برگه مشخصات |
V6 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 416lm (Typ) | 175mA | 25°C | 18V | 132 lm/W | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 6.10mm Dia | Flat |
|
|
BXRE-50E0400-B-24LED COB V6 ARR COOL WHT SQ 5000K |
0 |
|
برگه مشخصات |
V6 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 416lm (Typ) | 350mA | 25°C | 9V | 132 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 6.10mm Dia | Flat |
|
BXRE-50E0800-A-24LED COB V8 ARR COOL WHT SQ 5000K |
0 |
|
- |
V8 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 751lm (Typ) | 175mA | 85°C | 34.6V | 124 lm/W | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRE-50E0800-B-24LED COB V8 ARR COOL WHT SQ 5000K |
0 |
|
- |
V8 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 751lm (Typ) | 350mA | 85°C | 17.4V | 123 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
BXRE-50E1000-B-24LED COB V10 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V10 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1263lm (Typ) | 350mA | 25°C | 26.5V | 136 lm/W | 700mA | 80 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia | Flat |
|
BXRE-50E2000-C-24LED COB V13 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V13 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2252lm (Typ) | 500mA | 25°C | 32.3V | 139 lm/W | 1.05A | 80 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 13.40mm Dia | Flat |
|
|
BXRE-50E3001-D-24LED COB V15 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V15 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3428lm (Typ) | 700mA | 25°C | 36V | 136 lm/W | 1.4A | 80 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 15.20mm Dia | Flat |
|
|
BXRE-50E4000-F-24LED COB V18 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V18 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 4305lm (Typ) | 1.05A | 25°C | 29.5V | 139 lm/W | 2.1A | 80 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 18.60mm Dia | Flat |
|
|
BXRE-50G2000-C-24LED COB V13 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V13 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2015lm (Typ) | 500mA | 25°C | 32.3V | 125 lm/W | 1.05A | 90 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 13.40mm Dia | Flat |
|
|
BXRE-50G3001-D-24LED COB V15 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V15 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2898lm (Typ) | 700mA | 25°C | 36V | 115 lm/W | 1.4A | 90 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 15.20mm Dia | Flat |
|
|
BXRE-50G4000-F-24LED COB V18 ARRAY WHT SQU 5000K |
0 |
|
برگه مشخصات |
V18 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3885lm (Typ) | 1.05A | 25°C | 29.5V | 125 lm/W | 2.1A | 90 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 18.60mm Dia | Flat |
|

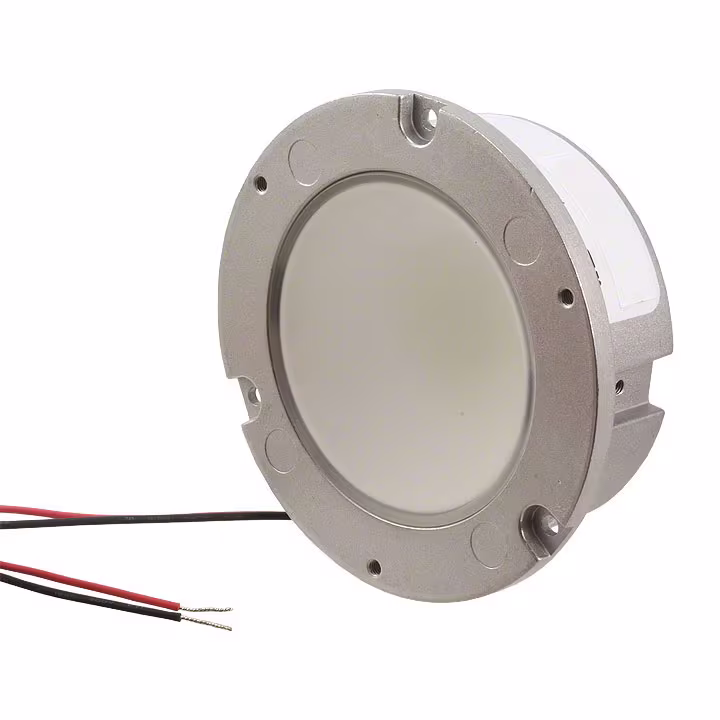

LMH02B-1250-27G9-00000TWLED MOD LMH2 WM WH ROUND 2700K |
0 |
|
برگه مشخصات |
LMH2 | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
|
|
LMH02B-1250-30G9-00000TWLED MOD LMH2 WM WH ROUND 3000K |
0 |
|
برگه مشخصات |
LMH2 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
|
|
LMH02B-1250-35G9-00000TWLED MOD LMH2 WM WH ROUND 3500K |
0 |
|
برگه مشخصات |
LMH2 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
|
|
LMH02B-1250-40G9-00000TWLED MOD LMH2 WHT ROUND 4000K |
0 |
|
برگه مشخصات |
LMH2 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
|
|
LMH02B-2000-30G9-00000TWLED MOD LMH2 WM WH ROUND 3000K |
0 |
|
برگه مشخصات |
LMH2 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | 2000lm (Typ) | 450mA | 55°C | 35V | 127 lm/W | 940mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
|
|
LMH02B-2000-35G9-00000TWLED MOD LMH2 WM WH ROUND 3500K |
0 |
|
برگه مشخصات |
LMH2 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Round | 2000lm (Typ) | 450mA | 55°C | 35V | 127 lm/W | 940mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
|
|
LMH02B-2000-40G9-00000TWLED MOD LMH2 WHT ROUND 4000K |
0 |
|
برگه مشخصات |
LMH2 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Round | 2000lm (Typ) | 450mA | 55°C | 35V | 127 lm/W | 940mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
