COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GW MAFJB1.CM-RUSS-40S3LED COB SOLERIQ P9 WHT SQ 4000K |
0 |
|
برگه مشخصات |
SOLERIQ® P9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2020lm (1640lm ~ 2400lm) | 700mA | 85°C | 29V | 100 lm/W | 1.4A | 90 | 120° | - | 15.00mm L x 15.00mm W | 1.46mm | 9.00mm Dia | Flat |
|
GW KAHLB1.EM-TSTT-27S3-T02LED COB SOLERIQ WHT SQ 2700K |
0 |
|
- |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 3890lm (3590lm ~ 4190lm) | 700mA | 85°C | 46.5V | 120 lm/W | 1A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHLB1.EM-TSTT-30S3-T02LED COB SOLERIQ WHT SQ 3000K |
0 |
|
- |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3890lm (3590lm ~ 4190lm) | 700mA | 85°C | 46.5V | 120 lm/W | 1A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.EM-UQUR-40S3-T02LED COB SOLERIQ WHT SQ 4000K |
0 |
|
برگه مشخصات |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5235lm (4840lm ~ 5630lm) | 1.05A | 85°C | 44V | 113 lm/W | 1.4A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHJB1.EM-STSU-27S3-T02LED COB SOLERIQ WHT SQ 2700K |
0 |
|
برگه مشخصات |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 2600lm (2400lm ~ 2800lm) | 500mA | 85°C | 48V | 108 lm/W | 700mA | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHJB1.EM-STSU-30S3-T02LED COB SOLERIQ WHT SQ 3000K |
0 |
|
برگه مشخصات |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 2600lm (2400lm ~ 2800lm) | 500mA | 85°C | 48V | 108 lm/W | 700mA | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHLB1.EM-TRTS-40S3-T02LED COB SOLERIQ WHT SQ 4000K |
0 |
|
- |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3600lm (3300lm ~ 3900lm) | 700mA | 85°C | 46.5V | 111 lm/W | 1A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
BXRC-17E4000-F-04LED COB DECOR WM WH ROUND 1750K |
0 |
|
برگه مشخصات |
Décor Food Meat & Deli Vero 18 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 1892lm (Typ) | 1.05A | 85°C | 28.8V | 63 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-25E4000-F-04LED COB DECOR WM WH ROUND 2500K |
0 |
|
برگه مشخصات |
Décor Food Bread & Bakery Vero 18 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2500K 4-Step MacAdam Ellipse | - | Round | 2340lm (Typ) | 1.05A | 85°C | 27.9V | 80 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
BXRC-27E1000-B-02LED COB VERO WHT STARBRD 2700K |
0 |
|
برگه مشخصات |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Starboard | 1080lm (Typ) | 350mA | 25°C | 26.7V | 116 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27E4000-F-02LED COB VERO 18 ARRAY RND 2700K |
0 |
|
برگه مشخصات |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 3650lm (Typ) | 1.05A | 25°C | 29.5V | 118 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-27G1000-B-02LED COB VERO WHT STARBRD 2700K |
0 |
|
برگه مشخصات |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Starboard | 865lm (Typ) | 350mA | 25°C | 26.7V | 93 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-27G2000-C-Z2LED COB VERO 13 ARRAY RND 2700K |
0 |
|
- |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Round | 1310lm (Typ) | 500mA | 85°C | 30.8V | 85 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|

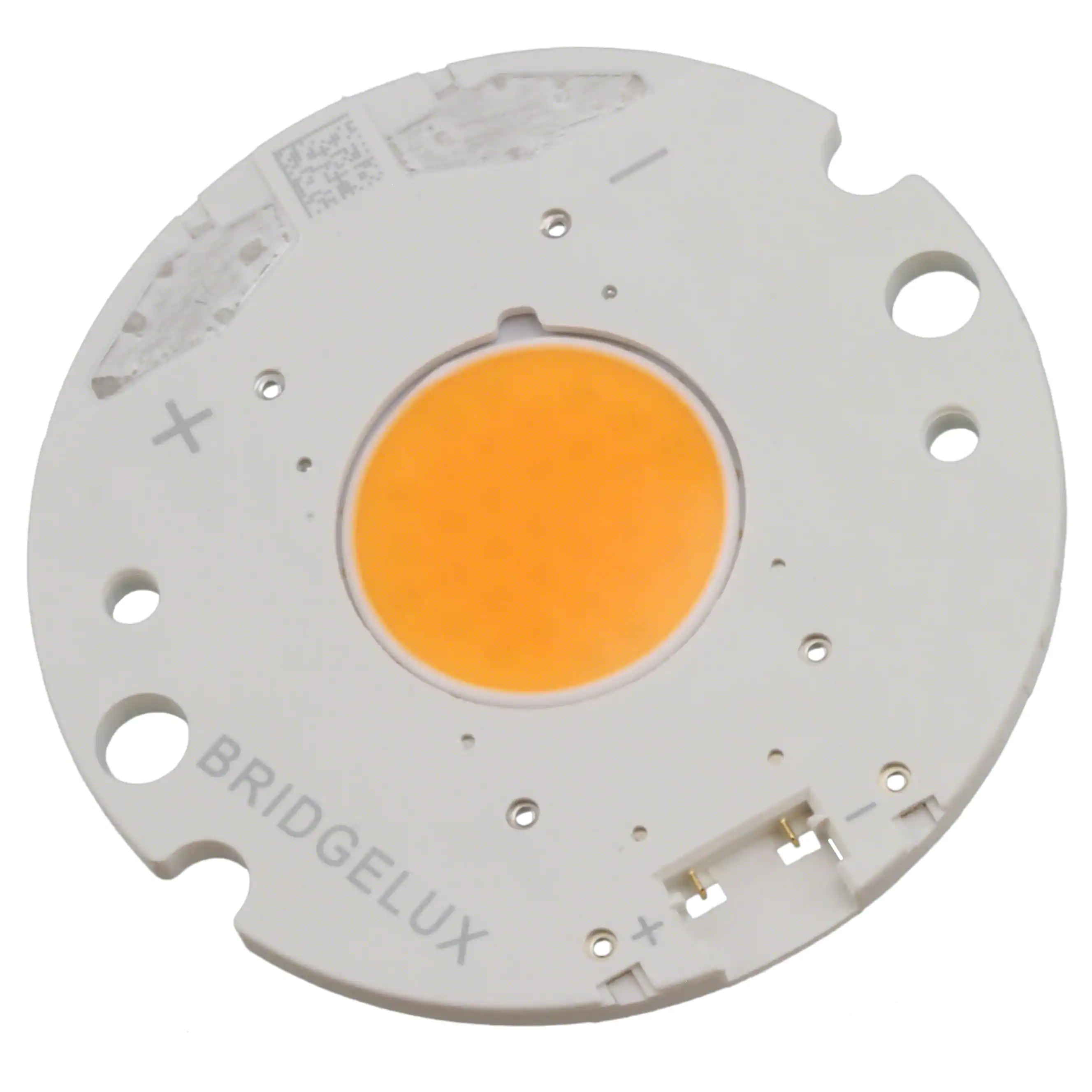

BXRC-27H2000-C-02LED COB DECOR WM WH ROUND 2700K |
0 |
|
برگه مشخصات |
Décor Series™ Ultra Vero® 13 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 992lm (Typ) | 500mA | 85°C | 31.5V | 63 lm/W | 1.05A | 97 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-30E1000-B-02LED COB VERO WHT STARBRD 3000K |
0 |
|
برگه مشخصات |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Starboard | 1120lm (Typ) | 350mA | 25°C | 26.7V | 120 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-30E10K0-L-02LED COB VERO 29 ARRAY RND 3000K |
0 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 9740lm (Typ) | 2.1A | 25°C | 38.6V | 120 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30E2000-C-02LED COB VERO 13 ARRAY RND 3000K |
0 |
|
برگه مشخصات |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 1950lm (Typ) | 500mA | 25°C | 32.5V | 120 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-30E2000-C-Z2LED COB VERO 13 ARRAY RND 3000K |
0 |
|
- |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Round | 1910lm (Typ) | 500mA | 85°C | 31.3V | 122 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-30E4000-F-02LED COB VERO 18 ARRAY RND 3000K |
0 |
|
برگه مشخصات |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 3780lm (Typ) | 1.05A | 25°C | 29.5V | 122 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-30E4000-F-Z2LED COB VERO 18 ARRAY RND 3000K |
0 |
|
برگه مشخصات |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Round | 3306lm (Typ) | 1.05A | 85°C | 28.8V | 109 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
