| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDW04F1C-J2/K1-BALED COB ZC25 COOL WHT SQU 5600K |
65 |
|
- |
ZC25 Z-Power COB | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 3650lm (Typ) | 700mA | 25°C | 37V | 141 lm/W | 960mA | 70 | 120° | - | 28.00mm L x 28.00mm W | 2.30mm | - | Flat |
E1300.jpg)
|
L2C5-35901204E1300LED COB LUXEON WM WHT RECT 3500K |
56 |
|
برگه مشخصات |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 1950lm (Typ) | 450mA | 85°C | 34.8V | 125 lm/W | 900mA | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
L2C5-27801204E1300LED COB LUXEON WM WHT RECT 2700K |
28 |
|
برگه مشخصات |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2152lm (Typ) | 450mA | 85°C | 34.8V | 137 lm/W | 900mA | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
BXRC-57E4001-C-84-SELED COB VERO SE 18C WH RND 5700K |
100 |
|
برگه مشخصات |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 6317lm (Typ) | 1.05A | 25°C | 33.9V | 177 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
SMJD-3622120B-XXN1 00E42C038ALLLED MOD HE COOL WHT RECT 5000K |
74 |
|
برگه مشخصات |
HE | Tray | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 4420lm (Typ) | 650mA | 25°C | 33.6V | 202 lm/W | 1.3A | 80 | - | - | 1120.00mm L x 20.00mm W | 5.50mm | - | Flat |
|
|
SI-B8T341B2001LED MOD LT-MB22C LNR STRP 4000K |
39 |
|
برگه مشخصات |
LT-MB22C | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 5310lm | 1.4A | - | 24V | 158 lm/W | 2.16A | 80 | 115° | - | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
|
CLU04Q-1812E1-303L7X4LED COB CLU04Q WM WHT SQ 3000K |
30 |
|
برگه مشخصات |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 10007lm (Typ) | 1.08A | 85°C | 50.7V | 170 lm/W | 2.76A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1812E1-503L7X4LED COB CLU04Q COOL WHT SQ 5000K |
27 |
|
برگه مشخصات |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 10220lm (Typ) | 1.08A | 85°C | 50.7V | 174 lm/W | 2.76A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
L218-4090048C00000LED MOD LUXEON WH LNR STR 4000K |
60 |
|
برگه مشخصات |
LUXEON XR-3020 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1780lm (Typ) | 400mA | 45°C | 34.8V | 128 lm/W | 600mA | 90 | - | With Connector | 558.40mm L x 20.00mm W | 3.00mm | - | Flat |
|
|
CMU2258-0000-000P0H0A30HLED COB XLAMP WARM WHT SQU 3000K |
100 |
|
برگه مشخصات |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8651lm (Typ) | 1.08A | 85°C | 50.5V | 159 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
BXRC-50G4001-C-83LED COB VERO 18C WHT ROUND 5000K |
100 |
|
برگه مشخصات |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 5760lm (Typ) | 1.05A | 25°C | 33.9V | 162 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
L202-4080033C30000LED MOD LUXEON WHT RECT 4000K |
88 |
|
برگه مشخصات |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 1461lm (1419lm ~ 1502lm) | 300mA | 25°C | 33V | 152 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|

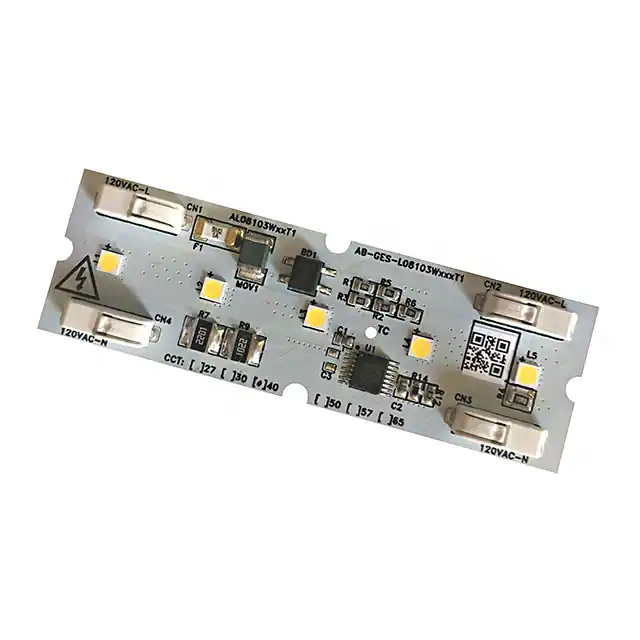

AB-GES-L08103W404T1LED ENG AB-GES WH LNR STRP 4000K |
96 |
|
برگه مشخصات |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 280lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 76.00mm L x 24.00mm W | - | - | Flat |
|
|
SI-B8R222B2HUSLED MOD H-SER WH LNR STRP 5000K |
29 |
|
برگه مشخصات |
H-Series Gen4 | Bulk | Obsolete | LED Module | White, Cool | 5000K | - | Linear Light Strip | 4170lm (Typ) | 960mA | 40°C | 22V | 197 lm/W | 3.7A | 80 | - | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|
|
SI-B8F601B20WWLinear IC's |
38 |
|
برگه مشخصات |
V Gen3 | Bulk | Last Time Buy | LED Module | White, Warm / White, Cool | 3500K, 5000K | - | Linear Light Strip | 10050lm (Typ) Warm White, 10140lm (Typ) Cool White | 1.3A Warm White, 1.3A Cool White | 50°C | 44.7V Warm White, 45.1V Cool White | 173 lm/W Warm White, 173 lm/W Cool White | 1.8A Warm White, 1.8A Cool White | 80 | 118° | - | 1120.00mm L x 39.80mm W | 4.30mm | - | Flat |
|
|
SI-B9U222B2HUSLED MOD H-SER WH LNR STRP 3500K |
18 |
|
برگه مشخصات |
H-Series Gen4 | Bulk | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 3350lm (Typ) | 960mA | 40°C | 22V | 159 lm/W | 3.7A | 90 | - | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|
L2C2-40901204E1300LED COB LUXEON WHT RECT 4000K |
79 |
|
برگه مشخصات |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1883lm (Typ) | 450mA | 85°C | 35V | 120 lm/W | 900mA | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
L2C5-50701204E1300LED COB LUXEON CL WHT RECT 5000K |
17 |
|
برگه مشخصات |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 2509lm (Typ) | 450mA | 85°C | 34.8V | 160 lm/W | 900mA | 70 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
CMU2258-0000-000P0U0A30HLED COB XLAMP WARM WHT SQU 3000K |
100 |
|
برگه مشخصات |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 7519lm (Typ) | 1.08A | 85°C | 50.5V | 138 lm/W | 2.88A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
AB-FA01206-01018-XC2LED MOD AB-FA RGB LINEAR STRIP |
20 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
