COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU733-1210E1-403H5X3LED COB CLU733 NEUT WHT SQ 4000K |
30 |
|
برگه مشخصات |
CLU733 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8402lm (Typ) | 1.75A | 85°C | 36.5V | 123 lm/W | 2.3A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 13.00mm Dia | Flat |
|
|
CLU733-1210E1-273H5X3LED COB CLU733 WARM WHT SQ 2700K |
30 |
|
برگه مشخصات |
CLU733 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7331lm (Typ) | 1.75A | 85°C | 36.5V | 107 lm/W | 2.3A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 13.00mm Dia | Flat |
|
|
CLU733-1210E1-303H5X3LED COB CLU733 WM WHT SQ 3000K |
30 |
|
برگه مشخصات |
CLU733 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7662lm (Typ) | 1.75A | 85°C | 36.5V | 112 lm/W | 2.3A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 13.00mm Dia | Flat |
|
|
CLU733-1210E1-353M2X2LED COB CLU733 WARM WHT SQ 3500K |
30 |
|
برگه مشخصات |
CLU733 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9075lm (Typ) | 1.75A | 85°C | 36.5V | 133 lm/W | 2.3A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 13.00mm Dia | Flat |
|
|
CLU733-1210E1-273M2X2LED COB CLU733 WARM WHT SQ 2700K |
30 |
|
برگه مشخصات |
CLU733 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8352lm (Typ) | 1.75A | 85°C | 36.5V | 122 lm/W | 2.3A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 13.00mm Dia | Flat |
|
AB-GES-L08106W404T1LED ENG AB-GES WH LNR STRP 4000K |
26 |
|
برگه مشخصات |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 630lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 76.00mm L x 24.00mm W | - | - | Flat |
|
|
CLU733-1210E1-503M2X2LED COB CLU733 COOL WHT SQ 5000K |
22 |
|
برگه مشخصات |
CLU733 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9310lm (Typ) | 1.75A | 85°C | 36.5V | 136 lm/W | 2.3A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 13.00mm Dia | Flat |
E1300.jpg)
|
L2C5-27901205E1300LED COB LUXEON WM WHT RECT 2700K |
31 |
|
برگه مشخصات |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2322lm (Typ) | 600mA | 85°C | 35V | 112 lm/W | 1.2A | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
L2C2-27801205E1300LED COB LUXEON WM WHT RECT 2700K |
91 |
|
برگه مشخصات |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2565lm (Typ) | 600mA | 85°C | 35V | 122 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
LZ4-20MA08-0000LED MOD LUXIGEN B/G/R/Y STARBRD |
43 |
|
برگه مشخصات |
LuxiGen™ | Tray | Obsolete | LED Module | Blue, Green, Red, Yellow | - | - | Starboard | 52lm Blue, 160lm Green, 133lm Red, 136lm Yellow | 700mA | - | - | - | - | - | - | - | 19.90mm Dia | 5.50mm | 6.40mm Dia | Domed |
|
L2C5-BD001208E1500LED COB LUXEON WM WHT RECT 2700K |
38 |
|
برگه مشخصات |
LUXEON CoB FreshFocus | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 3190lm (Typ) | 900mA | 85°C | 34.8V | 101 lm/W | 1.8A | - | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia | Flat |
|
AB-GES-L08103W504T1LED ENG AB-GES WH LNR STRP 5000K |
45 |
|
برگه مشخصات |
AB-GES | Tray | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 280lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 76.00mm L x 24.00mm W | - | - | Flat |
|
|
AB-GES-L08103W304T1LED ENG AB-GES WH LNR STRP 3000K |
15 |
|
برگه مشخصات |
AB-GES | Tray | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 260lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 76.00mm L x 24.00mm W | - | - | Flat |
|

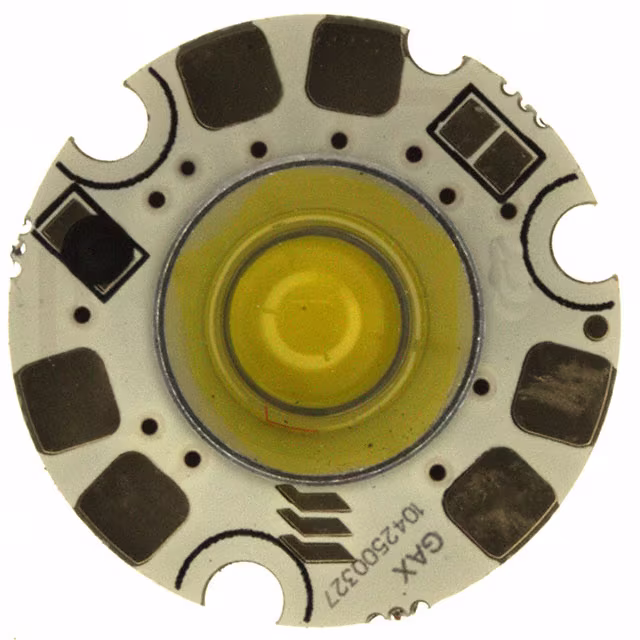

NT-45D1-0446LED MOD ATLAS WM WHT RND 3000K |
18 |
|
برگه مشخصات |
Atlas™ | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | 119lm (Typ) | 700mA | 25°C | 6.6V | 26 lm/W | 1.05A | 70 | 60° | - | 20.32mm Dia | 4.32mm | - | Domed |
|
|
11001-STAR-P1616Narrow Flood Oslon P1616 IR Star |
28 |
|
برگه مشخصات |
Oslon P1616 | Bulk | Active | - | Infrared | - | 940nm | Starboard | - | - | - | - | - | - | - | - | - | 12.00mm L x 7.50mm W | - | - | - |
|
|
CLU04Q-1812E1-272H5X3LED COB CLU04Q WARM WHT SQ 2700K |
27 |
|
برگه مشخصات |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 7647lm (Typ) | 1.08A | 85°C | 50.7V | 130 lm/W | 2.76A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
SDW85F1C-K1/K2-HALED COB ZC40 WARM WHT SQU 2700K |
52 |
|
- |
ZC40 Z-Power COB | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 4100lm (Typ) | 1A | 25°C | 37V | 111 lm/W | 1.28A | 80 | 120° | - | 28.00mm L x 28.00mm W | 2.30mm | - | Flat |
|
|
SDW85F1C-K1/K2-EALED COB ZC40 NEUT WHT SQU 4000K |
10 |
|
- |
ZC40 Z-Power COB | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4650lm (Typ) | 1A | 25°C | 37V | 126 lm/W | 1.28A | 80 | 120° | - | 28.00mm L x 28.00mm W | 2.30mm | - | Flat |
|
|
SI-B8R321560WWLinear IC's |
74 |
|
برگه مشخصات |
H inFlux | Bulk | Last Time Buy | LED Module | White, Cool | 5000K | - | Linear Light Strip | 6420lm (Typ) | 1.43A | 55°C | 22.2V | 202 lm/W | 2.2A | 80 | 118° | - | 560.00mm L x 24.00mm W | 5.50mm | - | Flat |
|
L2C2-50801205E1300LED COB LUXEON CL WHT RECT 5000K |
80 |
|
برگه مشخصات |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 2916lm (Typ) | 600mA | 85°C | 35V | 139 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
