COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

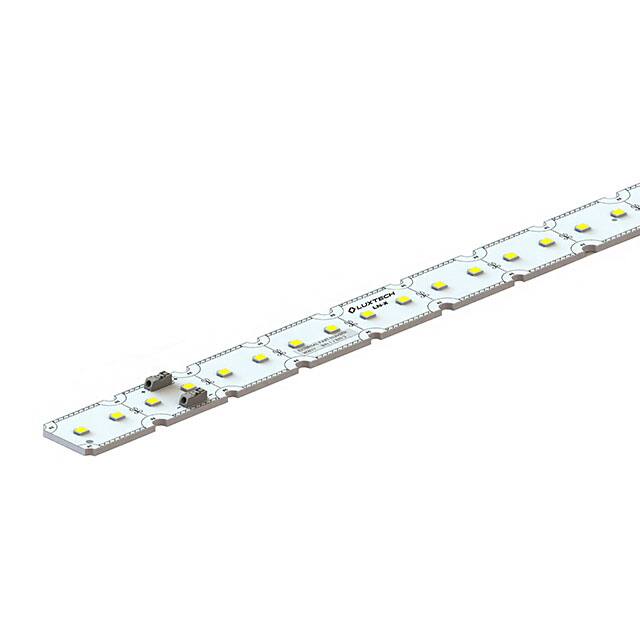

LN-X-30K-90LED MOD WM WHT LNR STRP 3000K |
0 |
|
- |
- | Box | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | - | - | 85°C | 35V | - | 1.1A | 90 | 120° | - | 558.80mm L x 19.99mm W | 5.59mm | - | Flat |
|
|
LN-X-35K-90LED MOD WM WHT LNR STRP 3500K |
0 |
|
- |
- | Box | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | - | - | 85°C | 35V | - | 1.1A | 90 | 120° | - | 558.80mm L x 19.99mm W | 5.59mm | - | Flat |
|
CMT1412-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
برگه مشخصات |
XLamp® CMT1412 | Tray | Discontinued | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1606lm (Typ) | 350mA | 85°C | 34.5V | 133 lm/W | 630mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
LE B P2W-GXHX-24-0-F00-T01LED MOD OSRAM OSTAR BLUE RECT |
0 |
|
برگه مشخصات |
OSRAM OSTAR® Projection Power | Tray | Obsolete | LED Module | Blue | - | 459nm (444nm ~ 465nm) | Rectangle | 25500mW (18000mW ~ 33000mW) | 24A | 25°C | 3.35V | - | 20A | - | 120° | With Connector | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
LE B P1W-EZFZ-24-0-F00-T01LED MOD OSRAM OSTAR BLUE RECT |
0 |
|
برگه مشخصات |
OSRAM OSTAR® Projection Power | Tray | Obsolete | LED Module | Blue | - | 459nm (444nm ~ 465nm) | Rectangle | 13850mW (9700mW ~ 18000mW) | 12A | 25°C | 3.35V | - | 10A | - | 120° | With Connector | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
BXRV-TR-2750G-20A0-A-25LED COB VESTA WHITE SQUARE 3850K |
0 |
|
برگه مشخصات |
Vesta™ | Tube | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 2220lm (Typ) | 500mA | 25°C | 35.9V | 123 lm/W | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.20mm Dia | Flat |
|
|
BXRV-TR-2750G-10A0-A-15LED COB VESTA WHITE SQUARE 3850K |
0 |
|
- |
Vesta™ | Tube | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 1153lm (Typ) | 500mA | 25°C | 18.1V | 126 lm/W | 1A | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.70mm | 9.40mm Dia | Flat |
|
|
BXRV-TR-2750G-10A0-A-25LED COB VESTA WHITE SQUARE 3850K |
0 |
|
- |
Vesta™ | Tube | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 1153lm (Typ) | 500mA | 25°C | 18V | 126 lm/W | 700mA | 92 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia | Flat |
|
|
BXRV-TR-2750G-20A0-A-15LED COB VESTA WHITE SQUARE 3850K |
0 |
|
- |
Vesta™ | Tube | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 2316lm (Typ) | 500mA | 25°C | 36.5V | 127 lm/W | 1A | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
GW T3LSF3.EM-LRLT-25S5-1-15-T02LED COB DURIS WH LNR STRP 2500K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2500K | - | Linear Light Strip | 147lm (130lm ~ 164lm) | 15mA | 25°C | 54V | 181 lm/W | 20mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF3.EM-LRLT-22S5-1-15-T02LED COB DURIS WH LNR STRP 2200K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2200K | - | Linear Light Strip | 147lm (130lm ~ 164lm) | 15mA | 25°C | 54V | 181 lm/W | 20mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF3.EM-LRLT-27S5-1-15-T02LED COB DURIS WH LNR STRP 2700K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Linear Light Strip | 147lm (130lm ~ 164lm) | 15mA | 25°C | 54V | 181 lm/W | 20mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF3.EM-LQLT-22S5-1-15-T02LED COB DURIS WH LNR STRP 2200K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2200K | - | Linear Light Strip | 143lm (121lm ~ 164lm) | 15mA | 25°C | 54V | 177 lm/W | 20mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF3.EM-LQLT-25S5-1-15-T02LED COB DURIS WH LNR STRP 2500K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2500K | - | Linear Light Strip | 143lm (121lm ~ 164lm) | 15mA | 25°C | 54V | 177 lm/W | 20mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF3.EM-LQLT-27S5-1-15-T02LED COB DURIS WH LNR STRP 2700K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Linear Light Strip | 143lm (121lm ~ 164lm) | 15mA | 25°C | 54V | 177 lm/W | 20mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF2.EM-LQLT-27S5-1-30-T02LED COB DURIS WH LNR STRP 2700K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Linear Light Strip | 143lm (121lm ~ 164lm) | 30mA | 25°C | 27V | 177 lm/W | 40mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF2.EM-LQLT-22S5-1-30-T02LED COB DURIS WH LNR STRP 2200K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2200K | - | Linear Light Strip | 143lm (121lm ~ 164lm) | 30mA | 25°C | 27V | 177 lm/W | 40mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T3LSF2.EM-LQLT-25S5-1-30-T02LED COB DURIS WH LNR STRP 2500K |
0 |
|
برگه مشخصات |
DURIS® L 38 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2500K | - | Linear Light Strip | 143lm (121lm ~ 164lm) | 30mA | 25°C | 27V | 177 lm/W | 40mA | 82 | 360° | - | 32.00mm L | 1.80mm | - | Flat |
|
|
GW T5LWF1.EM-FA1-20S5-X12-020-T01-XXLED COB DURIS L38 SMD |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW T5LWF1.EM-FA3-30S5-X12-020-T01-XXLED COB DURIS L38 SMD |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
