COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

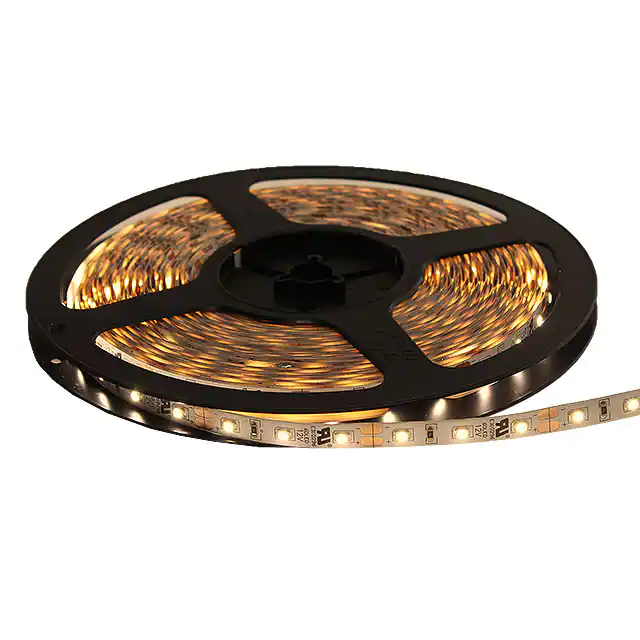

12V-SB-WW-12MLED ENG WRM WHT 3000K 12M REEL |
3,471 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip, Flexible | 85lm (Typ) | - | - | 12V | - | - | 92 | 120° | - | 12000.0mm L x 8.00mm W (46.99mm L per Segment) | 1.50mm | - | Flat |
|
BXRV-DR-1830H-1000-A-13LED COB VESTA WM WHT RECT 2400K |
889 |
|
برگه مشخصات |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 570lm (Typ) | 350mA | 25°C | 17V | 96 lm/W | 420mA | 95 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia | Flat |
|
BXRV-DR-1830H-1000-B-13LED COB VESTA WM WHT RECT 2400K |
1,092 |
|
برگه مشخصات |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 1150lm (Typ) | 350mA | 25°C | 33.8V | 97 lm/W | 420mA | 95 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia | Flat |
|
BXRV-DR-1830G-1000-B-13LED COB VESTA WM WHT RECT 2400K |
629 |
|
برگه مشخصات |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 1360lm (Typ) | 350mA | 25°C | 33.8V | 115 lm/W | 420mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia | Flat |
|
BXRV-TR-2765G-10A0-A-23LED COB VESTA WHITE SQUARE 4600K |
245 |
|
برگه مشخصات |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 1177lm (Typ) | 500mA | 25°C | 18V | 128 lm/W | 700mA | 92 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia | Flat |
|
BXRE-27S1001-B-73LED COB V10 THRIVE WHT SQ 2700K |
1,060 |
|
برگه مشخصات |
Gen 7 V10 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 903lm (Typ) | 270mA | 85°C | 33.7V | 99 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|
BXRC-30E1000-D-73LED COB VERO WHT STARBRD 3000K |
1,244 |
|
برگه مشخصات |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1406lm (Typ) | 350mA | 25°C | 26V | 155 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27G1000-D-73LED COB VERO WM WH STARBRD 2700K |
1,012 |
|
برگه مشخصات |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1125lm (Typ) | 350mA | 25°C | 26V | 124 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-30G1000-D-73LED COB VERO WHT STARBRD 3000K |
696 |
|
برگه مشخصات |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1172lm (Typ) | 350mA | 25°C | 26V | 129 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
AB-FC02406-19700-XA2LED MOD AB-FC RGB LNR STRIP |
1,135 |
|
برگه مشخصات |
AB-FC | Tape & Reel (TR) | Active | LED Module | Red, Green, Blue (RGB) | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 90lm Red, 248lm Green, 56lm Blue | 840mA Red, 840mA Green, 840mA Blue | 25°C | 24V | 25 lm/W Red, 18 lm/W Green, 58 lm/W Blue | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W (100.00mm L per Segment) | 2.50mm | - | Flat |
|
BXRE-30E2000-C-73LED COB V13 WM WH SQUARE 3000K |
851 |
|
برگه مشخصات |
Gen 7 V13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3048lm (Typ) | 630mA | 85°C | 33.9V | 143 lm/W | 1.26A | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia | Flat |
|
BXRV-TR-2765G-20A0-A-23LED COB VESTA WHITE SQUARE 4600K |
225 |
|
برگه مشخصات |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 2312lm (Typ) | 500mA | 25°C | 35.9V | 129 lm/W | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.25mm Dia | Flat |
|
BXRC-30G2000-D-73LED COB VERO 13 WM WH RND 3000K |
338 |
|
برگه مشخصات |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1840lm (Typ) | 500mA | 85°C | 30.9V | 119 lm/W | 1A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-35E2000-D-73LED COB VERO 13 WM WHT RND 3500K |
183 |
|
برگه مشخصات |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2284lm (Typ) | 500mA | 85°C | 30.9V | 148 lm/W | 1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-30E2000-D-73LED COB VERO 13 WM WH RND 3000K |
126 |
|
برگه مشخصات |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2232lm (Typ) | 500mA | 85°C | 30.9V | 144 lm/W | 1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
BXRV-DR-1830H-3000-A-13LED COB VESTA WM WHT RECT 2400K |
311 |
|
برگه مشخصات |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 3300lm (Typ) | 950mA | 25°C | 34.1V | 102 lm/W | 1.05A | 95 | 110° | - | 24.00mm L x 20.00mm W | 1.70mm | 16.20mm Dia | Flat |
|
BXRE-30S2001-C-73V13C THRIVE |
435 |
|
برگه مشخصات |
Gen 7 V13 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2520lm (Typ) | 630mA | 25°C | 34.4V | 116 lm/W | 1.26A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 13.80mm Dia | Flat |
|
BXRE-30E2000-C-83LED COB V13 WM WH SQUARE 3000K |
570 |
|
برگه مشخصات |
Gen 8 V13 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2980lm (Typ) | 500mA | 25°C | 33.4V | 178 lm/W | 1.75A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|
BXRC-30E4000-D-73-SELED COB VERO WHT RND 3000K |
299 |
|
برگه مشخصات |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4193lm (Typ) | 1.05A | 85°C | 28.3V | 141 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
|
|
BXRC-40E4000-D-73-SELED COB VERO SE 18 WHT RND 4000K |
245 |
|
برگه مشخصات |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 4345lm (Typ) | 1.05A | 85°C | 28.3V | 146 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
