COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU048-1812C4-30AL7K3LED COB CLU048 WM WHT SQ 3000K |
0 |
|
برگه مشخصات |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8601lm (Typ) | 1.08A | 85°C | 52V | 153 lm/W | 2.76A | 70 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1812C4-273M2K1LED COB CLU048 WARM WHT SQ 2700K |
0 |
|
برگه مشخصات |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7787lm (Typ) | 1.08A | 85°C | 52V | 139 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1812C4-303H5K2LED COB CLU048 WM WHT SQ 3000K |
0 |
|
برگه مشخصات |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6724lm (Typ) | 1.08A | 85°C | 52V | 120 lm/W | 2.76A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1812C4-403H7K4LED COB CLU048 NEUT WHT SQ 4000K |
0 |
|
برگه مشخصات |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6318lm (Typ) | 1.08A | 85°C | 52V | 113 lm/W | 2.76A | 97 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
CXB3590-0000-000R0HCB30GLED COB XLAMP WARM WHT SQ 3000K |
2 |
|
برگه مشخصات |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 72V | 133 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
AB-FA01230-19712-8A1LED MOD AB-FA WH LNR STRP 3000K |
0 |
|
برگه مشخصات |
AB-FA | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 720lm | 660mA | 25°C | 12V | 91 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
AB-FG024RB-07812-XA1LED MOD AB-FG BLU/RED LNR STRP |
2 |
|
برگه مشخصات |
AB-FG | Bag | Active | LED Module | Blue, Red | - | 458nm Blue, 655nm Red | Linear Light Strip, Flexible | 269lm Blue, 269lm Red | 960mA | - | 24V | 23 lm/W Blue, 23 lm/W Red | - | - | 120° | IP65 | 1981.20mm L x 14.50mm W | 6.50mm | - | Flat |
|
AB-GES-L28112W404T2LED ENG AB-GES WH LNR STR 4000K |
0 |
|
برگه مشخصات |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K | - | Linear Light Strip | 1400lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 280.00mm L x 24.00mm W | - | - | Flat |
|
|
AB-FA02430-19712-8A1LED MOD AB-FA WH LNR STRP 3000K |
1 |
|
برگه مشخصات |
AB-FA | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 760lm | 330mA | 25°C | 24V | 96 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
ZWF-638-24WWLED MOD ALUMILINE WH LNR STRP 2' |
1 |
|
برگه مشخصات |
ALUMILINE® ZWF | Tube | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Plug and Play | 435lm | 240mA | 25°C | - | - | - | - | - | IP67 | 638.00mm L x 12.70mm W | - | - | Flat |
|
|
CXB3590-0000-000N0HCD50GLED COB XLAMP COOL WHT SQU 5000K |
3 |
|
برگه مشخصات |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|

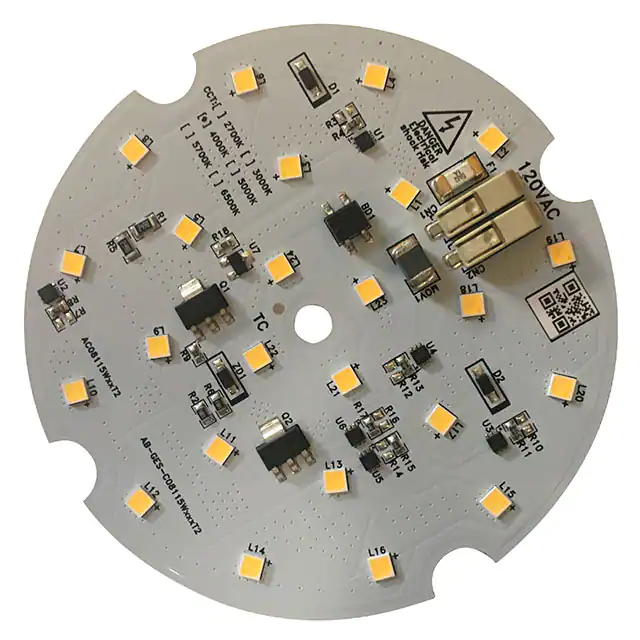

AB-GES-C08115W403T2LED ENG AB-GES NEUT WH RND 4000K |
0 |
|
برگه مشخصات |
AB-GES | Bag | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1300lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 80.00mm Dia | - | - | Flat |
|
|
ZWF-438-24WWLED MOD ALUMILINE LNR STRP 1.5' |
1 |
|
برگه مشخصات |
ALUMILINE® ZWF | Tube | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Plug and Play | 340lm | 162mA | 25°C | - | - | - | - | - | IP67 | 438.00mm L x 12.70mm W | - | - | Flat |
|
|
CLU048-1818C4-303H5K2LED COB CLU048 WM WHT SQ 3000K |
0 |
|
برگه مشخصات |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9815lm (Typ) | 1.62A | 85°C | 52V | 117 lm/W | 4.14A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
AB-FC02430-19712-8A1LED MOD AB-FC WH LNR STRP 3000K |
0 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 760lm | 330mA | - | 24V | 96 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
CVM-27-56-95-36-AB00-F2-2LED COB CVM STUDIO WHT SQ 5600K |
0 |
|
برگه مشخصات |
CVM Studio | Tray | Active | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | 12500lm (Typ) | 4.2A | 100°C | 36V | 83 lm/W | 4.2A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
|
4931LED PROSERIES 42 WRM WHT 3PNL PK |
0 |
|
برگه مشخصات |
PRO Series | - | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | - | - | - | 12V | - | - | 83 | - | - | - | 1.50mm | - | Flat |
|
3617LED PROSERIES 42 NEU WHT 3PNL PK |
0 |
|
برگه مشخصات |
PRO Series | - | Active | LED Module | White, Neutral | 4200K | - | Linear Light Strip | - | - | - | 12V | - | - | 83 | - | - | - | 1.50mm | - | Flat |
|
CLU058-1825C4-403M2K1LED COB CLU058 NEUT WHT SQ 4000K |
1 |
|
برگه مشخصات |
CLU058 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 17936lm (Typ) | 2.25A | 85°C | 52V | 153 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
SBR-90-R-R75-HN100LED MOD SBR-90 RED STARBOARD |
0 |
|
برگه مشخصات |
SBR-90 | Tray | Active | LED Module | Red | - | - | Starboard | 1350lm (Typ) | 13.5A | 25°C | 2.7V | 37 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
