COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB-FD01240-19712-8A1LED MOD AB-FD WH LNR STRP 4000K |
1 |
|
برگه مشخصات |
AB-FD | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 720lm | 660mA | - | 12V | 91 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 12.50mm W | 6.50mm | - | Flat |
|
|
AB-FD02430-19712-8A1LED MOD AB-FD WH LNR STRP 3000K |
0 |
|
برگه مشخصات |
AB-FD | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 720lm | 330mA | - | 24V | 91 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 12.50mm W | 6.50mm | - | Flat |
|
PT-54-RAX-L35-MPMLED MOD PT-54 RED RECT |
0 |
|
برگه مشخصات |
PT-54 | Tray | Active | LED Module | Red | - | 613nm | Rectangle | 1443lm (1275lm ~ 1610lm) | 13.5A | 40°C | 3V | 36 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
CLU058-1825C4-403H5K2LED COB CLU058 NEUT WHT SQ 4000K |
0 |
|
برگه مشخصات |
CLU058 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 14803lm (Typ) | 2.25A | 85°C | 52V | 127 lm/W | 5.75A | 90 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-303M2K1LED COB CLU058 WM WHT SQ 3000K |
0 |
|
برگه مشخصات |
CLU058 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 17398lm (Typ) | 2.25A | 85°C | 52V | 149 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-303H5K2LED COB CLU058 WM WHT SQ 3000K |
0 |
|
برگه مشخصات |
CLU058 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 14372lm (Typ) | 2.25A | 85°C | 52V | 123 lm/W | 5.75A | 90 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
CBT-90-RX-L15-BM101LED MOD CBT-90 RED RECT |
0 |
|
برگه مشخصات |
CBT-90 | Tray | Active | LED Module | Red | - | 621nm (615nm ~ 627nm) | Rectangle | 870lm (770lm ~ 970lm) | 13.5A | 40°C | 2.8V | 23 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
ZFS-105000-12NWLED NEUT WHT LNR LGT STRIP 4250K |
1 |
|
برگه مشخصات |
- | Bulk | Active | LED Module | White, Neutral | 4250K | - | Linear Light Strip, Flexible | 3990lm (Typ) | - | 25°C | 12V | - | 2.5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
|
|
PT-54-RAX-L35-MPNLED MOD PT-54 RED RECT |
0 |
|
برگه مشخصات |
PT-54 | Tray | Active | LED Module | Red | - | 613nm | Rectangle | 1488lm (1275lm ~ 1700lm) | 13.5A | 40°C | 3V | 37 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
LZC-C0UB00-00U4LED MOD LZC VIOLET STARBOARD |
0 |
|
برگه مشخصات |
LZC | Tray | Active | LED Module | Violet | - | 388nm (385nm ~ 390nm) | Starboard | - | 2 x 700mA | 25°C | 22V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
AB-FD01208-19712-8A1LED MOD AB-FD RGBW LNR STRIP |
0 |
|
برگه مشخصات |
AB-FD | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 1.18A Red, 1.18A Green, 1.18A Blue, 1.18A White | - | 12V | 6 lm/W Red, 16 lm/W Green, 4 lm/W Blue, 24 lm/W White | - | 80 | 120° | IP68 | 5000.00mm L x 14.50mm W | 6.50mm | - | Flat |
|
ZFS-245000WWLED ENG WM WHT LNR STRP 3100K 5M |
1 |
|
برگه مشخصات |
- | Strip | Active | LED Engine | White, Warm | 2700K ~ 3100K | - | Linear Light Strip, Flexible | 3650lm | 2.165A | 25°C | 24V | 70 lm/W | 2.165A | - | 120° | - | 5000.00mm L x 10.00mm W (100.00mm L per Segment) | 2.08mm | - | Flat |
|

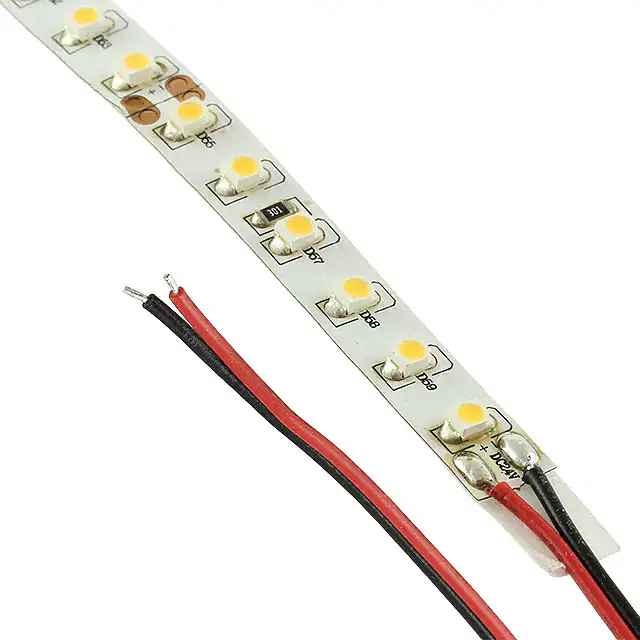

ZFS-84000-WWLED ENG WM WHT LNR STRP 3050K 4M |
1 |
|
برگه مشخصات |
- | Bulk | Active | LED Engine | White, Warm | 3050K | - | Linear Light Strip, Flexible | 1940lm (Typ) | 1.44A | 25°C | 24V | 56 lm/W | - | - | 120° | - | 4000.00mm L x 8.00mm W | 2.43mm | - | Flat |
|
CXB3590-0000-000N0YBD56QLED COB XLAMP COOL WHT SQ 5600K |
1 |
|
برگه مشخصات |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5600K | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
ZFS-8500BND-CWLED ENG CL WH LNR STRP 6000K 1=5 |
1 |
|
برگه مشخصات |
- | Strip | Active | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 4760lm | 5A | - | 12V | 79 lm/W | 5A | - | 120° | - | 101.60mm L x 8.64mm W (50.80mm L per Segment) | - | - | Flat |
|
ZFS-105000-DBWLED ENG CL WH LNR STRIP 6475K 5M |
1 |
|
برگه مشخصات |
- | Bulk | Active | LED Engine | White, Cool | 6475K | - | Linear Light Strip, Flexible | 1740lm (Typ) | 2.1A | 25°C | 12V | 69 lm/W | - | - | 120° | - | 5000.00mm L x 10.00mm W | 2.40mm | - | Flat |
|
AB-FB01240-19712-8A1LED MOD AB-FB WH LNR STRP 4000K |
0 |
|
برگه مشخصات |
AB-FB | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 840lm | 870mA | - | 12V | 80 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 15.00mm W | 14.00mm | - | Flat |
|
|
CLU058-3618C4-50AL7K3LED COB CLU058 COOL WHT SQ 5000K |
0 |
|
برگه مشخصات |
CLU058 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 26615lm (Typ) | 1.62A | 85°C | 112.3V | 146 lm/W | 4.14A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
AB-FF01250-19712-8A1LED MOD AB-FF LNR STRIP |
0 |
|
برگه مشخصات |
AB-FF | Tray | Active | LED Module | - | - | - | Linear Light Strip, Flexible | - | - | - | - | - | - | - | 90° | IP68 | 5000.00mm L x 22.00mm W | 11.80mm | - | Flat |
|
|
AB-FB01230-19712-8A1LED MOD AB-FB WH LNR STRP 3000K |
0 |
|
برگه مشخصات |
AB-FB | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 702lm | 870mA | - | 12V | 67 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 15.00mm W | 14.00mm | - | Flat |
